Brand: TCM – A pioneering Japanese material handling brand founded in 1949, credited with creating Japan’s first forklift. Now part of the Hitachi Group, it boasts 72+ years of manufacturing heritage and operates global production bases in Japan, China, Europe, and Thailand. With 180+ authorized service centers and 9 regional parts warehouses (Dubai, Singapore, Johannesburg, etc.), TCM maintains a strong presence in emerging markets, particularly excelling in the 6-10 ton heavy-duty forklift segment. Its products are renowned for Isuzu engine reliability, rugged construction, and tailored adaptability to hot, dusty, and coastal environments, trusted by port operators, logistics hubs, and construction firms worldwide.

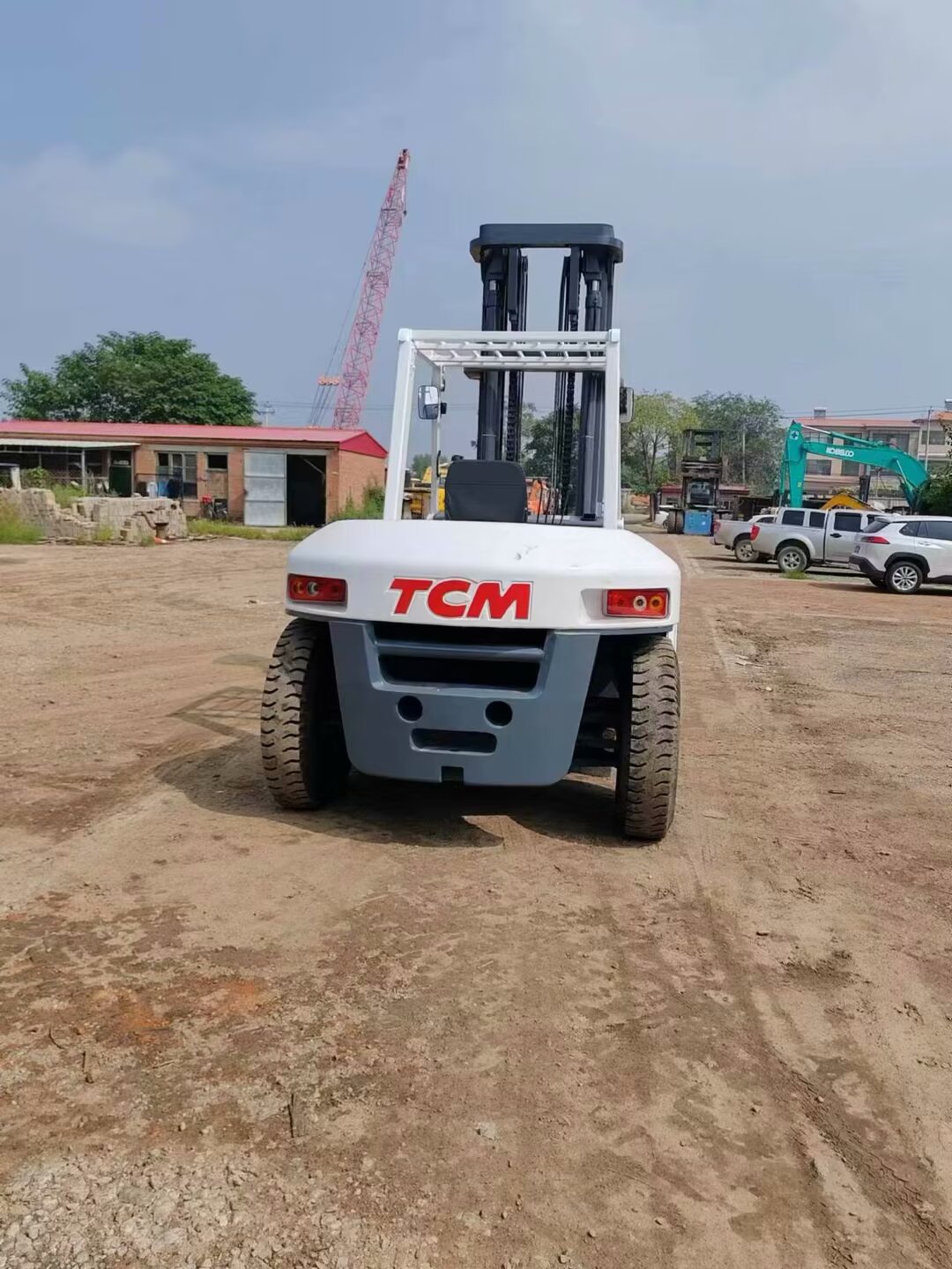

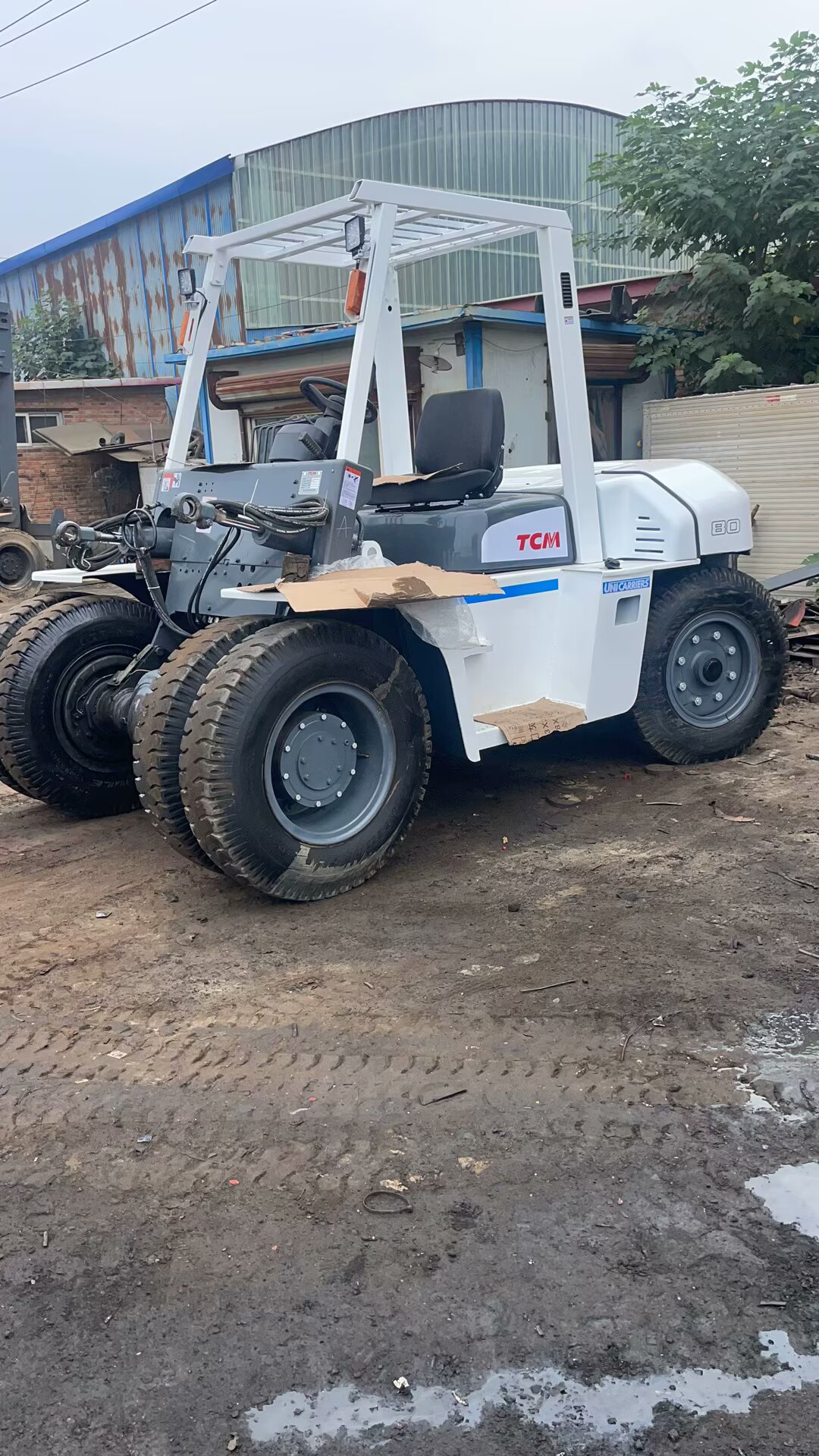

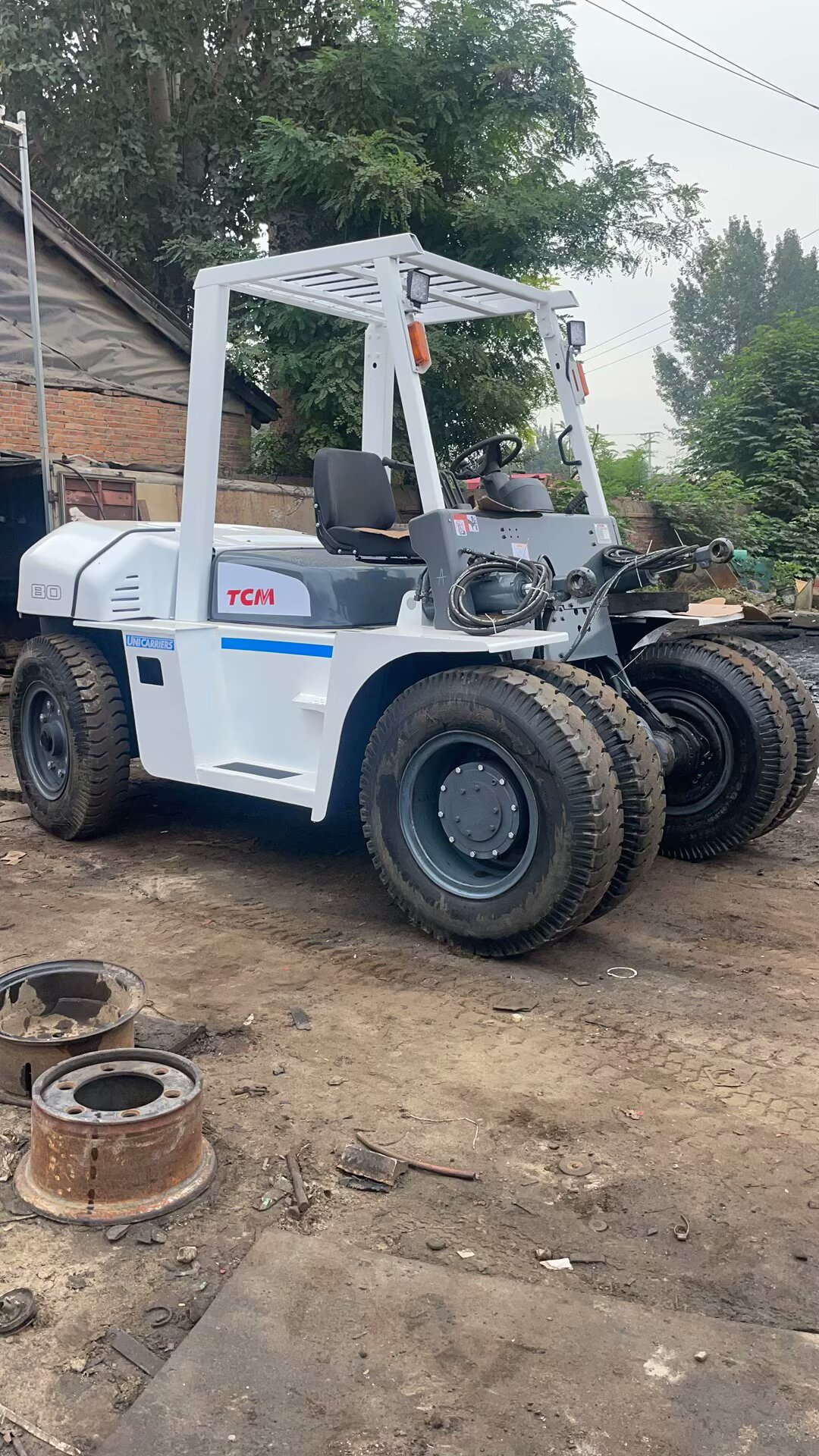

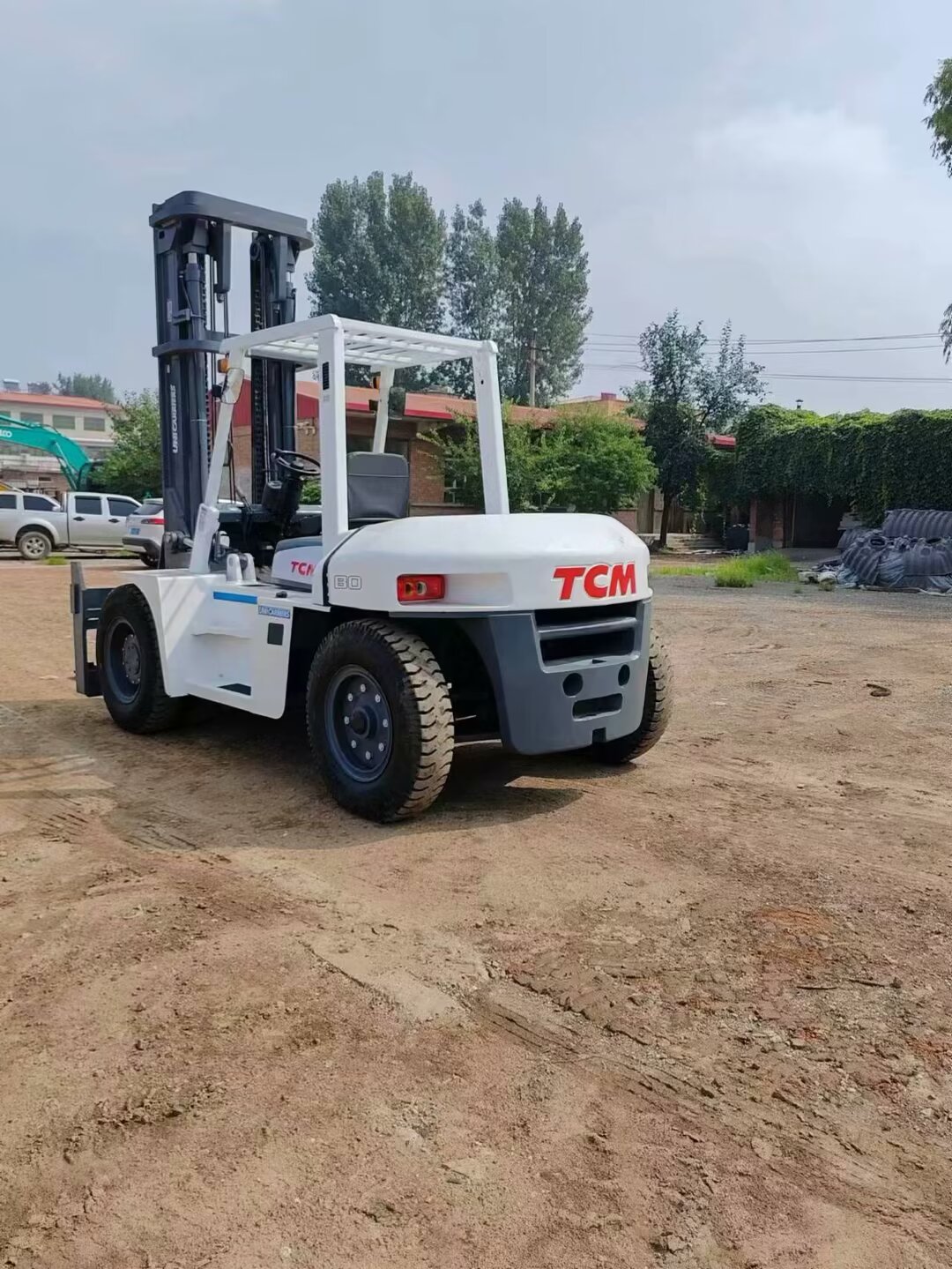

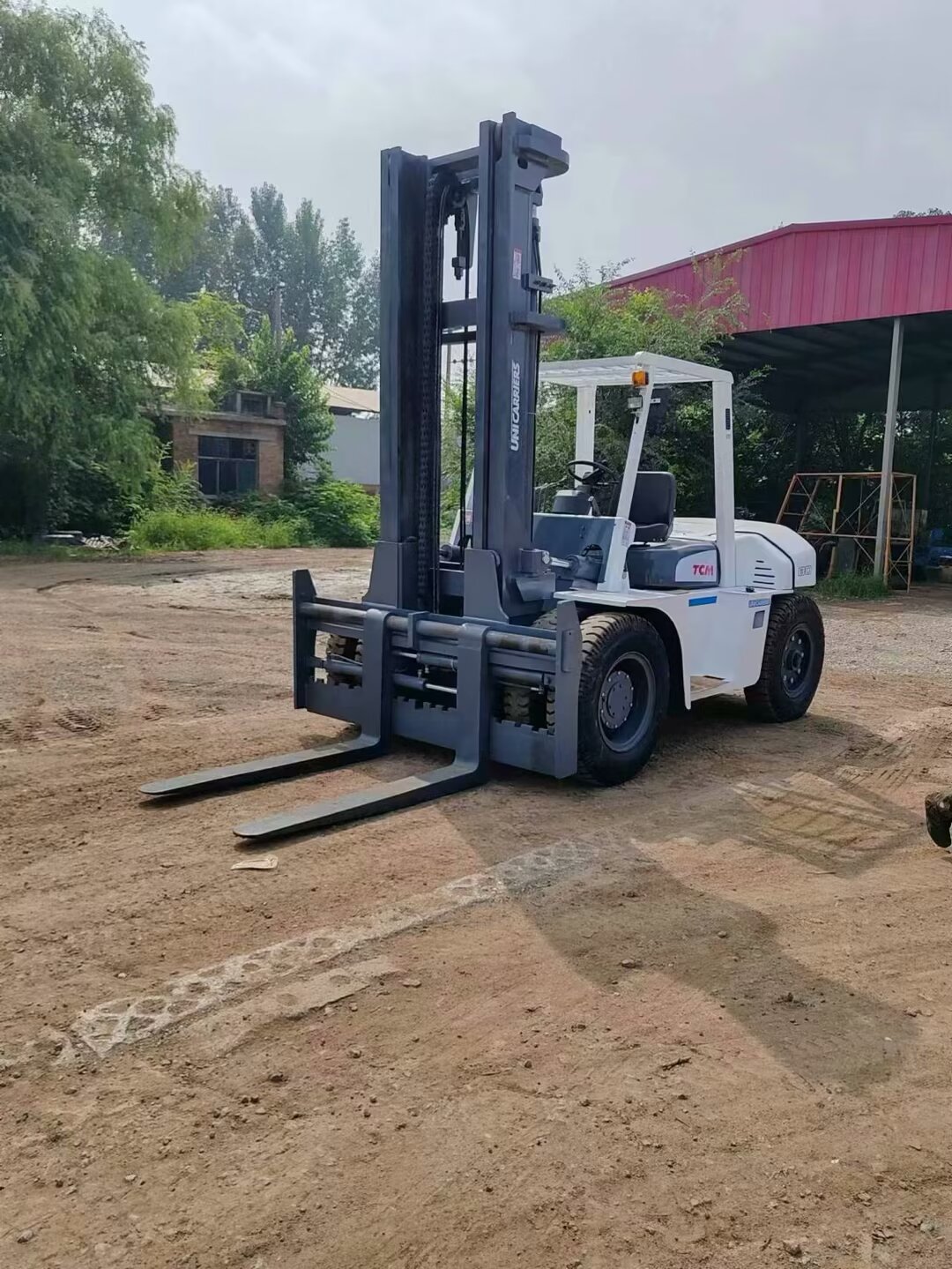

Model: TCM FD80Z8 (production years 2010-2018) – An 8-ton flagship model in TCM’s Z8 heavy-duty series, engineered for extreme load-bearing scenarios. Key core specs: Rated load of 8000kg (at 600mm load center); standard lift height of 3000mm (upgradable to 8000mm with a 4-stage full-free lift mast); minimum turning radius of 3650mm; powered by an Isuzu 6BG1 turbocharged diesel engine paired with a 3-speed automatic transmission (3 forward/3 reverse gears); compliant with Tier 2/EU Stage II emission standards. It outperforms in heavy container handling, high-volume warehouse stacking, and outdoor rough-terrain operations, becoming the preferred choice for Middle Eastern port authorities and Southeast Asian industrial enterprises due to its 8-ton payload capacity, stable performance, and low long-term operational costs.
Dimensions: 3940mm (overall length, excluding forks) × 2165mm (overall width) × 2560mm (overall height, mast lowered); minimum turning radius: 3650mm. The reinforced heavy-duty counterweight (3800kg) ensures unwavering stability when lifting 8-ton loads, even on slightly uneven ground. The body features anti-corrosion epoxy primer + TCM signature orange topcoat, forming a dual protective layer against salt spray, industrial dust, and chemical erosion—essential for coastal ports and construction sites. With an unloaded weight of 10,800kg, the forklift maintains optimal balance during high-lift operations, effectively reducing tipping risks and safeguarding operational safety.

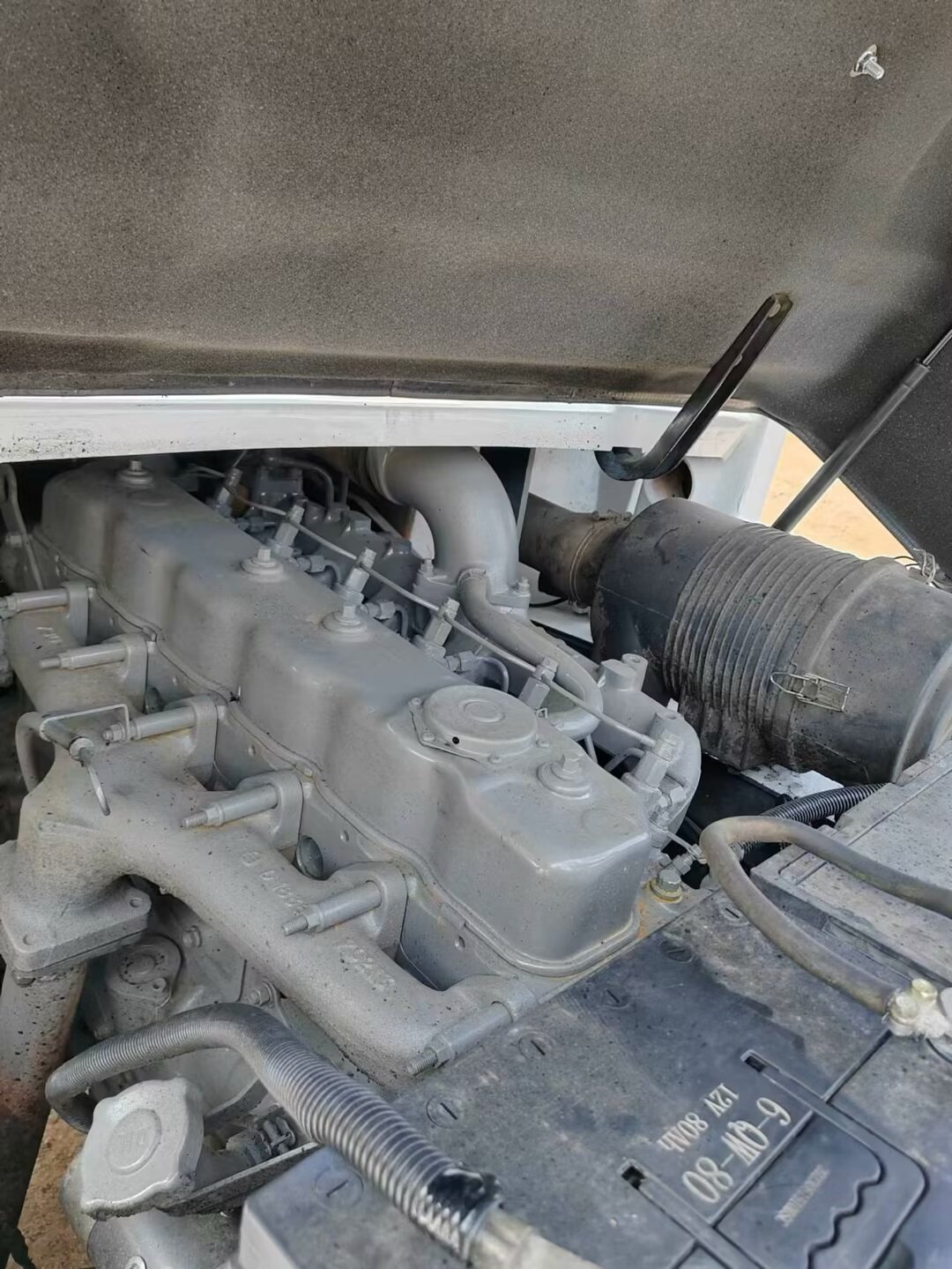

Equipped with the iconic Isuzu 6BG1 turbocharged diesel engine, the forklift delivers robust power output tailored for 8-ton loads—max power of 112kW @ 2200rpm and peak torque of 510N·m @ 1600rpm. This enables a loaded gradeability of 30% and unloaded gradeability of 38%, easily navigating steep ramps in port yards and construction sites without power loss. The load-sensing hydraulic system adapts to load demands, providing a lift speed of 420mm/s (loaded) and 480mm/s (unloaded), plus a lowering speed of 380mm/s, ensuring smooth, jerk-free handling of heavy cargoes like steel coils, concrete precast components, and large machinery parts. High-pressure resistant hydraulic hoses and imported NOK seals minimize leakage, even during 12-hour continuous operation, reducing maintenance downtime.
The spacious cab features an adjustable suspension seat with lumbar support and safety belt, significantly reducing operator fatigue during long 8-12 hour shifts. The low-noise design (≤85dB) creates a comfortable working environment amid busy port or warehouse settings. Ergonomically arranged controls—integrated joystick for hydraulic functions (lift, tilt, side shift) and intuitive automatic transmission shifter—simplify operation, requiring only basic training for new operators to master. The 3650mm turning radius, combined with wide-view rearview mirrors and an optional reverse alarm, enhances maneuverability in crowded container yards and narrow warehouse aisles, improving work efficiency and safety.
- Rated load: 8000kg (600mm load center)
- Engine: Isuzu 6BG1 turbocharged diesel engine; maximum power 112kW @ 2200rpm; peak torque 510N·m @ 1600rpm; displacement 6.494L; compression ratio 17.5:1
- Transmission: 3-speed automatic power shift transmission; forward speeds: 6.5km/h (1st), 14km/h (2nd), 24km/h (3rd); reverse speeds: 6.5km/h (1st), 14km/h (2nd), 20km/h (3rd)
- Lift system: Load-sensing hydraulic system; standard lift height 3000mm (triple mast), upgradable to 8000mm (4-stage mast); lift speed: 420mm/s (loaded), 480mm/s (unloaded); lowering speed: 380mm/s (loaded), 430mm/s (unloaded); fork tilt angle: forward 6°, backward 12°; fork dimensions: 1600×200×80mm (length×width×thickness)
- Overall dimensions: Length (without forks) 3940mm, width 2165mm, height (mast lowered) 2560mm, mast height (fully raised) 4600mm (standard mast)
- Maneuverability: Minimum turning radius 3650mm; gradeability (loaded) 30%, (unloaded) 38%
- Tires: Front: 16.00-25 20PR pneumatic tires; rear: 14.00-24 18PR pneumatic tires; tire pressure: front 9.0bar, rear 8.5bar
- Weight: Unloaded weight 10,800kg; counterweight weight 3800kg
- Capacity: Fuel tank 200L; hydraulic oil tank 130L; engine oil capacity 20L; coolant capacity 28L
- Hydraulic system: Working pressure 22MPa; gear pump displacement 85cc/rev; load-sensing control valve
- Braking system: Dual-circuit hydraulic drum brakes; parking brake (mechanical); braking distance ≤4.0m (at 10km/h loaded)
- Operator environment: Cab noise ≤85dB(A); adjustable suspension seat; hydraulic power steering (3.3 turns lock-to-lock)
- Strong Load-Bearing Capacity: 8000kg rated load (600mm load center) meets the demand for heavy cargo handling, such as 40ft container goods, large steel structures, and bulk construction materials, reducing the number of handling cycles and improving work efficiency.
- Reliable Engine Power: The Isuzu 6BG1 turbocharged engine is proven in heavy-duty scenarios, with a cast-iron block and forged crankshaft ensuring durability. It delivers consistent power for continuous high-load operations, with a service life of 10,500 hours (15% above industry average for 8-ton forklifts).
- Fuel Efficiency & Emission Compliance: Optimized fuel injection system achieves a fuel consumption of 9.0-9.8L per working hour, balancing power and efficiency. Tier 2/EU Stage II compliance eliminates the need for complex after-treatment systems (DPF/SCR), avoiding emission-related downtime and simplifying maintenance in emerging markets.
- Harsh Environment Adaptability: Double-layer air filter + high-efficiency oil-water separator effectively blocks dust, sand, and moisture, making it suitable for dusty Middle Eastern deserts and humid Southeast Asian construction sites.
- Load-Sensing Technology: Adjusts hydraulic pressure and flow based on load size, reducing energy waste by 15% compared to conventional systems. Ensures stable lifting/lowering of heavy cargoes without sudden movements, protecting both the load and equipment.
- Extended Mast Options: Standard 3000mm triple mast can be upgraded to 8000mm 4-stage full-free lift mast, enabling stacking in 12m-high warehouses and meeting high-density storage needs of large logistics centers.
- Low Maintenance Costs: Hydraulic oil replacement cycle extended to 4500 hours (vs. 3000 hours for competitors); imported seals reduce leakage by 85%, minimizing oil loss and maintenance frequency. Annual hydraulic system maintenance costs are 22% lower than similar models.
- Comprehensive Safety Protection: FOPS (Falling Object Protective Structure) and ROPS (Roll-Over Protective Structure) certified cab; dual-circuit braking system ensures stopping power even if one circuit fails; load backrest prevents cargo from sliding forward; optional reverse camera enhances visibility in blind spots.
- Operator-Centric Comfort: Spacious cab with optional air conditioning (ideal for hot climates like UAE, Saudi Arabia); ergonomic control layout reduces hand/wrist strain; low noise and vibration levels improve operator focus and reduce fatigue during long shifts.
- Superior Maneuverability: Despite 8-ton capacity, the 3650mm turning radius allows operation in 5.5m-wide aisles. Compact overall design enables transportation via 40-foot HC container (1 unit per container) with minimal disassembly, lowering logistics costs for foreign trade buyers.
- Heavy-Duty Frame: Welded high-strength steel frame with reinforced side guards and impact-resistant counterweight; anti-corrosion paint extends service life by 25% in coastal salt-spray environments and industrial chemical settings.
- Easy Maintenance: All key service points (engine oil, hydraulic oil, filters, battery) are accessible from ground level, eliminating the need for lifting equipment. Daily checks can be completed in 10 minutes, reducing maintenance time by 25%.
- Global Parts & Service: Common parts (filters, brake pads, tires) are stocked in TCM’s regional warehouses, with 5-12 day delivery to Middle Eastern and Southeast Asian markets. Critical components (engine, transmission) come with a 1-year warranty; local service partners provide on-site repairs within 48 hours in major cities.
- Port Container Handling: 8-ton load capacity perfectly matches the weight of heavy containerized cargo (e.g., machinery, steel products, construction equipment). Anti-salt-spray design withstands coastal conditions, making it suitable for ports like Jebel Ali (Dubai), Port Klang (Malaysia), and Haiphong (Vietnam).
- Heavy-Duty Warehousing: Ideal for stacking steel coils, cement bags, and large industrial equipment in high-shelf warehouses. Upgradable 8000mm mast supports high-density storage, maximizing warehouse space utilization.
- Construction Site Operations: 30% gradeability and heavy-duty pneumatic tires handle gravel, mud, and uneven terrain. Efficiently transports concrete precast components, steel beams, and building materials across construction sites, improving project progress.
- Industrial Production Lines: Deployed in automotive, heavy machinery, and chemical plants for raw material feeding (e.g., large steel sheets, engine blocks) and finished product handling. Low noise and stable operation make it suitable for semi-enclosed factory environments.

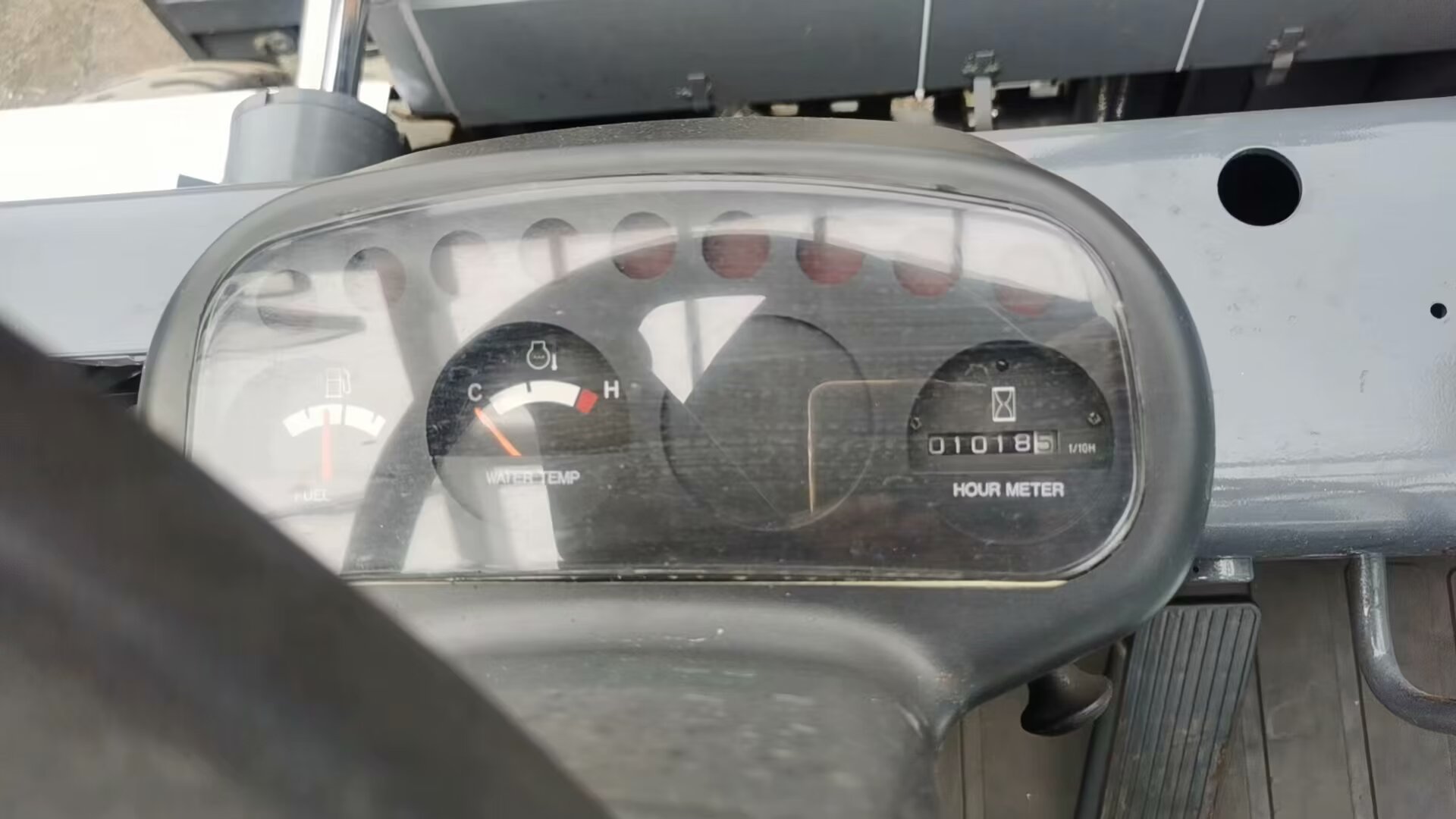

- Pre-shipment inspection by SGS/BV third-party authorities, covering engine power output, hydraulic system pressure, tire wear (minimum 60% tread remaining), working hours (verified via hour meter), and structural integrity. Detailed inspection report provided for customs clearance and buyer verification.
- Full compliance documentation: Certificate of Origin (CO), CE certificate (for EU markets), emission compliance reports, and import/export invoices tailored to the customs requirements of target countries (UAE, Saudi Arabia, Indonesia, Vietnam, etc.).
- Containerized transportation: 1 unit per 40-foot HC container, secured with steel brackets and wooden blocks to prevent movement during shipping. Critical components (engine, hydraulic system) coated with anti-rust oil; electrical parts wrapped in waterproof plastic; entire machine covered with UV-resistant shrink wrap for sea transport protection.
- On-site support: Professional technicians dispatched to the buyer’s location for assembly (if disassembled), system testing, and operator training (basic operation, maintenance, safety protocols). Training materials available in English, Arabic, and Bahasa Indonesia.
- Warranty: 1-year free warranty on parts (excluding wear items like tires, brake pads) and labor for manufacturing defects; optional 2-3 year extended warranty for long-term operational peace of mind.
- Technical support: 24/7 online assistance via email/WhatsApp for remote troubleshooting of common issues (e.g., hydraulic leaks, engine warnings).
- On-site repairs: Local TCM-authorized service partners provide on-site maintenance within 48 hours in major cities, minimizing downtime for critical operations.
The TCM FD80Z8 stands out as a top-tier 8-ton heavy-duty forklift, combining Japanese precision engineering with rugged performance tailored for emerging markets. Its Isuzu 6BG1 engine delivers reliable power for 8-ton loads while maintaining fuel efficiency, and the load-sensing hydraulic system ensures safe, precise cargo handling. The durable construction, anti-corrosion design, and easy maintenance reduce total cost of ownership, while the global parts and service network guarantees timely support. Whether for port container handling, heavy warehouse stacking, or construction site operations, the TCM FD80Z8 offers consistent performance, operational safety, and long-term reliability—backed by TCM’s 72-year legacy of manufacturing excellence. It’s the smart investment for businesses seeking a heavy-duty forklift that excels in harsh environments and high-intensity work scenarios.
For real-time quotes for new/used TCM FD80Z8 units, custom mast height upgrades (3m→8m), attachment options (side shifters, fork positioners, paper roll clamps), or multilingual operator training programs (English/Arabic/Bahasa), contact our sales team. We also provide tailored solutions for bulk orders (5+ units) and long-term maintenance contracts for port, logistics, and construction companies, ensuring seamless integration into your operations.
