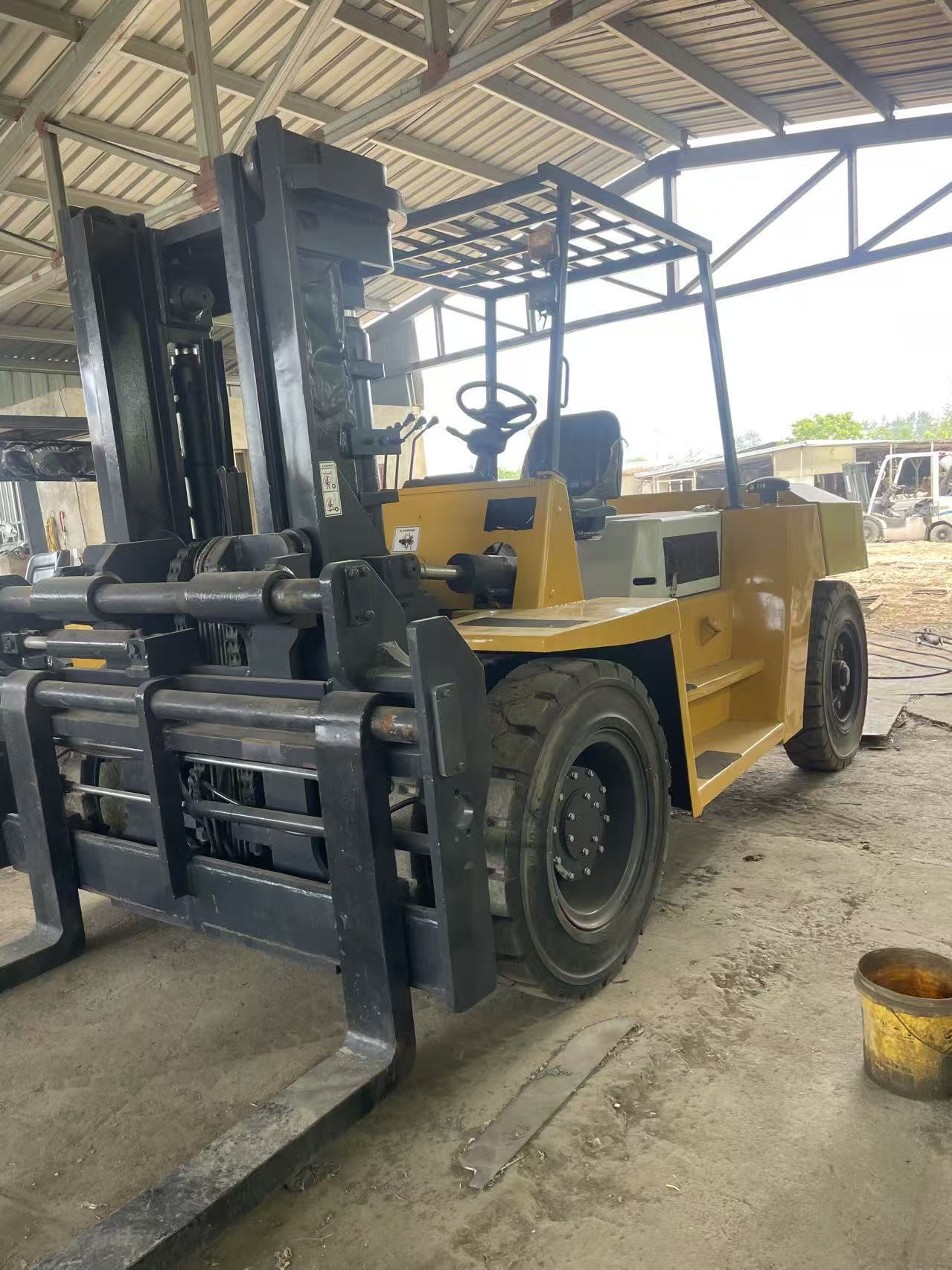

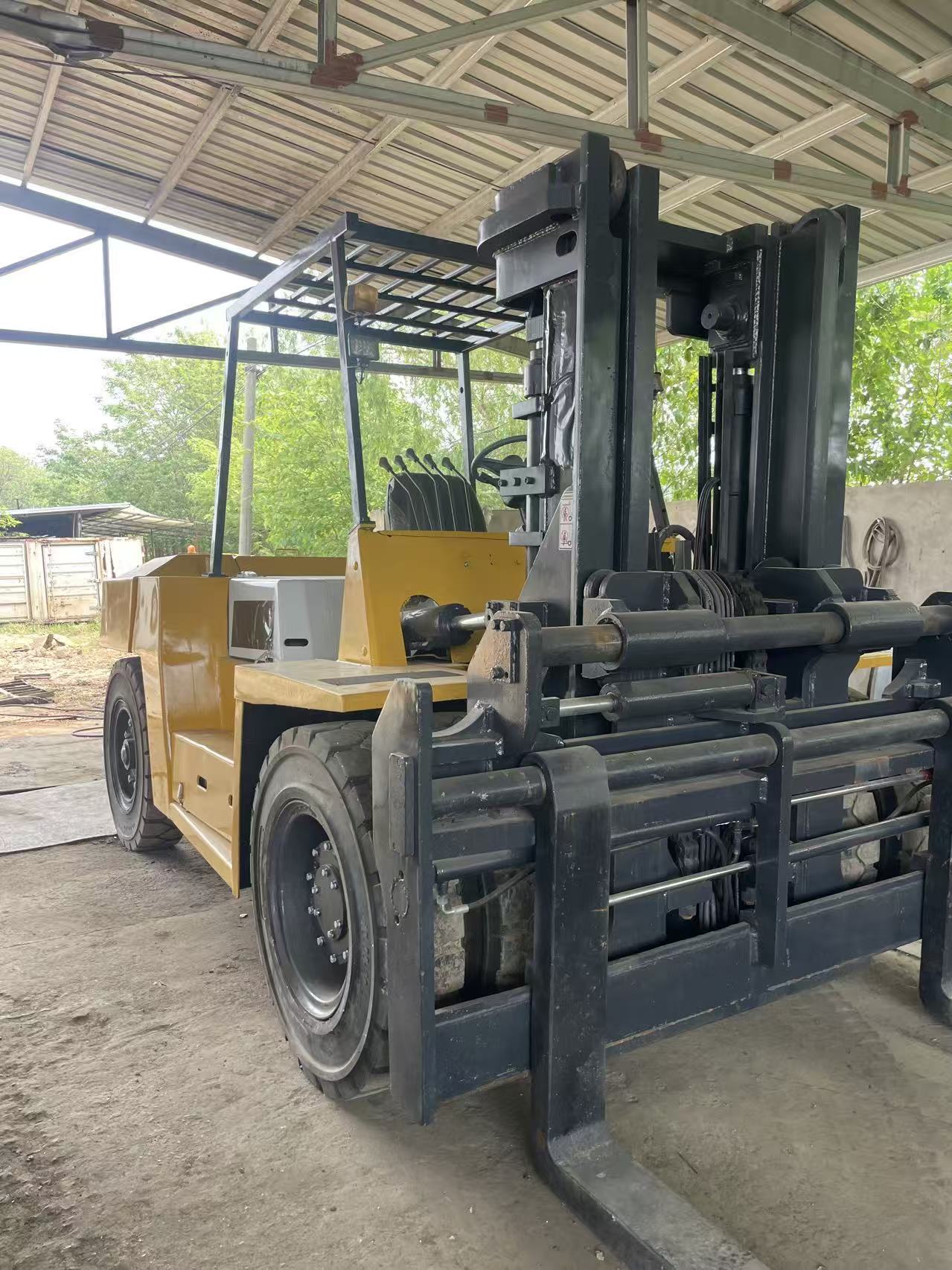

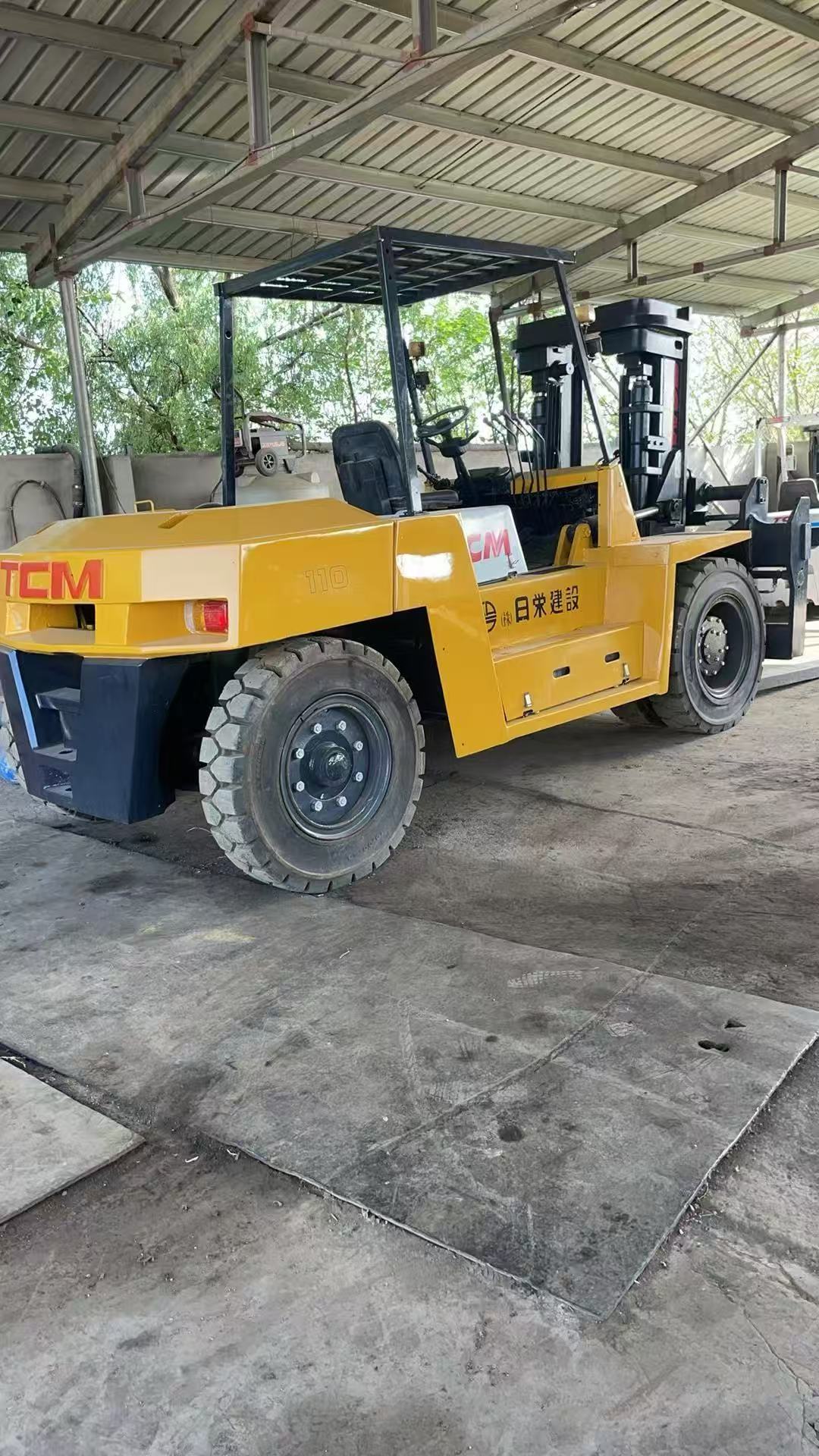

TCM FD100 Z7 10-Ton Heavy-Duty Diesel Forklift – Foreign Trade Sales Copy

Brand & Model Positioning

Brand: TCM

TCM, a renowned Japanese brand under the Hitachi Group, has a long-standing reputation for manufacturing high-quality, reliable material handling equipment. With decades of expertise in forklift engineering, TCM integrates precision manufacturing, advanced technology, and strict quality control to serve global markets spanning manufacturing, logistics, ports, and construction. The brand is trusted for its durable, fuel-efficient, and operator-friendly machines, backed by a comprehensive global service network. TCM’s commitment to innovation and performance makes it a top choice for customers seeking long-term value and productivity in heavy-duty material handling operations.

Model: TCM FD100 Z7

The TCM FD100 Z7 is a 10-ton class heavy-duty diesel forklift designed for intensive material handling in manufacturing, logistics, ports, and construction sites. It features a robust diesel engine, advanced transmission, and high-rigidity frame, delivering strong lifting capacity, smooth operation, and excellent fuel efficiency. Its compact design, small turning radius, and ergonomic cab ensure efficient, safe performance in high-cycle, space-constrained working conditions. Balancing power, maneuverability, and durability, the FD100 Z7 is the ideal choice for customers needing a versatile, reliable machine for heavy loads and frequent material movement.

Core Technical Specifications

1. Basic Parameters

• Operating Weight: 16,800 kg (16.8 tons)
• Rated Load Capacity: 10,000 kg (10 tons) at 600 mm load center
• Rated Power: 81.3 kW (109 HP) @ 2200 rpm
• Overall Dimensions: 5490 mm (L) × 2240 mm (W) × 2900 mm (H)
• Fuel Tank Capacity: 180 L (47.6 US gal)

2. Engine Performance

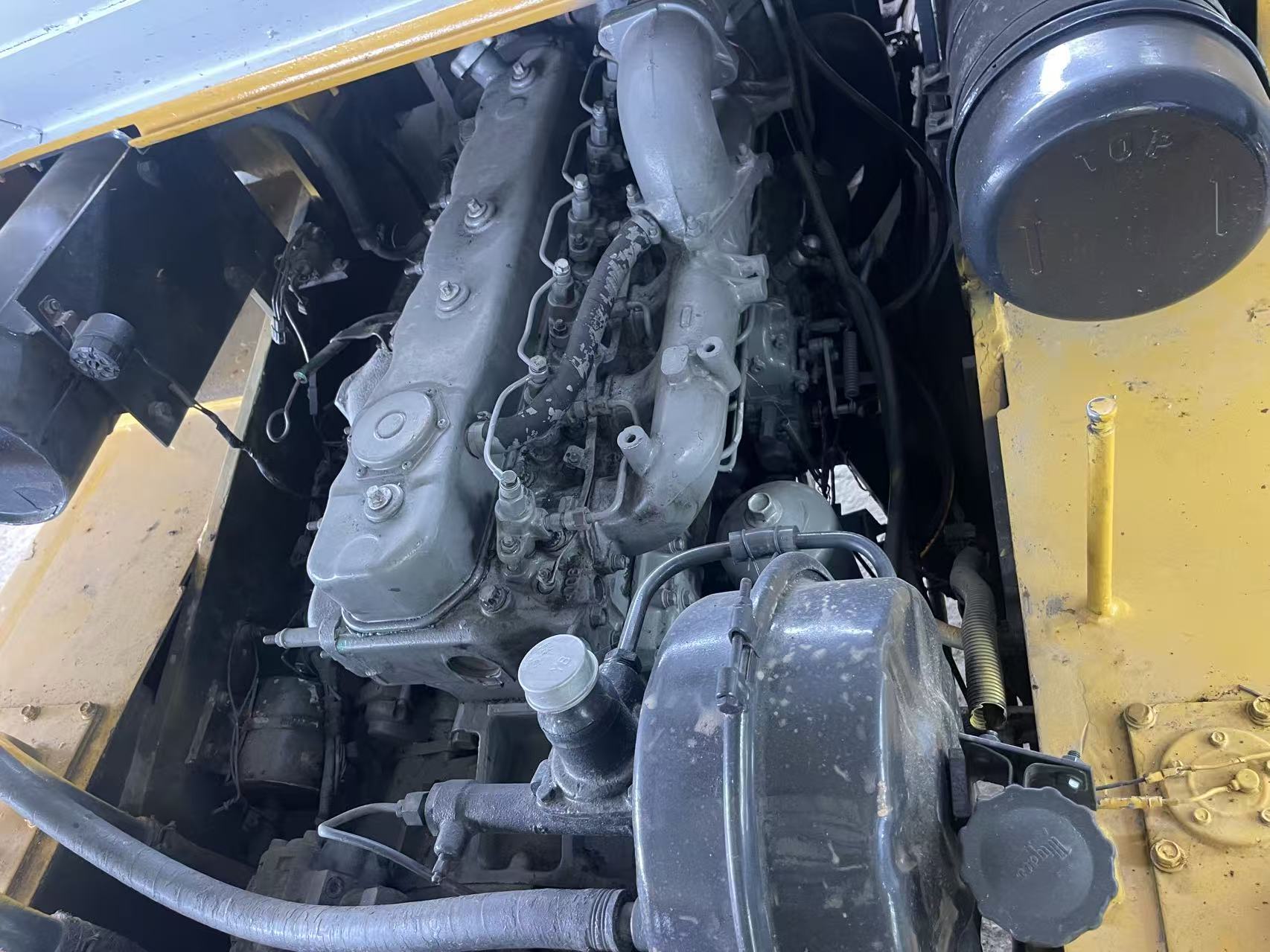

• Engine Model: Isuzu 4HK1X (4-cylinder, 4-cycle, turbocharged, aftercooled)
• Emission Compliance: US EPA Tier 3 / EU Stage 3A
• Displacement: 5.2 L
• Maximum Torque: 430 Nm @ 1600 rpm
• Cold-Start Performance: Reliable starting in low-temperature environments with optional pre-heater

3. Travel & Lifting Systems

• Travel Speed: 33 km/h (max)
• Gradeability: 25%
• Lifting Speed (Full Load): 460 mm/s
• Maximum Lifting Height: 3000 mm (standard, optional up to 6000 mm)
• Minimum Turning Radius (Outer): 4000 mm

4. Hydraulic & Control Systems

• Hydraulic System: Load-sensing, variable displacement piston pump, 150 L/min max flow
• Working Hydraulics: Pilot-controlled, 3-spool valve, 24,500 kPa relief pressure
• Hydraulic Cycle Time: Lift + Tilt + Lower + Return = 10.5 seconds
• Lifting Force: 100 kN (10,200 kgf)

5. Operator Cab

• ROPS/FOPS certified (ISO 3471/ISO 3449)
• Spacious, low-noise (78 dB) design with full sealing and insulation

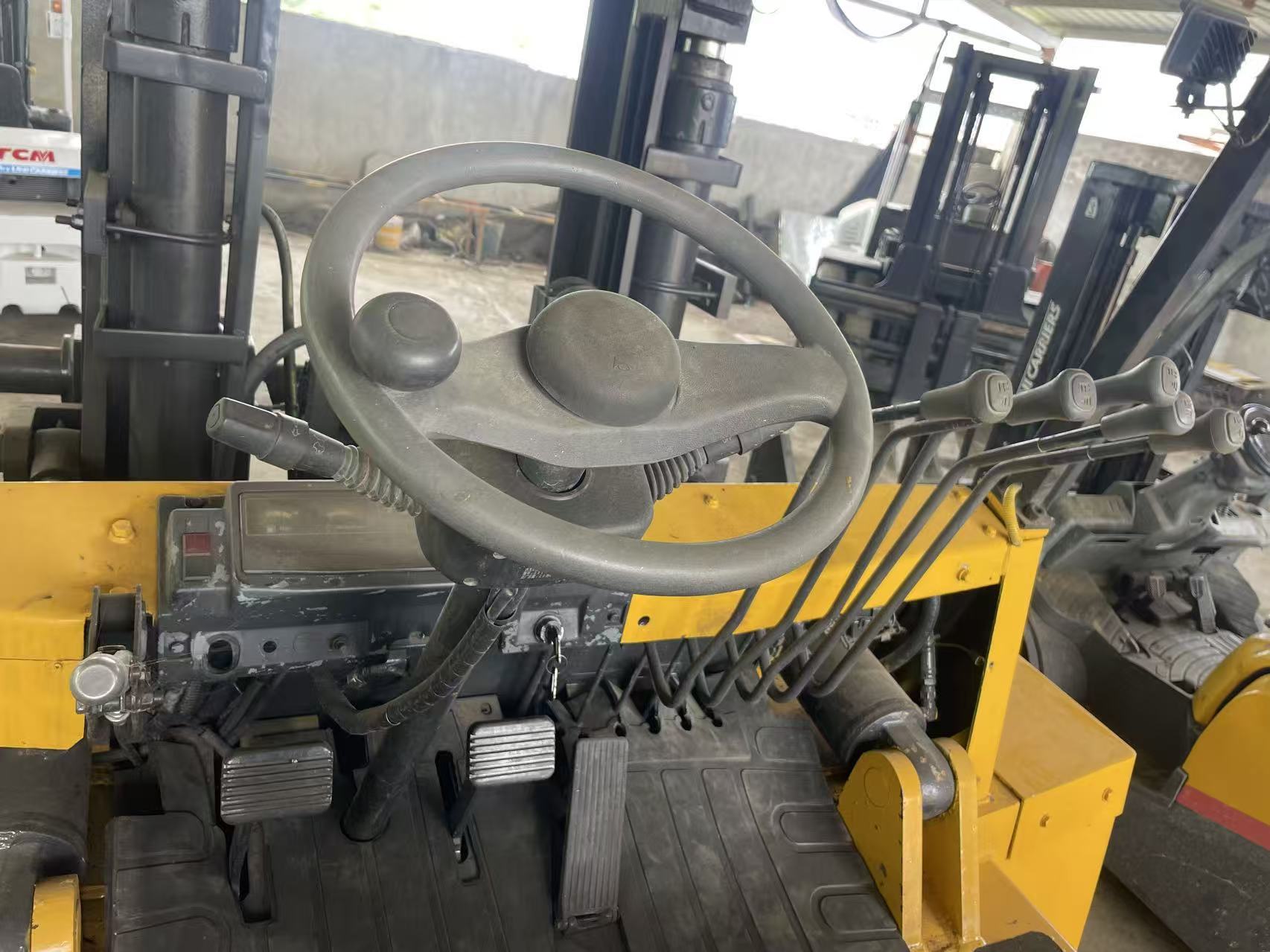

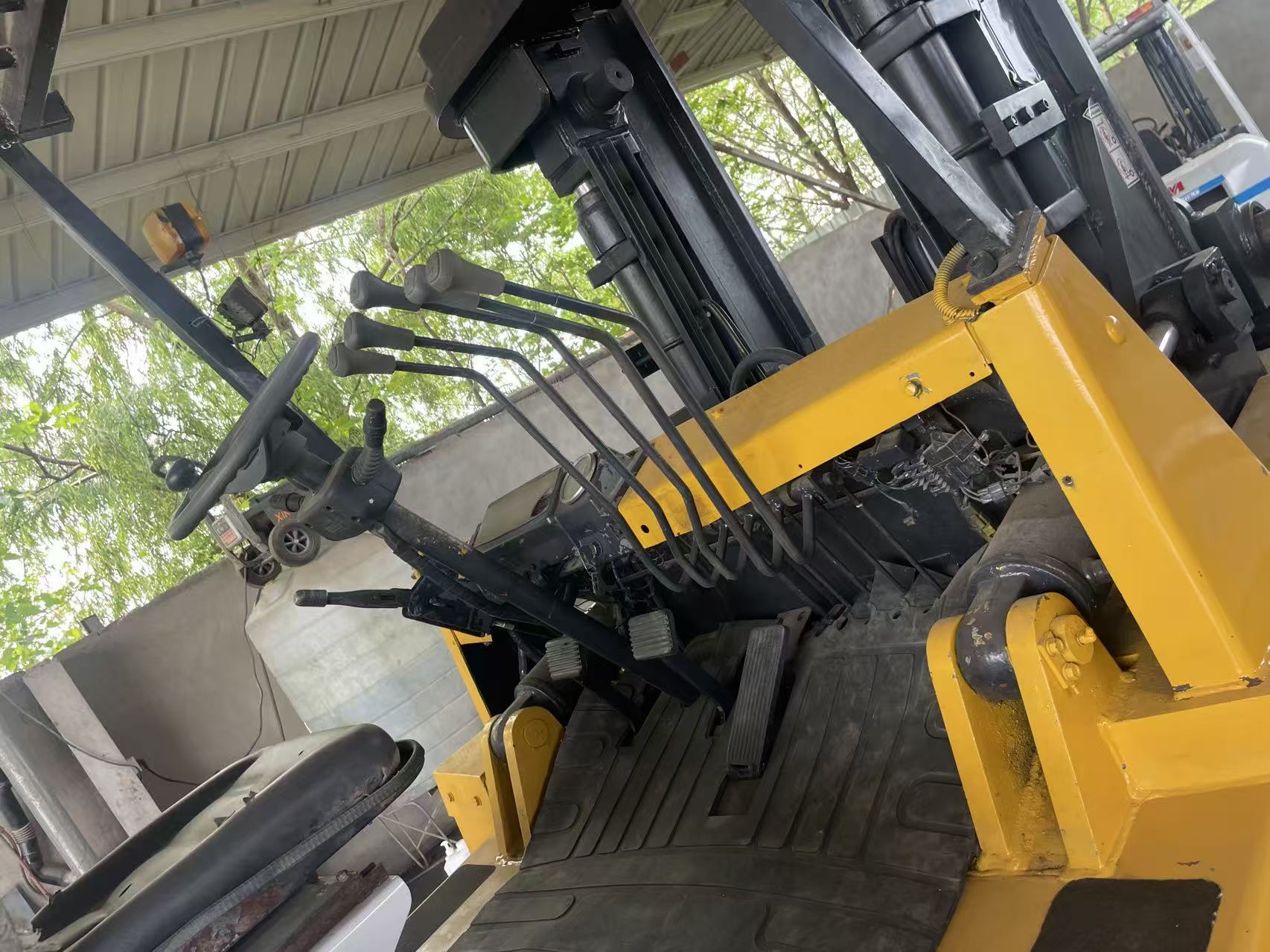

• Adjustable suspension seat, telescopic/tilt steering, and fingertip controls
• ISO-compliant air conditioning with filtration system
• Multi-information display for real-time machine status monitoring

6. Structural Durability

• Reinforced mast with thickened wear plates
• Heavy-duty forks with replaceable tips
• Robust frame and undercarriage for long service life
• Extended service intervals (500-hour oil change)

Core Advantages

1. High Load Capacity & Efficiency

• 10-ton rated load for heavy material handling
• Fast lifting speed (460 mm/s) and travel speed (33 km/h) for quick material movement
• Multiple mast and fork options (standard, long-reach, heavy-duty) to adapt to different tasks

2. Excellent Fuel Efficiency

• Isuzu engine with electronic control for clean, efficient combustion
• Load-sensing hydraulic system matches flow to demand, reducing power loss
• Eco-mode reduces fuel consumption during light loads by up to 10%

3. Exceptional Reliability

• Robust engine and transmission with long service intervals (500-hour oil change)
• Heavy-duty mast and reinforced structures withstand harsh conditions
• Advanced cooling system prevents overheating in extreme temperatures

4. Operator Comfort & Safety

• ROPS/FOPS certified cab with steel tube construction for enhanced protection
• Spacious design with large windows for maximum visibility
• Low noise/vibration with full insulation and suspension seat to reduce fatigue
• Overload alert system and parking brake for enhanced safety

5. Low Operating Costs

• Long service intervals and extended component life
• Fuel efficiency reduces daily operating expenses
• Easy access to service points for quick maintenance
• High resale value due to TCM’s reputation for durability

6. Global Service & Support

• TCM’s global network of authorized dealers for parts and service
• Remote monitoring system for real-time diagnostics
• 24/7 technical support via phone, email, or on-site service

Typical Application Scenarios

1. Manufacturing & Warehousing

• Heavy material storage and retrieval
• Production line feeding and finished goods handling

2. Port & Logistics

• Container loading and unloading
• Cargo handling in ports and intermodal terminals

3. Construction & Site Work

• Building material handling and site preparation
• Heavy equipment and component transportation

4. Mining & Quarry Operations

• Loading and transporting crushed stone, sand, and gravel
• Quarry material stockpiling and handling

5. Rental & Municipal Services

• Rental fleets for diverse customer needs
• Municipal construction and maintenance projects

Foreign Trade Service Guarantee

1. Customization Options

• Engine options (Tier 3 / Stage 3A compliant)
• Mast and fork options (standard, long-reach, heavy-duty)
• Special configurations for extreme environments (cold, hot, dusty)
• Multilingual documentation and operator manuals

2. Inspection & Certification

• Pre-shipment inspection by SGS, BV, or other third parties
• Export certifications (CO, Form E, Form F, etc.)
• Compliance with international standards (ISO, CE, EPA Tier 3)

3. Warranty & Training

• 1-year or 2000-hour global warranty
• Free operator and maintenance training
• Technical support via phone, email, or on-site

4. Spare Parts & After-Sales

• Fast delivery of genuine TCM parts
• Consignment stock available for key markets
• On-site service and maintenance contracts

Why Choose TCM FD100 Z7?

The TCM FD100 Z7 10-ton diesel forklift combines TCM’s engineering expertise with advanced technology to deliver a versatile, durable machine that excels in productivity, fuel efficiency, and reliability. Its Isuzu engine, load-sensing hydraulic system, and compact design ensure efficient operation and low operating costs. The ergonomic cab and robust structure make it ideal for manufacturing, logistics, and construction applications. Backed by TCM’s global service network and remote monitoring system, the FD100 Z7 offers peace of mind and high return on investment. For customers seeking performance, efficiency, and value, the TCM FD100 Z7 is the ultimate choice.

Contact Us

For real-time quotes, customization options, bulk discounts, or shipping details, contact our foreign trade team. We offer competitive pricing, flexible payment terms (LC, TT, DP), and door-to-door shipping worldwide. Our professional team provides one-stop service from product selection to after-sales support, helping you achieve business success.
