KOMATSU FD100-10 10-Ton Diesel Counterbalance Forklift – Foreign Trade Sales Copy

Brand & Model Positioning

Brand: KOMATSU

KOMATSU, a century-old Japanese leader in heavy machinery and material handling, is globally recognized for uncompromising reliability, fuel efficiency, and long service life. With an authorized dealer network spanning over 150 countries, KOMATSU focuses on operator safety, minimal total cost of ownership, and sustainable performance. Trusted by warehouses, ports, manufacturing plants, and logistics providers worldwide, KOMATSU forklifts deliver consistent productivity, low downtime, and comprehensive after-sales support, setting the industry benchmark for quality in material handling.

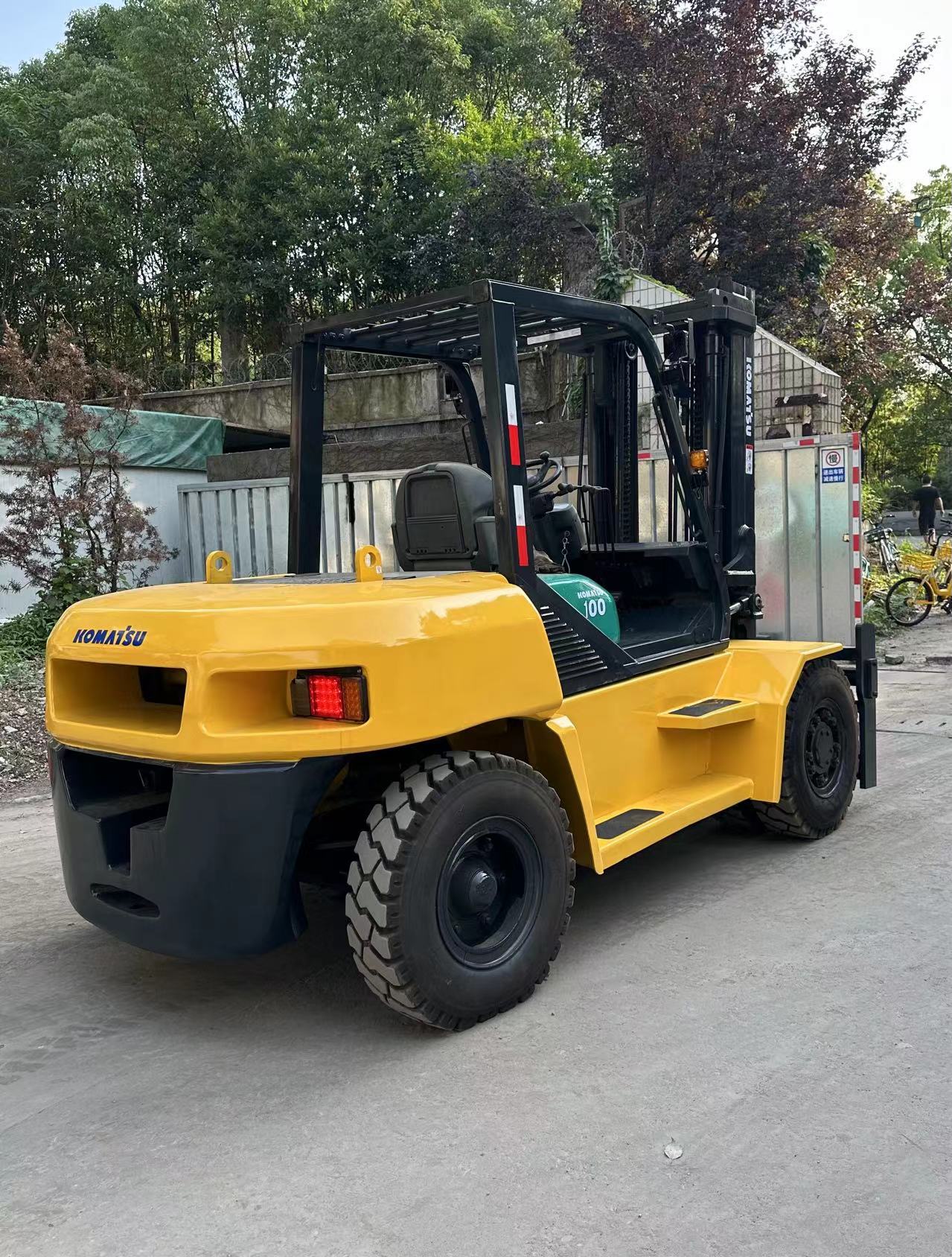

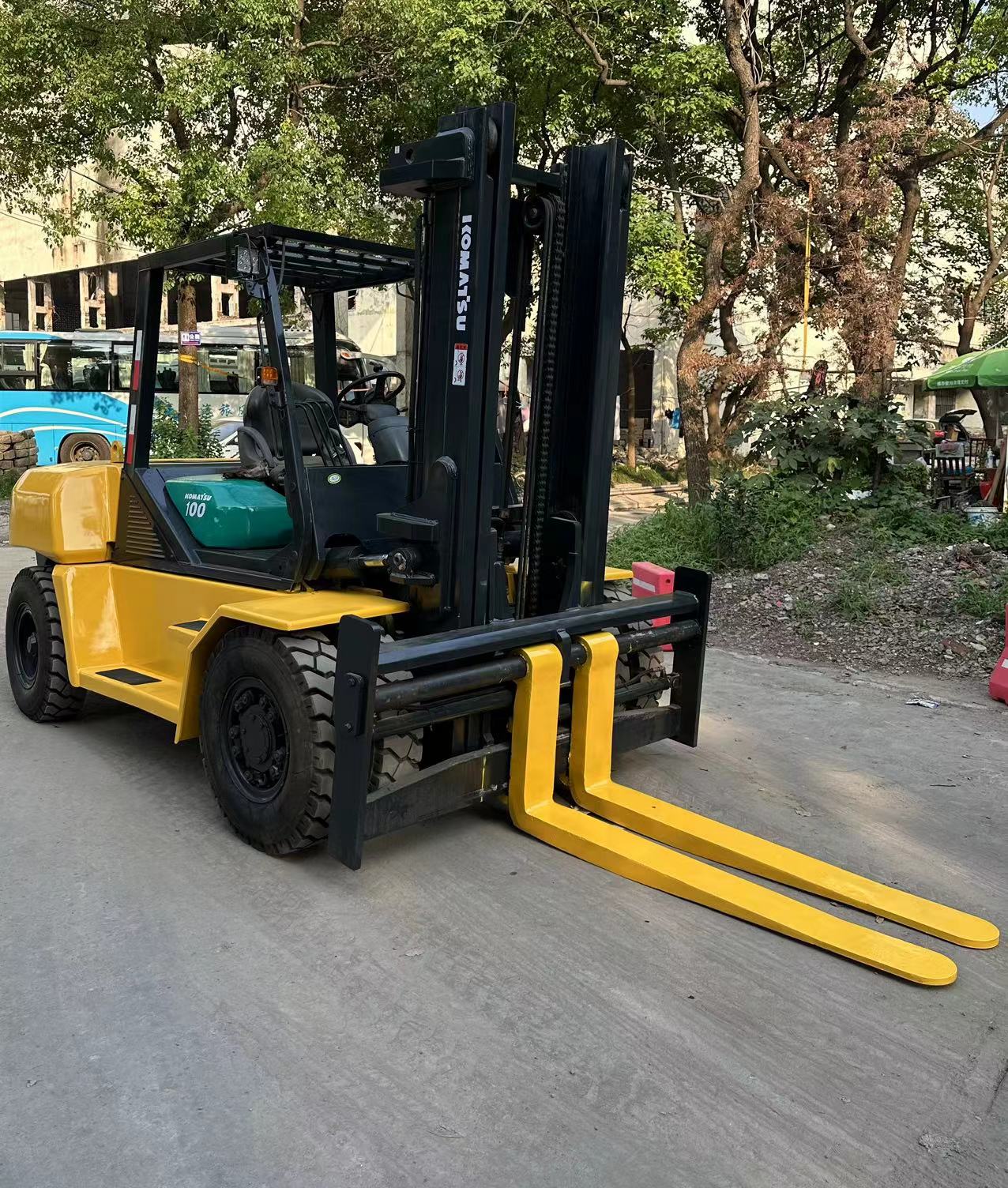

Model: KOMATSU FD100-10 (10-Ton Heavy-Duty Diesel Forklift)

The KOMATSU FD100-10 is a robust 10-ton diesel counterbalance forklift designed for heavy industrial applications, including port container handling, steel mill material transport, and construction site logistics. It is powered by the reliable KOMATSU SAA6D107E-1 turbocharged diesel engine, paired with an advanced load-sensing hydraulic system and heavy-duty counterweight design, delivering exceptional lifting power, strong traction, and efficient fuel consumption. Its ROPS/FOPS-certified ergonomic cab, precise controls, and durable chassis handle heavy daily use in harsh industrial environments, excelling at stacking, transporting, and loading tasks. It is the top choice for customers requiring a high-capacity, reliable 10-ton forklift for heavy-duty material handling operations.

Core Technical Specifications

1. Basic Parameters

• Rated Load Capacity: 10,000 kg (10 tons), Load Center: 600 mm
• Mast Options: Standard 2-stage mast (lift height 3,000 mm; optional 4,500 mm/5,000 mm), full-free lift available for container operation
• Rated Engine Power (ISO 9249): 122 kW (164 HP) @ 2,200 rpm
• Overall Dimensions (L×W×H, mast lowered): 5,490 mm × 2,240 mm × 2,900 mm
• Fuel Tank Capacity: 180 L (47.6 US gal)
• Operating Weight: 12,980 kg

2. Engine Performance

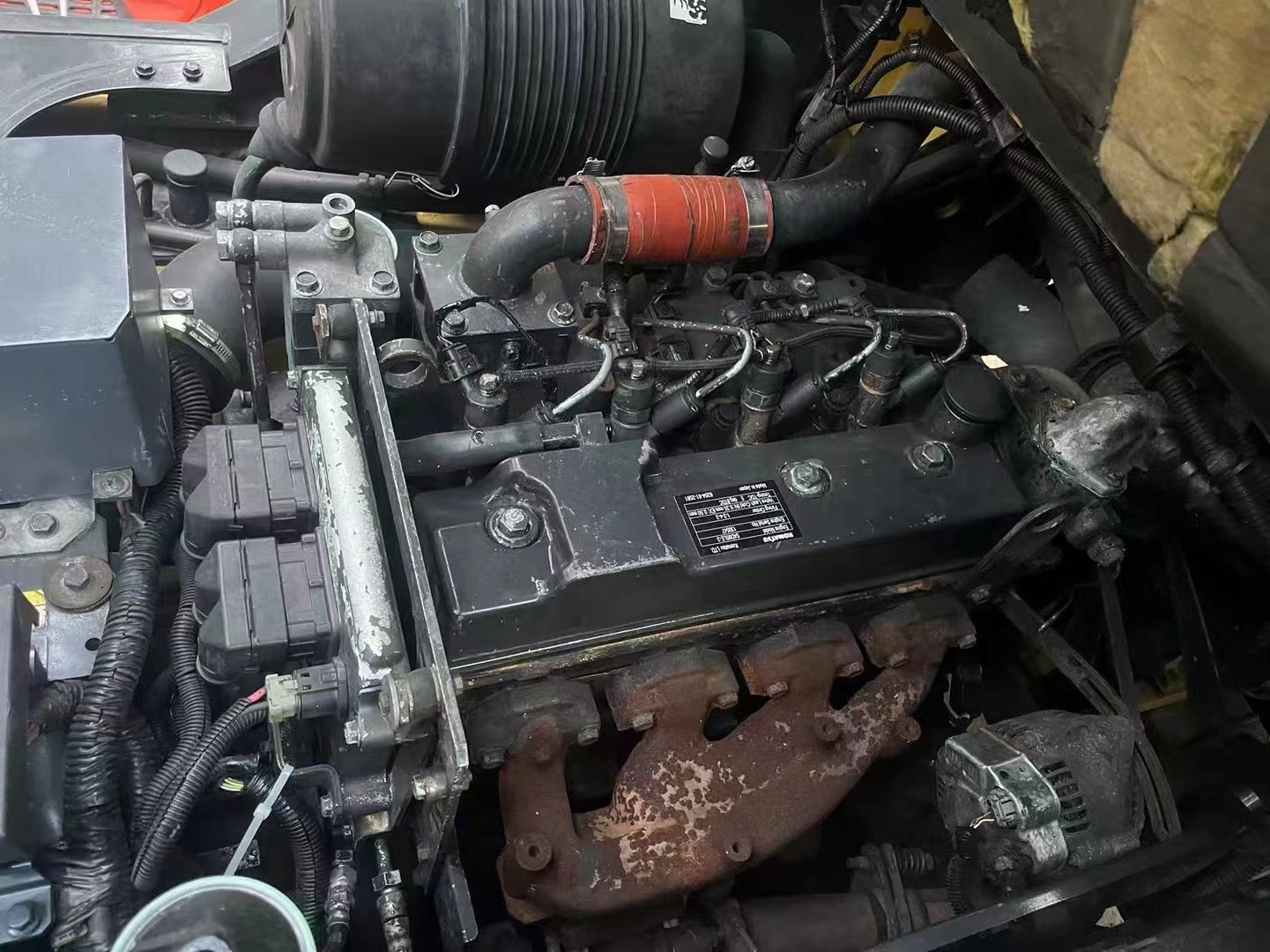

• Engine Model: KOMATSU SAA6D107E-1 (6-cylinder, 4-cycle, turbocharged, aftercooled, common rail)
• Emission Compliance: US EPA Tier 3 / EU Stage 3A
• Displacement: 6.7 L
• Maximum Torque: 637 Nm @ 1,400 rpm
• Cold-Start Performance: Reliable starting at -18°C (0°F); optional cold-start kit for -32°C (-25°F)
• Low noise & vibration, reduced exhaust emissions

3. Lifting & Traction Systems

• Maximum Lift Speed (no load/full load): 380 mm/s / 250 mm/s
• Maximum Travel Speed (no load/full load): 30 km/h / 28 km/h
• Gradeability: 25° (46%)
• Tilt Angle (forward/backward): 6°/12°
• Static Tipping Load (straight): 21,500 kg
• Pneumatic tires as standard (optional solid tires for rough outdoor terrain)

4. Hydraulic & Control Systems

• Load-sensing hydraulic system with electronic control, optimizing flow and pressure to reduce fuel consumption
• Pilot-operated controls for precise, low-effort operation
• Full-free lift function (optional): mast inner section lifts first, allowing full fork height inside containers without raising the entire mast
• Automatic overload protection to prevent mast damage

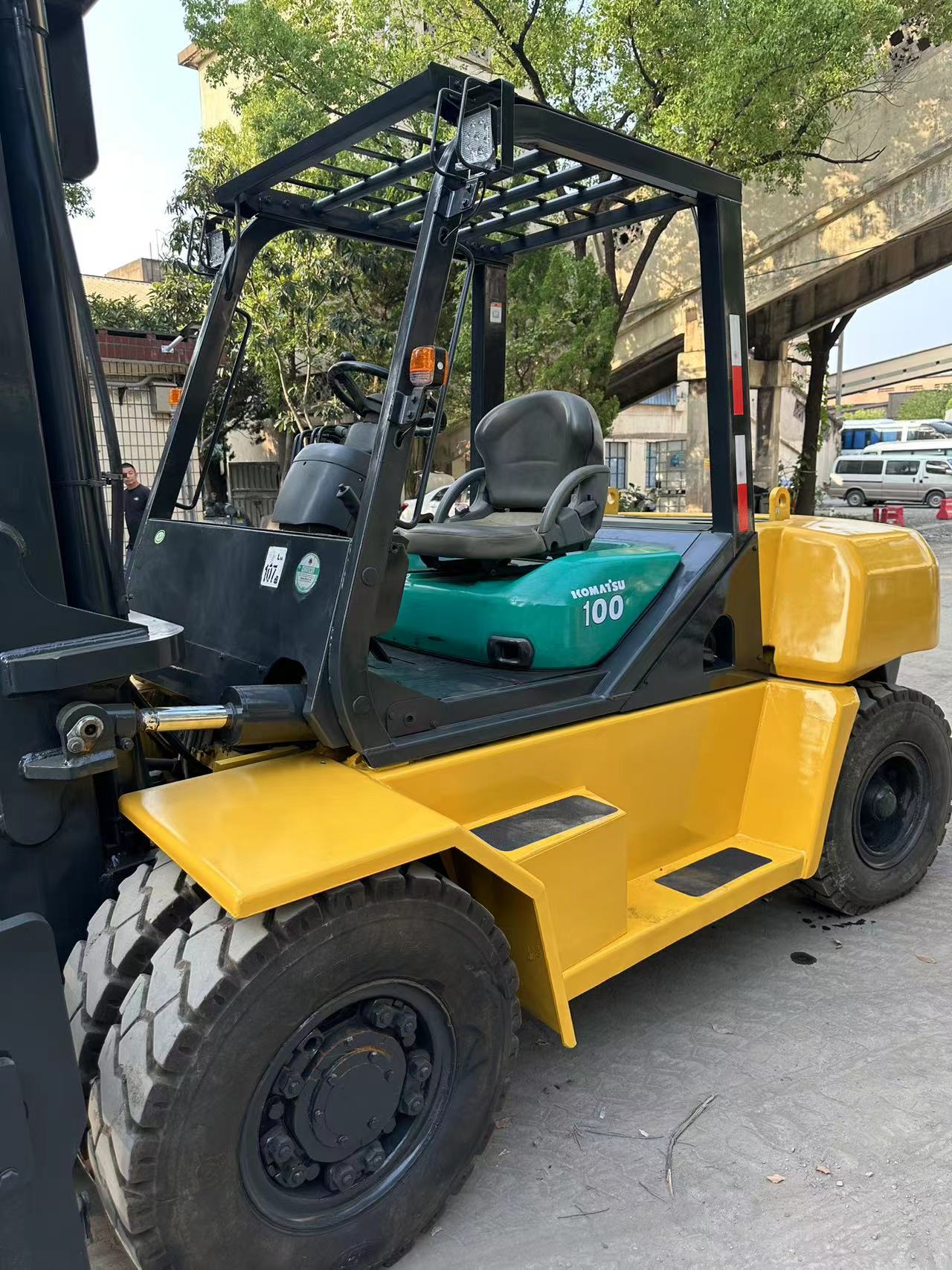

5. Operator Cab

• ROPS/FOPS-certified safety frame to protect against rollover and falling objects
• Spacious, sealed cab with low noise (75 dB) and vibration isolation
• Adjustable air-suspension seat, tilt/telescopic steering wheel, and intuitive control layout
• Integrated heating & air conditioning system with air filtration

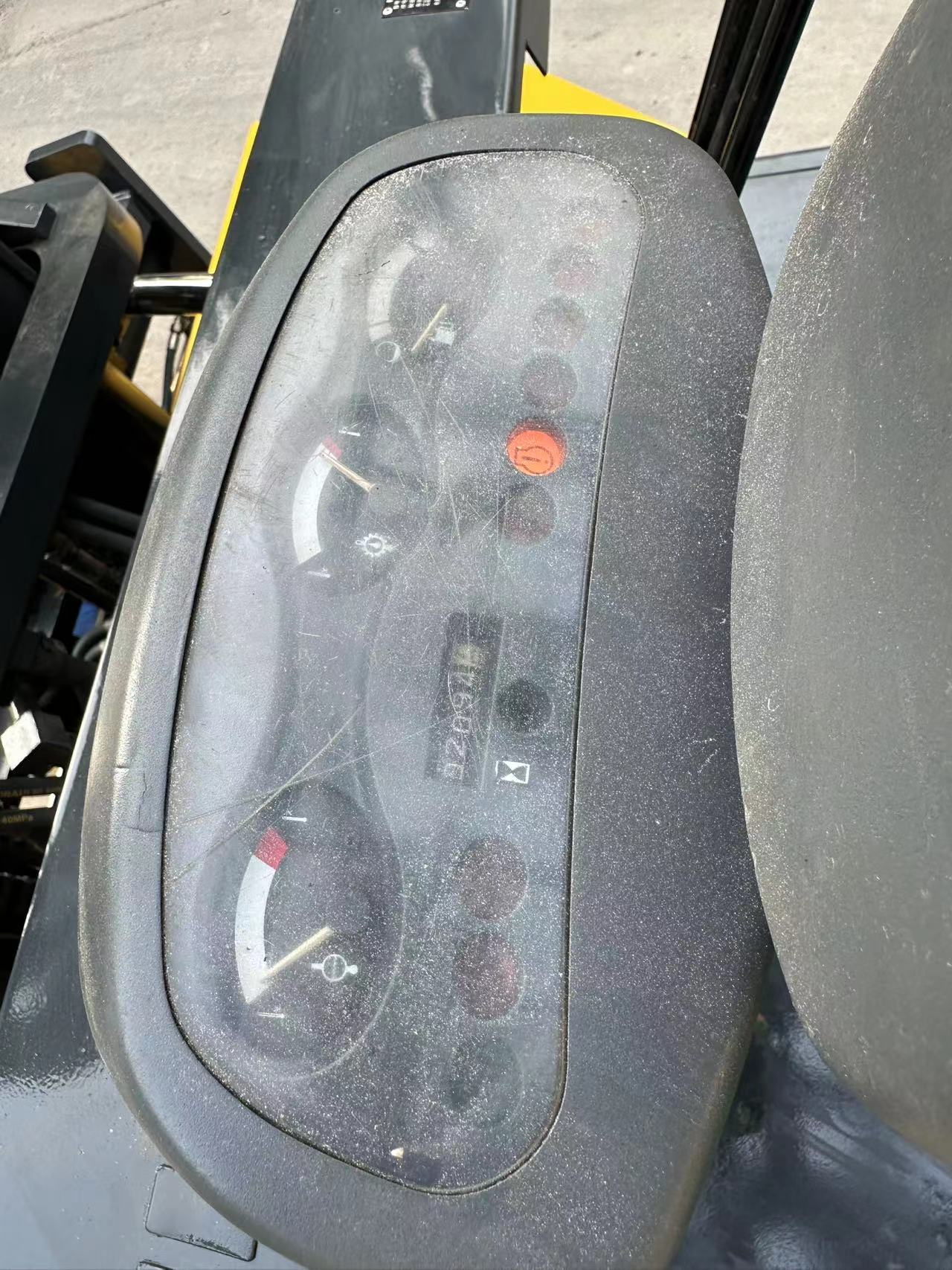

• Multi-information display for real-time monitoring of engine, hydraulic, fuel, and mast status; rearview camera optional

6. Structural Durability

• Reinforced mast with high-strength steel and wear-resistant bushings
• Heavy-duty chassis and cast-iron counterweight for stable lifting at maximum height
• Replaceable fork tips and side shifters for easy maintenance
• Extended service intervals (500-hour oil change, 2,000-hour hydraulic filter replacement)
• Easy-access service points and centralized lubrication system (optional)

Core Advantages

1. Powerful & Efficient Performance

• 122 kW common-rail engine and load-sensing hydraulics deliver fast lifting and low fuel consumption, saving daily operating costs
• Multiple lift height options (3m/4.5m/5m) to match different warehouse and job site requirements
• Heavy-duty design handles 10-ton loads with ease, ideal for steel, concrete, and container operations

2. Exceptional Stability & Safety

• Optimized counterweight and wide wheelbase ensure stability even when lifting 10 tons to full height
• ROPS/FOPS cab, overload protection, emergency stop, and optional rearview camera minimize operational risks
• Tilt angle control prevents load spillage during transport on uneven ground

3. Reliable & Low-Maintenance Design

• KOMATSU’s proven SAA6D107E-1 engine and hydraulic components with long service life
• Reinforced mast and frame withstand heavy use in ports, factories, and outdoor yards
• Easy-to-reach service points reduce maintenance time and labor costs
• KOMTRAX telematics system (optional) for remote monitoring of machine status and maintenance reminders

4. Operator Comfort & Productivity

• Low-noise, climate-controlled cab reduces operator fatigue during long shifts
• Precise pilot controls and smooth hydraulic response enable accurate stacking at height
• Clear all-around visibility, especially for high-rack alignment

5. Global Service & Support

• KOMATSU’s worldwide authorized dealer network for 24/7 parts supply and on-site service
• Genuine KOMATSU parts available globally for quick replacement
• Free operator and maintenance training at local KOMATSU service centers

Typical Application Scenarios

1. Ports & Container Terminals

• Container loading/unloading from ships and trucks, full-free lift mast ideal for container work
• Yard stacking and short-distance transport of heavy cargo

2. Manufacturing & Industrial Plants

• Raw material and finished goods handling in steel, concrete, and automotive industries
• Heavy component transport on production lines

3. Construction & Job Site Material Handling

• Transporting construction materials (steel beams, concrete blocks) to multi-level job sites
• Loading/unloading delivery trucks at remote construction locations

4. Warehousing & Logistics Centers

• High-rack stacking of heavy pallets in large warehouses
• Bulk material transport in distribution centers

5. Mining & Quarry Operations

• Transporting ore, rock, and equipment parts in mining and quarry sites
• Loading/unloading heavy machinery and components

Foreign Trade Service Guarantee

1. Customization Options

• Mast lift heights (3m/4.5m/5m), full-free lift as optional
• Tire options (pneumatic/solid), side shifter, fork positioner, attachment quick hitch
• Cold/hot climate packages, cab pressurization, rearview camera
• Multilingual operator manuals and documentation

2. Inspection & Certification

• Pre-shipment inspection by SGS, BV, or other international third-party institutions
• Export documents: CO (Certificate of Origin), Form E/F, Bill of Lading
• Compliance with global standards: ISO, CE, EPA Tier 3

3. Warranty & Training

• 1-year or 2,000-hour global warranty covering major components (engine, hydraulics, transmission)
• Free on-site or factory training for operators and maintenance staff
• 24/7 technical support via phone, email, or video call

4. Spare Parts & After-Sales

• Fast delivery of genuine KOMATSU parts via global distribution hubs
• Consignment stock available for key markets to ensure quick availability
• Long-term maintenance contracts tailored to customer needs

Why Choose KOMATSU FD100-10 Forklift?

The KOMATSU FD100-10 10-ton diesel counterbalance forklift blends KOMATSU’s engineering heritage with modern heavy-duty material-handling demands. Its powerful SAA6D107E-1 engine, smooth load-sensing hydraulics, and robust design make it unbeatable for ports, steel mills, and construction sites. The ergonomic, safe cab, durable build quality, and global service network ensure minimal downtime and maximum return on investment. For businesses needing a versatile, durable, high-performance 10-ton forklift, the FD100-10 is the ultimate solution.

Contact Us

For real-time pricing, mast height customization, bulk order discounts, or door-to-door shipping quotes, contact our professional foreign trade team. We offer competitive prices, flexible payment terms (LC, TT, DP), and reliable global logistics to ensure your equipment arrives on time, ready to work. Our one-stop service from consultation to after-sales support will help you streamline operations and grow your business.
