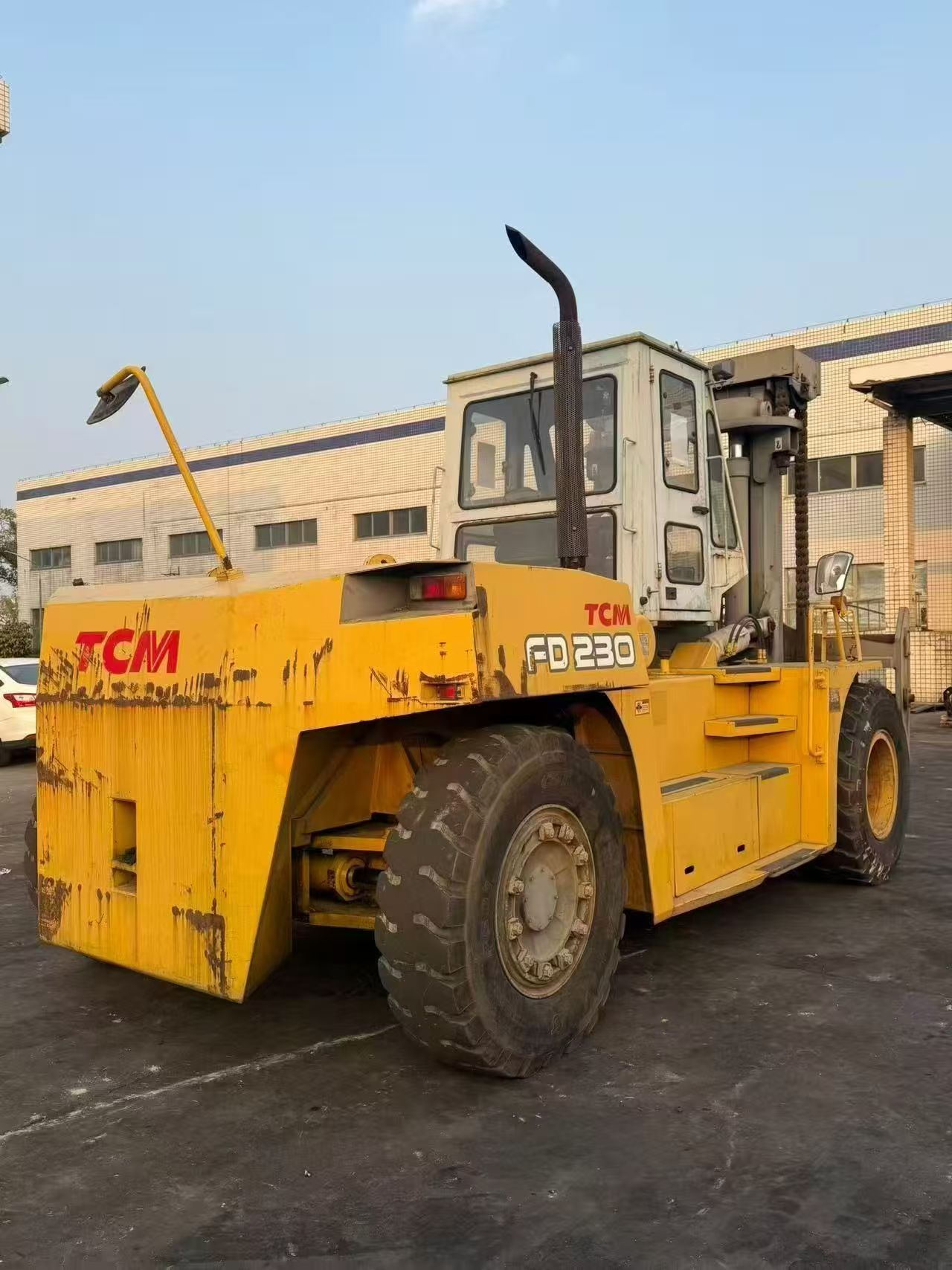

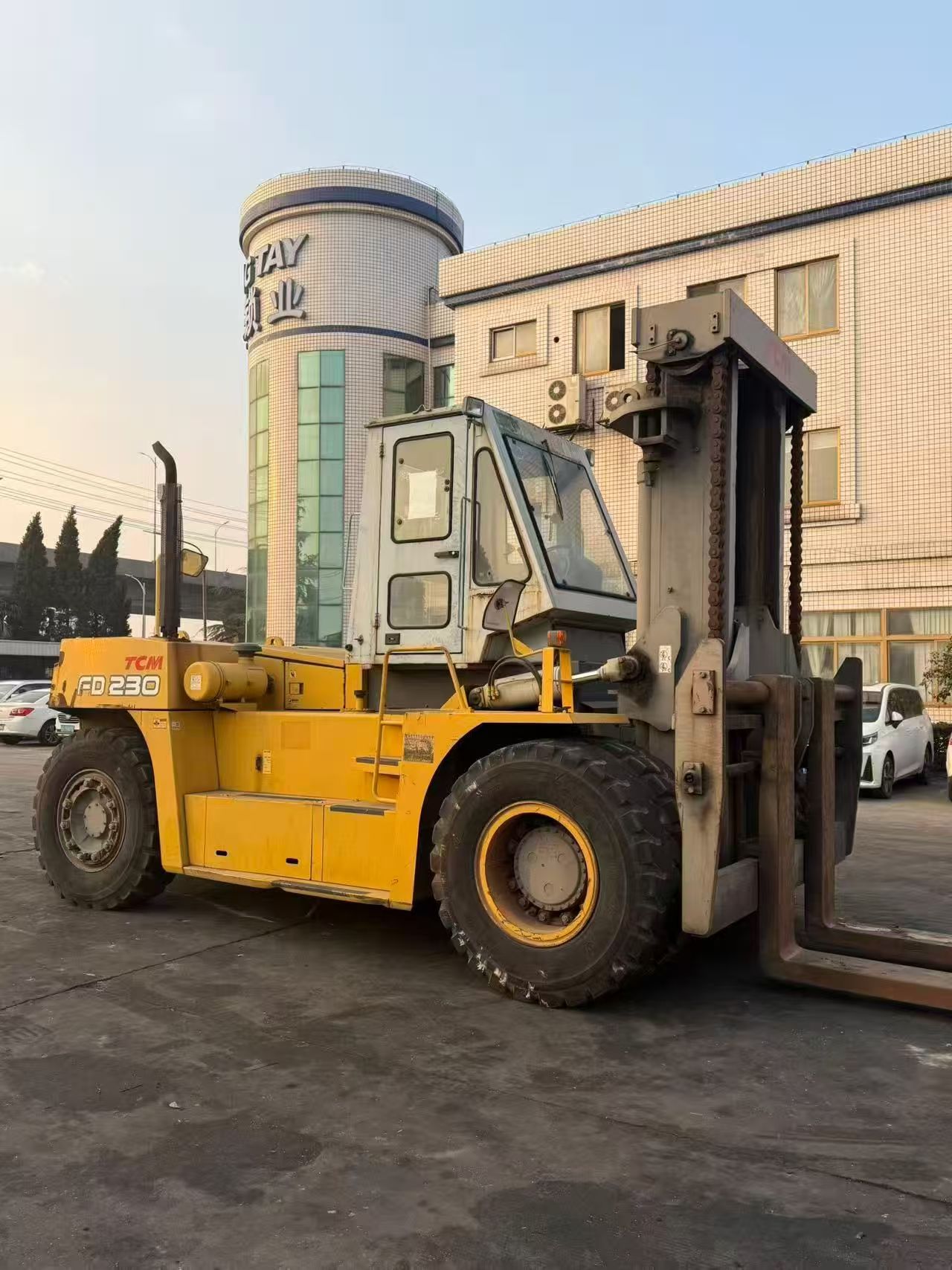

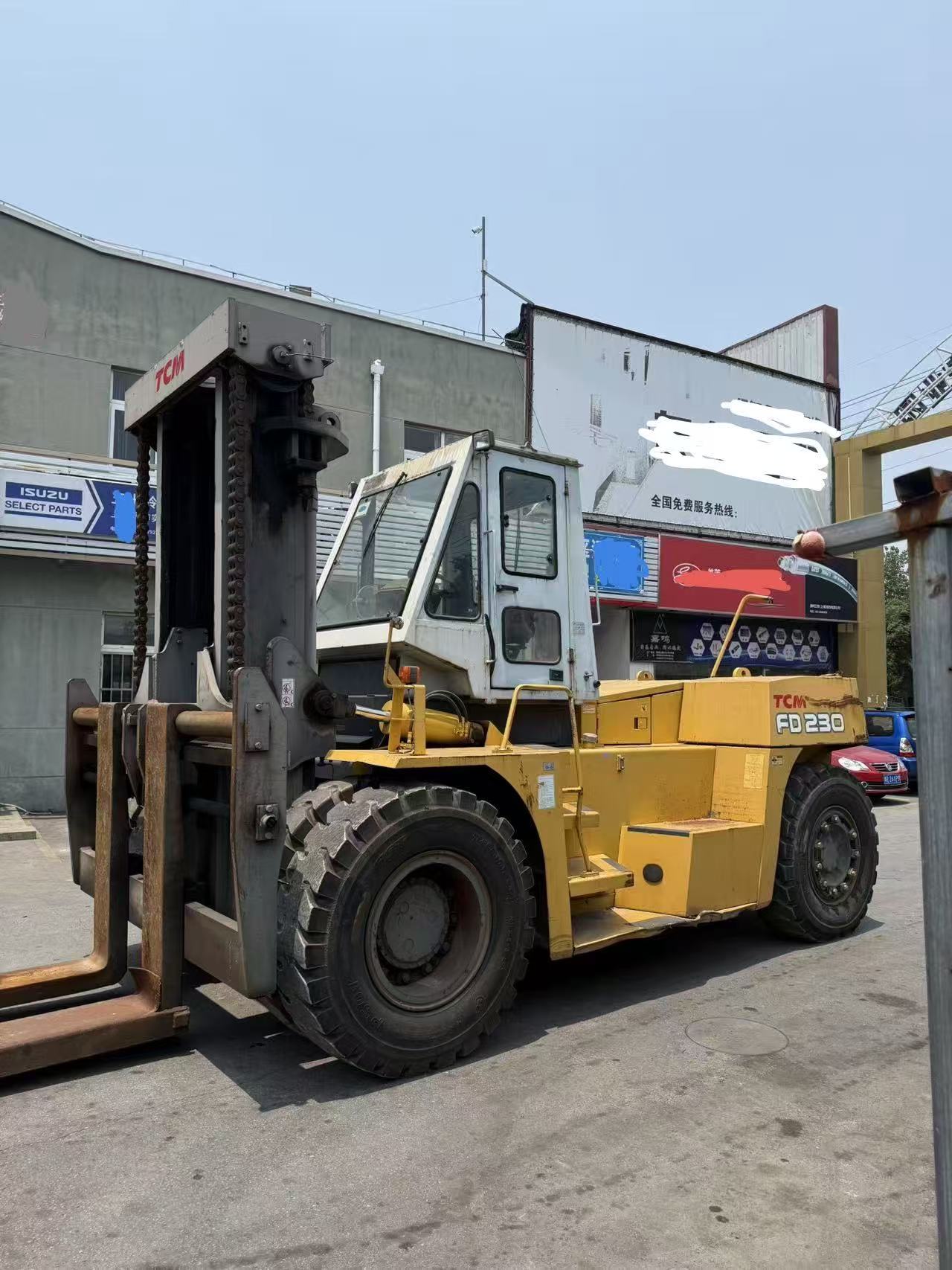

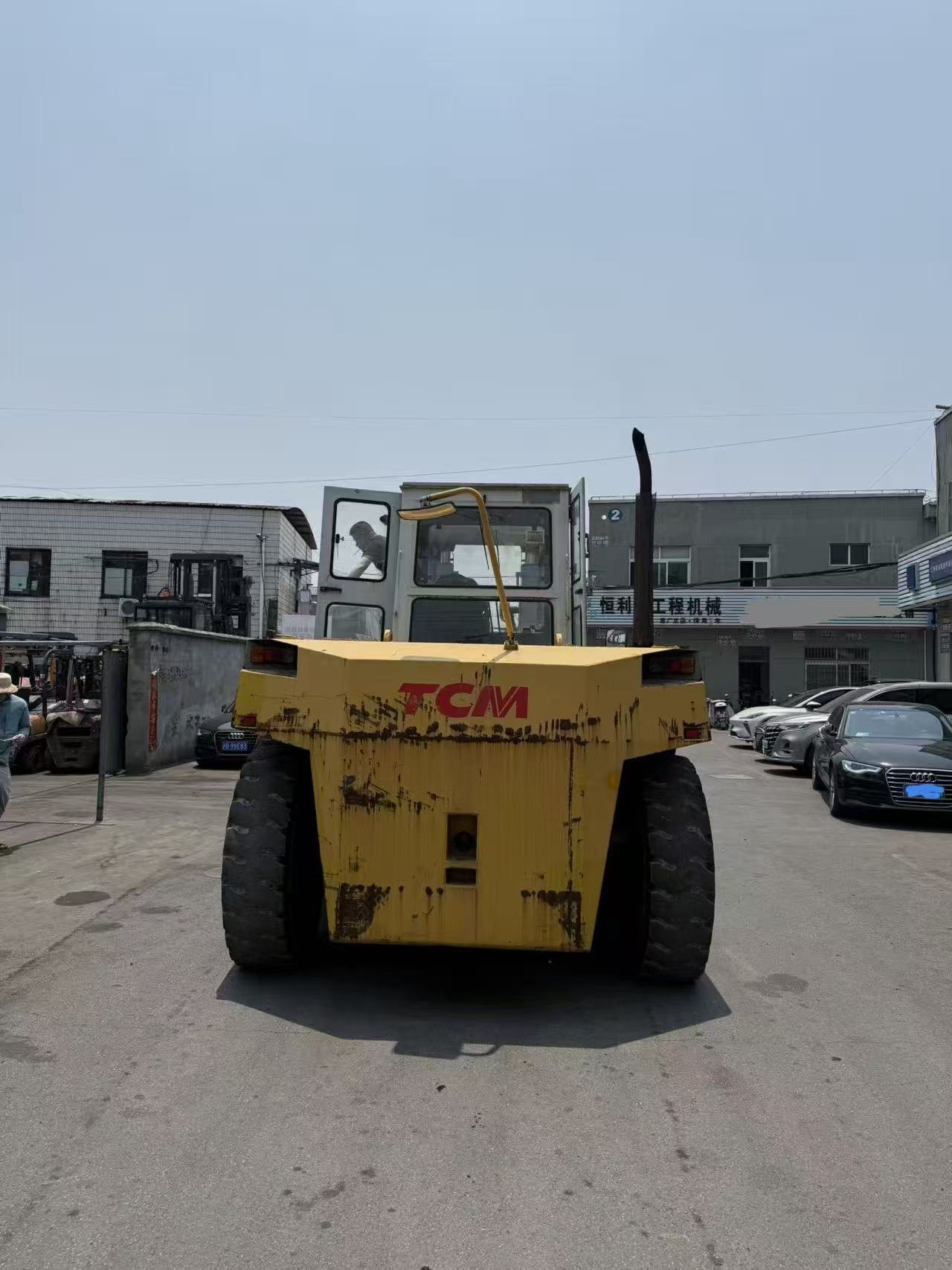

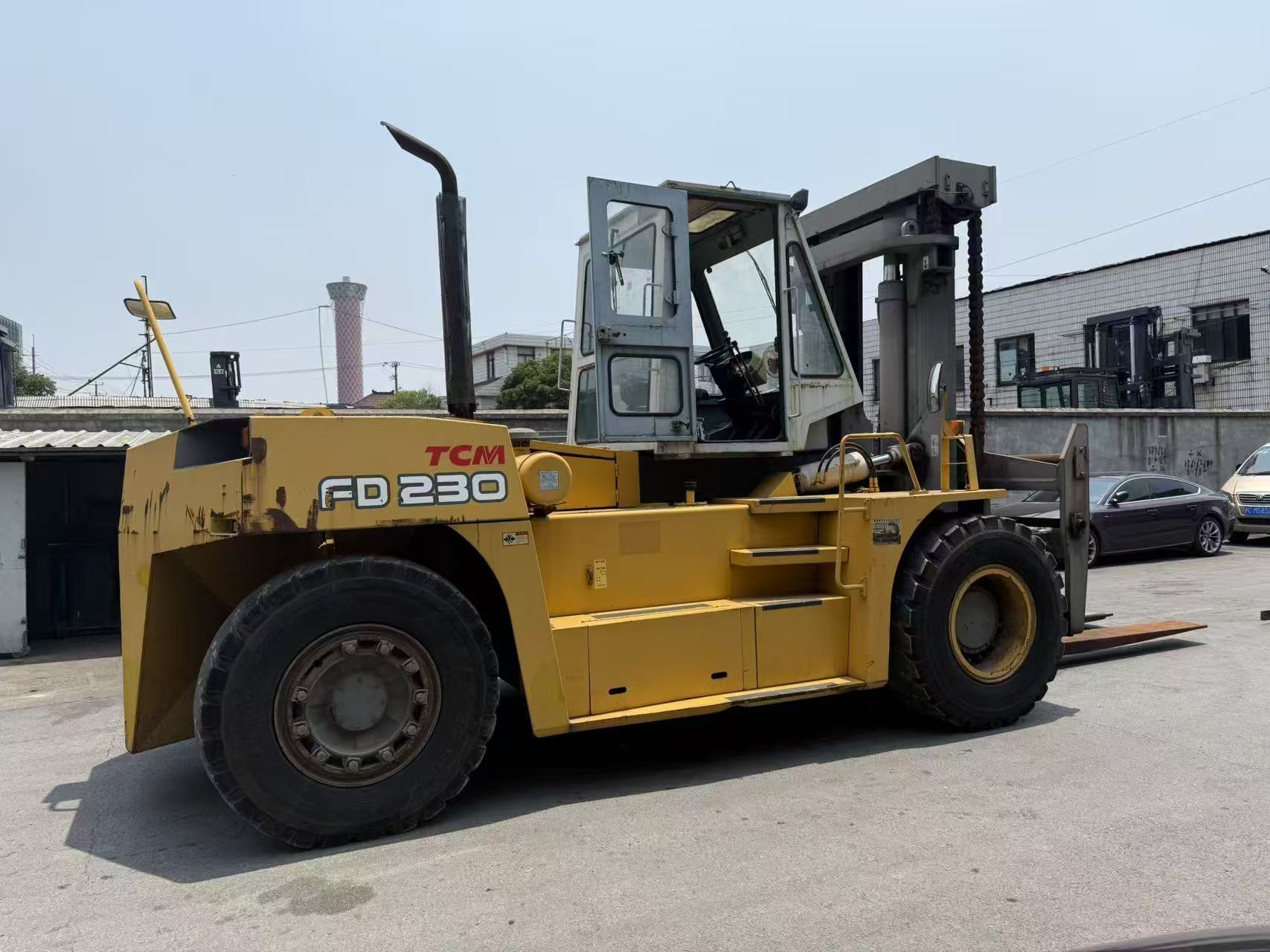

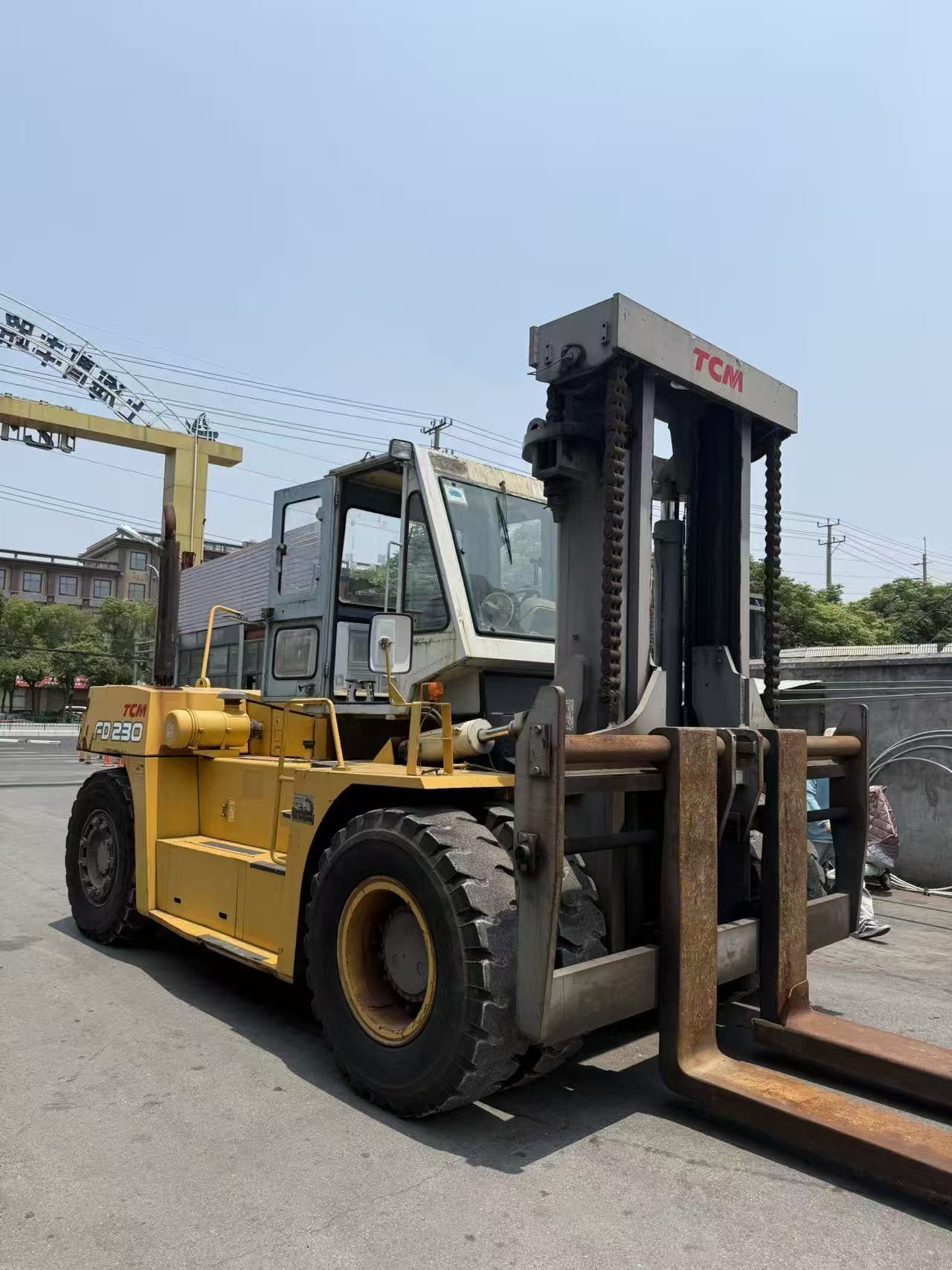

TCM FD230 23-Ton Heavy-Duty Diesel Forklift

Brand & Model Positioning

Brand: TCM

TCM, a 70+ year Japanese industrial vehicle trailblazer, stands as a global authority in heavy-duty forklift engineering, renowned for rugged durability, fuel-efficient powertrains, and operator-first design. Backed by an authorized dealer network spanning over 120 countries, TCM prioritizes long-term reliability, minimized total cost of ownership, and round-the-clock after-sales support. Trusted by ports, mining operations, steel mills, and large-scale construction sites worldwide, TCM heavy forklifts consistently deliver peak performance under extreme conditions, cementing their reputation as the workhorse for critical heavy material-handling tasks.

Model: TCM FD230 (23-Ton Heavy-Duty Diesel Forklift)

The TCM FD230 is a premium 23-ton diesel-powered heavy forklift, purpose-built for high-capacity operations in ports, shipyards, mining sites, steel plants, and major construction projects. It is equipped with the Isuzu 6BG1T turbocharged diesel engine (proven in industrial applications globally) paired with an advanced load-sensing hydraulic system and heavy-duty powershift transmission. It delivers exceptional lifting force, ultra-smooth operation, and reliable fuel economy, while its ROPS/FOPS-certified ergonomic cab, precise proportional controls, and reinforced full-box chassis ensure rock-solid stability even when handling 23-ton loads at maximum lift height. Ideal for container stuffing/unstuffing, bulk cargo stacking, and heavy equipment transport, it is the top choice for businesses requiring a robust, versatile, and high-performance 23-ton forklift with full attachment compatibility.

Core Technical Specifications

1. Basic Parameters

• Rated Load Capacity: 23,000 kg (23 tons), Load Center: 900 mm (standard; 1220mm container spec optional)
• Operating Weight: 30,760–31,100 kg
• Maximum Lift Height (standard): 3,000 mm (customizable up to 8,000 mm with triple/quad mast options)
• Wheelbase: 3,600 mm
• Overall Dimensions (L×W×H): 7,990 mm × 3,060 mm × 3,280 mm (without forks)
• Minimum Turning Radius: 5,350 mm
• Fuel Tank Capacity: 380 L
• Hydraulic Tank Capacity: 140 L

2. Engine Performance

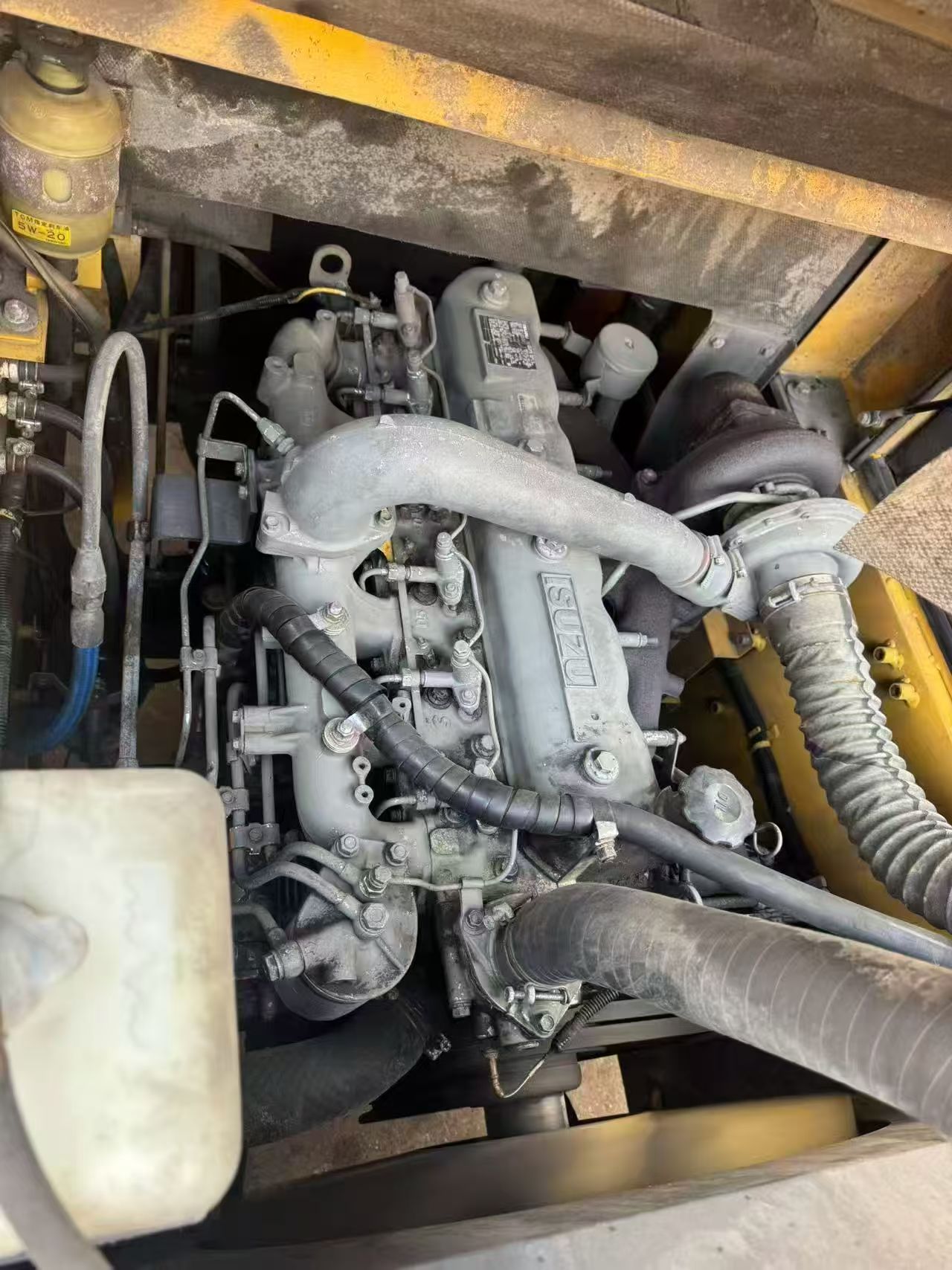

• Engine Model: Isuzu 6BG1T (6-cylinder, 4-cycle, turbocharged, aftercooled)
• Emission Compliance: EU Stage II / US EPA Tier 2 (retrofit kits available for higher emission standards)
• Displacement: 6.494 L
• Rated Net Power (ISO 9249): 127–128 kW (172 HP) @ 2,200 rpm
• Maximum Torque: 537–620 Nm @ 1,800 rpm
• Cold-Start Performance: Reliable starting at -15°C (5°F); optional cold-start package for -25°C (-13°F)
• Noise Level: 76 dB in cab for reduced operator fatigue

3. Transmission & Traction Systems

• Transmission: 4-speed powershift with torque converter and automatic shifting
• Maximum Travel Speed (unloaded): 32 km/h
• Gradeability: 15% (8.5°)
• Tires: Front 2×14.00-24 (24PR), Rear 2×14.00-24 (28PR) heavy-duty pneumatic; solid/foam-filled options for rough terrain
• Lifting Speed (loaded): 14 m/min (47 ft/min)
• Lowering Speed (empty): 25 m/min

4. Hydraulic & Control Systems

• Load-sensing hydraulic system with variable-displacement main pump (140 L/min rated flow)
• Pilot-operated hydraulic levers for smooth, precise lifting/tilting/side-shifting
• Auxiliary hydraulic circuit (standard) for quick attachment changes (container spreaders, grapples, rotators, paper roll clamps)
• Built-in overload protection system to prevent mast/frame damage
• Mast Tilt Angle (forward/backward): 6° / 12°

5. Operator Cab & Safety

• ROPS/FOPS-certified safety frame with falling-object and rollover protection
• Sealed, vibration-isolated cab with sound insulation, integrated heating & air conditioning, and multi-stage air filtration
• Adjustable air-suspension seat with lumbar support, tilt/telescopic steering wheel, and intuitive digital display
• 7-inch color multi-information monitor for real-time tracking of engine RPM, fuel level, hydraulic pressure, and maintenance alerts; rearview camera+side cameras optional
• Emergency stop button, neutral safety switch, and hydraulic lock-out system as standard safety features

6. Structural Durability

• Reinforced I-beam mast with high-tensile steel and replaceable wear pads
• Heavy-duty counterweight design for optimal stability during full-load lifting
• Full-box section chassis to resist twisting under heavy loads and rough ground
• Extended service intervals (500-hour engine oil change, 2,000-hour hydraulic filter replacement)
• Easy-access service panels, centralized grease points, and optional telematics for remote monitoring (TCM Telematics)

Core Advantages

1. Powerful & Efficient Performance

• Isuzu 6BG1T engine and load-sensing hydraulics deliver instant torque for heavy lifts, while optimizing fuel consumption by up to 8% compared to competitors
• Multiple mast configurations (3m to 8m lift height) and a full range of attachments (container spreaders, grapples, clamps) fit every port, mining, and construction scenario
• 23-ton capacity and stable lifting at 6m+ heights handle large cargo without compromise

2. Superior Stability & Safety

• Optimized counterweight, wide wheelbase, and low center of gravity eliminate tipping risks even during tight turns with full loads
• ROPS/FOPS certified cab, active overload protection, and redundant emergency stop systems minimize workplace accidents
• Wet-disc brakes (optional) offer consistent stopping power even in wet/muddy conditions

3. Reliable & Low-Maintenance Design

• Isuzu’s legendary 6BG1T engine has a proven 10,000+ hour service life with minimal breakdowns
• Reinforced mast and chassis components are built to withstand the harshest industrial environments
• Centralized lubrication and easy-to-reach service points cut maintenance time by 30%

4. Operator Comfort & Productivity

• Low-noise, climate-controlled cab reduces fatigue during 12+ hour shifts
• Smooth hydraulic response and proportional controls allow precise alignment with container slots or high stacks
• Excellent forward and side visibility, enhanced by optional 360° camera systems

5. Global Service & Support

• TCM’s global network of authorized dealers provides 24/7 delivery of genuine parts
• Free on-site operator and maintenance training at local service centers
• Multilingual technical documentation and round-the-clock remote troubleshooting via video call

Typical Application Scenarios

1. Port & Shipping Operations

• Container loading/unloading from vessels and trucks, yard stacking of 20ft/40ft containers
• Bulk cargo (grain, coal, ore) transfer between ships and storage areas

2. Mining & Quarry Operations

• Transport of ore, rock, and aggregate from extraction zones to processing plants or railcars
• Stockpiling and loading heavy mining equipment components

3. Steel & Manufacturing Plants

• Handling raw materials (scrap metal, coils) and finished steel products in mills and foundries
• Moving heavy machinery parts along production lines

4. Construction & Infrastructure

• Lifting and placing steel beams, precast concrete sections, and heavy modular components
• Site preparation for large-scale projects and transport of construction equipment

5. Heavy Logistics & Warehousing

• Stacking and moving heavy industrial goods in large-scale warehouses and intermodal terminals

Foreign Trade Service Guarantee

1. Customization Options

• Mast options (3m–8m lift height), fork lengths (1.5m–3m), and quick-attach systems
• Tire choices (standard pneumatic, off-road, solid/foam-filled), auxiliary hydraulic kits, and container spreaders
• Cold/hot climate packages, cab pressurization, 360° cameras, and beacon lights
• Multilingual operator manuals and compliance documentation for any region

2. Inspection & Certification

• Pre-shipment inspection by SGS, BV, or any internationally recognized third-party inspection agency
• Complete export documentation: Certificate of Origin (CO), Form E/F, Bill of Lading, and customs clearance papers
• Compliance with global standards: ISO, CE, EPA Tier 2, and local market certifications

3. Warranty & Training

• 1-year or 2,000-hour global warranty covering engine, hydraulics, and transmission (extended warranties available)
• Free on-site or factory training for operators and maintenance personnel
• 24/7 technical support via phone, email, or video conference

4. Spare Parts & After-Sales

• Fast delivery of genuine TCM parts through global distribution hubs
• Consignment stock programs for high-demand markets to ensure immediate availability
• Tailored long-term maintenance contracts to meet your operational needs

Why Choose TCM FD230 Forklift?

The TCM FD230 23-ton heavy-duty forklift combines TCM’s decades of heavy-lifting expertise with Isuzu’s world-class engine technology, delivering unmatched power, stability, and reliability for the most demanding industrial applications. Its robust design, fuel-efficient performance, and operator-centric features ensure maximum productivity with minimal downtime, while TCM’s global service network provides peace of mind wherever your operations are located. For businesses needing a versatile, durable, and high-performance 23-ton forklift, the FD230 is the definitive solution.
