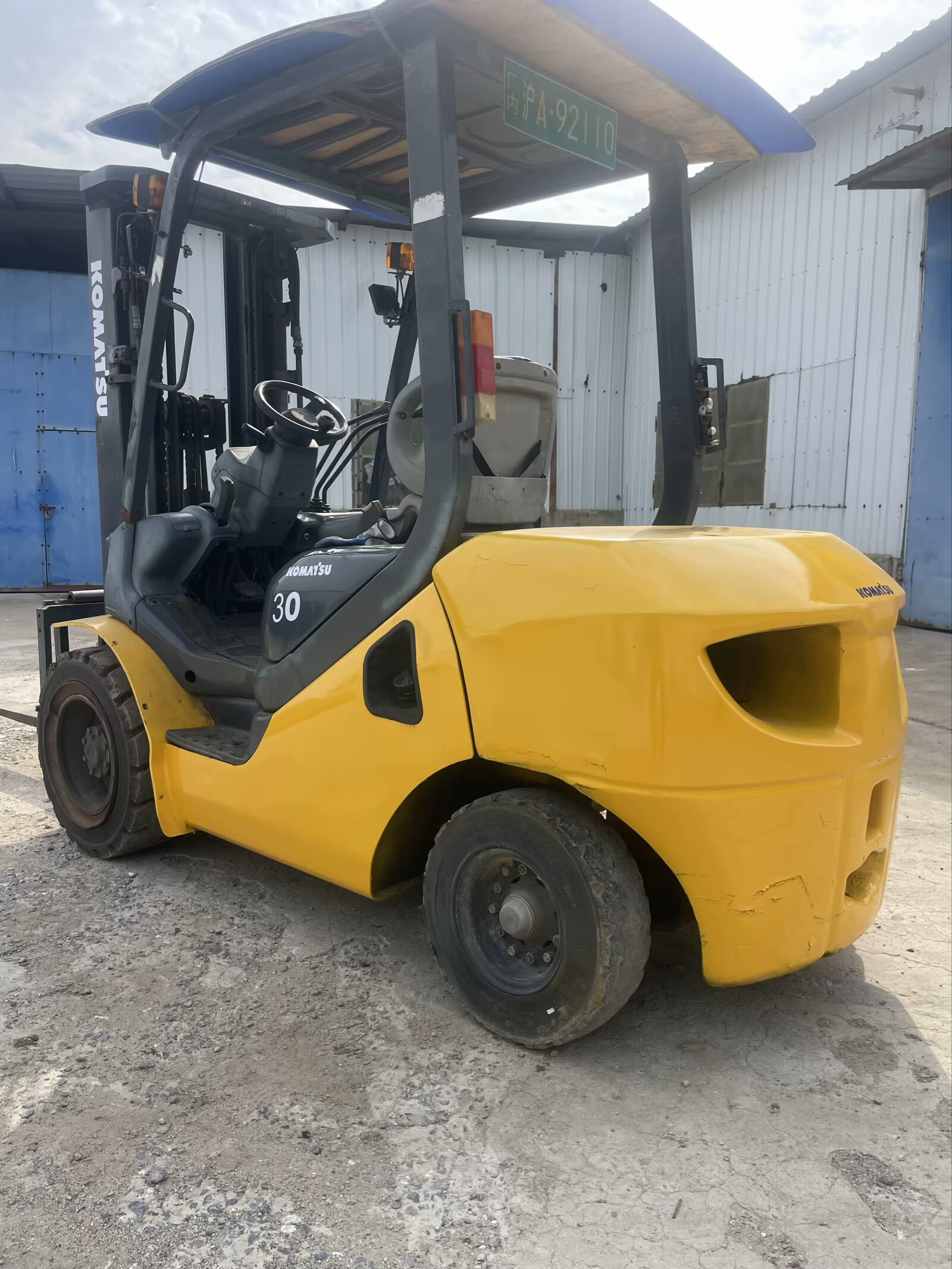

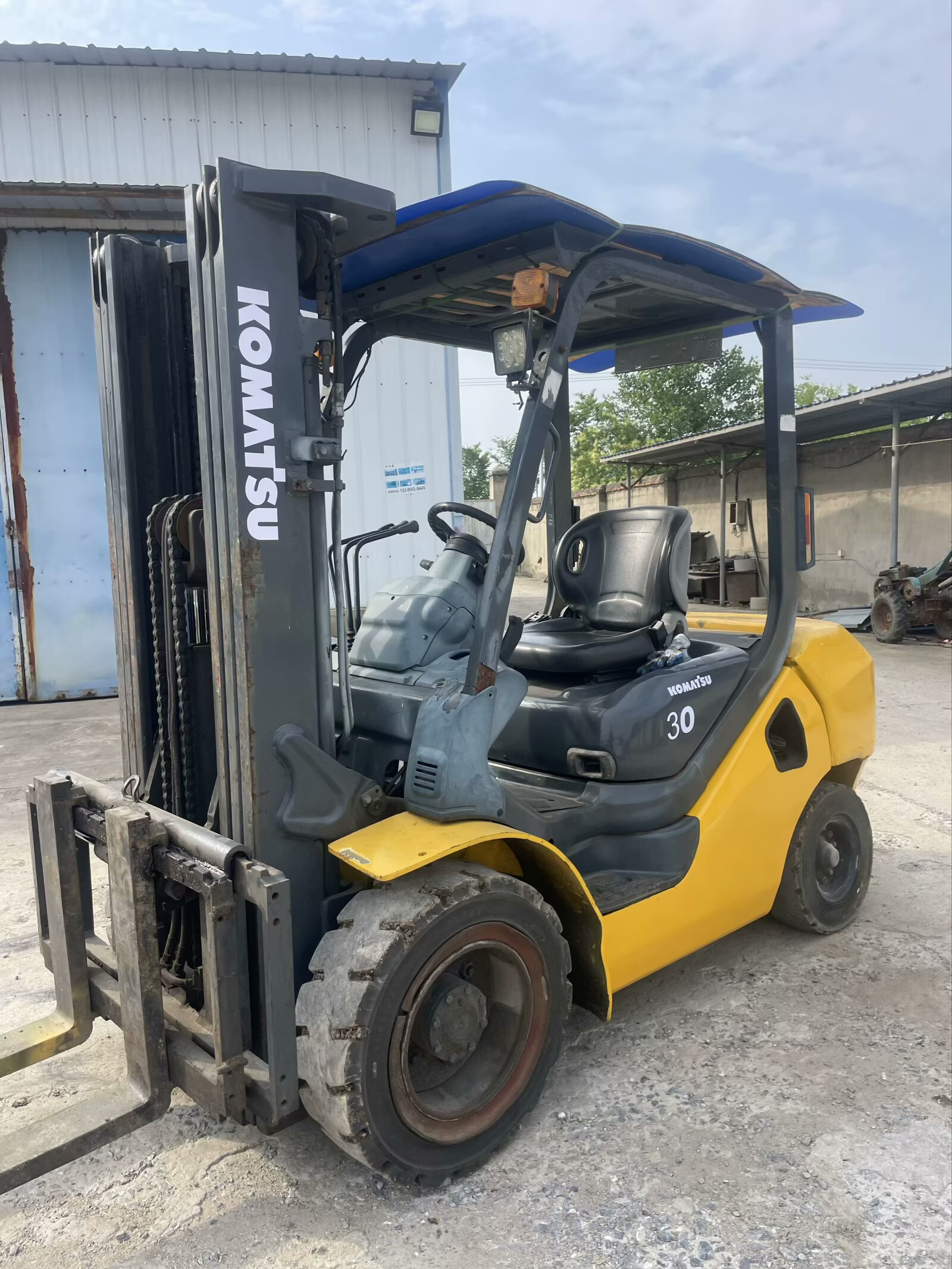

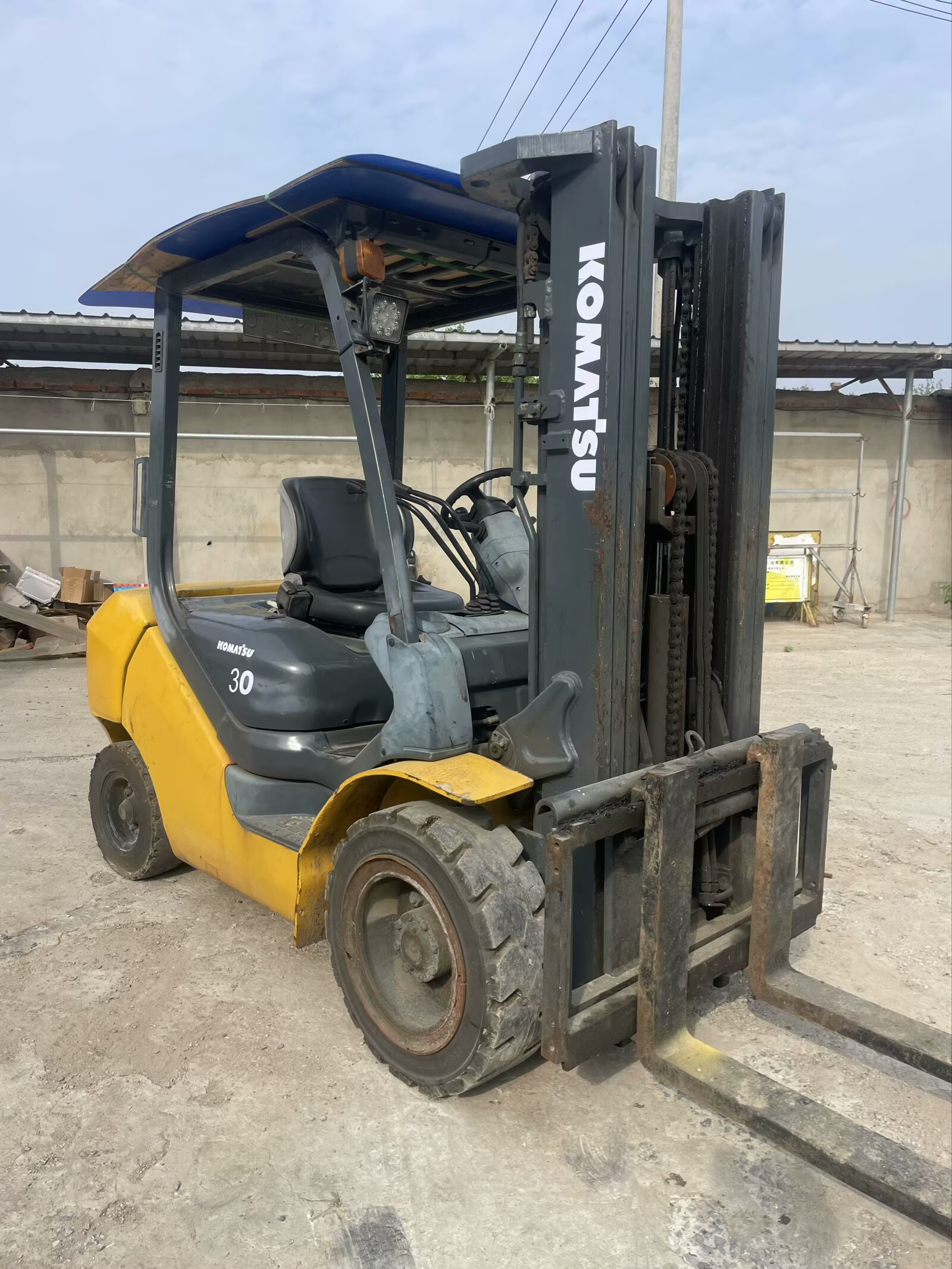

KOMATSU FD30T-17 3-Ton Triple-Stage Mast Diesel Counterbalance Forklift

Brand & Model Positioning

Brand: KOMATSU

KOMATSU, a century-old Japanese leader in heavy machinery and material handling, is globally recognized for uncompromising reliability, fuel efficiency, and long service life. With an authorized dealer network spanning over 150 countries, KOMATSU focuses on operator safety, minimal total cost of ownership, and sustainable performance. Trusted by warehouses, ports, manufacturing plants, and logistics providers worldwide, KOMATSU forklifts deliver consistent productivity, low downtime, and comprehensive after-sales support, setting the industry benchmark for quality in material handling.

Model: KOMATSU FD30T-17 (3-Ton, Triple-Stage Full-Free Lift Mast)

The KOMATSU FD30T-17 is a premium 3-ton diesel counterbalance forklift, optimized for high-rack warehousing, container loading/unloading, and multi-level storage operations – thanks to its factory-optional triple-stage (three-section) full-free lift mast. It is powered by the proven KOMATSU 4D94LE diesel engine, paired with an advanced load-sensing hydraulic system and balanced counterweight design, delivering smooth lifting, strong traction, and excellent fuel economy. Its ROPS/FOPS-certified ergonomic cab, precise pilot controls, and rugged chassis handle heavy daily use in harsh industrial environments, excelling at stacking, transporting, and loading tasks. It is the first choice for customers needing a reliable, high-performance 3-ton forklift with extended lift height capabilities for tight container and tall-rack applications.

Core Technical Specifications

1. Basic Parameters

• Rated Load Capacity: 3,000 kg (3 tons), Load Center: 500 mm

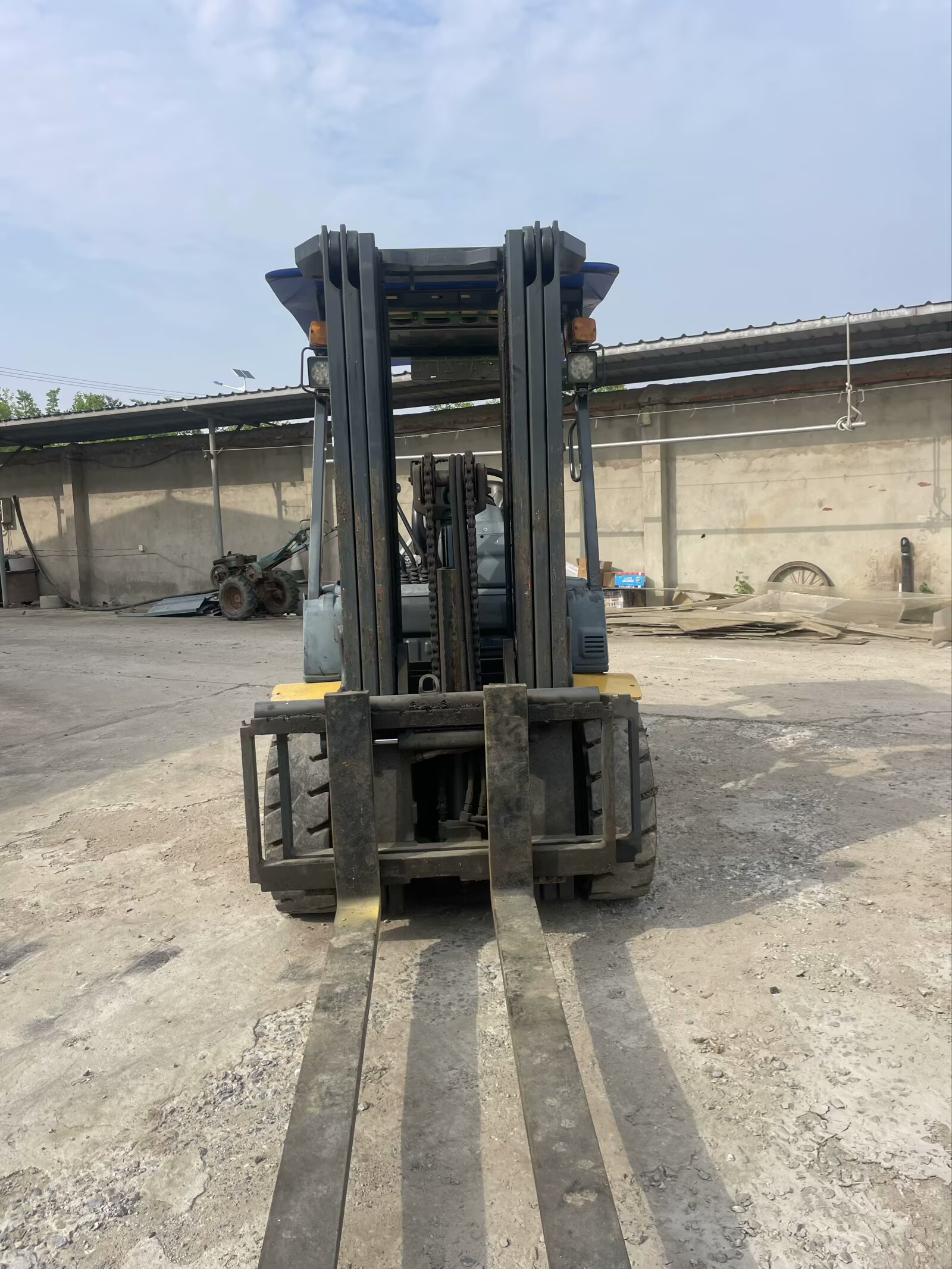

• Triple-Stage Mast Options: 4,500 mm (standard full-free lift); 5,000 mm/6,000 mm (optional); closed height ~2,070 mm (3-section mast), full-free lift for container work without raising the entire mast
• Rated Engine Power (ISO 9249): 34.2 kW (46 HP) @ 2,200 rpm
• Overall Dimensions (L×W×H, mast lowered): 3,775 mm × 1,235 mm × 2,130 mm
• Fuel Tank Capacity: 70 L (18.5 US gal)
• Operating Weight: 4,310 kg

2. Engine Performance

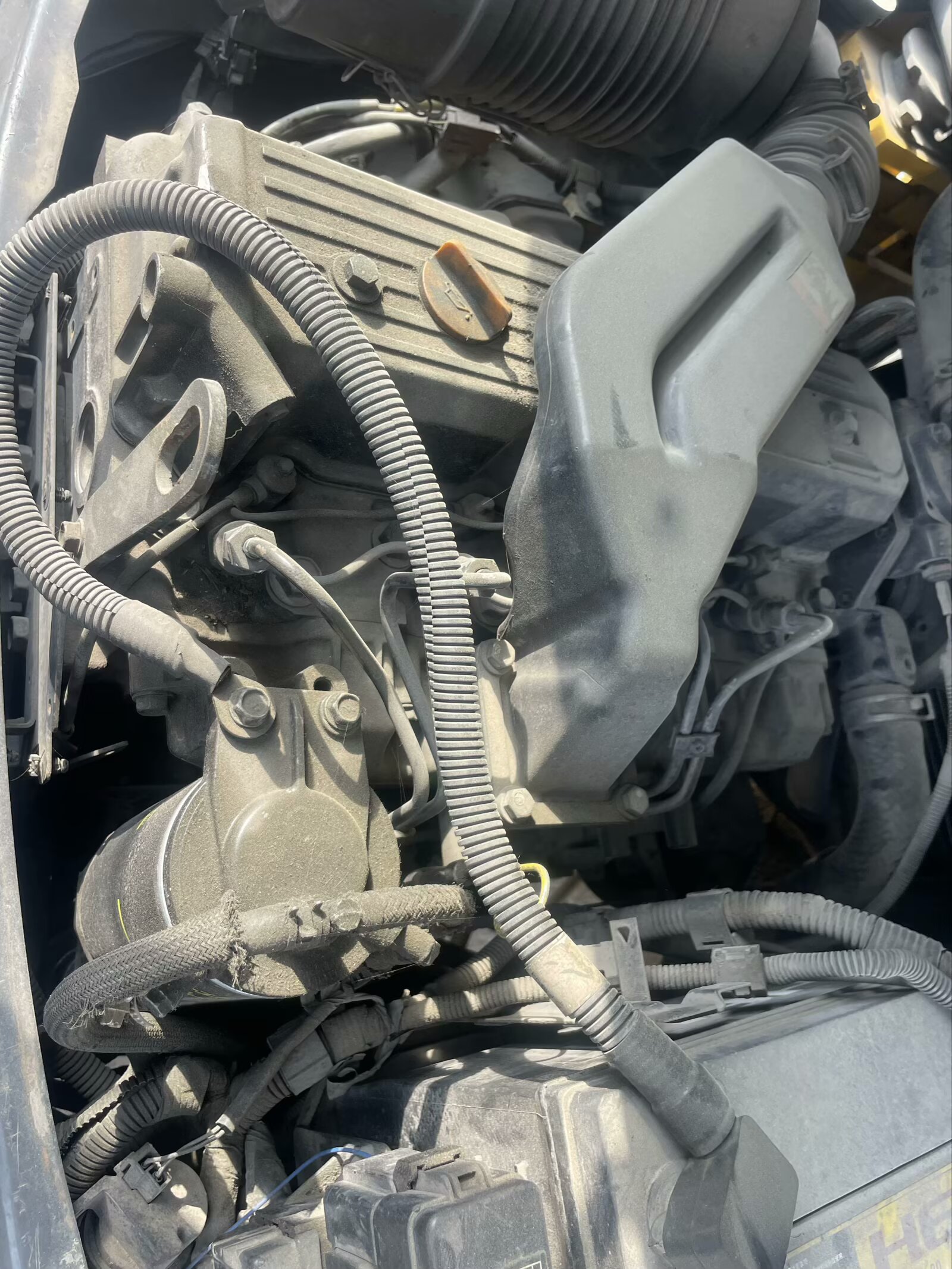

• Engine Model: KOMATSU 4D94LE (4-cylinder, 4-cycle, naturally aspirated, direct injection)
• Emission Compliance: US EPA Tier 3 / EU Stage 3A
• Displacement: 3.05 L
• Maximum Torque: 162 Nm @ 1,500 rpm
• Cold-Start Performance: Reliable starting at -15°C (5°F); optional cold-start kit for -30°C (-22°F)
• Low noise (73 dB) and reduced exhaust emissions for improved worksite comfort

3. Lifting & Traction Systems

• Maximum Lift Speed (full load/no load): 0.49 m/s / 0.53 m/s
• Maximum Travel Speed (full load/no load): 17 km/h / 17.5 km/h
• Gradeability: 20% (11.3°)
• Tilt Angle (forward/backward): 6° / 12°
• Static Tipping Load (straight): 5,200 kg
• Tires: Pneumatic standard; solid tires (optional for indoor concrete floors/rough yards)
• Turning Radius: 2,370 mm

4. Hydraulic & Control Systems

• Load-sensing hydraulic system with electronic control to optimize flow/pressure, reducing fuel consumption

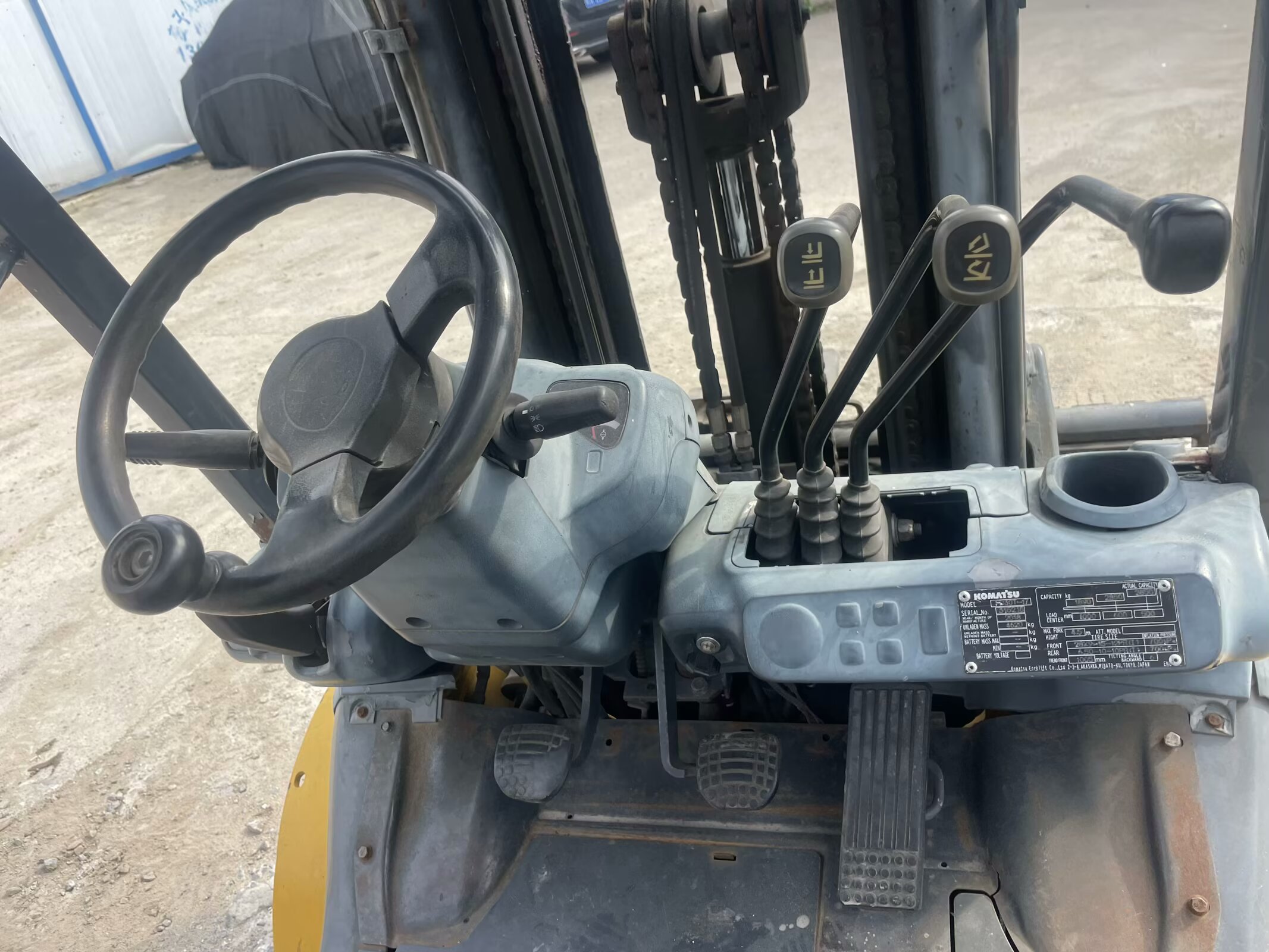

• Pilot-operated hydraulic controls for precise, low-effort operation
• Full-free lift function: inner mast lifts first, enabling full fork height inside containers without raising the outer mast
• Automatic overload protection to prevent mast/frame damage

5. Operator Cab

• ROPS/FOPS-certified safety frame for rollover and falling object protection
• Spacious, sealed cab with vibration isolation and low noise levels

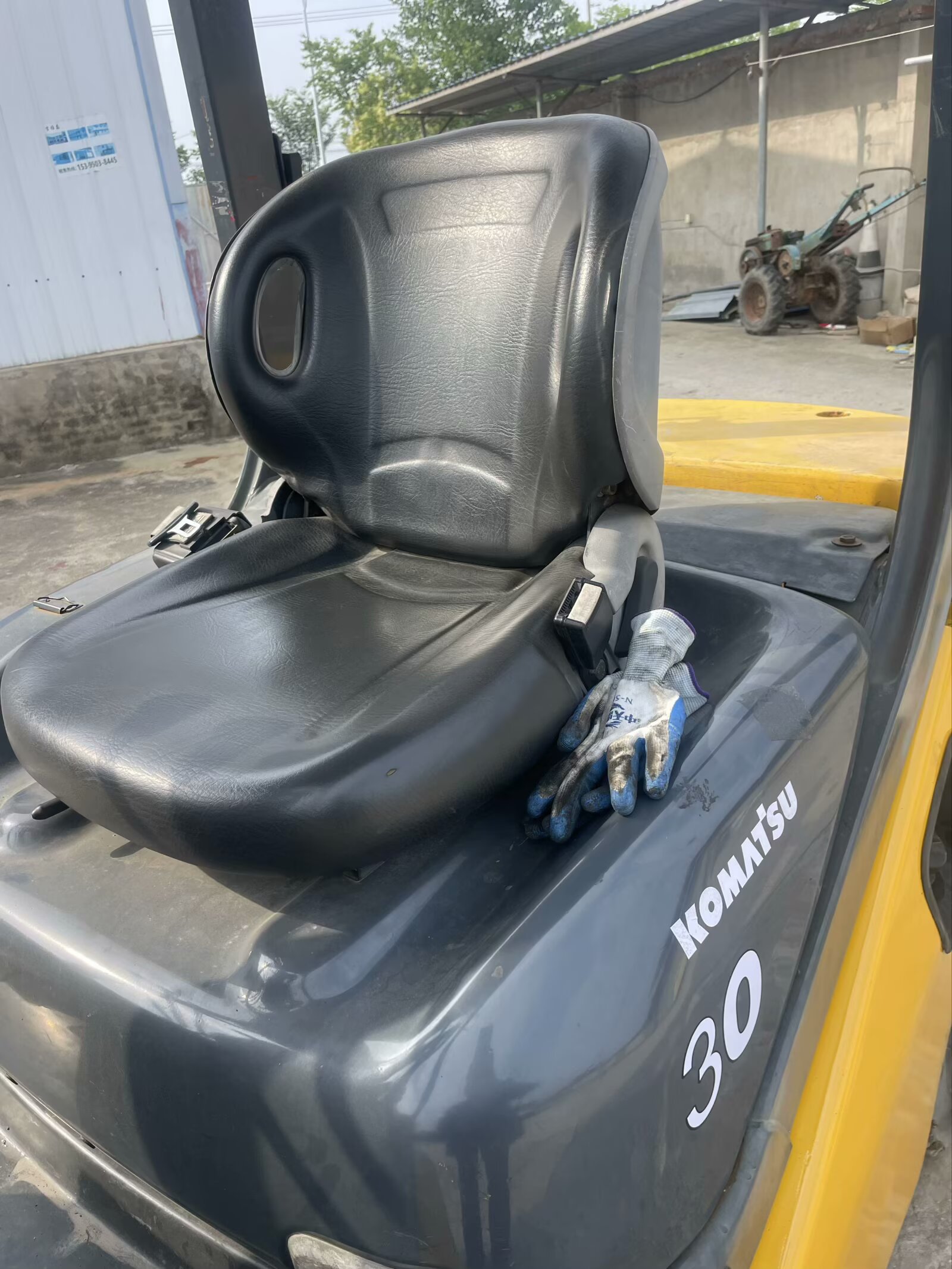

• Adjustable air-suspension seat, tilt steering wheel, and intuitive control layout
• Integrated heating & air conditioning with air filtration
• Multi-information display for real-time engine, hydraulic, fuel, and mast status monitoring; optional rearview camera for enhanced rear visibility

6. Structural Durability

• Reinforced triple-stage mast with high-strength steel and wear-resistant bushings
• Heavy-duty chassis and cast-iron counterweight for stable lifting at max height
• Replaceable fork tips and side shifters for quick maintenance
• Extended service intervals (500-hour oil change, 2,000-hour hydraulic filter replacement)
• Easy-access service points and centralized lubrication (optional)

Core Advantages

1. Efficient Triple-Mast & Hydraulic Performance

• Triple-stage full-free lift mast eliminates the need for extra equipment in container work, boosting loading/unloading efficiency
• Multiple lift heights (4.5m/5m/6m) fit different warehouse heights and job site needs
• 4D94LE engine and load-sensing hydraulics deliver fast cycle times while keeping fuel costs low

2. Superior Stability & Safety

• Optimized counterweight and wide wheelbase maintain stability even when lifting 3 tons to full height
• ROPS/FOPS safety cab, overload protection, emergency stop, and optional rearview camera minimize operational risks
• Precise tilt control prevents load spillage during transport on uneven ground

3. Reliable & Low-Maintenance Design

• KOMATSU’s time-tested 4D94LE engine and hydraulic components ensure long service life with minimal breakdowns
• Reinforced mast and frame handle heavy use in ports, factories, and outdoor yards
• Easy-to-reach service points reduce maintenance time and labor costs
• Optional KOMTRAX telematics for remote monitoring of machine status and maintenance reminders

4. Operator Comfort & Productivity

• Low-noise, climate-controlled cab reduces fatigue during long shifts
• Smooth hydraulic response and precise controls enable accurate stacking at height
• Excellent all-around visibility, especially for aligning forks with high-rack pallets

5. Global Service & Support

• KOMATSU’s worldwide authorized dealer network provides 24/7 genuine parts supply and on-site service
• Free operator and maintenance training at local KOMATSU service centers
• Multilingual documentation and technical support available globally

Typical Application Scenarios

1. Warehousing & Logistics Centers

• High-rack stacking and order picking in large distribution centers
• Container stuffing/stripping at inland depots (full-free lift mast is ideal here)

2. Manufacturing & Industrial Plants

• Raw material and finished goods handling on production lines
• Heavy component transport in automotive, electronics, and steel industries

3. Ports & Container Terminals

• Container loading/unloading from trucks and ships
• Yard stacking and short-distance material transport

4. Construction & Job Site Material Handling

• Transporting steel, concrete blocks, and building materials to multi-level construction sites
• Loading/unloading delivery trucks at remote job locations

5. Rental & Third-Party Logistics

• Rental fleets for seasonal or project-based high-lift needs
• 3PL providers requiring reliable, fuel-efficient equipment for daily operations

Foreign Trade Service Guarantee

1. Customization Options

• Triple-stage mast lift heights (4.5m/5m/6m), full-free lift as standard
• Tire options (pneumatic/solid), side shifter, fork positioner, attachment quick hitch
• Cold/hot climate packages, cab pressurization, rearview camera
• Multilingual operator manuals and documentation

2. Inspection & Certification

• Pre-shipment inspection by SGS, BV, or other international third-party institutions
• Export documents: CO (Certificate of Origin), Form E/F, Bill of Lading
• Compliance with global standards: ISO, CE, EPA Tier 3

3. Warranty & Training

• 1-year or 2,000-hour global warranty covering major components (engine, hydraulics, transmission)
• Free on-site or factory training for operators and maintenance staff
• 24/7 technical support via phone, email, or video call

4. Spare Parts & After-Sales

• Fast delivery of genuine KOMATSU parts via global distribution hubs
• Consignment stock available for key markets to ensure quick availability
• Long-term maintenance contracts tailored to customer needs

Why Choose KOMATSU FD30T-17 Triple-Mast Forklift?

The KOMATSU FD30T-17 3-ton forklift with triple-stage full-free lift mast blends KOMATSU’s engineering heritage with modern material-handling demands. Its fuel-efficient 4D94LE engine, smooth load-sensing hydraulics, and high-lift triple-stage mast make it unbeatable for container operations and high-rack warehouses. The ergonomic, safe cab, robust build quality, and global service network ensure minimal downtime and maximum return on investment. For businesses needing a versatile, durable, high-performance 3-ton forklift, the FD30T-17 is the ultimate solution.

Contact Us

For real-time pricing, mast height customization, bulk order discounts, or door-to-door shipping quotes, contact our professional foreign trade team. We offer competitive prices, flexible payment terms (LC, TT, DP), and reliable global logistics to ensure your equipment arrives on time, ready to work. Our one-stop service from consultation to after-sales support will help you streamline operations and grow your business.
