KOMATSU PC220-8 23-Ton Medium-Duty Hydraulic Crawler Excavator – Foreign Trade Sales Copy

Brand & Model Positioning

Brand: KOMATSU

KOMATSU, a century-old Japanese heavy machinery giant, leads the global construction and mining equipment industry with precision engineering, fuel efficiency, and unrivaled durability. Serving over 150 countries via a vast authorized dealer network, KOMATSU focuses on operator-centric design, technological innovation, and sustainable solutions. It is trusted by construction firms, mining operators, and infrastructure developers worldwide for machinery that delivers consistent productivity and low total cost of ownership, backed by comprehensive after-sales support and a reputation for long-term reliability.

Model: KOMATSU PC220-8

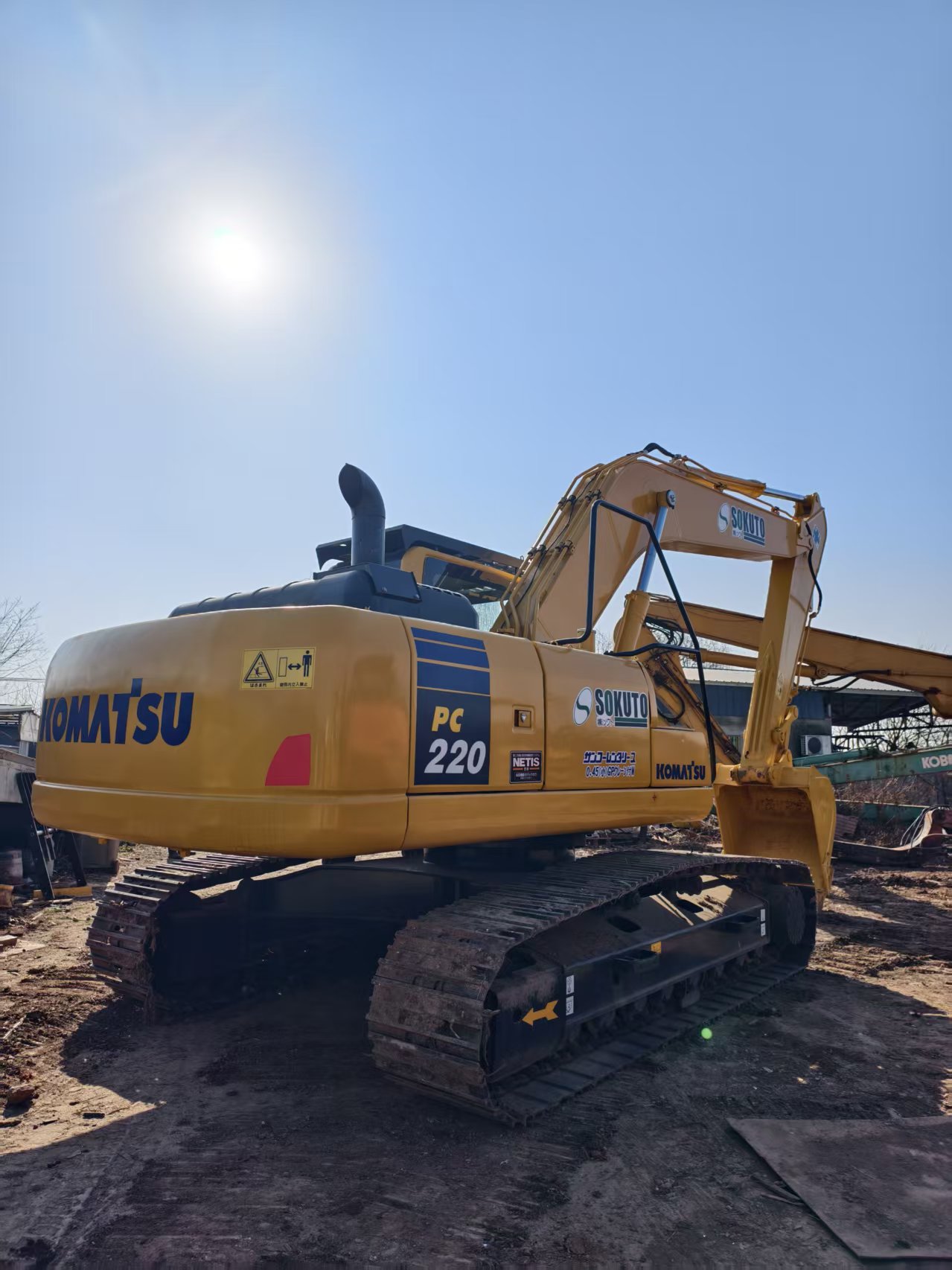

The KOMATSU PC220-8 is a 23-ton medium-duty hydraulic crawler excavator, a classic in its class, engineered for construction, road building, municipal engineering, and small-scale mining. It features the fuel-efficient Komatsu SAA6D107E-1 engine, advanced load-sensing hydraulic system, and robust undercarriage, delivering strong digging force, smooth operation, and excellent fuel economy. Its balanced weight, compact footprint, and ergonomic ROPS/FOPS cab make it ideal for both urban and remote job sites, excelling in digging, loading, grading, and material handling. It is the go-to machine for customers needing a reliable, cost-effective excavator for diverse medium-duty excavation projects.

Core Technical Specifications

1. Basic Parameters

• Operating Weight: 23,100 kg (23.1 tons)
• Rated Bucket Capacity: 1.0 m³ (standard, optional 0.8–1.45 m³)
• Rated Power (ISO 9249): 125 kW (170 HP) @ 2000 rpm
• Overall Dimensions (L×W×H): 9885 mm × 3300 mm × 3200 mm
• Fuel Tank Capacity: 400 L (105.7 US gal)

2. Engine Performance

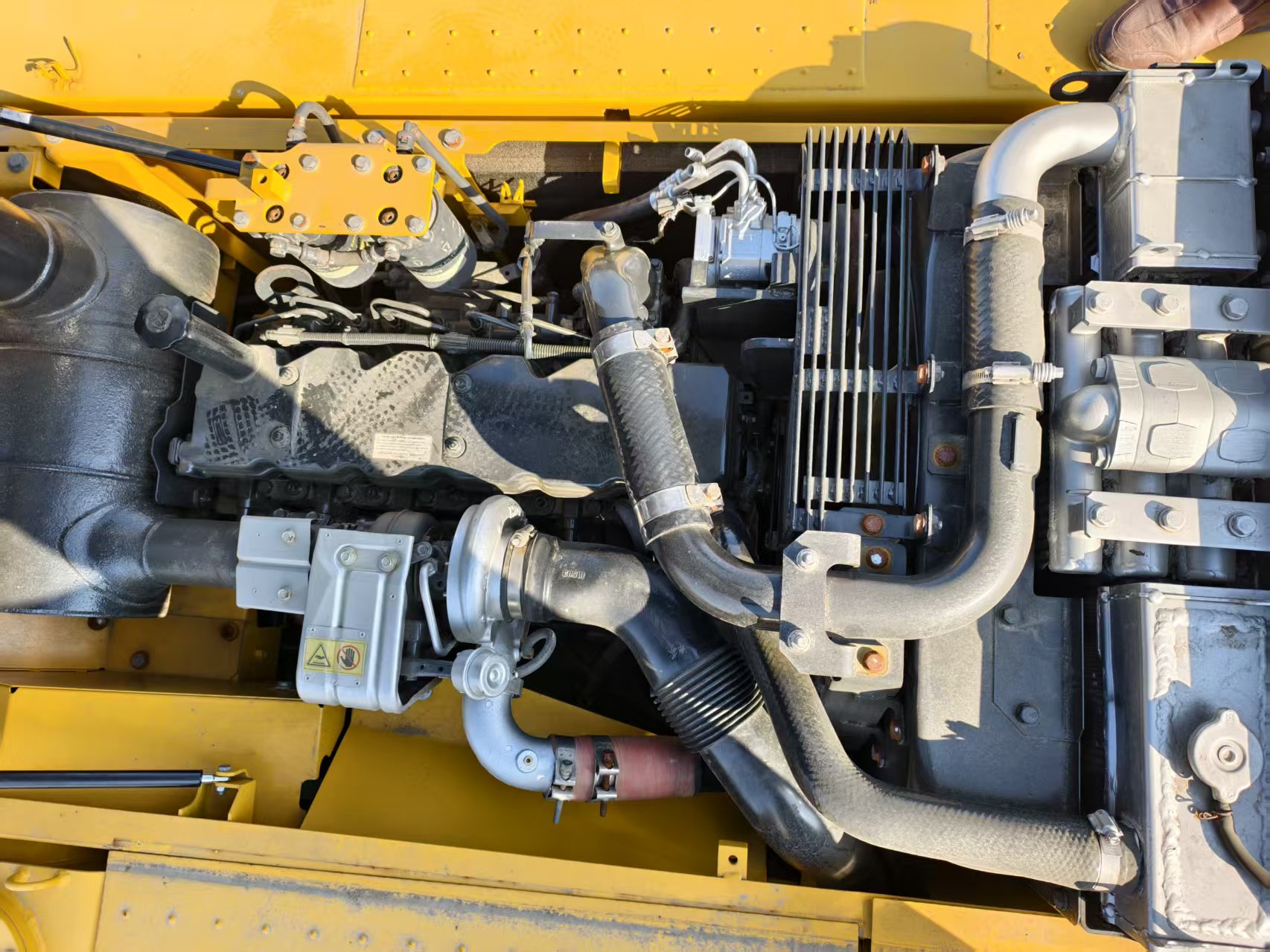

• Engine Model: Komatsu SAA6D107E-1 (6-cylinder, 4-cycle, turbocharged, aftercooled)
• Emission Compliance: US EPA Tier 3 / EU Stage 3A
• Displacement: 6.7 L
• Maximum Torque: 650 Nm @ 1600 rpm
• Cold-Start Performance: Reliable starting at -18°C (0°F); optional cold-start kit for -32°C (-25°F)

3. Excavation & Traction Systems

• Maximum Digging Depth: 6920 mm
• Maximum Digging Height: 9700 mm
• Maximum Unloading Height: 6700 mm
• Swing Speed: 11.5 rpm
• Travel Speed: 5.5 km/h (high), 4.2 km/h (medium), 3.1 km/h (low)
• Gradeability: 35%

4. Hydraulic & Control Systems

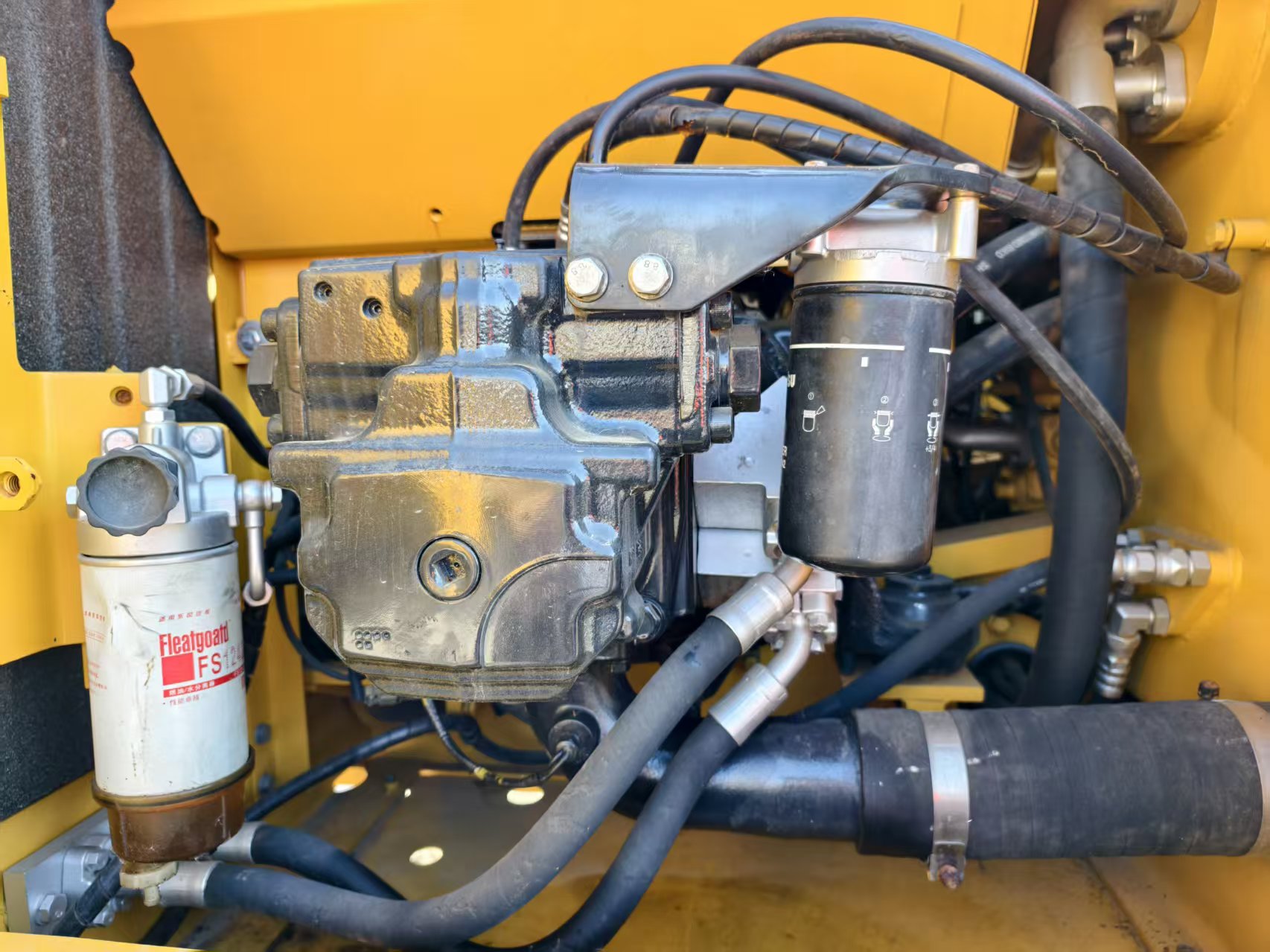

• Hydraulic System: Load-sensing, variable-displacement piston pump, 220 L/min max flow

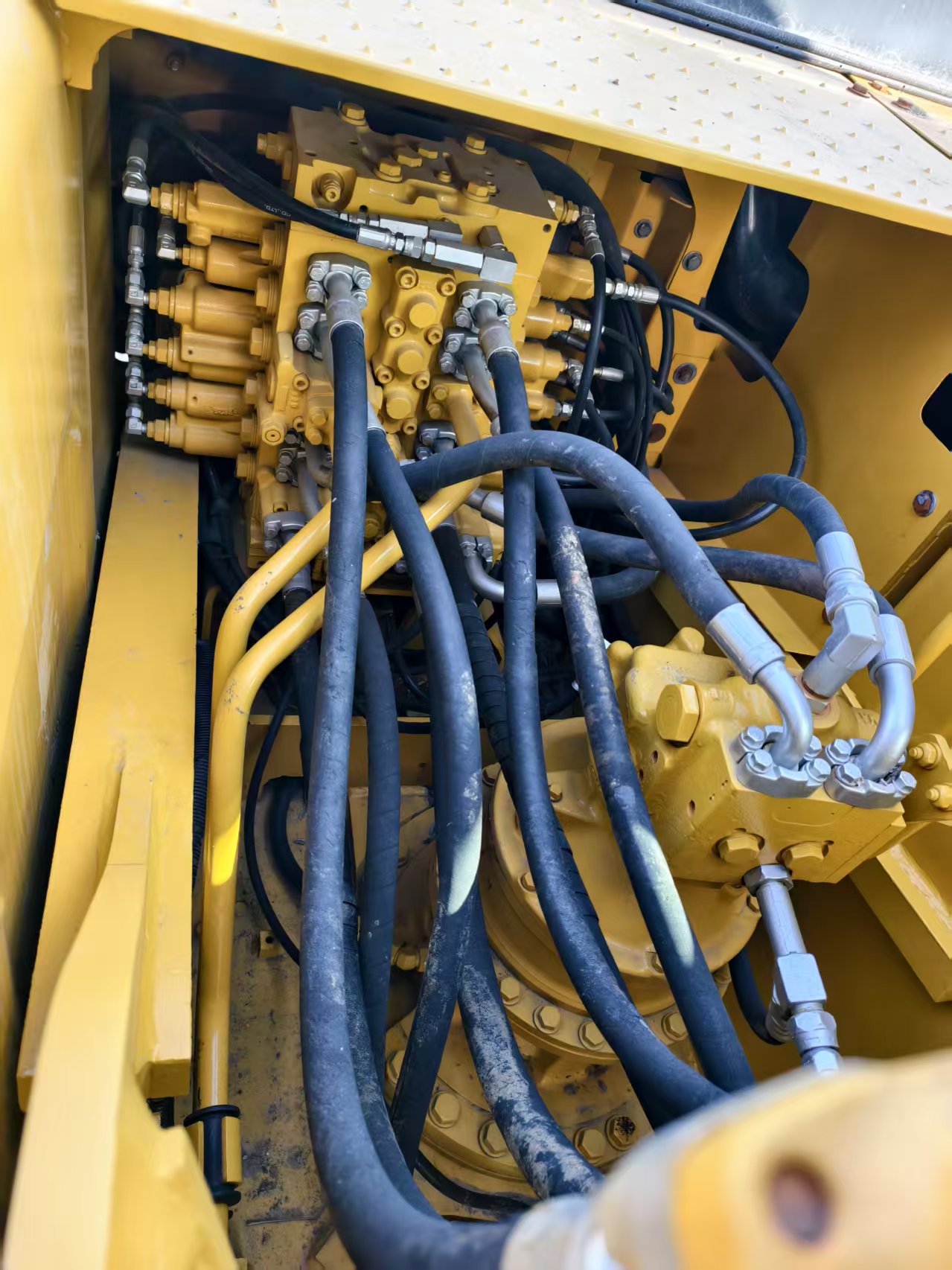

• Working Hydraulics: Pilot-controlled, 3-spool valve, 34,300 kPa relief pressure
• Bucket Digging Force: 172 kN (17,500 kgf)
• Stick Digging Force: 130 kN (13,200 kgf)
• Swing Torque: 340 kN·m

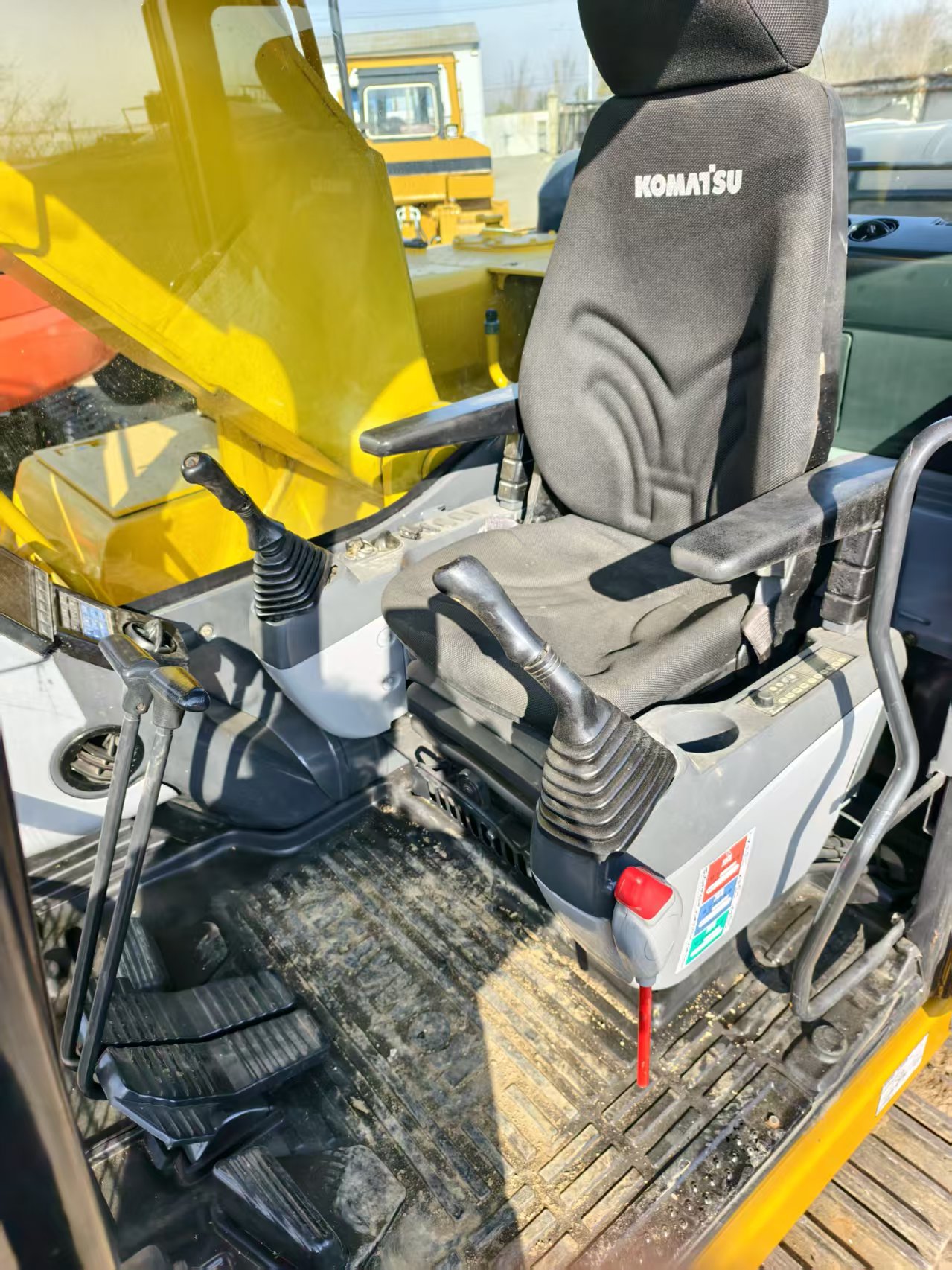

5. Operator Cab

• ROPS/FOPS certified (ISO 12117-2) for rollover and falling object protectionコマツ
• Low-noise (72 dB) sealed cab with damper mounting for reduced vibration
• Adjustable air-suspension seat, telescopic/tilt steering, and intuitive controls
• Air-conditioning with filtration system; optional pressurization
• Multi-information display for real-time monitoring of engine, hydraulic, and fuel status

6. Structural Durability

• Reinforced boom and stick with thickened wear plates
• Heavy-duty 7-roller undercarriage for stability and long service life
• Replaceable bucket teeth and side cutters for easy maintenance
• Extended service intervals (500-hour oil change, 2000-hour hydraulic filter change)

Core Advantages

1. Powerful & Efficient Performance

• 125 kW (170 HP) engine delivers 172 kN bucket digging force for fast material excavation
• Load-sensing hydraulic system matches flow to demand, reducing power loss and boosting fuel efficiency
• Multiple bucket options (standard, heavy-duty, rock) adapt to different materials and job conditions

2. Excellent Fuel Efficiency

• Komatsu SAA6D107E-1 engine with electronic control for efficient combustion
• Six working modes (P, E, L, B, ATT/P, ATT/E) to optimize performance and save fuelコマツ
• One-touch power max function temporarily increases digging force for tough tasksコマツ

3. Reliable & Durable Design

• Robust engine and hydraulic components with long service intervals (500-hour oil change)
• Reinforced boom, stick, and undercarriage withstand harsh job site conditions
• Advanced cooling system for reliable operation in temperatures up to 52°C (125°F)

4. Operator Comfort & Safety

• ROPS/FOPS certified cab for all-round protectionコマツ
• Spacious design with large windows for excellent 360° visibility
• Low noise and vibration levels with cab damper mounting and full insulation to reduce fatigue
• Overload protection and emergency stop system for enhanced safety

5. Low Operating Costs

• Fuel-efficient engine and load-sensing hydraulics minimize daily expenses
• Easy-to-access service points for quick maintenance
• High resale value due to KOMATSU’s reputation for durability
• Reduced maintenance parts and longer filter change intervals

6. Global Service & Support

• KOMATSU’s global network of authorized dealers for parts and service
• Remote monitoring via KOMTRAX for real-time diagnostics and fleet management
• 24/7 technical support via phone, email, or on-site service

Typical Application Scenarios

1. Construction & Road Building

• Foundation digging, basement excavation, and building construction
• Roadbed preparation, slope cutting, and embankment construction

2. Municipal Engineering & Urban Construction

• Sewer and water pipe installation, and trench digging
• Demolition, waste cleanup, and urban renewal projects

3. Quarry & Small-Scale Mining

• Aggregate extraction, rock breaking, and material loading
• Small-scale mining and mineral processing operations

4. Agriculture & Water Conservancy

• Reservoir and pond digging, and irrigation channel construction
• Farmland renovation and land reclamation

5. Rental & General Contracting

• Rental fleets for diverse customer needs
• General contracting projects requiring versatile medium-duty excavation capabilities

Foreign Trade Service Guarantee

1. Customization Options

• Bucket options (standard, heavy-duty, rock, tilt)
• Engine emission compliance (Tier 3 / Stage 3A)
• Special configurations for extreme temperatures (cold/hot)
• Multilingual documentation and operator manuals

2. Inspection & Certification

• Pre-shipment inspection by SGS, BV, or other third-party institutions
• Export certifications (CO, Form E, Form F, etc.)
• Compliance with international standards (ISO, CE, EPA Tier 3)

3. Warranty & Training

• 1-year or 2000-hour global warranty
• Free operator and maintenance training
• Technical support via phone, email, or on-site service

4. Spare Parts & After-Sales

• Fast delivery of genuine KOMATSU parts
• Consignment stock available for key markets
• On-site service and maintenance contracts

Why Choose KOMATSU PC220-8?

The KOMATSU PC220-8 23-ton medium-duty hydraulic crawler excavator blends KOMATSU’s century of engineering excellence with reliable performance for diverse excavation needs. Its Komatsu SAA6D107E-1 engine, advanced load-sensing hydraulic system, and robust structure ensure strong digging force, fuel efficiency, and stability in construction, municipal, and mining projects. The ergonomic cab and global service network provide peace of mind and high return on investment. For customers seeking a versatile, durable, and efficient excavator, the KOMATSU PC220-8 is the ultimate choice.
