Brand: HITACHI (Hitachi Construction Machinery) – A prestigious Japanese heavy machinery manufacturer with a century-long legacy in precision engineering and hydraulic technology innovation. Hitachi excavators are globally recognized for their fuel-efficient power systems, rugged structural design and intelligent operation control, and the ZX360H series stands as a flagship model in the 35-ton heavy excavator segment, engineered for high-intensity operations like mining, large-scale earthmoving and infrastructure construction. With a global after-sales network spanning 190+ countries, Hitachi ensures timely technical support and spare parts supply for overseas users in extreme working environments.

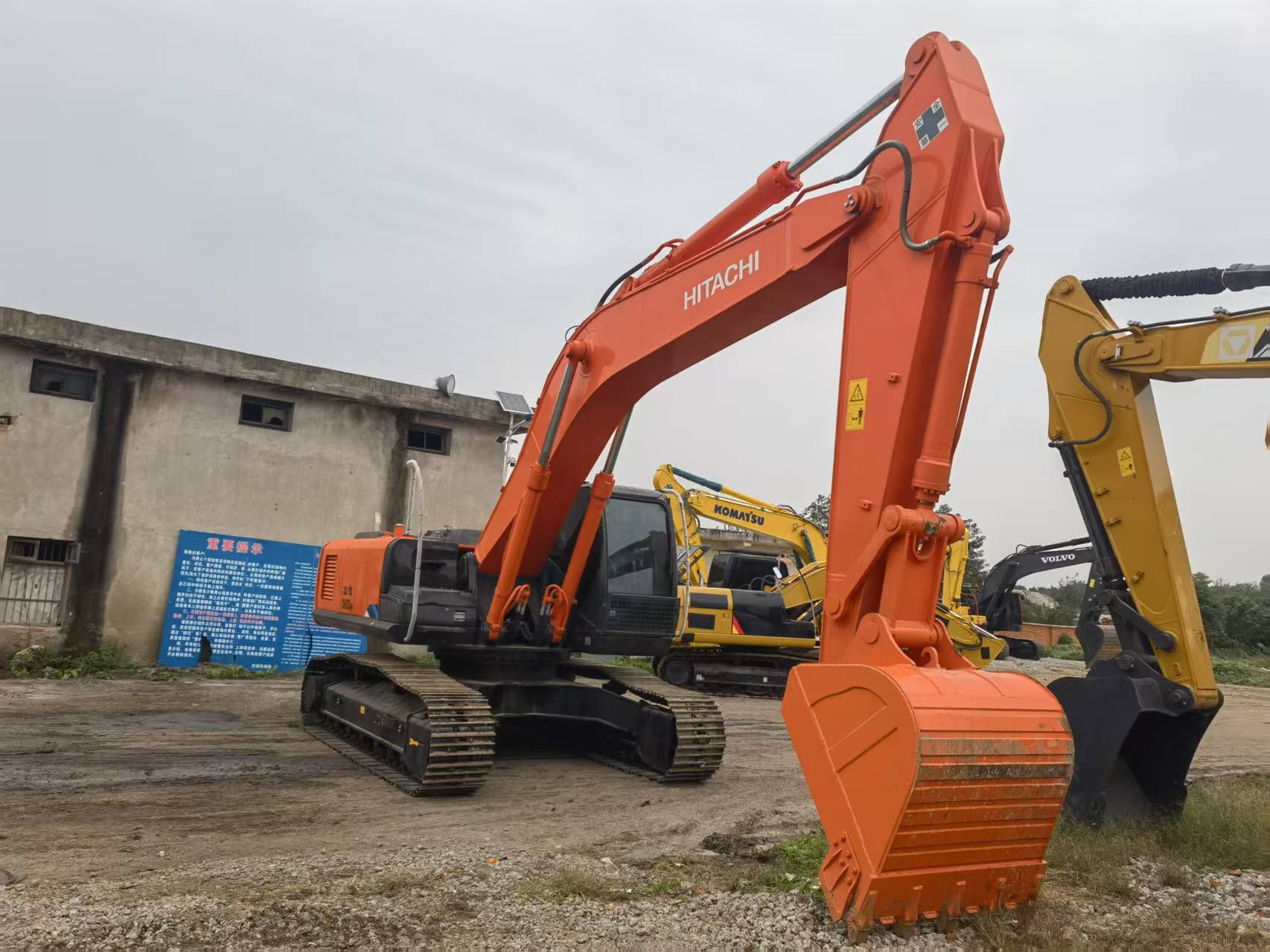

Model: HITACHI ZX360H (including ZX360H-5G/ZX360H-5A/ZX360H-5A Pro variants) – A 34-ton class heavy-duty hydraulic excavator optimized for bulk loading and mine-grade operations. Powered by the Isuzu GH-6HK1XKSA turbocharged engine (200kW total power/190kW net power) and paired with the HIOS Ⅲ hydraulic system, it delivers a maximum bucket digging force of 246kN and a 斗杆 digging force of 222kN. The Pro version features a 2.0m³ high-capacity loading bucket and reinforced tracks, boosting work volume by 26% and loading speed by 21% compared to standard models. It excels in open-pit mining, quarrying and large-scale infrastructure projects, and is highly sought-after in emerging markets such as Africa, Southeast Asia and South America
日立建机.
The ZX360H is equipped with the Isuzu GH-6HK1XKSA 6-cylinder turbocharged intercooled engine (7.79L displacement), featuring a high-pressure common rail injection system and cold EGR technology. This engine delivers a rated net power of 190kW (258PS) while meeting China National III emission standards, and can use B20 biodiesel to adapt to diverse fuel quality conditions in overseas regions. The engine’s integrated preheating system enables reliable startup at -20°C, and its dust-resistant air pre-filter extends the service life of the main air filter by 50%—critical for dusty mining environments in Africa and Australia日立建机. The intelligent power mode (ECO/Heavy) allows operators to switch between fuel-saving and high-performance modes, cutting fuel consumption by up to 16% in bulk loading scenarios日立建机.
Paired with the HIOS Ⅲ variable displacement piston pump hydraulic system (2 main pumps + 1 gear pump, main relief pressure 34.3MPa), the ZX360H achieves seamless coordination between power and hydraulic control. Its proprietary "Digging Acceleration System" and "Boom Regeneration System" reduce cycle times by 15% for composite operations like digging and lifting, while the reinforced hydraulic pipelines and HN bushings at pin connections minimize oil leakage and wear. The Pro variant’s 2.0m³ wide-mouth loading bucket and fast swing speed (10.7rpm) make it a "loading master" for bulk material handling in quarries and ports日立建机.
Hitachi has engineered the ZX360H with mine-grade structural reinforcements to withstand extreme loads:

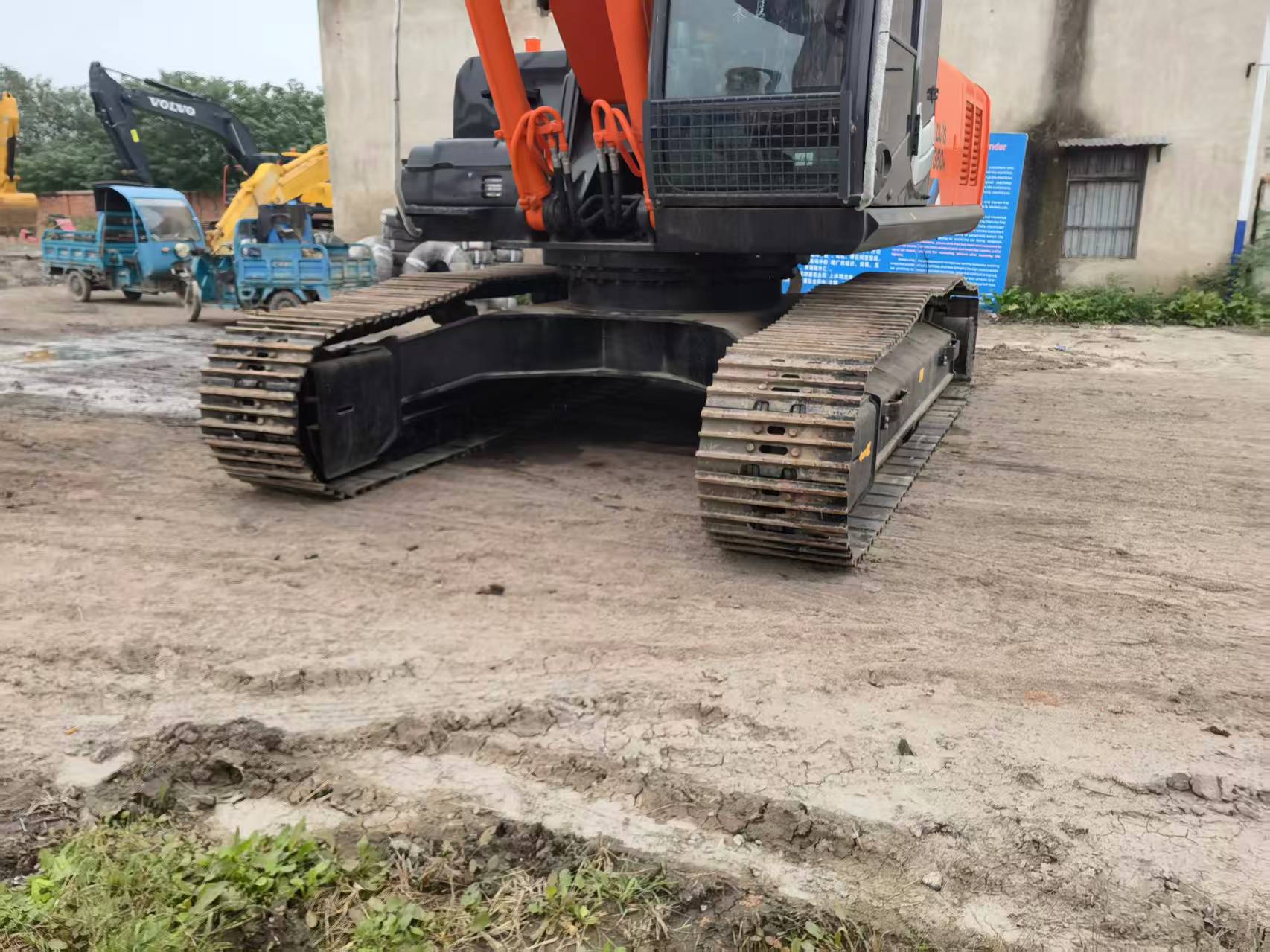

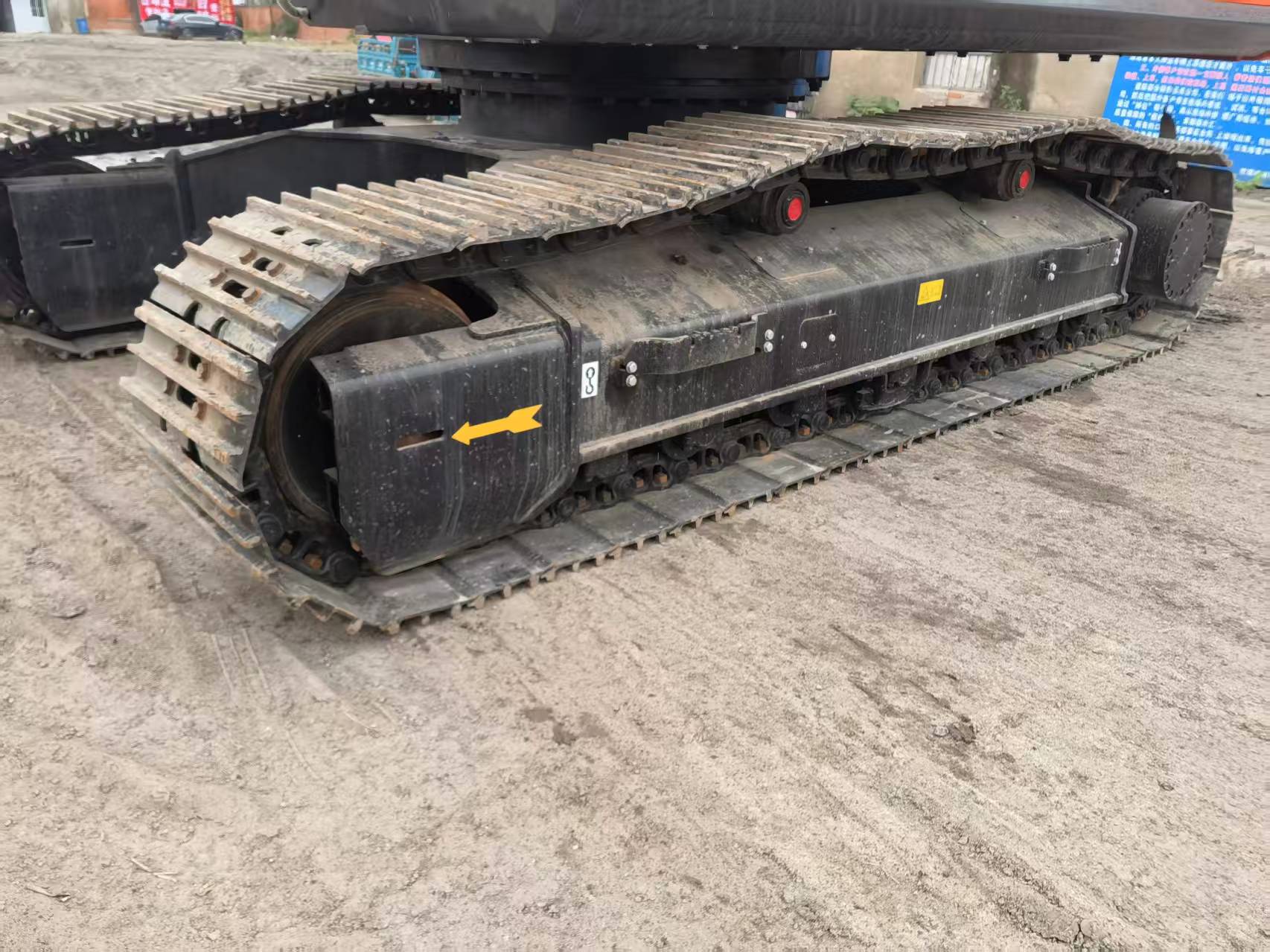

- Undercarriage Upgrade: The Pro version features 45% thicker track plates and 3-track chain guides per side, preventing track disengagement and extending undercarriage life by 50% in rocky terrain. The X-beam undercarriage uses integrated welding for enhanced stability, while sealed lubricated track pins reduce maintenance frequency日立建机.
- Front-End Work Device: The boom and arm are made of thick high-strength steel with reinforced ribs, and the bucket pin connections use WC tungsten carbide spraying to reduce wear. The welding-type A/B links further boost structural rigidity for rock excavation日立建机.
- Upper Frame Protection: The D-shaped upper frame is fitted with anti-collision guards to resist impacts from rocks and debris, while the integrated fuel tank with waterproof lockable cap prevents dust and water contamination日立建机.
The ZX360H’s cab prioritizes operator safety, comfort and efficiency for long-hour overseas operations:
- Safety & Comfort: The OPG Level 1 certified cab comes with front window protective nets and a reinforced central pillar to shield operators from falling objects. The air-suspended seat reduces vibration fatigue, and the full-auto air conditioner (7.5kW cooling capacity) adapts to tropical temperatures up to 50°C日立建机.
- Intelligent Monitoring: The 8-inch high-resolution color monitor supports 31 languages and real-time tracking of engine speed, hydraulic pressure and fault codes. It also manages attachment usage (e.g., hydraulic breaker hours) and provides maintenance reminders, while the ConSite remote monitoring system enables 24/7 fleet management for overseas clients日立建机.
- Ergonomic Design: Control buttons for the monitor and air conditioner are centralized on the right console, and the large front/side windows offer 360° visibility, reducing blind spots in busy construction sites日立建机.
The ZX360H is designed for minimal downtime and maintenance costs:
- Centralized Service Points: Daily checkpoints (fuel filters, hydraulic oil level, coolant) are concentrated in the pump room for ground-level access, cutting maintenance time by 25%日立建机.
- Extended Service Intervals: Engine oil filter replacement every 500 hours, hydraulic oil filter every 2000 hours, and track lubrication every 1000 hours—doubling the service life of key filters compared to conventional models日立建机.
- Remote Diagnostics: The ConSite system sends real-time machine data to Hitachi’s cloud platform, enabling predictive maintenance and reducing unplanned downtime for overseas projects.
With transport dimensions of 11350mm×3190mm×3270mm and a rear swing radius of 3590mm, the ZX360H balances stability and maneuverability for narrow mine sites. The anti-corrosion paint and reinforced counterweight resist salt spray in coastal mining areas and sand abrasion in desert regions. The full track guards and anti-collision frame protect critical components in rocky quarry environments日立建机.

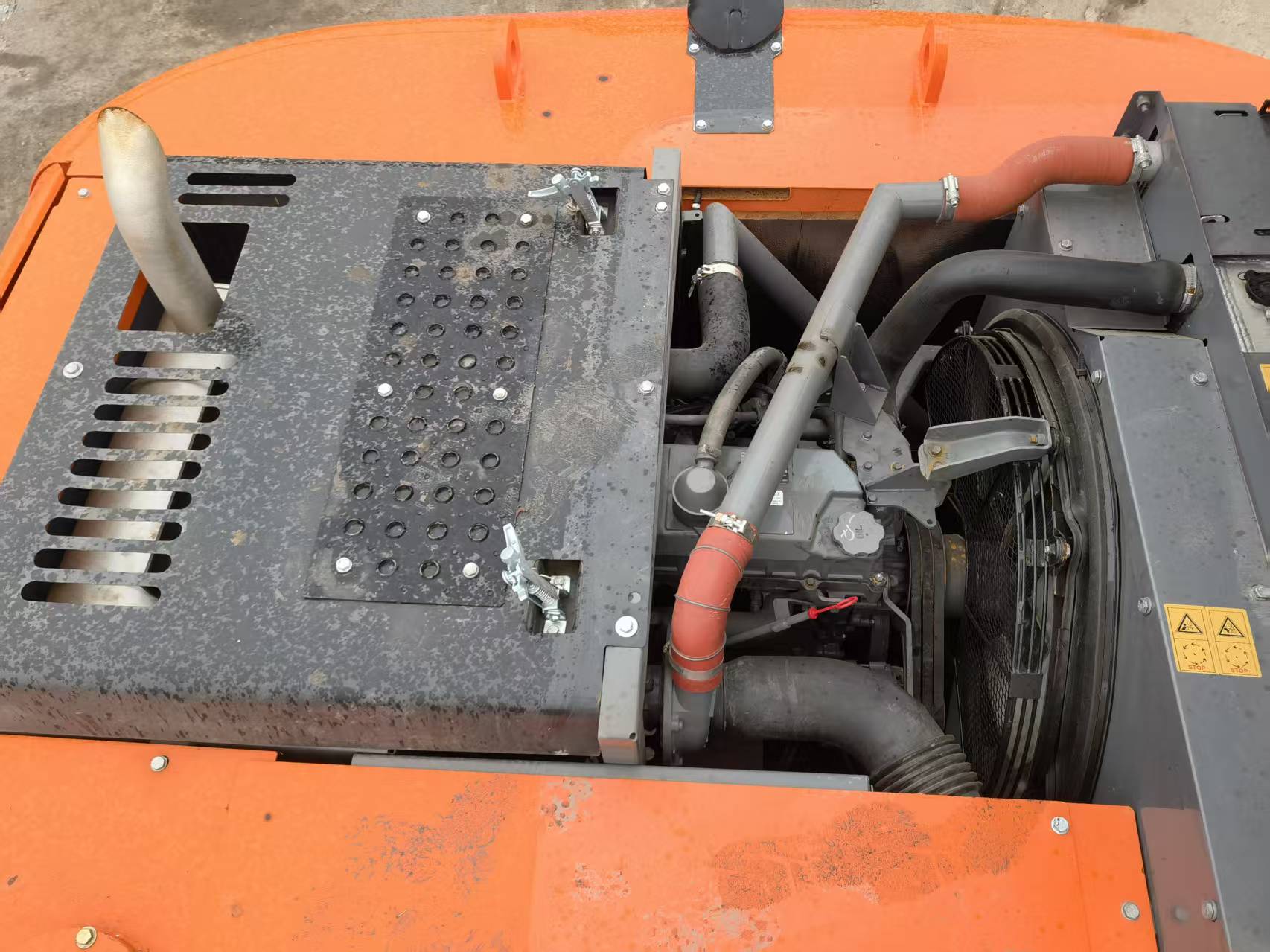

The Isuzu GH-6HK1XKSA engine and HIOS Ⅲ hydraulic pumps are housed in a sealed compartment with a large-capacity radiator for efficient heat dissipation. The air pre-filter and double-layer air filtration system prevent dust from entering the engine—essential for mining in Africa’s arid regions. The centralized pump room design allows easy access for daily inspections and filter replacements日立建机.
The 2.0m³ wide-mouth loading bucket (Pro version) delivers a digging force of 246kN, ideal for bulk material loading onto trucks. The WC-sprayed pin connections and reinforced bucket teeth reduce wear in gravel and rock conditions, while the 6,840mm maximum digging depth meets the demands of deep mine pit excavation日立建机.

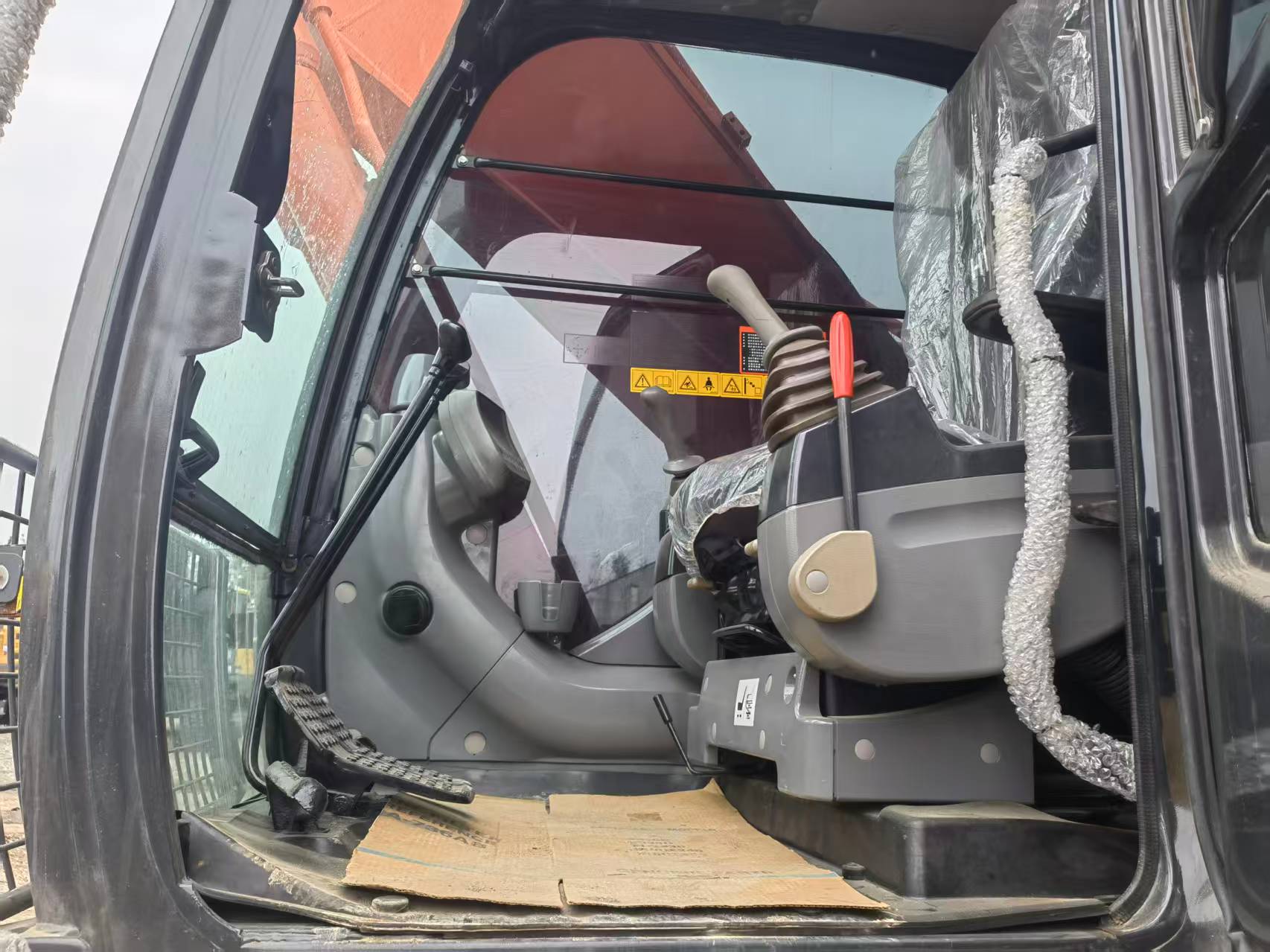

The spacious cab features an ergonomic joystick, 8-inch multilingual monitor and air-suspended seat, reducing operator fatigue during 12-hour shifts. The front window protective net and 360° visibility ensure safe operation in crowded mine sites, while the password-locked monitor prevents unauthorized use and theft in overseas job sites日立建机.
The HITACHI ZX360H, with its high productivity and mine-grade durability, is the ideal choice for large-scale overseas engineering projects:
- Open-Pit Mining & Quarrying: Specialized in surface soil stripping, ore loading and rock crushing in gold, copper and coal mines. The reinforced tracks and 246kN digging force handle rocky terrain, while the fuel-efficient engine cuts operational costs for 24/7 mining operations.
- Bulk Loading & Port Construction: The 2.0m³ high-capacity bucket and fast swing speed make it perfect for loading gravel, sand and bulk cargo at ports and quarries. The Pro version’s 21% faster loading speed significantly boosts productivity in material handling projects日立建机.
- Large-Scale Infrastructure: Suitable for dam building, highway construction and urban renewal projects (e.g., building demolition with hydraulic breakers). The HIOS Ⅲ hydraulic system ensures smooth composite operations, while the compact rear swing radius enables work in narrow construction zones.
We provide end-to-end cross-border procurement support for overseas buyers of the HITACHI ZX360H, addressing all challenges from inspection to after-sales:
- Comprehensive Equipment Inspection: For used ZX360H units, we issue detailed test reports covering engine power, hydraulic pressure, track wear and working hours, along with real-time operation videos. Third-party inspection (SGS/BV) is available to verify equipment condition for international buyers日立建机.
- Customized Compliance Support: We assist in preparing import documents (CO, emission certificates, customs clearance papers) tailored to local regulations in Africa, Southeast Asia and South America. The ZX360H meets non-road National III emission standards, ensuring smooth customs clearance in most emerging markets.
- Logistics & On-Site Commissioning: We offer Ro-Ro shipping, container transport or bulk cargo solutions with anti-rust/anti-collision packaging for long-distance sea transport. Professional technicians can be dispatched to the job site for equipment assembly, commissioning and operator training (including multilingual operation guides)日立建机.
- Global Spare Parts & After-Sales: Leveraging Hitachi’s global parts network, common spare parts (filters, bucket teeth, hydraulic hoses) are delivered to overseas sites within 7-20 days. We provide a 1-year free parts warranty and 24/7 online technical support, with local service partners in key markets (e.g., Nigeria, Indonesia, Brazil) for on-site maintenance.
The HITACHI ZX360H combines Japanese precision engineering with mine-grade ruggedness, making it the top choice for heavy-duty overseas projects. Its Isuzu engine and HIOS Ⅲ hydraulic system deliver unbeatable efficiency (16% fuel savings in Pro version) and productivity, while the reinforced undercarriage and wear-resistant components ensure long-term reliability in the harshest working conditions. For mining and construction companies in Africa, Southeast Asia and South America, the ZX360H offers a high return on investment with minimal downtime—ideal for 24/7 high-intensity operations requiring bulk loading and rock excavation capability日立建机.
If you need detailed technical parameters of the ZX360H (e.g., ground pressure, climbing capacity), real-time quotes for new/used units, customized mine-specific attachments (e.g., rock buckets, hydraulic breakers), or spare parts procurement channels, contact our team now. Let the HITACHI ZX360H power your overseas mining and construction projects with unmatched performance and durability!
