Brand: VOLVO (Volvo Construction Equipment) – A world - renowned heavy machinery brand celebrated for its rigorous quality control, outstanding safety performance and excellent durability. It boasts an extensive global sales and after - sales network spanning Europe, Asia, Africa, and the Americas. Its D - series excavators have won high recognition from overseas users for their optimized power systems and humanized designs, especially suitable for small - scale engineering operations that demand both efficiency and flexibility.
Model: VOLVO EC60D – A flagship small - tonnage crawler excavator in Volvo's D - series lineup, positioned in the 6 - ton class. It is specifically engineered for long - lasting operations, integrating strong digging performance, excellent fuel economy and reliable stability. With its compact size and flexible operation, it excels in narrow construction sites. Meanwhile, its high residual value in secondary transactions also makes it a cost - effective investment choice for overseas users engaged in small and medium - sized projects.
The excavator is powered by a Volvo D2.6A diesel engine that meets Tier 3/Stage III emission standards, delivering a rated power of 36.5kW at 2000rpm and a maximum torque of 210N·m at 1000rpm. The engine is equipped with precise high - pressure fuel injectors and a two - stage air filter, which can stably operate even in dusty working environments. It is perfectly matched with an open - center horsepower control hydraulic system. This combination not only reduces unnecessary energy consumption but also ensures powerful operational performance. Compared with similar models, it can effectively reduce fuel costs while maintaining high work efficiency, greatly enhancing the profitability of overseas operators.
It adopts a variable load - sensing pump hydraulic system with a main pump maximum flow of 142.4L/min and a main overflow pressure of 21.6MPa. The responsive control device and optimized hydraulic system enable operators to achieve precise grading operations. The excavator has a bucket digging force of 42.3kN and an arm digging force of 28.5kN, allowing it to easily handle soil, gravel and other materials. In addition, it has a maximum traction force of 43kN and a swing torque of 11Nm, ensuring smooth and efficient completion of digging, lifting, rotating and other operations. It can be flexibly matched with attachments such as hydraulic breakers to meet diverse operational needs of different projects.
The overall operating weight of the excavator is 5580kg, and it adopts a robust high - strength X - shaped chassis and a heavy - duty arm structure, which greatly enhances the overall stability and service life of the machine. The surrounding counterweight not only protects the engine compartment but also shields the rear of the machine, reducing collision risks during operations in narrow spaces. The 400mm wide track plate results in a ground contact pressure of 31.8Kpa, which can stably operate on soft terrains such as farmland and rural roads without damaging the ground or crop roots. The improved single - layer cooling system is not only efficient but also easy to clean, avoiding blockages and ensuring stable operation of the equipment under various climatic conditions.

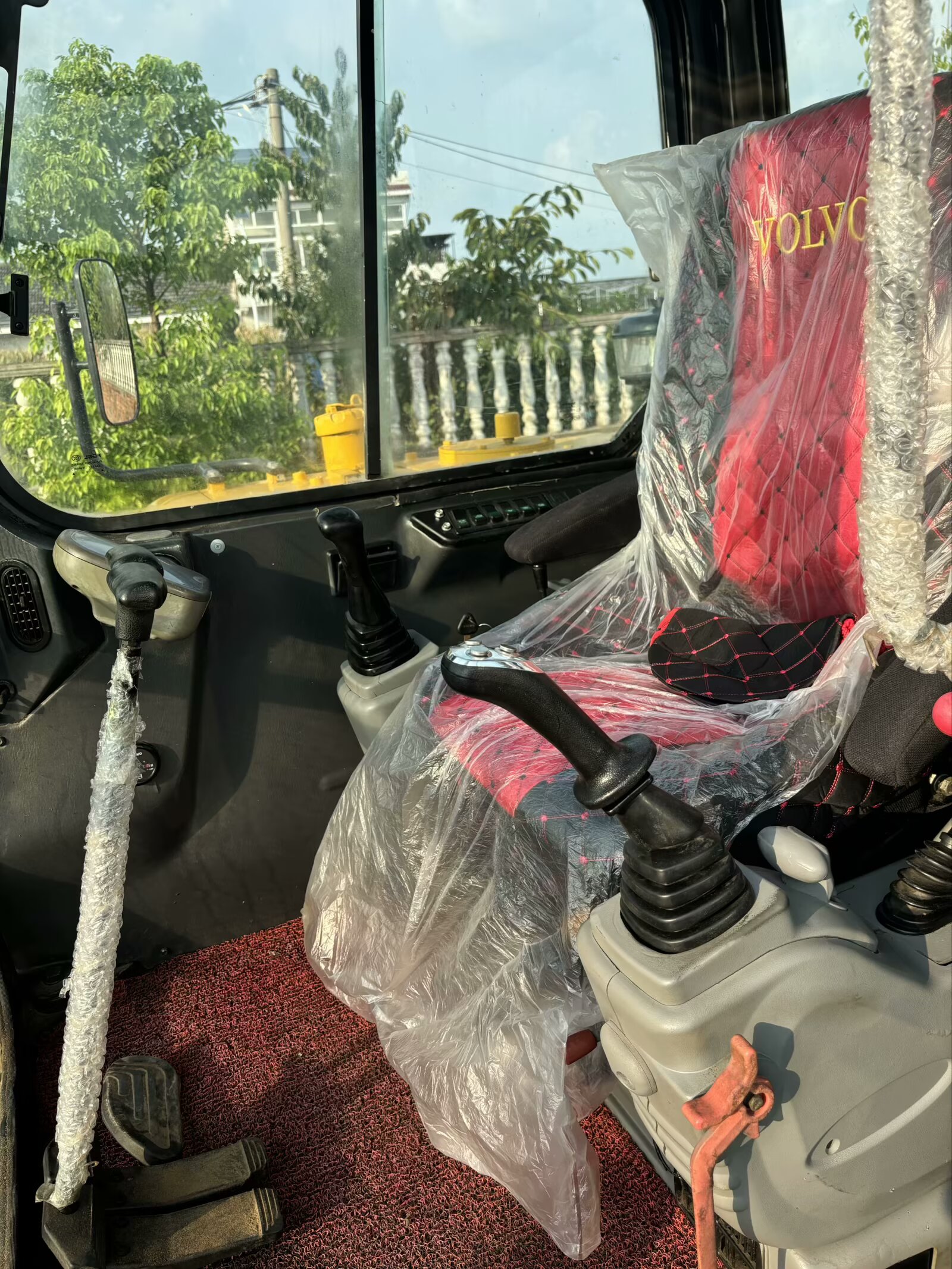

The cab is designed in accordance with ergonomic principles to minimize operator fatigue during long - time work. It is equipped with a fully adjustable seat and short - length joysticks. The air conditioning system with 10% improved performance can create a comfortable working environment in various temperature conditions. The low - noise design and effective vibration isolation effect also improve the comfort of the operating environment. In terms of maintenance, daily inspection points are easily accessible. The lockable engine hood can be opened conveniently, and maintenance personnel can complete inspection and maintenance work on the ground. The integrated lubrication grease barrel storage space on the frame also facilitates regular and quick lubrication operations.
The overall transportation dimensions are 5885mm×1940mm×2560mm. The classic Volvo yellow exterior is coated with anti - corrosion and anti - rust paint, which can resist salt spray erosion in coastal areas and sand wear in desert regions. The surrounding counterweight and brand - unique D - series styling make the machine look sturdy. The rear swing radius is only 1680mm, which can effectively avoid collisions with surrounding objects when working in narrow spaces such as alleys and basements.

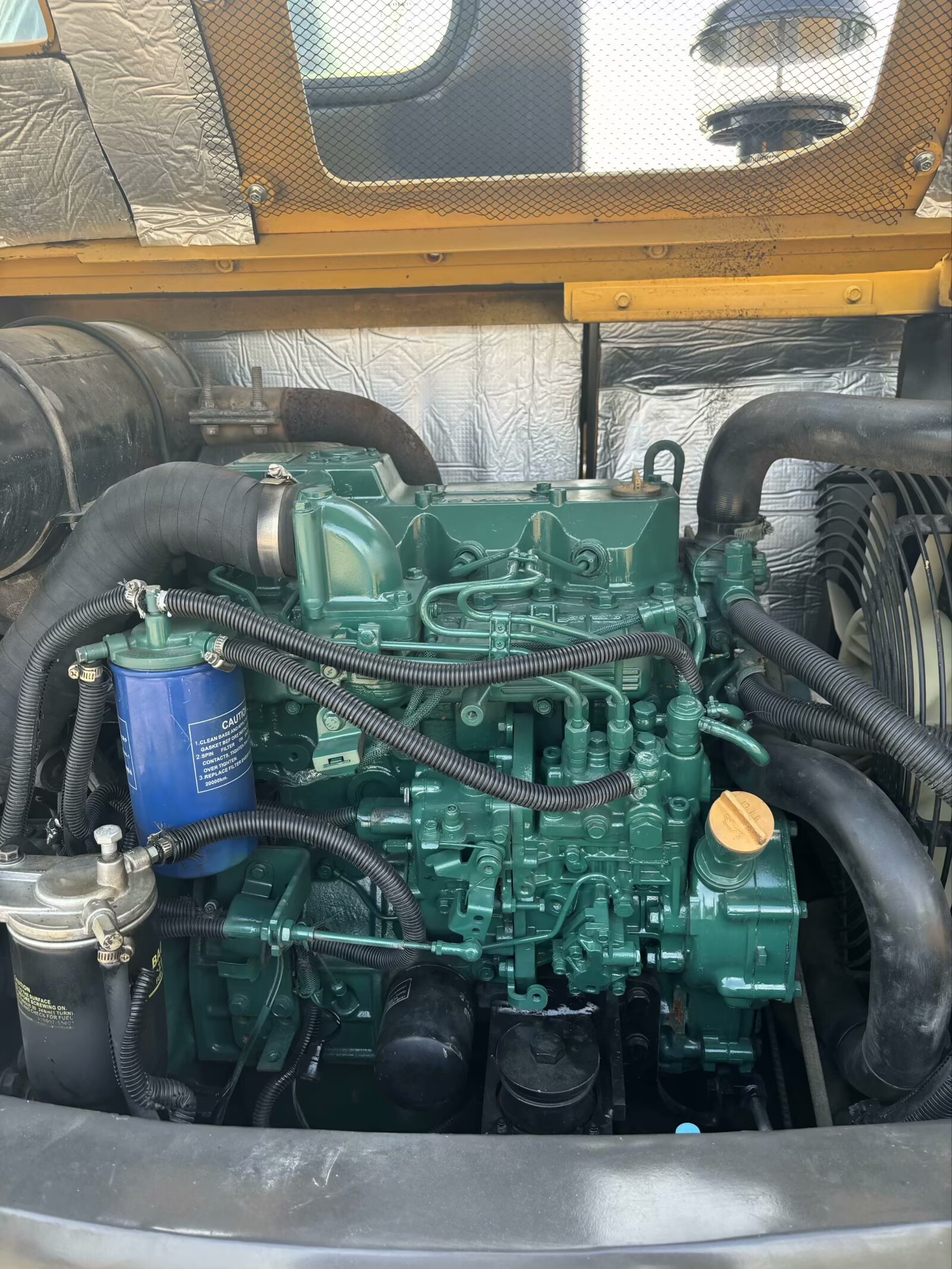

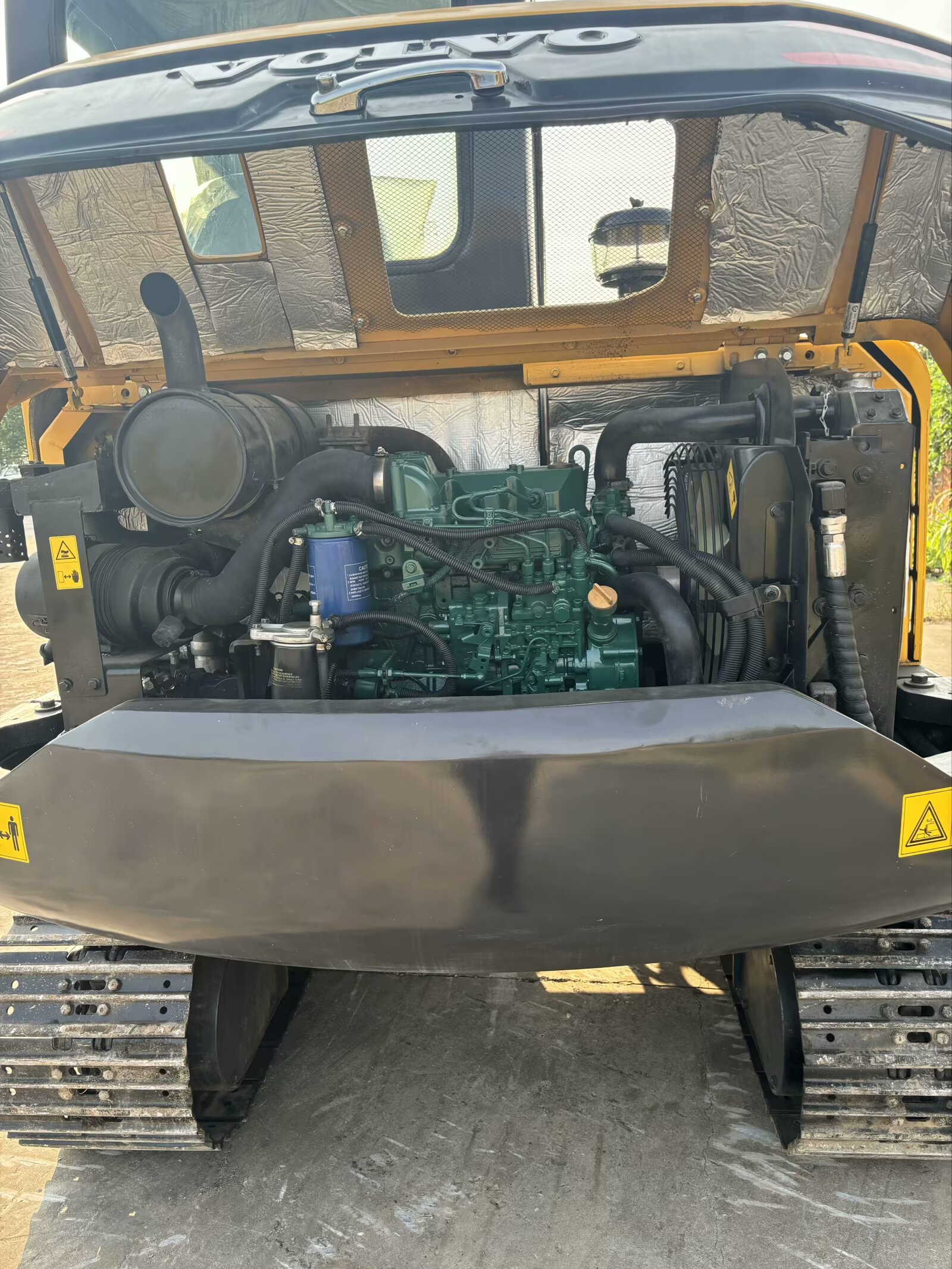

The Volvo D2.6A engine and self - produced hydraulic pump, valve and other core components are perfectly matched. The engine compartment layout is scientific, and the single - layer cooling system is easy to clean and not easy to block. The hydraulic pipelines are neatly arranged, and the key joints are reinforced to minimize oil leakage risks. The walking hydraulic circuit pressure is 20.6MPa and the rotary hydraulic circuit pressure is 18.6MPa, ensuring smooth walking and rotary actions.
The standard bucket capacity is 0.23m³, made of high - strength wear - resistant steel, and the bucket teeth and wear - resistant parts are reinforced to prolong the service life. The heavy - duty arm and reinforced welding seams can withstand the impact of hard materials such as gravel. The excavator has a maximum digging depth of 3800mm and a maximum digging radius of 6115mm, which can easily meet the needs of most small - scale excavation operations.
The spacious cab is equipped with large - area glass windows to expand the field of vision and reduce operational blind spots. The monitors and control devices are arranged ergonomically. The 12 - volt electrical system and 100Ah battery ensure the stable operation of electrical components such as on - board lights and air conditioning. The three - point contact entrance design of the cab also improves the safety of operators getting on and off the vehicle.
The VOLVO EC60D, with its flexible and reliable performance, is widely used in various overseas small - scale engineering scenarios:
- Municipal and Residential Construction: It is suitable for urban pipeline laying, community greening transformation, basement excavation and small - scale house renovation. Its small size and small rear swing radius can avoid damaging surrounding buildings and public facilities, which is very suitable for narrow urban construction spaces.
- Agriculture and Horticulture: It can be used for farmland reconstruction, orchard ditching, landscape construction and rural road repair. The low ground contact pressure will not damage the soil structure and crop roots. It can also be equipped with special attachments to complete operations such as soil turning and fertilization.
- Small - Scale Mining and Quarry Auxiliary Work: It is competent for surface soil stripping in small mines, loading of crushed stone materials and cleaning of mining waste. The two - stage air filter and reinforced bucket can cope with the dusty environment and the impact of gravel materials.
- Indoor and Small Demolition Projects: In indoor decoration and small factory renovation projects, its low noise and compact size can minimize the impact on the surrounding environment. When equipped with a crushing hammer, it can efficiently complete the demolition of small - scale concrete structures.
We provide comprehensive cross - border procurement support for overseas users to eliminate worries in the whole procurement process:
- Comprehensive Equipment Inspection: Provide detailed test reports covering engine power, hydraulic system pressure, track wear degree and working hour records. For used equipment, real - time operation videos and complete maintenance records are attached. We also support third - party inspection to ensure users fully grasp the equipment status.
- Customized Compliance Support: Familiar with the import policies of various countries and regions, we can assist in preparing Tier 3 emission compliance certificates, certificates of origin and other customs clearance documents. The equipment can smoothly pass the environmental and quality inspections of major overseas markets.
- Reliable Logistics and On - site Commissioning: Customize logistics solutions such as container shipping according to user needs. The equipment is packaged with anti - collision and anti - rust materials to prevent damage during long - distance transportation. After the equipment arrives at the destination, professional technicians can be arranged to carry out on - site commissioning and operation training for operators.
- Global Spare Parts and After - Sales: Relying on Volvo's global parts supply network, common spare parts such as filters, bucket teeth and hydraulic hoses can be quickly delivered to overseas construction sites. We provide a 1 - year free spare parts replacement service and 24 - hour online technical support. For equipment failures, local cooperative service providers can be coordinated for on - site maintenance in a timely manner.
The VOLVO EC60D inherits Volvo's consistent pursuit of reliability and efficiency. Its D2.6A engine and optimized hydraulic system achieve an excellent balance between power and fuel economy. The X - shaped chassis and heavy - duty arm structure ensure stable operation in extreme working conditions. Moreover, the humanized cab design and convenient maintenance characteristics reduce the use threshold and later operation costs for overseas operators. Whether it is for long - term project operation or short - term lease, its high residual value and low failure rate can bring stable returns to users. It is undoubtedly an ideal choice for overseas small - tonnage excavator procurement.
If you want to obtain more detailed parameters such as maximum unloading height and climbing capacity, real - time inspection videos of used equipment, customized quotes for new and used machines, or exclusive channels for accessory procurement, please contact our team immediately. Let the VOLVO EC60D provide powerful and flexible support for your overseas small - scale engineering projects and help you improve operation efficiency and investment returns!
