CAT 966H 10-Ton Heavy-Duty Wheel Loader – Foreign Trade Sales Copy

Brand & Model Positioning

Brand: CAT (Caterpillar)

CAT, a global leader in heavy machinery with over a century of engineering excellence, is renowned for uncompromising durability, fuel efficiency, and cutting-edge technology. With an authorized dealer network covering 190+ countries, CAT prioritizes operator safety, low total cost of ownership, and sustainable performance. Trusted by construction, mining, port, and logistics industries worldwide, CAT wheel loaders deliver consistent productivity, minimal downtime, and comprehensive after-sales support, setting the gold standard for reliability in earthmoving and material handling.

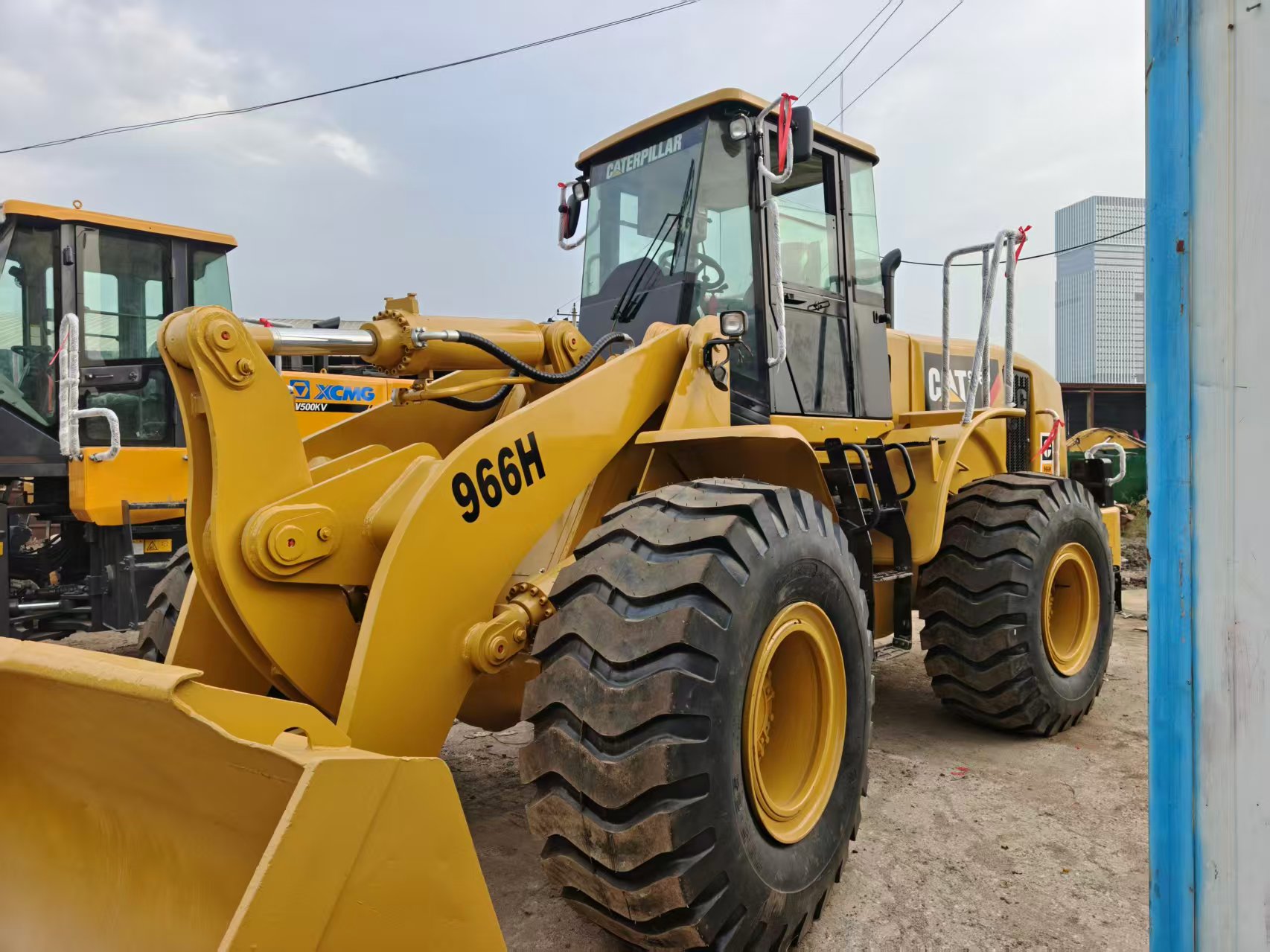

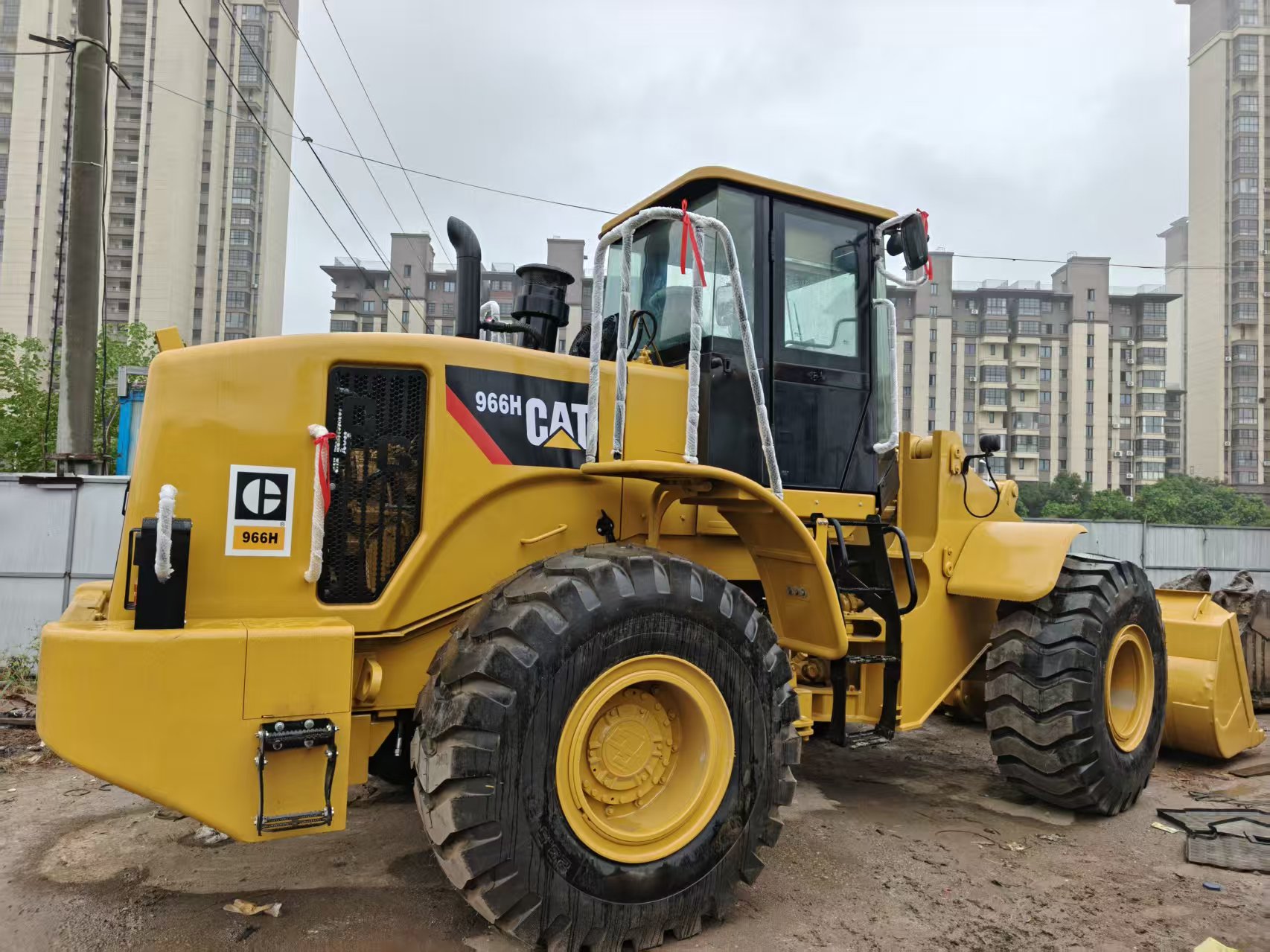

Model: CAT 966H (10-Ton Heavy-Duty Wheel Loader)

The CAT 966H is a premium 10-ton wheel loader, engineered for high-volume material handling, construction site earthmoving, port cargo loading, and mining operations. It is powered by the proven CAT C11 ACERT turbocharged diesel engine, paired with an advanced electro-hydraulic (EH) control system and robust powertrain, delivering exceptional breakout force, smooth operation, and excellent fuel economy. Its ROPS/FOPS-certified ergonomic cab, precise controls, and durable chassis handle heavy daily use in harsh environments, excelling at loading, transporting, and stockpiling tasks. It is the first choice for customers needing a reliable, high-performance 10-ton wheel loader with powerful lifting capacity and versatile attachment compatibility for diverse industrial applications.

Core Technical Specifications

1. Basic Parameters

• Rated Load Capacity: 10,000 kg (10 tons), Standard Bucket Capacity: 3.4–4.2 m³ (heaped)
• Operating Weight: 23,698 kg
• Unloading Height (standard): 3,005 mm
• Wheelbase: 3,450 mm
• Overall Length (with bucket on ground): 8,855 mm
• Fuel Tank Capacity: 380 L
• Hydraulic Tank Capacity: 110 L

2. Engine Performance

• Engine Model: CAT C11 ACERT (6-cylinder, 4-cycle, turbocharged, direct injection)
• Emission Compliance: US EPA Tier 3 / EU Stage 3A
• Displacement: 11.1 L
• Rated Net Power (ISO 9249): 195 kW (262 HP) @ 1,800 rpm
• Maximum Torque: 1,299 Nm @ 1,400 rpm
• Cold-Start Performance: Reliable starting at -18°C (0°F); optional cold-start kit for -30°C (-22°F)
• Low noise (74 dB) and reduced exhaust emissions for improved worksite comfort

3. Transmission & Traction Systems

• Transmission: 4-speed powershift with torque converter
• Maximum Travel Speed (forward/reverse): 37.4 km/h
• Gradeability: 35° (61%)
• Tires: 26.5R25 (standard); optional heavy-duty off-road tires for rough terrain
• Breakout Force: 154 kN

4. Hydraulic & Control Systems

• Electro-hydraulic (EH) control system with load-sensing technology for precise, low-effort operation
• Hydraulic Flow (rated speed): 305 L/min
• Work Cycle Times: Lift (5.9 s), Unload (1.6 s), Lower (empty bucket, 2.4 s), Combined Cycle (9.9 s)
• Auxiliary hydraulic connections for attachments (forks, grapples, buckets)
• Automatic overload protection to prevent boom and frame damage

5. Operator Cab

• ROPS/FOPS-certified safety frame for rollover and falling object protection
• Spacious, sealed cab with vibration isolation and low noise levels
• Adjustable air-suspension seat, tilt/telescopic steering wheel, and intuitive EH controls
• Integrated heating & air conditioning with air filtration
• Multi-information display for real-time monitoring of engine, hydraulic, fuel, and transmission status; rearview camera optional

6. Structural Durability

• Reinforced boom with high-strength steel and wear-resistant bushings
• Heavy-duty chassis and counterweight design for stable lifting at max height
• Replaceable bucket teeth and cutting edges for easy maintenance
• Extended service intervals (500-hour oil change, 2,000-hour hydraulic filter replacement)
• Easy-access service points and centralized lubrication system (optional)

Core Advantages

1. Powerful & Efficient Performance

• C11 ACERT engine and EH hydraulic system deliver fast cycle times while keeping fuel costs low
• Multiple bucket options (3.4–4.2 m³) and attachment compatibility (forks, grapples) fit diverse material handling needs
• Heavy-duty design handles 10-ton loads with ease, ideal for construction, mining, and port operations

2. Superior Stability & Safety

• Optimized counterweight and wide wheelbase maintain stability even when lifting 10 tons to full height
• ROPS/FOPS safety cab, overload protection, emergency stop, and optional rearview camera minimize operational risks
• Precise boom control prevents load spillage during transport on uneven ground

3. Reliable & Low-Maintenance Design

• CAT’s time-tested C11 ACERT engine and hydraulic components ensure long service life with minimal breakdowns
• Reinforced boom and frame withstand heavy use in construction, mining, and outdoor yards
• Easy-to-reach service points reduce maintenance time and labor costs
• Optional CAT VisionLink telematics for remote monitoring of machine status and maintenance reminders

4. Operator Comfort & Productivity

• Low-noise, climate-controlled cab reduces fatigue during long shifts
• Smooth hydraulic response and precise EH controls enable accurate loading and stockpiling
• Excellent all-around visibility, especially for aligning the bucket with material piles

5. Global Service & Support

• CAT’s worldwide authorized dealer network provides 24/7 genuine parts supply and on-site service
• Free operator and maintenance training at local CAT service centers
• Multilingual documentation and technical support available globally

Typical Application Scenarios

1. Construction & Infrastructure Projects

• Earthmoving, grading, and site preparation for roads, bridges, and buildings
• Loading/unloading construction materials (sand, gravel, concrete blocks)

2. Mining & Quarry Operations

• Transporting ore, rock, and aggregate from extraction sites to processing plants
• Stockpiling and loading minerals onto trucks and trains

3. Ports & Container Terminals

• Cargo loading/unloading from ships and trucks
• Yard stacking and short-distance material transport

4. Manufacturing & Industrial Plants

• Raw material and finished goods handling in steel, cement, and chemical industries
• Heavy component transport on production lines

5. Waste Management & Recycling Centers

• Loading and transporting bulk waste materials, scrap metal, and recycled goods

Foreign Trade Service Guarantee

1. Customization Options

• Bucket options (general purpose, rock, light material) with capacities 3.4–4.2 m³
• Tire options (standard, heavy-duty off-road), auxiliary hydraulics, and attachment quick hitch
• Cold/hot climate packages, cab pressurization, rearview camera, and beacon lights
• Multilingual operator manuals and documentation

2. Inspection & Certification

• Pre-shipment inspection by SGS, BV, or other international third-party institutions
• Export documents: CO (Certificate of Origin), Form E/F, Bill of Lading
• Compliance with global standards: ISO, CE, EPA Tier 3

3. Warranty & Training

• 1-year or 2,000-hour global warranty covering major components (engine, hydraulics, transmission)
• Free on-site or factory training for operators and maintenance staff
• 24/7 technical support via phone, email, or video call

4. Spare Parts & After-Sales

• Fast delivery of genuine CAT parts via global distribution hubs
• Consignment stock available for key markets to ensure quick availability
• Long-term maintenance contracts tailored to customer needs

Why Choose CAT 966H Wheel Loader?

The CAT 966H 10-ton wheel loader blends CAT’s engineering heritage with modern material-handling demands. Its powerful C11 ACERT engine, smooth electro-hydraulic controls, and robust design make it unbeatable for construction, mining, and port operations. The ergonomic, safe cab, durable build quality, and global service network ensure minimal downtime and maximum return on investment. For businesses needing a versatile, durable, high-performance 10-ton wheel loader, the CAT 966H is the ultimate solution.

Contact Us

For real-time pricing, bucket customization, bulk order discounts, or door-to-door shipping quotes, contact our professional foreign trade team. We offer competitive prices, flexible payment terms (LC, TT, DP), and reliable global logistics to ensure your equipment arrives on time, ready to work. Our one-stop service from consultation to after-sales support will help you streamline operations and grow your business.
