Komatsu FD100 Diesel Forklift

Brand & Model Positioning

Brand: KomatsuAs a world‑leading Japanese heavy‑equipment manufacturer, Komatsu enjoys global reputation for reliable powertrain, solid structural quality and stable long‑term performance. Its global service network covers more than 170 countries, providing genuine spare‑parts supply, field technical support and complete after‑sales packages. For port terminals, heavy‑industry factories and logistics depots worldwide, Komatsu heavy‑duty forklifts stand for low failure rate, outstanding durability and favorable whole‑life‑cycle cost‑performance.

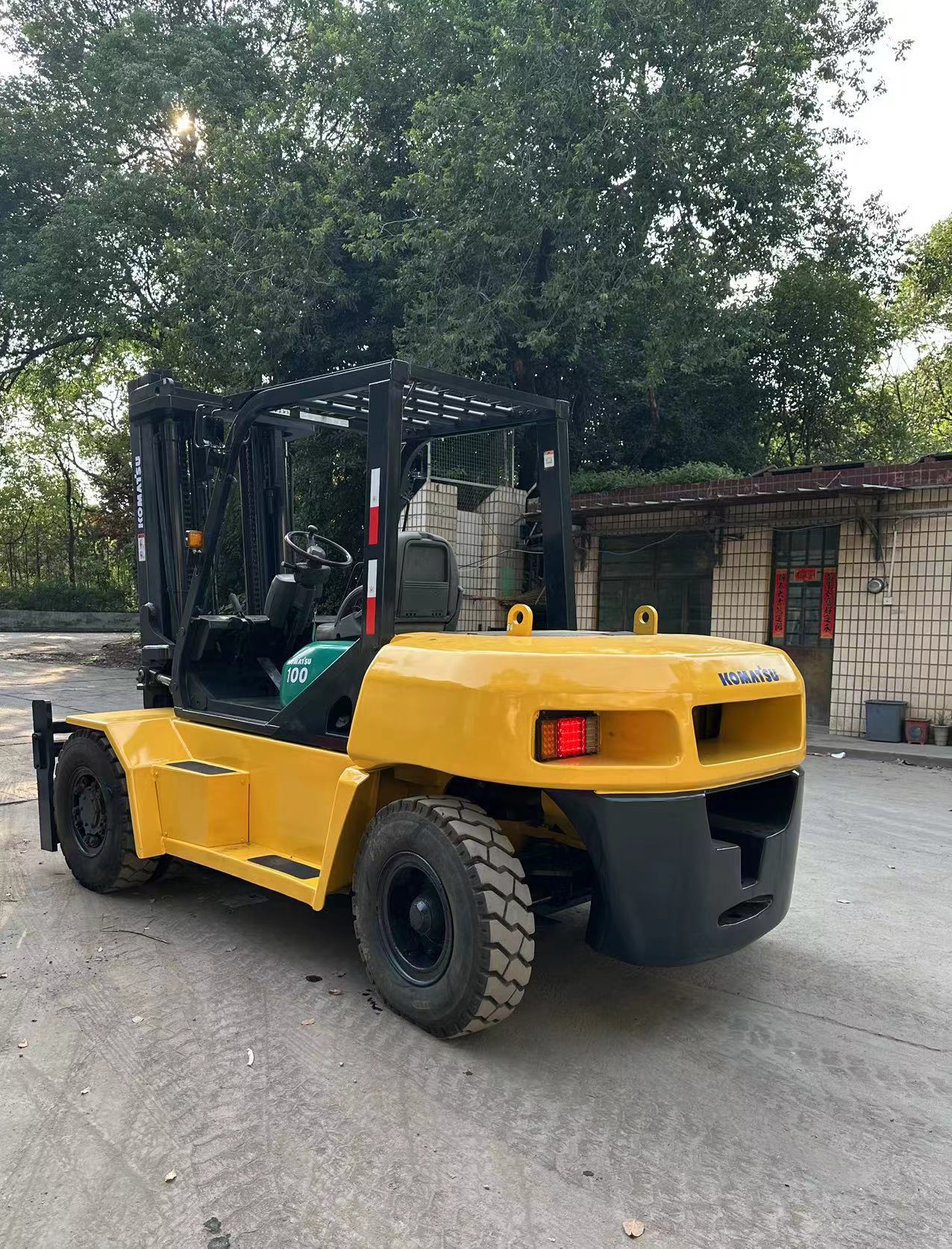

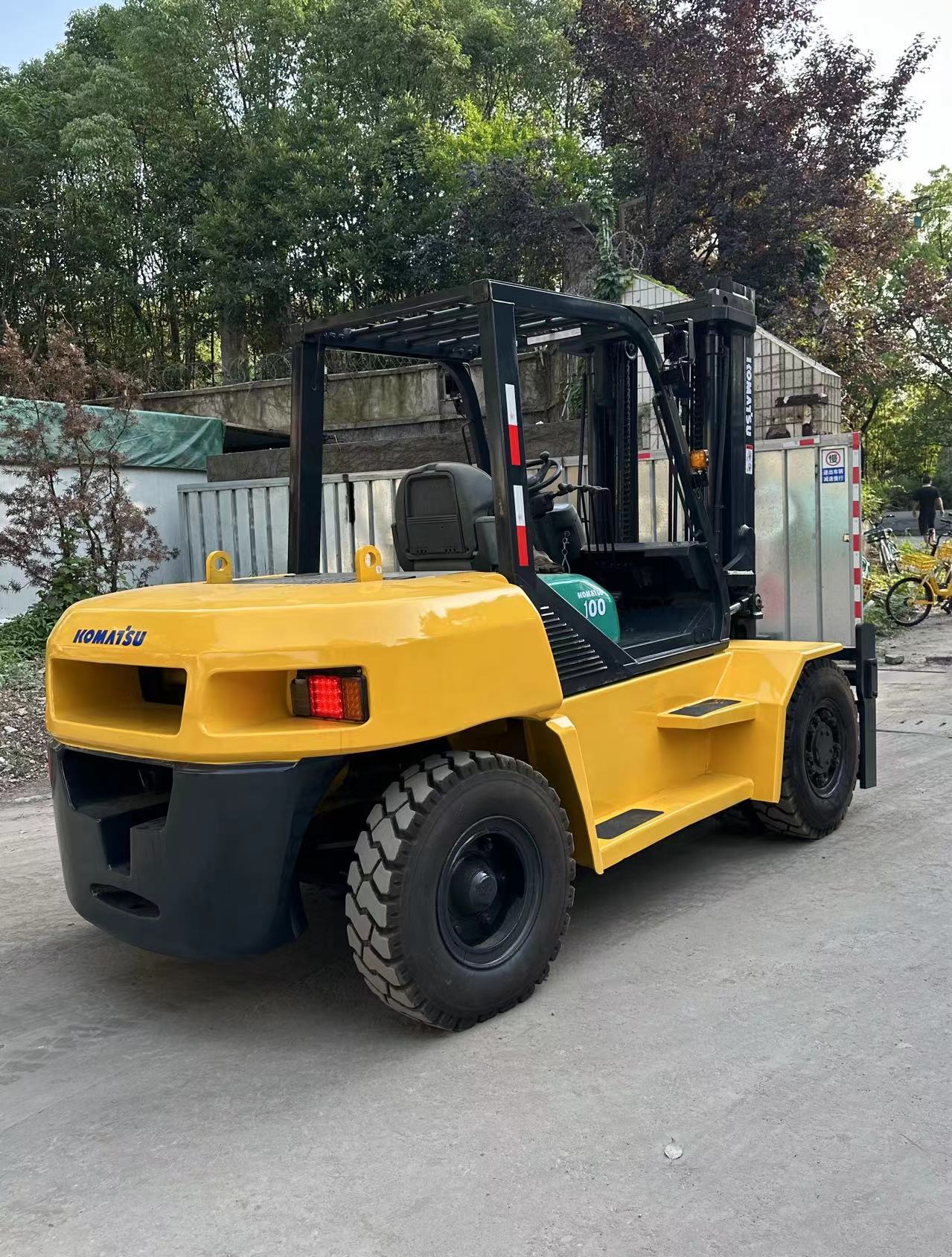

Model: Komatsu FD100 Diesel ForkliftThe Komatsu FD100 is a heavy‑duty 10‑ton class diesel counterbalance forklift, mainstream versions are FD100‑7 and FD100‑8. FD stands for Forklift‑Diesel, “100” represents 10000 kg rated lifting capacity at 600 mm load center. Purpose‑built for multi‑shift continuous heavy‑load material handling, it integrates mature diesel powertrain, heavy‑duty power‑shift transmission and high‑flow hydraulic system. It delivers strong lifting torque, stable operation and excellent fuel economy. Widely applied for port cargo handling, steel yard operation, precast concrete factory, heavy‑logistics depot and mining‑support material transfer. As a core heavy‑duty handling model in Komatsu forklift lineup, FD100 provides stable output and long service life for high‑intensity heavy‑cargo handling tasks.

Core Advantages

1. Reliable Power Performance & Good Fuel‑Saving Effect

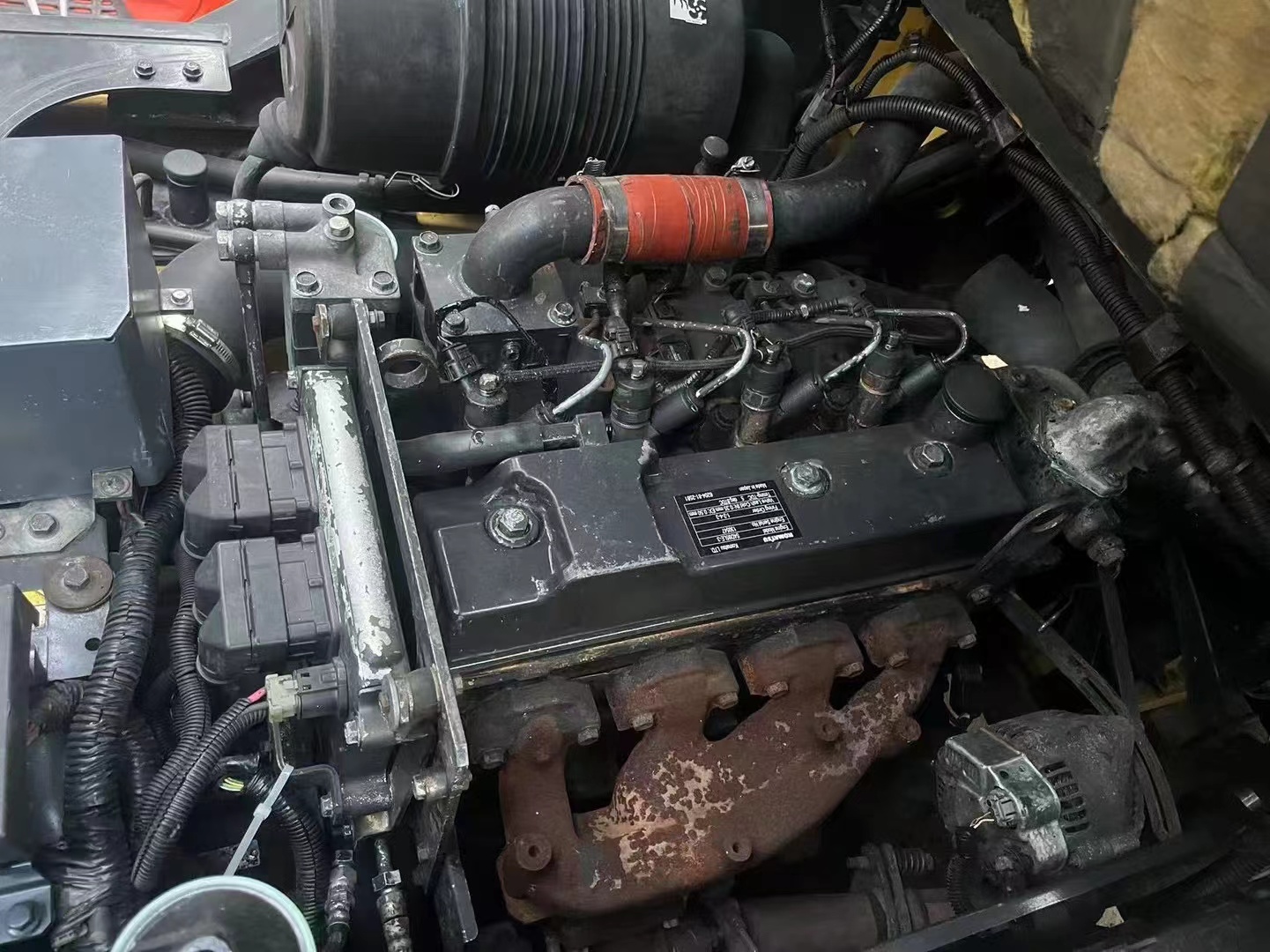

FD100‑8 adopts Komatsu original SAA6D107E‑1 turbocharged six‑cylinder diesel engine, rated power 119 kW. FD100‑7 is equipped with Isuzu 6BG1T diesel engine. Optimized engine‑transmission matching delivers strong low‑speed torque for heavy‑load lifting. Large‑capacity fuel tank supports long‑hour non‑stop operation and reduces refueling downtime. Operating weight approx.14500 kg, excellent chassis weight‑distribution ensures high stability under full‑load working condition.

2. Heavy‑Duty Transmission & High‑Efficiency Hydraulic System

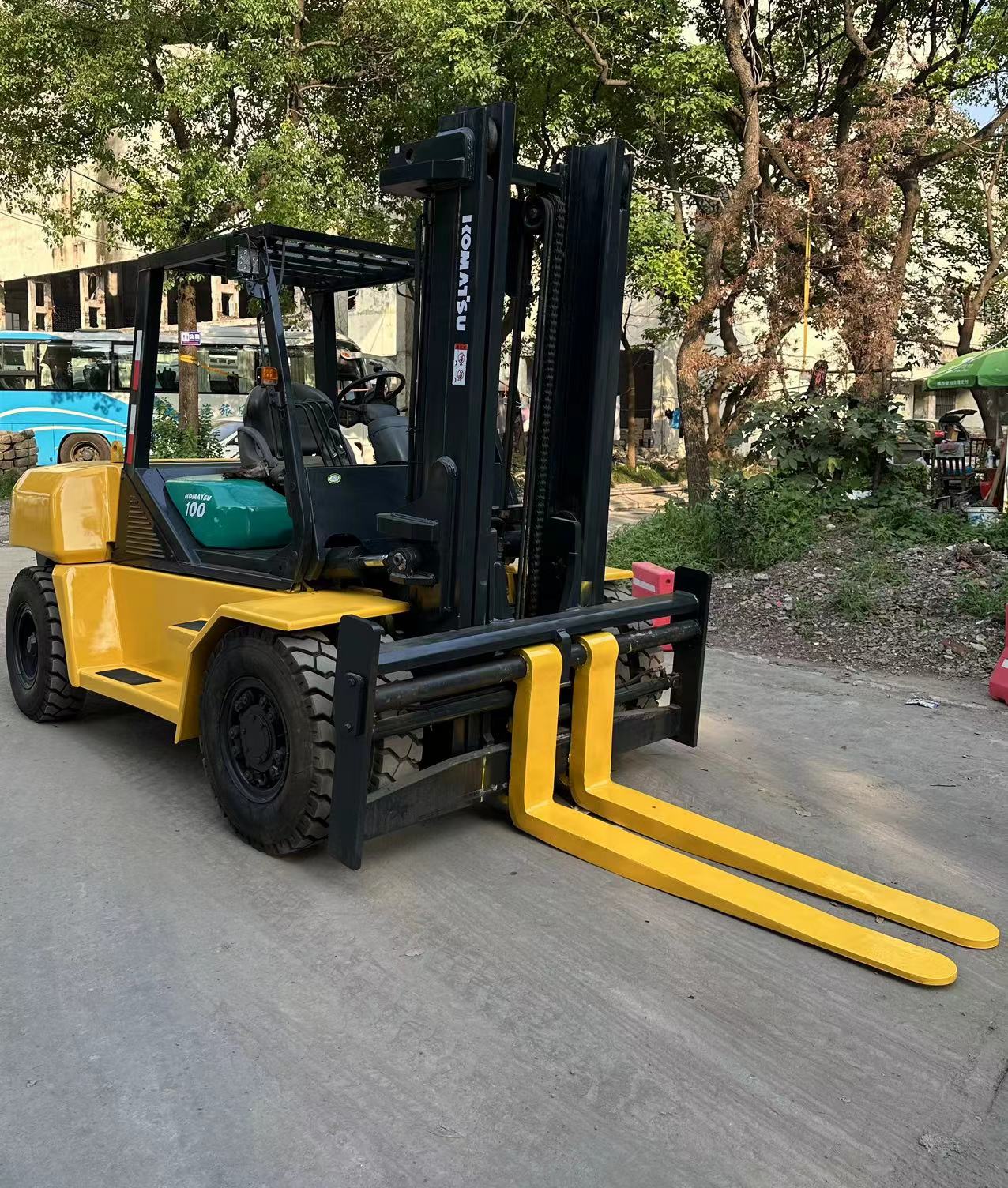

Equipped with Komatsu heavy‑duty power‑shift transmission and planetary reduction drive axle, realizing smooth gear shifting and strong drawbar pull. Adopts load‑sensing high‑flow hydraulic circuit, lifting & tilting actions respond fast and operate smoothly. Key working specifications: ‑ Rated lifting capacity: 10000 kg @600 mm load center ‑ Standard mast lifting height: 3000 mm ‑ Mast forward tilt angle: 6°, backward tilt angle:12° ‑ Standard fork size:1220 mm length ‑ Turning radius:4000 mm ‑ Max travel speed:28 km/h ‑ Max gradeability:38%

Sealed wet‑disc brake system provides stable braking performance for heavy‑load frequent start‑stop working scenarios. Reinforced wide‑view mast structure improves operator forward sightline, mast welding points and stress‑bearing parts are thickened for anti‑impact performance.

3. Human‑Oriented Operator Cabin & Multi‑Dimension Safety Configuration

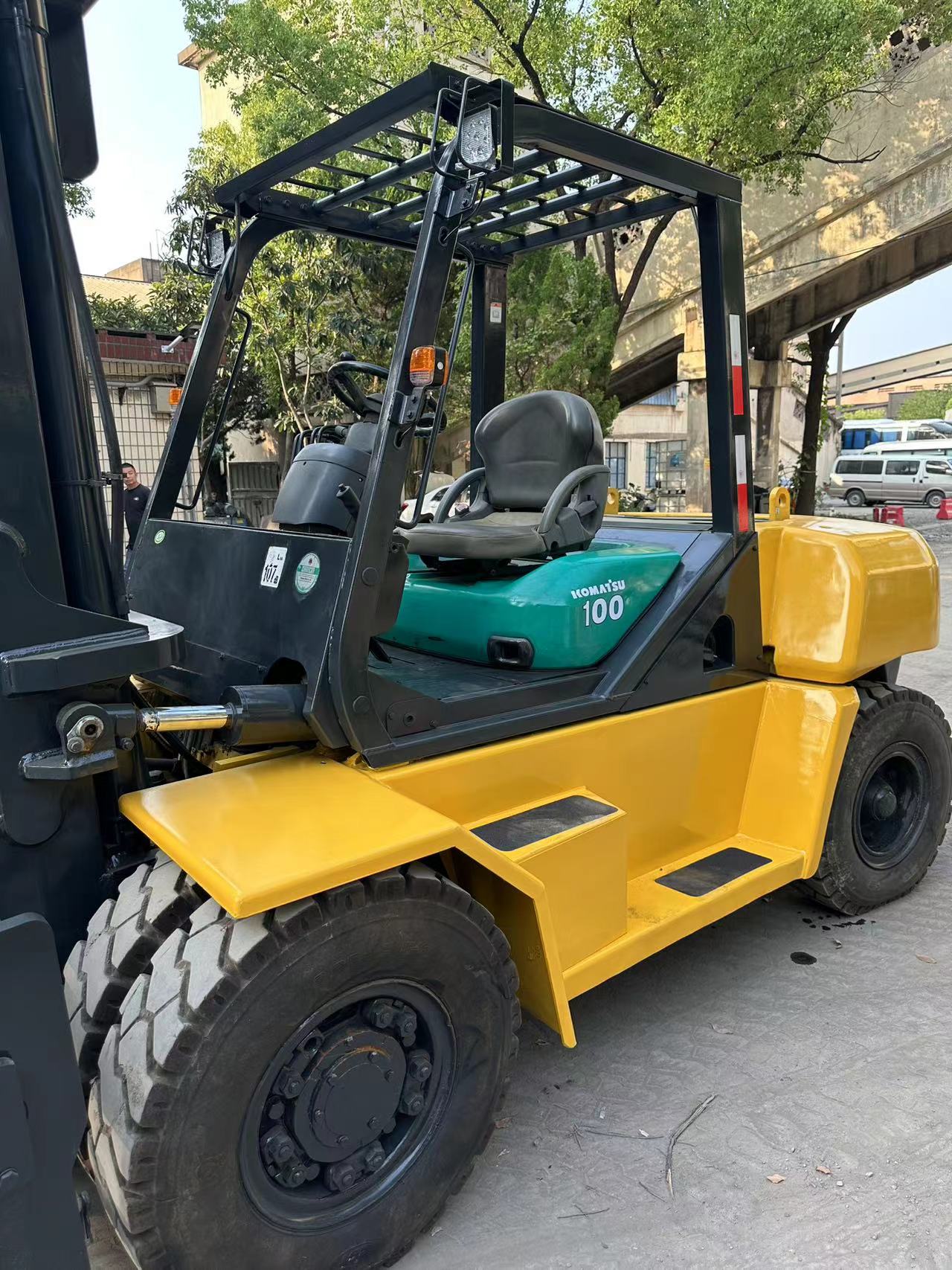

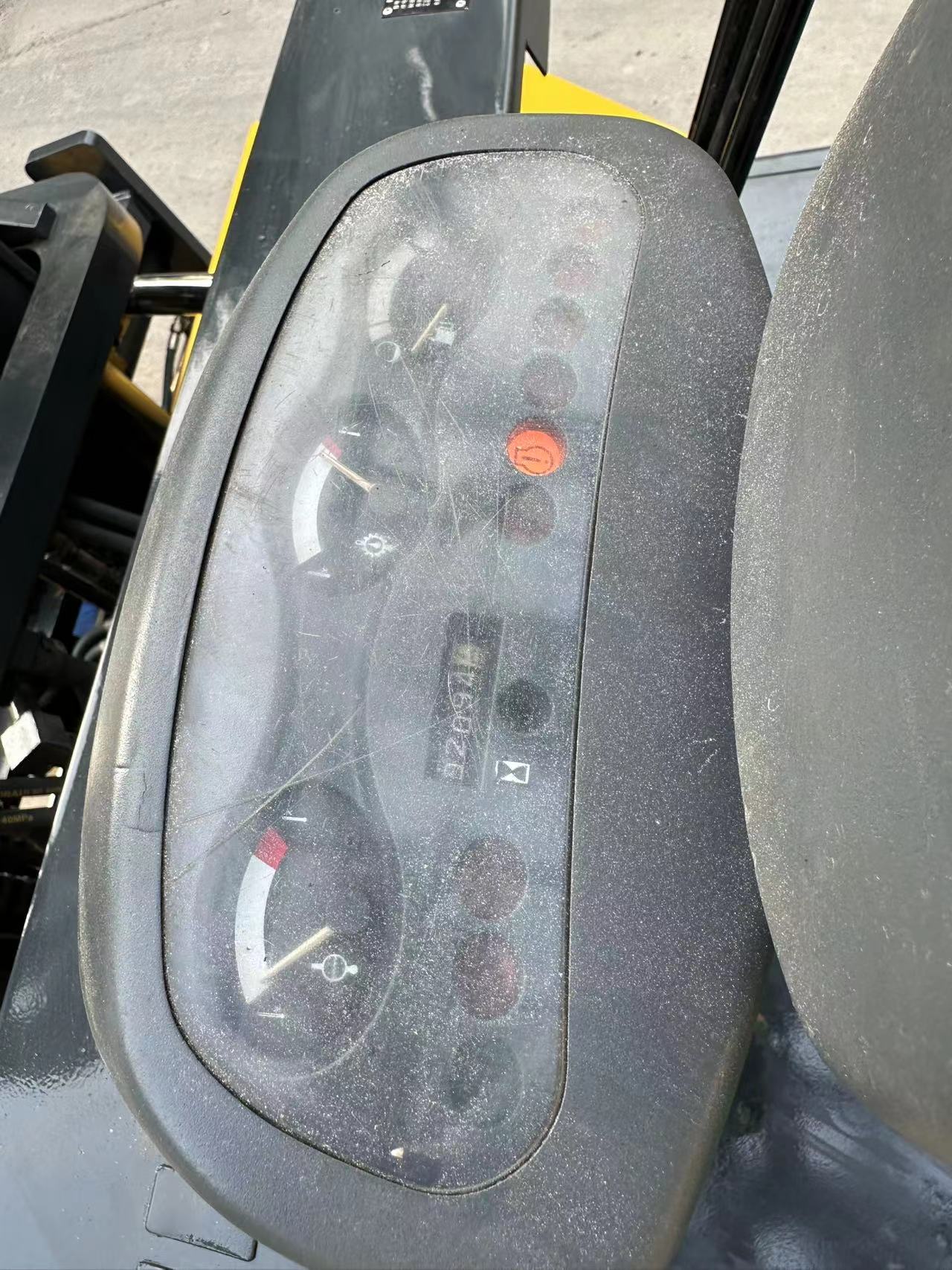

Spacious operator compartment with ergonomic layout, easy‑access control levers and steering wheel greatly reduce operator fatigue during long‑shift heavy‑duty work. Thickened overhead guard meets international safety protection standard. Optional rear‑view mirror, warning alarm, adjustable suspension seat and cab air‑conditioning. Equipped with clear instrument panel for real‑time monitoring of fuel level, water temperature and working status. Reverse warning buzzer is standard for site operation safety.

4. Reinforced Durable Structure & Low‑Maintenance Cost

Integral heavy‑duty box‑type frame, counterweight, mast and carriage adopt high‑strength thick steel plate, well‑suited for frequent heavy‑goods loading‑unloading in harsh industrial environment. Key hydraulic pipelines and joints adopt upgraded sealing technology to reduce oil‑leak risk. Centralized layout for filter elements and oil filling ports simplifies daily inspection and component replacement, saving labor and maintenance time. Mature industrial design brings low failure rate and high attendance rate.

5. Rich Attachment Compatibility & Wide Working‑Condition Adaptability

FD100 supports multiple optional attachments to satisfy diversified handling demands: ‑ Standard forks, long forks for special cargo ‑ Side shifter for offset loading ‑ Fork positioner for variable pallet width ‑ Paper roll clamp, bale clamp for special‑shape goods ‑ Container mast for container inner‑box operation

Various attachments enable flexible switching among steel cargo, container goods, precast concrete, timber and bulk heavy‑material handling, maximizing equipment utilization rate.

Typical Application Scenarios

1. Port & Terminal OperationIdeal for container yard, dock cargo loading/unloading, heavy container spare‑parts transfer, steel coil handling. Excellent stability meets high‑intensity port multi‑shift operation requirements.
2. Steel Plant & Heavy‑Industry FactoryApplied for steel bar, steel coil, steel block transportation, precast concrete factory finished‑product turnover, heavy machinery parts handling. Strong lifting torque copes with super‑heavy solid cargo.
3. Heavy‑Duty Logistics & Warehouse DepotFor large logistics park, freight station heavy‑pallet goods stacking, loading and truck‑unloading. High travelling speed improves overall site turnover efficiency.
4. Mining‑Support & Construction Material YardHandles heavy construction materials, mining spare‑parts, large‑size timber goods. Reliable performance adapts to outdoor dusty and rough‑ground environment.
5. Manufacturing & Large‑Scale Factory WorkshopHeavy‑workshop raw‑material turnover, finished‑product outbound handling, suitable for continuous multi‑shift production‑line supporting work.

Foreign Trade Service Guarantee

1. Flexible Customization OptionsTailored configurations according to client project requirements and local site conditions: ‑ Multiple mast options:3m,3.5m,4m lifting height; container‑type mast ‑ Fork options: standard fork, long fork, special‑thick heavy‑duty fork ‑ Attachments: side shifter, fork positioner, various clamps ‑ Cabin upgrade: ventilation cabin, enclosed cabin with air‑conditioning ‑ Tire selection: solid tire / pneumatic tire for different ground conditions Multilingual operation manuals and technical documents supplied for global deployment.
2. Strict Quality Assurance & Complete Export CertificationsEvery FD100 forklift undergoes full‑range pre‑shipment inspection and performance testing to satisfy international industrial standards. Full set of export‑clearance documents are provided: ‑ CE, ISO quality‑system certifications ‑ Regional emission‑compliance certificates ‑ Authorized third‑party inspection reports (SGS/BV) ‑ Complete factory qualification and equipment‑specification files

HS Code:84272090

3. Warranty & Professional Technical Training SupportCore components enjoy 12‑month / 2000‑hour comprehensive warranty. 24/7 global after‑sales team offers rapid response. Free online & on‑site training for operators and maintenance staff, covering: ‑ Standard safe‑operation procedures & high‑efficiency handling skills ‑ Daily inspection and maintenance workflows ‑ Common‑fault diagnosis, troubleshooting and emergency handling ‑ Installation and servicing for different working attachments
4. Global Spare‑Parts & Service NetworkRelying on Komatsu’s worldwide spare‑parts distribution system plus our overseas‑service hubs, genuine original spare‑parts can be delivered globally in short lead‑time. Authorized field‑service teams conduct on‑site repair, commissioning, fault diagnosis and overhaul work to minimize machine downtime and secure long‑term stable operation.

Why Choose Komatsu FD100?

Komatsu FD100 is a classic 10‑ton heavy‑duty diesel forklift with proven Komatsu industrial‑vehicle manufacturing technology. It delivers powerful lifting torque, solid chassis stability, reliable powertrain and outstanding site adaptability. Against peer 10‑ton‑class forklifts, it features low failure rate, easy maintenance and competitive long‑term operating costs. Human‑centered operation layout, reinforced heavy‑duty structure and mature global service support guarantee high attendance rate and solid return‑on‑investment for heavy‑cargo handling scenarios. It is a highly cost‑effective heavy‑duty handling solution for global ports, steel mills and large‑logistics operators.

Contact Us

For personalized Komatsu FD100 quotation, custom‑configuration proposals and global door‑to‑door shipping service, please reach out to our professional foreign‑trade team anytime. We support flexible international payment terms (LC, TT, DP) and cooperate with trusted global logistics providers. One‑stop services including equipment consultation, order customization, export declaration and after‑sales support are available to help your projects run efficiently and create greater benefits.
