TCM FD230 Heavy‑Duty Diesel Forklift

Brand & Model Positioning

Brand: TCMTCM is a world‑renowned professional material‑handling equipment manufacturer with decades‑long R&D and manufacturing experience in heavy‑duty forklifts. It gains wide recognition for ultra‑rugged structure, stable power output and excellent cost‑performance. TCM’s global service network supplies genuine spare parts and professional technical support, ensuring reliable operation for ports, steel mills, heavy‑industry yards and large‑scale logistics terminals worldwide. For super‑heavy cargo stacking, container handling and heavy‑goods turnover, TCM is a trusted solution for large enterprise clients and heavy‑equipment rental firms.

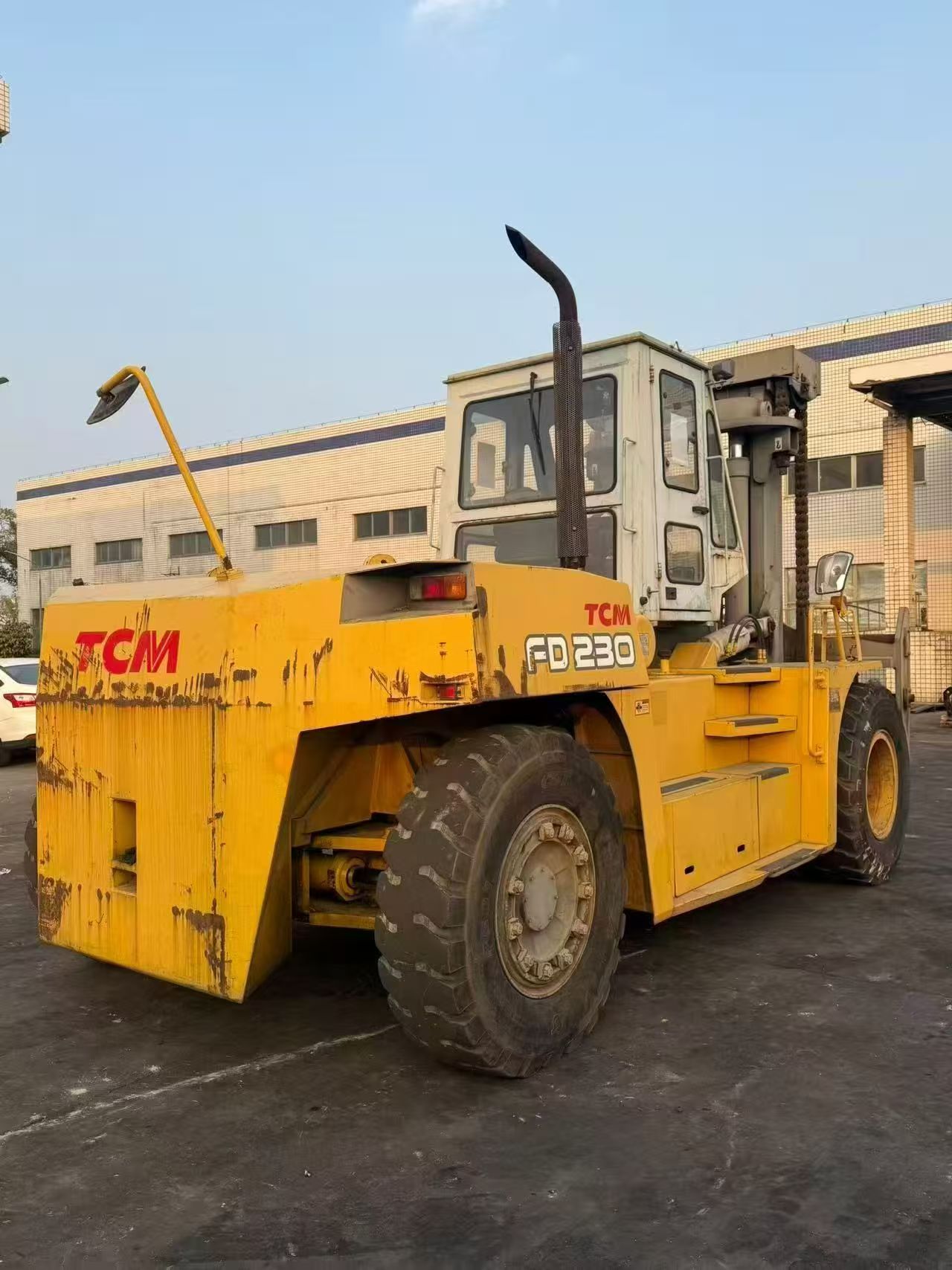

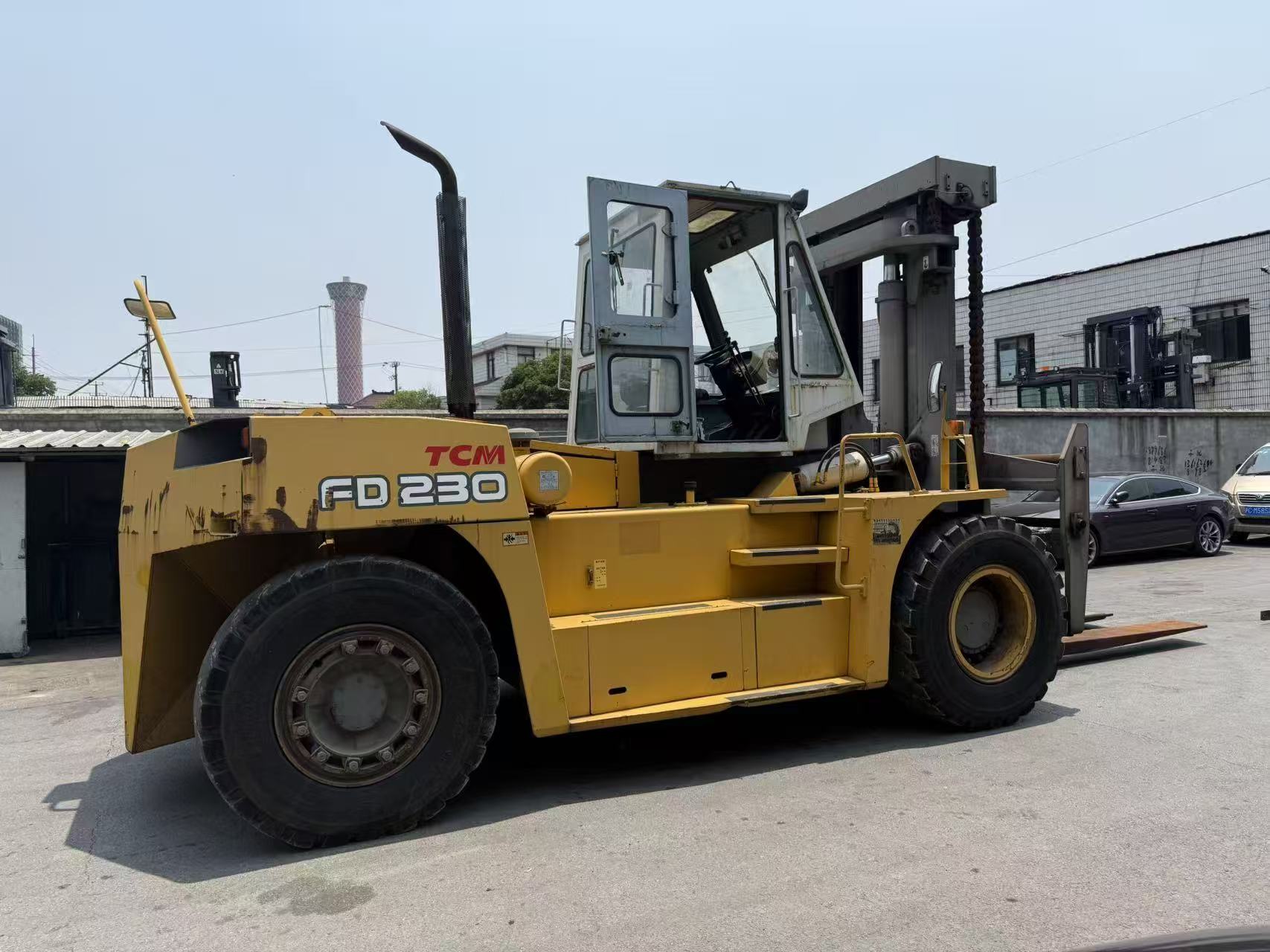

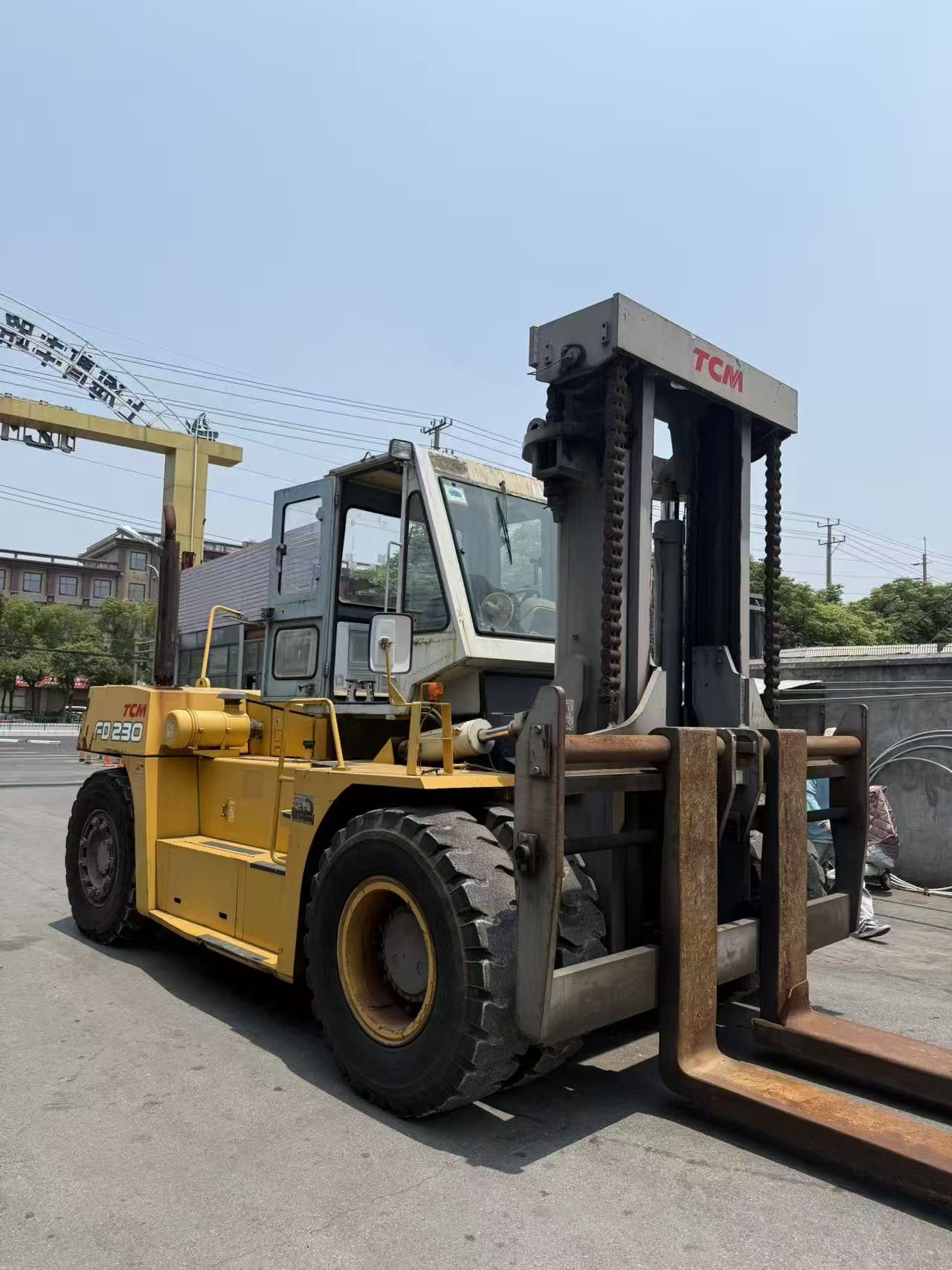

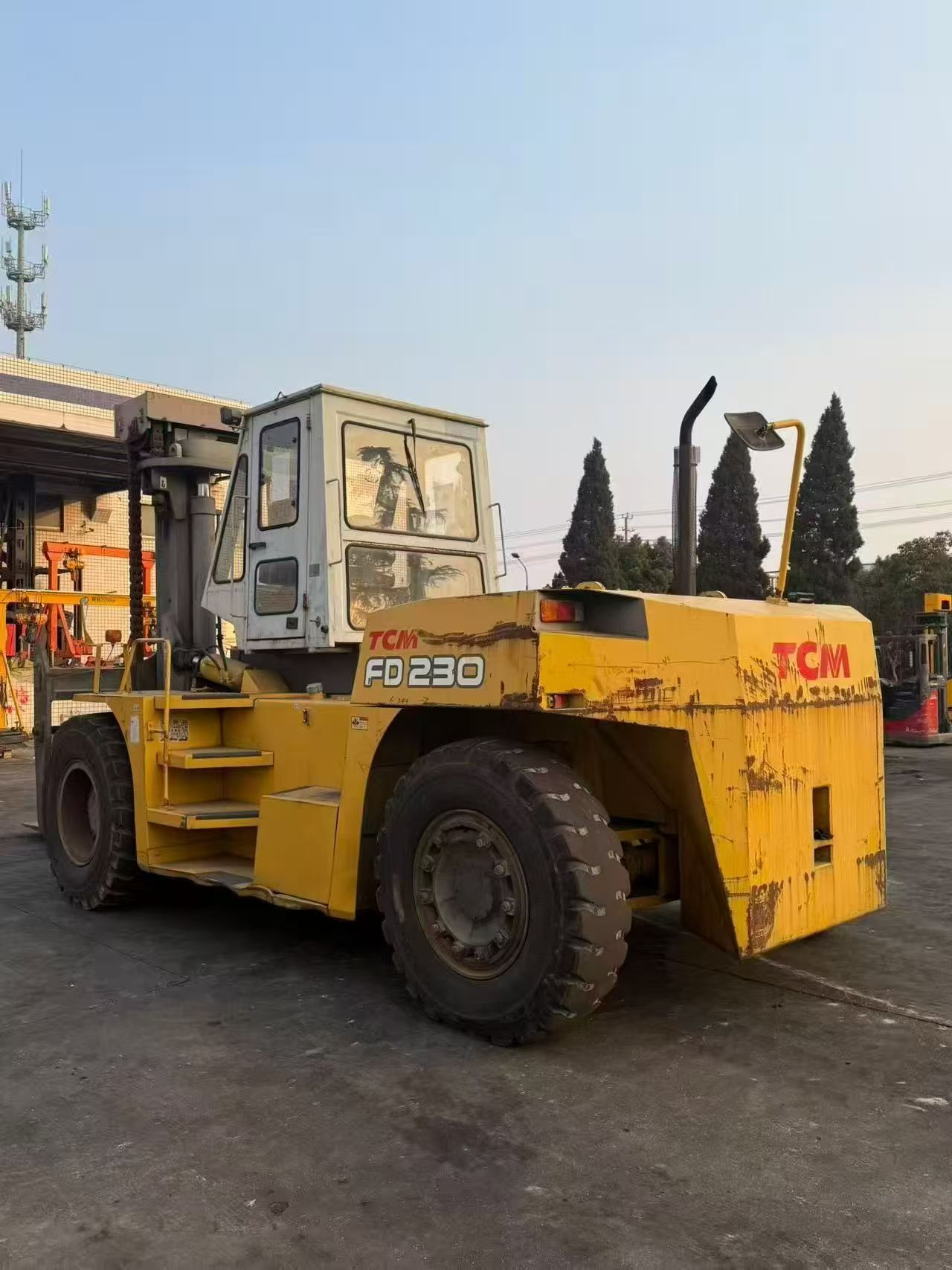

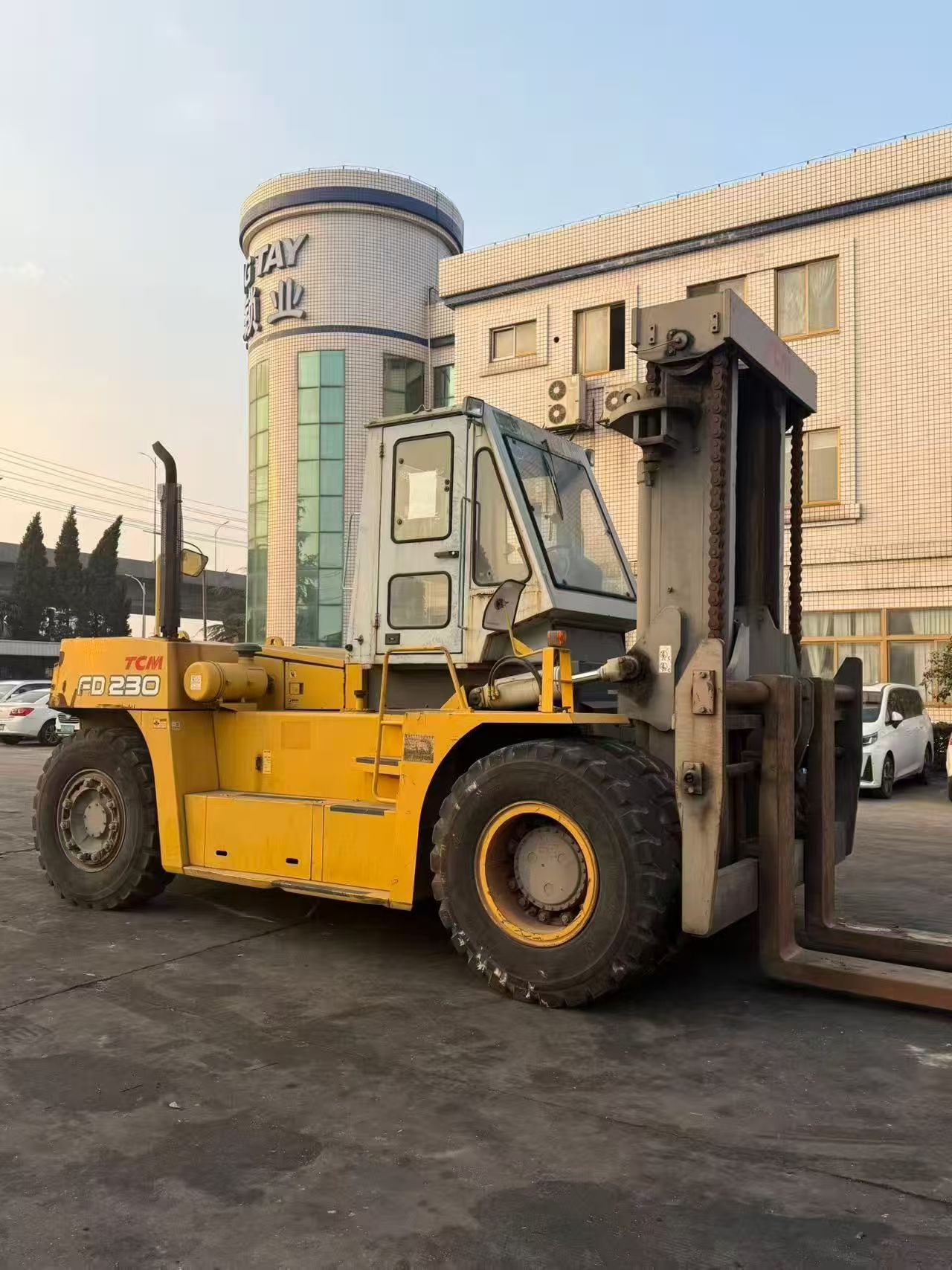

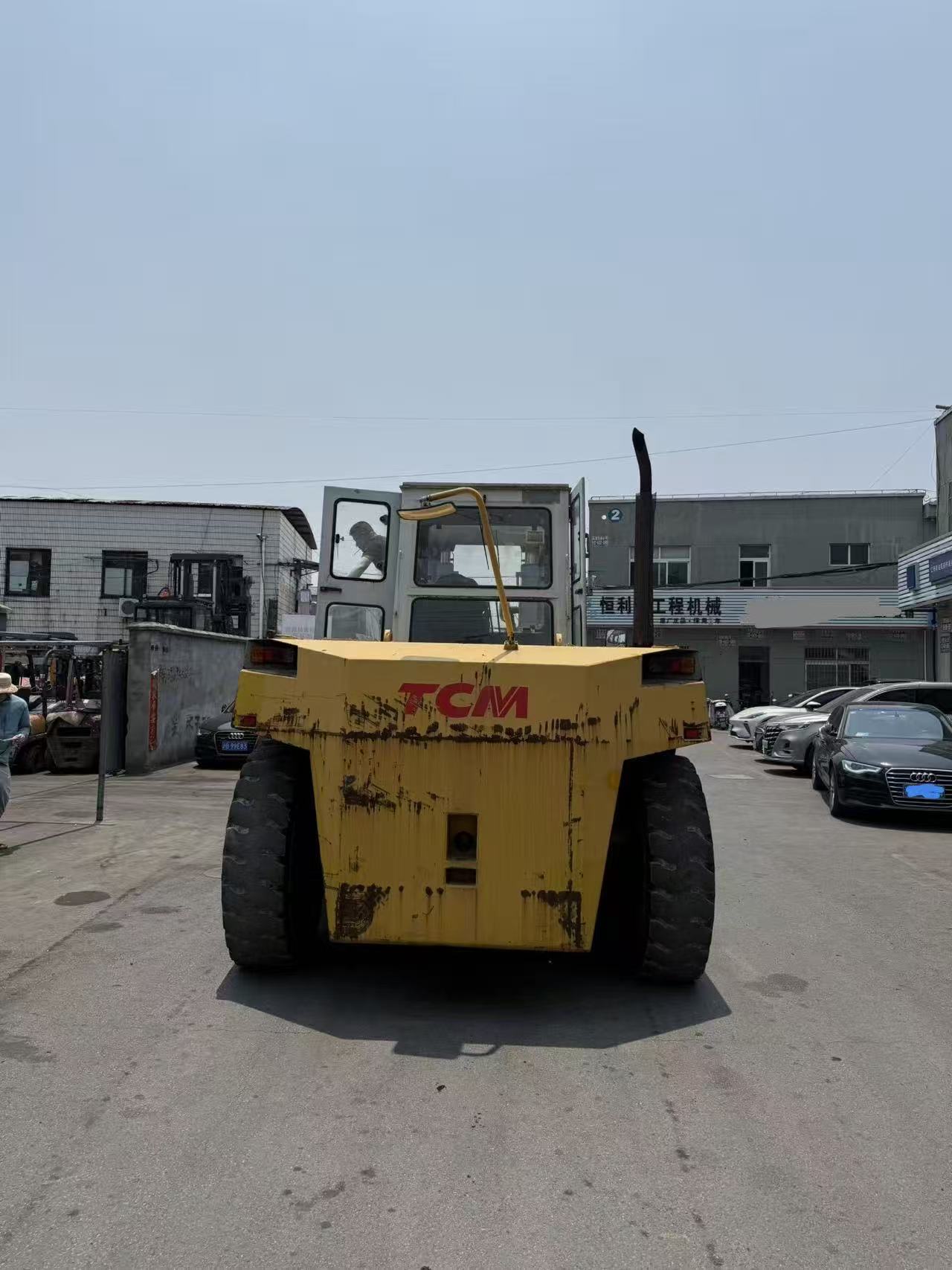

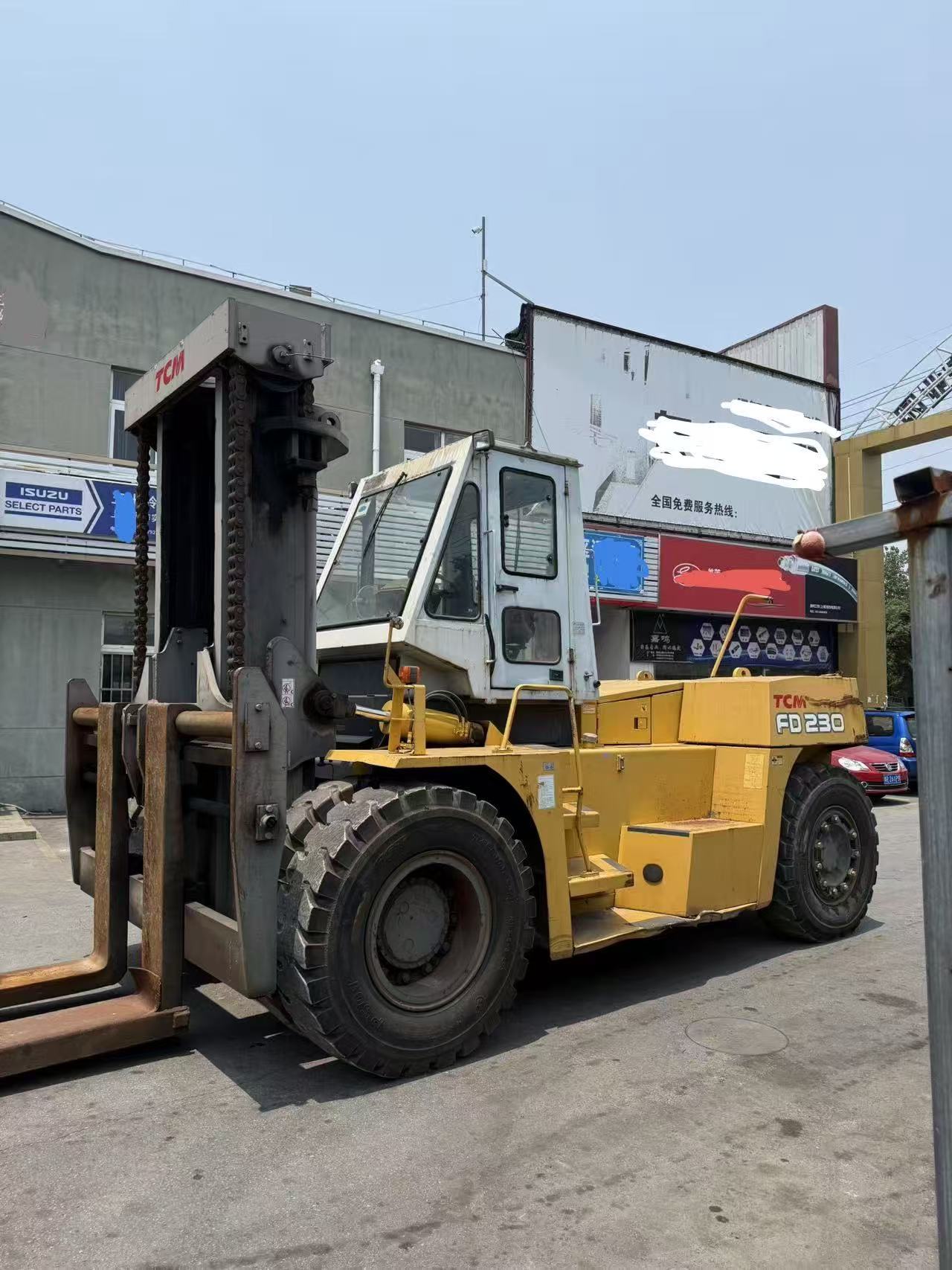

Model: TCM FD230 Diesel ForkliftTCM FD230 is a 23‑ton counter‑balance heavy‑duty diesel forklift. Designed for continuous super‑heavy‑load material‑handling operations, it integrates high‑torque power assembly, extra‑reinforced chassis and heavy‑duty mast system. It is widely used in port terminals, container depots, steel plants, timber yards, heavy‑machinery factories and large freight yards. As a core heavy‑duty forklift model of TCM, FD230 delivers stable heavy‑lifting performance, strong overload resistance and long service life for super‑heavy cargo loading‑unloading, stacking and short‑distance transportation.

Core Advantages

1. High‑Torque Power Assembly & Super‑Heavy‑Load Performance

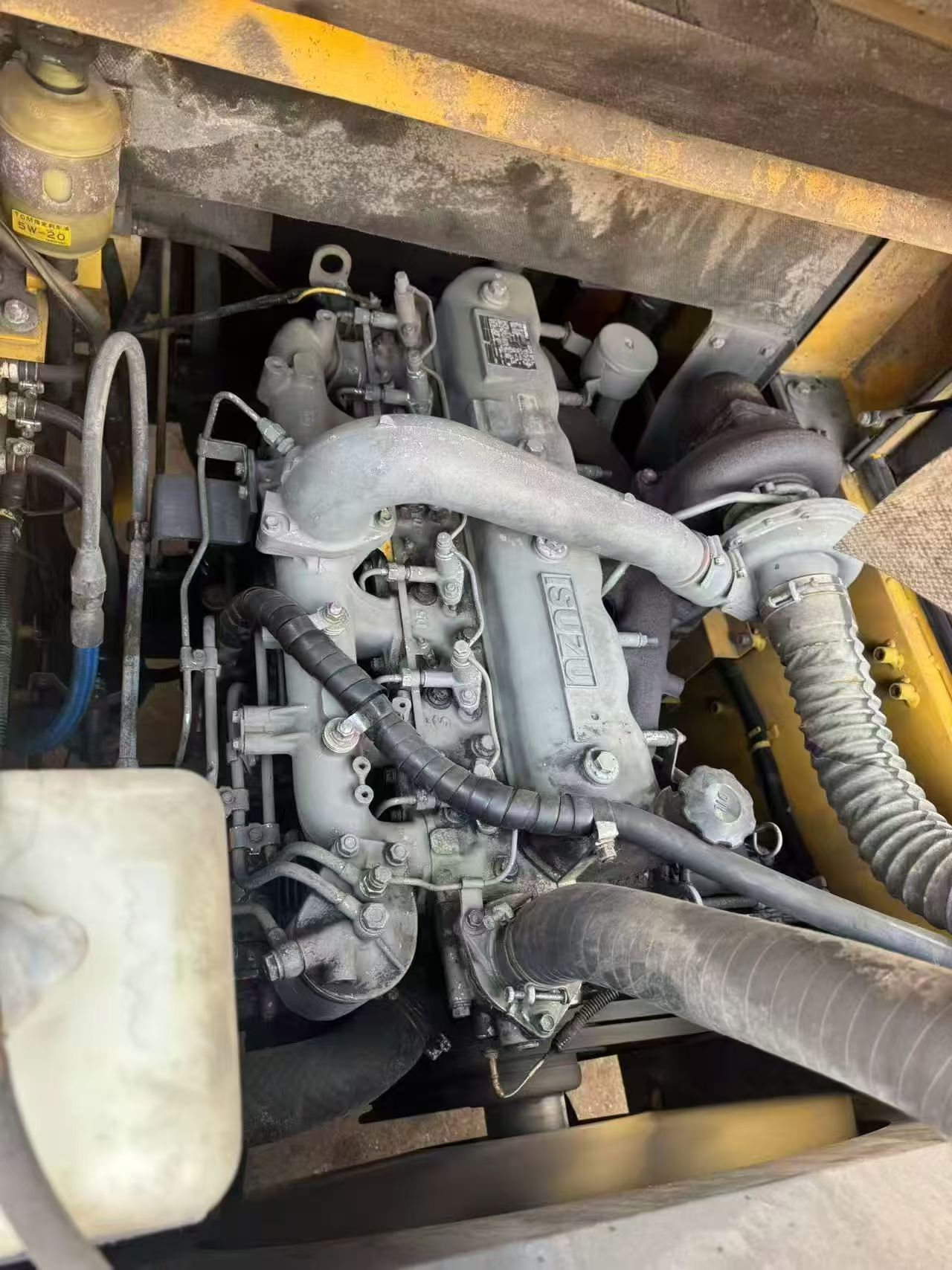

Equipped with Isuzu 6BG1T turbocharged industrial diesel engine, rated power 128.3 kW (172 HP) @2200 rpm, maximum torque 620 Nm @1800 rpmMade-in-Ch.... It maintains stable power output under full‑load continuous operation, frequent start‑stop and climbing conditions. Rated lifting capacity: 23000 kg at 900 mm load center. Heavy‑duty reinforced drive axle and power‑shift transmission ensure reliable power transfer under extreme heavy‑load working cycles. Large‑volume fuel tank supports long‑hour non‑stop operation and reduces refueling downtime.

2. Extra‑Reinforced Mast & Heavy‑Duty Chassis Structure

High‑tensile thick‑plate welded mast structure features excellent anti‑bending and anti‑torsion capability. Large‑bore heavy‑duty lifting & tilting cylinders realize steady, jitter‑free lifting under full rated load. Standard load center: 900 mm. Multiple mast lifting‑height options are available. Heavily‑reinforced frame and massive counterweight match super‑heavy solid tires, adapting to rough yard ground, frequent impact and harsh outdoor working environments.

3. Robust Hydraulic System & Smooth Operation

Adopts industrial‑grade heavy‑duty load‑sensing hydraulic system. Lifting, tilting and steering movements are smooth with low impact force. Premium high‑pressure sealing components effectively minimize oil‑leakage risk. Large‑displacement main pump satisfies high‑flow demand under 23‑ton full‑load condition, ensuring acceptable lifting speed even at maximum payload. Optimized centralized pipeline layout improves whole‑system reliability and simplifies daily visual inspection.

4. Spacious Operator Cabin & Complete Safety Protection

Wide‑view operator compartment with ergonomic layout. Heavy‑duty full‑suspension adjustable seat and easy‑access control levers relieve operator fatigue during long‑shift heavy‑duty assignments. Instrument cluster displays real‑time engine speed, water temperature, oil pressure and multi‑fault alarm signals. Equipped with overload warning, mast travel limit protection, hand‑brake interlock and full‑range rear‑view system. Optional fully‑enclosed air‑conditioned cabin enables all‑weather day‑and‑night operation.

5. Service‑Friendly Design & High Working Attendance

Key service assemblies are well‑arranged for easy access. Large side‑opening engine hood enables fast inspection of engine block, filter elements and hydraulic pipelines. Centralized service points greatly shorten daily inspection and component‑replacement labor hours. Mature, widely‑circulated spare‑part specifications effectively control overall maintenance cost. Low failure rate ensures high attendance rate for continuous multi‑shift heavy‑duty tasks.

6. Powerful Multi‑Attachment Compatibility

Supports quick replacement of various heavy‑duty working attachments to expand operation scope: ‑ Standard heavy‑duty forks, extra‑long custom forks ‑ Heavy‑load fork positioner & side shifter ‑ Container spreader for container handling ‑ Steel coil ram and bale clamp for metal & bulk goods ‑ Custom heavy‑duty carriages for oversized special cargo

Typical Application Scenarios

1. Port & Container DepotSuper‑heavy container loading‑unloading, heavy container stacking and massive cargo turnover in port terminals and storage yards.
2. Steel & Metallurgical IndustrySteel coil, steel ingot, heavy steel profile handling and stacking inside steel mills and metal processing workshops.
3. Timber & Heavy‑Material YardOversized log handling, bulk heavy‑cargo stacking and freight‑yard heavy‑goods circulation.
4. Heavy‑Industry Manufacturing PlantHeavy mold, large mechanical components and super‑heavy pallet goods internal transportation and stacking for heavy‑equipment factories.
5. Heavy‑Cargo Logistics TerminalHandling of large pre‑cast components, heavy construction materials and over‑weight project supplies.

Foreign Trade Service Guarantee

1. Flexible Customization OptionsProvide personalized configuration solutions according to customer on‑site working‑condition requirements: ‑ Multiple mast lifting‑height selections ‑ Custom fork length, heavy‑duty side shifter / fork positioner optional ‑ Operator station: open overhead‑guard canopy or enclosed heating‑air‑conditioned cabin ‑ Super‑heavy solid tires or special‑spec tires for different ground conditions ‑ Custom heavy‑duty carriages and special‑purpose attachments Multilingual operation manuals and complete technical documents are supplied for global market application.
2. Strict Quality Assurance & Complete Export DocumentsEach TCM FD230 undergoes comprehensive pre‑shipment inspection and full‑performance testing to meet international industrial standards. Complete export documentation supports worldwide customs clearance: ‑ CE, ISO quality‑system certification ‑ Regional emission compliance related papers ‑ Authorized third‑party inspection reports (SGS, BV) ‑ Full set of factory specification and qualification files
3. Warranty & Technical Training SupportCore components are covered under 12‑month / 2000‑hour comprehensive warranty. Global after‑sales team delivers rapid response. Free online technical training for operators and maintenance personnel covers safe heavy‑load operation, daily inspection routine, fault diagnosis and attachment installation & maintenance.
4. Global Spare‑Parts Supply ChannelRely on worldwide spare‑parts supply network to deliver genuine TCM heavy‑duty spare parts. Authorized professional service teams provide overseas on‑site repair, equipment commissioning and overhaul services to minimize machine downtime.

Why Choose TCM FD230?

TCM FD230 is a proven classic 23‑ton heavy‑duty counter‑balance diesel forklift. It features powerful high‑torque lifting performance, extra‑reinforced mast‑chassis assembly, robust heavy‑duty hydraulic system and excellent adaptability for harsh super‑heavy‑load sites. Compared with competing large‑tonnage forklift products, it delivers high reliability, low comprehensive operation‑maintenance expense and rich heavy‑duty attachment compatibility. Backed by mature industrial design and global spare‑part support system, it maintains high attendance rate in port, steel‑mill and heavy‑industry scenarios. It is the preferred cost‑effective super‑heavy‑duty forklift for global large‑scale enterprise users.

Contact Us

For personalized TCM FD230 quotation, customized configuration scheme and global door‑to‑door shipping service, please contact our professional foreign‑trade team at any time. Flexible international payment terms (LC, TT, DP) are available. We cooperate with trusted global logistics providers and offer one‑stop service covering equipment consultation, order customization, export declaration and after‑sales guarantee, helping your business improve overall operational efficiency.
