CAT 305.5E2 CR Mini Crawler Excavator

Brand & Model Positioning

Brand: CAT (Caterpillar)With over a century of engineering excellence, CAT stands as a global benchmark in heavy‑duty machinery. It gains worldwide recognition for outstanding durability, innovative technology and proven reliability for construction, municipal works, landscaping and industrial sectors. Its global service network covers more than 190 countries, providing fast access to genuine spare parts, professional technical support and customized after‑sales solutions to keep machines productive throughout the whole project cycle. For urban renovation, municipal maintenance, landscaping and small‑to‑medium construction jobs, CAT’s focus on quality, fuel economy and long‑term operating value makes it the preferred brand for global contractors and rental operators.

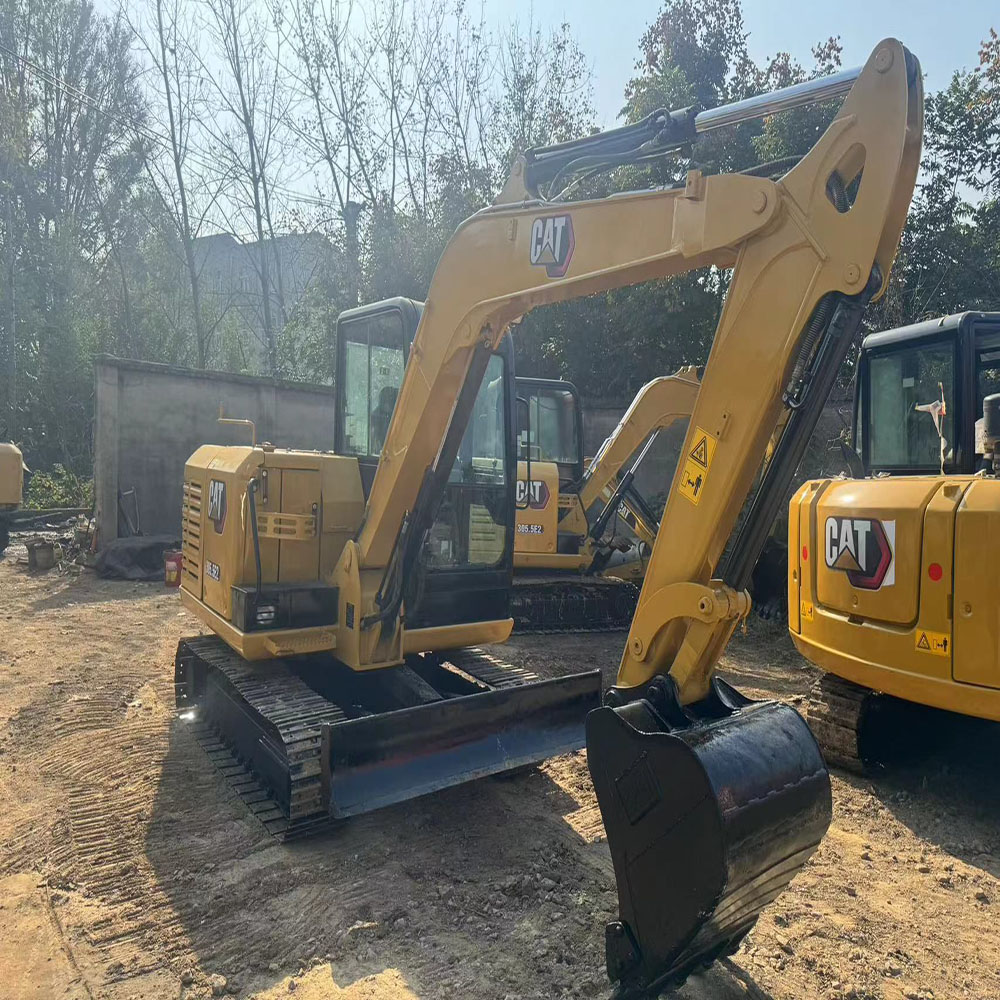

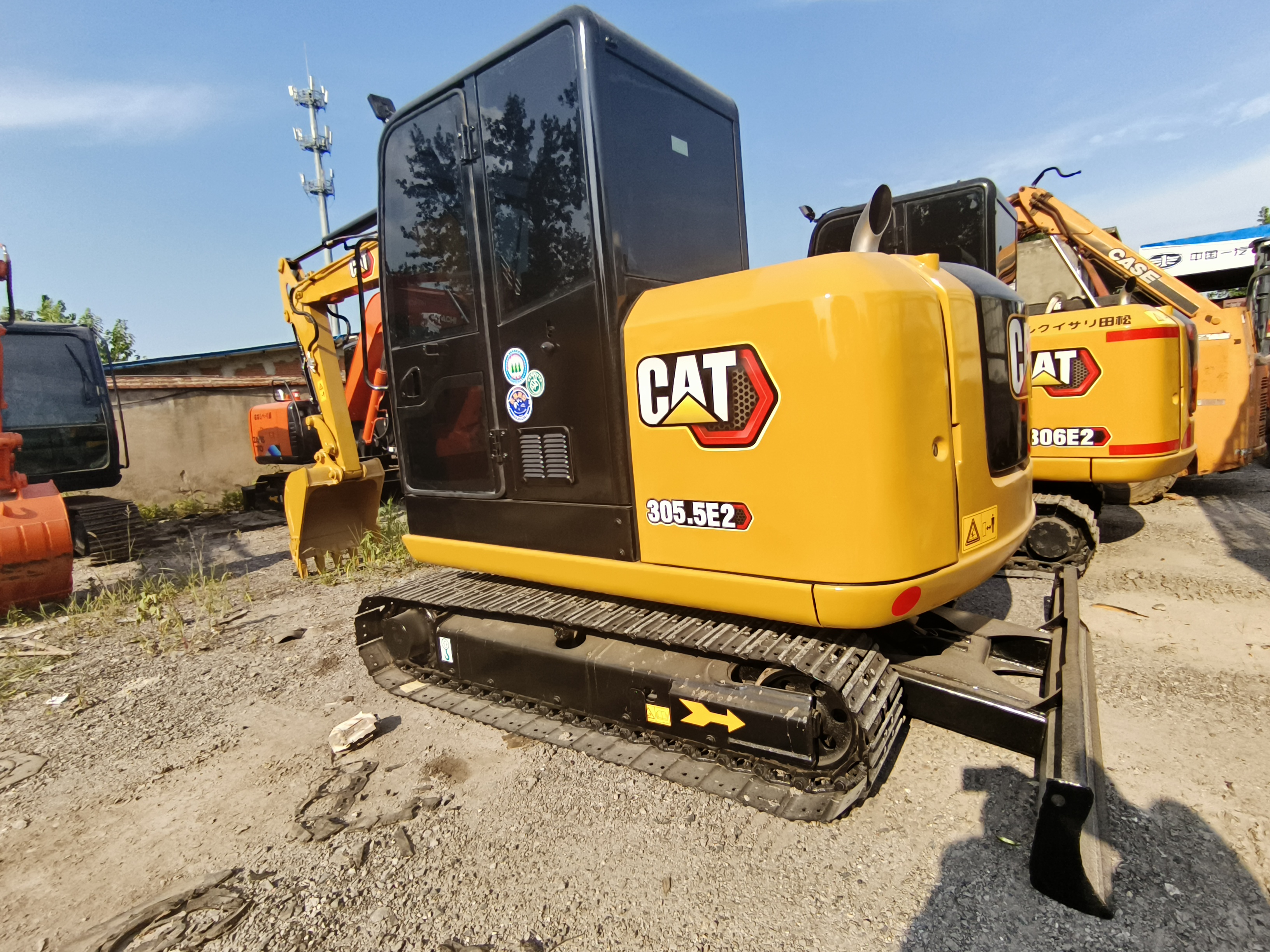

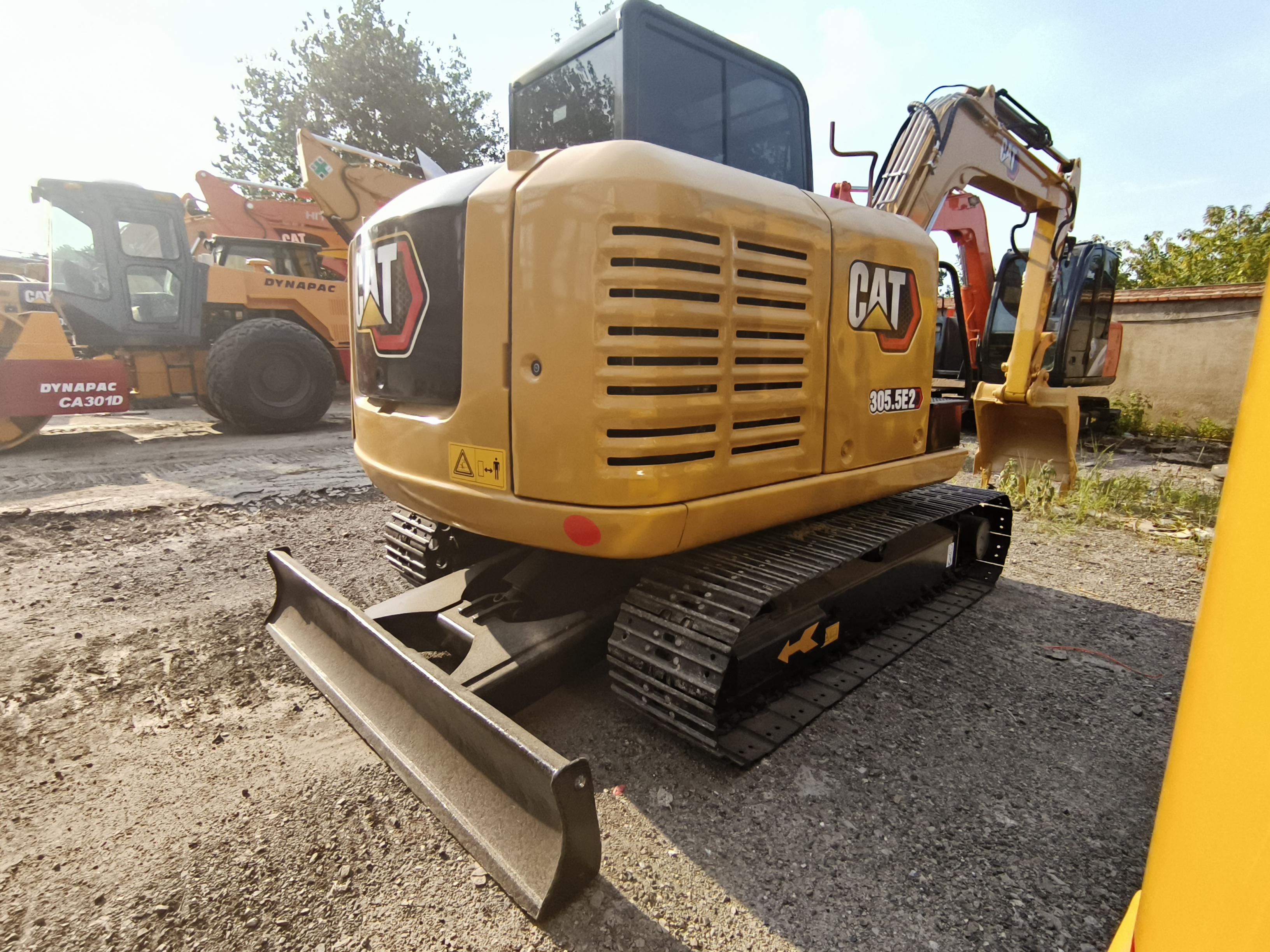

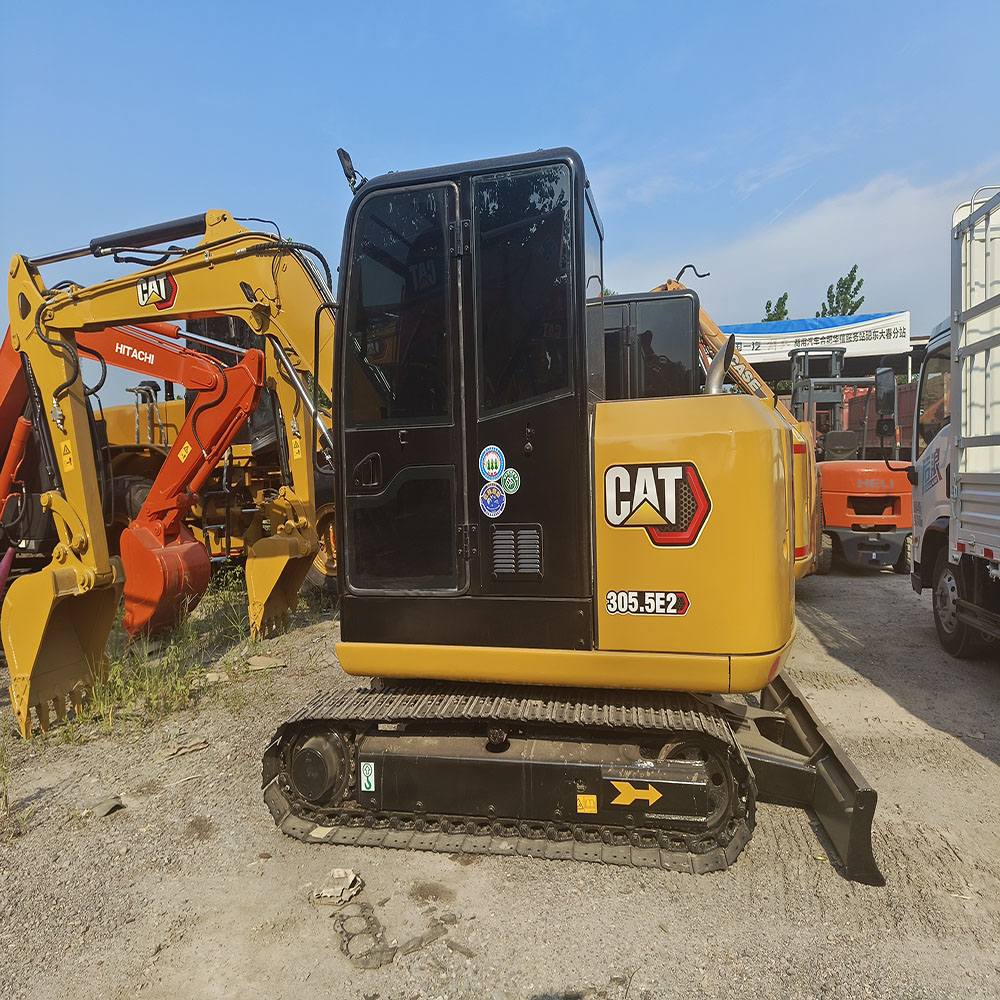

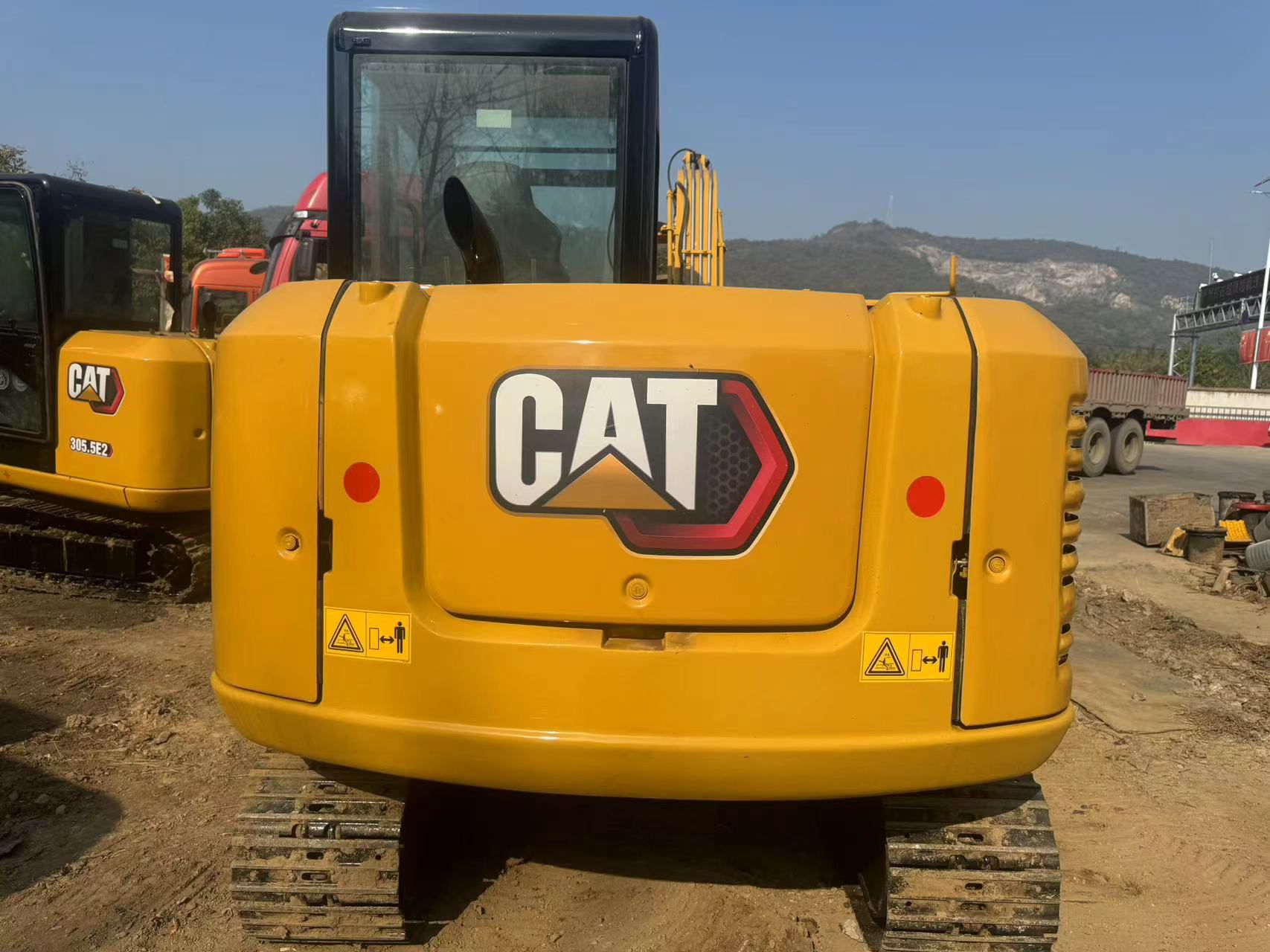

Model: CAT 305.5E2 CR Mini Crawler ExcavatorCAT 305.5E2 CR is a 5.5‑ton compact‑radius mini crawler excavator from CAT E‑Series. Adopting short‑tail‑swing design, it is optimized for narrow‑space operation, low fuel consumption and flexible maneuverability. Built for frequent short‑cycle assignments, it combines solid digging performance, precise load‑sensing hydraulic control and compact body dimension. Widely applied in municipal engineering, urban renewal, pipeline trenching, landscaping, farmland improvement and residential construction. As a cost‑effective core small‑size excavator in CAT product lineup, 305.5E2 CR delivers stable power output, low running cost and easy transportation for various small‑and‑medium projects.

Core Advantages

1. Reliable Power & Good Fuel‑Saving Performance

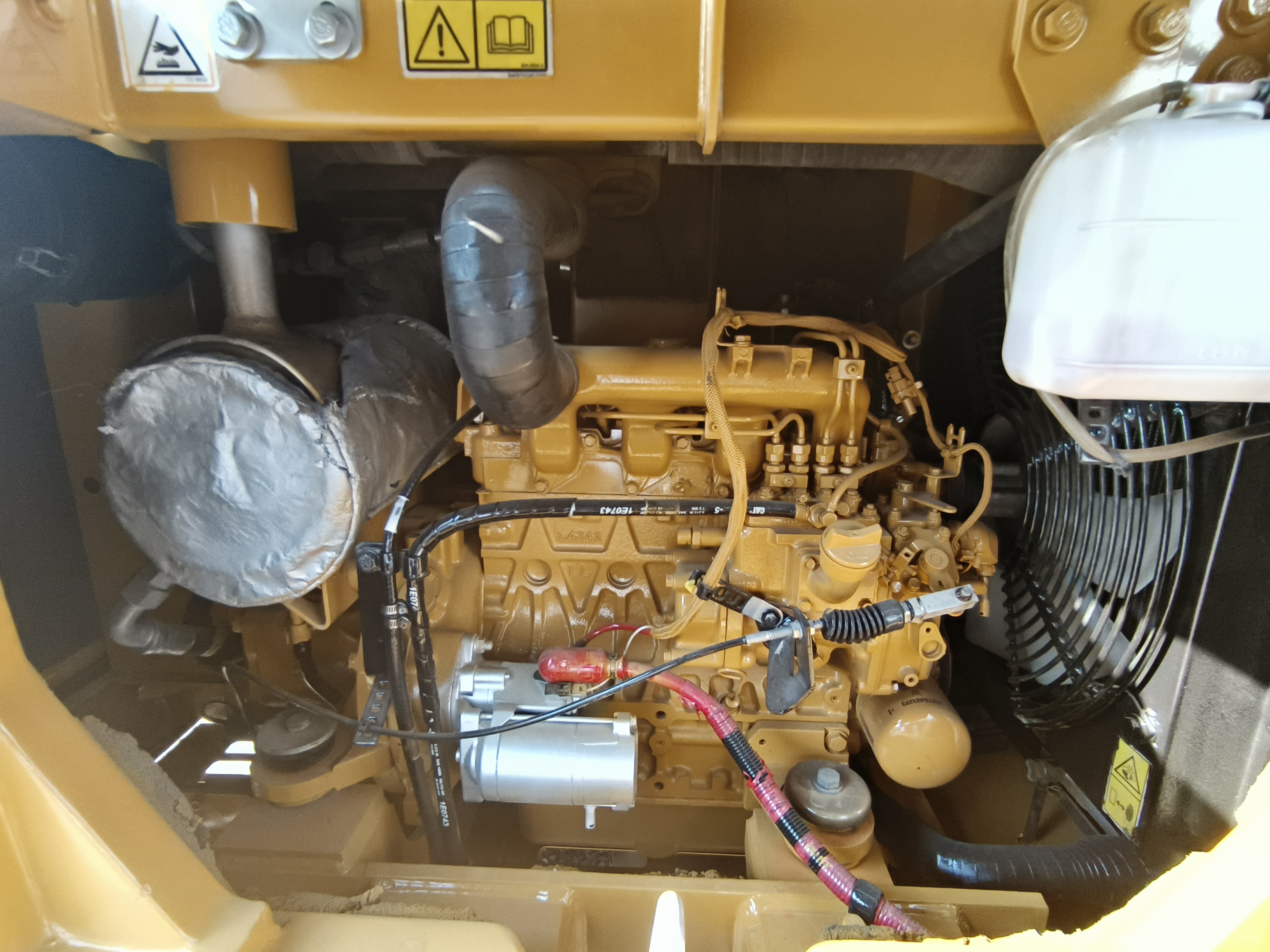

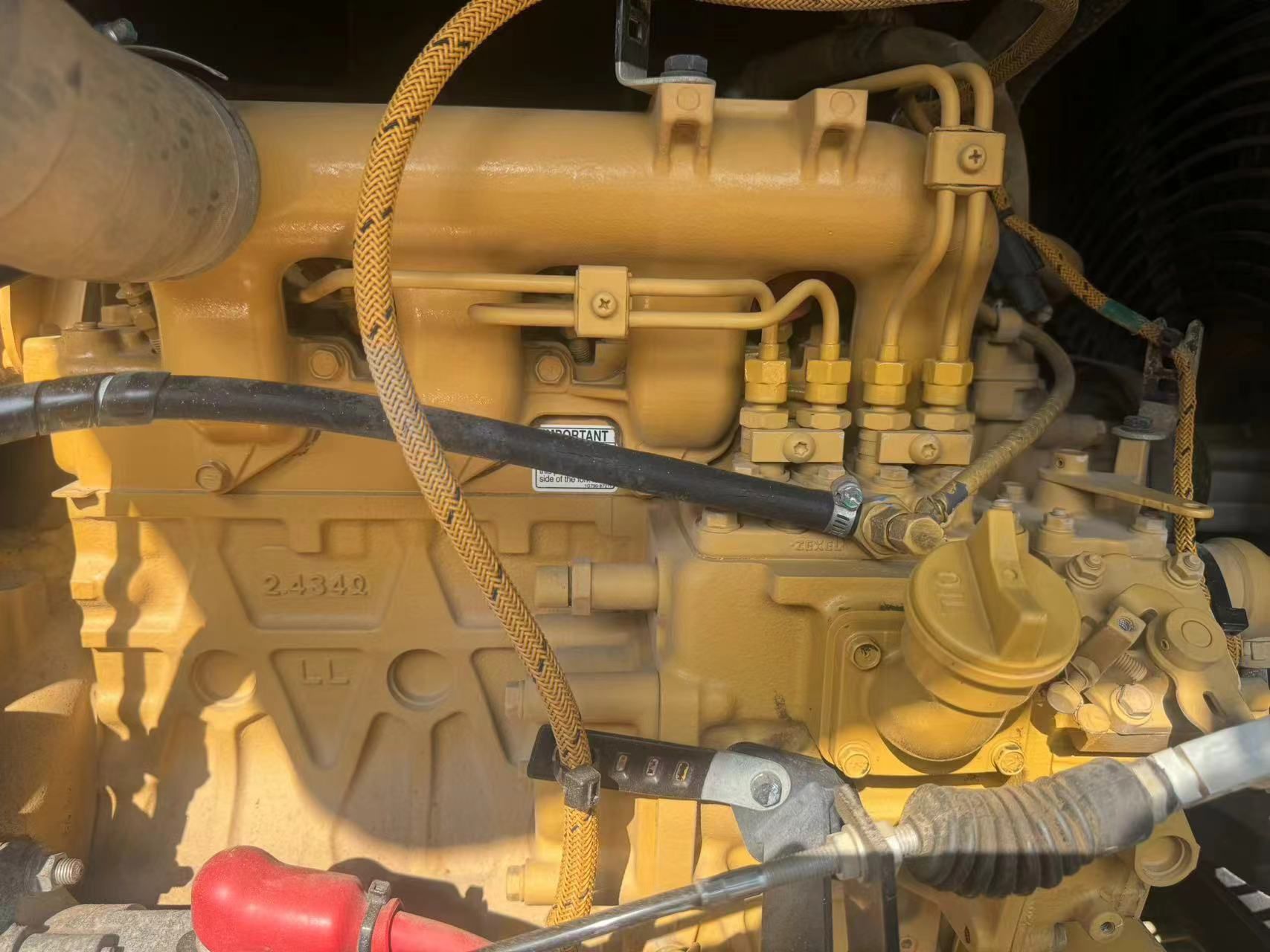

Equipped with CAT C2.4 DI four‑cylinder diesel engine, gross power 34.1 kW (45.7 hp), rated net power 31.1 kW (41.7 hp), complying with Tier3 / China Stage III emission standards. Matched with intelligent economy mode and auto‑idle function to cut unnecessary fuel consumption. Operating weight: 5400 kg. Compact short‑tail‑swing structure allows free rotation in narrow job‑sites without collision risk. Light unit weight facilitates road transport between job sites.

2. Load‑Sensing Hydraulic System & Reliable Working Performance

Adopts CAT HDH high‑definition load‑sensing flow‑sharing hydraulic system, featuring fast response, smooth movement and high operation precision信昌机器. Real‑time flow‑pressure matching reduces ineffective energy loss and shortens working cycle time. Key working parameters: ‑ Maximum digging depth: 3870 mm ‑ Maximum ground‑level reach: 5955 mm ‑ Maximum dumping height: 4170 mm ‑ Standard bucket capacity: 0.22 m³ ‑ Main hydraulic working pressure: 25 MPa ‑ Max auxiliary hydraulic flow: 80 L/min ‑ Bucket digging force: 35 kN; Stick digging force: 27.2 kN

Standard two‑speed travel system adapts to muddy ground, slope and complex narrow terrain. Grease‑lubricated heavy‑duty undercarriage resists mud, dust and abrasion, extending service life of track shoes, rollers and other wearing components公司网络安.... Equipped with floating‑function dozer blade for back‑filling and site leveling.

3. Operator‑Friendly Cab & Complete Safety Configuration

ROPS/FOPS certified cab meets international roll‑over and falling‑object protection standards. Spacious interior with ergonomic layout, upgraded multi‑function pilot joysticks and mechanical suspension seat effectively relieve operator fatigue during long‑time continuous shifts. Large tempered glass provides panoramic all‑round view. COMPASS digital monitor integrates equipment status monitoring, fault self‑diagnosis function for real‑time machine condition check. Optional heating & air‑conditioning system adapts to high‑temperature and low‑temperature harsh environments.

4. Reinforced Structure & Convenient Maintenance Design

Boom, stick and key chassis stress‑bearing parts adopt high‑strength wear‑resistant steel with reinforcement optimization, featuring good anti‑impact and anti‑torsion performance, suitable for digging, breaking and other small‑scale heavy‑duty working conditions. Upgraded sealing for hydraulic pipelines and joints lowers oil‑leakage risk.

Large side‑opening service covers enable ground‑level maintenance access. Filters, oil filling ports and detecting points are centrally arranged. Routine inspection can be completed without lifting cab, saving daily maintenance time and labor cost, lowering failure rate and improving machine attendance rate信昌机器.

5. Rich Attachment Compatibility & Multi‑Scenario Adaptability

Optional auxiliary hydraulic pipelines support quick coupler for fast tool replacement to realize multi‑function operation: ‑ Standard buckets, heavy‑duty wear‑resistant buckets ‑ Hydraulic breakers for concrete breaking & demolition ‑ Augers for foundation hole‑drilling ‑ Hydraulic thumbs for bulk material sorting & handling ‑ Grading buckets & rakes for site leveling, landscaping trimming

Multiple attachments maximize machine utilization rate and realize one‑machine multi‑purpose.

Typical Application Scenarios

1. Municipal Engineering & Urban RenewalCity road maintenance, sidewalk reconstruction, underground pipeline trenching, old‑community renovation and narrow‑zone demolition. Compact short‑tail‑swing design guarantees safe operation beside buildings and street obstacles.
2. Landscaping & Horticultural ProjectsPark construction, tree‑planting pit digging, terrain reshaping, pond excavation and green‑belt finishing. Precise hydraulic control ensures fine‑grading effect.
3. Residential & Small‑Scale ConstructionFoundation excavation for villas & small buildings, backfill, material handling and site cleaning. Easy‑transport design fits scattered small jobs.
4. Rural & Agricultural ProjectsFarmland consolidation, irrigation channel digging, fish‑pond excavation and farm‑road renovation. Reliable performance adapts to field muddy working conditions.
5. Confined‑Space OperationShort‑tail‑swing advantage applies to basement reconstruction, narrow yard operation and compact job‑sites inaccessible for large excavators.

Foreign Trade Service Guarantee

1. Flexible Customization OptionsProvide personalized configuration according to customer project requirements and local working environment: ‑ Multiple bucket options: standard / heavy‑duty wear‑resistant buckets ‑ Auxiliary hydraulic upgrade: high‑flow auxiliary circuit for breakers & augers ‑ Operator station options: closed air‑conditioned cab or open canopy ‑ Chassis option: steel / rubber track shoes for muddy or rocky sites Supply multi‑language operation manuals and technical documents for global market use.
2. Strict Quality Control & Complete Export CertificatesEach CAT 305.5E2 CR undergoes full pre‑shipment inspection and performance testing to satisfy international industrial standards. Complete export documents support worldwide customs clearance: ‑ CE, ISO quality‑system certification ‑ Regional emission compliance certificates ‑ Authorized third‑party inspection reports (SGS, BV) ‑ Full factory specification and qualification files
3. Comprehensive Warranty & Technical Training12‑month / 2000‑hour warranty for core components. 24/7 global after‑sales team provides rapid response. Free online & on‑site training for operators and maintenance staff, covering safe operation, daily inspection, fault diagnosis and attachment installation.
4. Global Spare‑Parts & Service SupportLeverage CAT global spare‑parts distribution system and overseas service centers for fast delivery of genuine original components. Authorized service teams offer on‑site repair, commissioning and overhaul to minimize machine downtime.

Why Choose CAT 305.5E2 CR?

CAT 305.5E2 CR inherits CAT mature mini‑excavator manufacturing technology. It features compact body, flexible maneuver, low fuel consumption, reliable durability and rich attachment compatibility. Compared with peer 5.5‑ton mini excavators, it delivers stable output, lower long‑term running cost and outstanding narrow‑site performance. Human‑friendly operation design, solid structural quality and complete global after‑sales system ensure high attendance and good return on investment. It is the preferred cost‑effective small‑size excavator for municipal contractors, landscaping companies and equipment‑rental enterprises worldwide.

Contact Us

For personalized CAT 305.5E2 CR quotation, customized configuration and global door‑to‑door shipping service, please contact our professional foreign‑trade team any time. We accept flexible international payment terms (LC, TT, DP), cooperate with trusted global logistics suppliers, and provide one‑stop service including equipment consultation, order customization, export declaration and after‑sales guarantee, helping your projects run efficiently and create more value.
