CAT 323D 23-Ton Medium - Duty Hydraulic Excavator – Foreign Trade Sales Copy

Brand & Model Positioning

Brand: CAT (Caterpillar)

Caterpillar (CAT), a globally leading American heavy - machinery brand with over 90 years of industry experience, is a benchmark for durability, innovation, and high performance in the construction, mining, and infrastructure sectorsCat. It serves more than 190 countries through a network of over 2100 authorized dealers, providing customers with reliable, fuel - efficient, and low - maintenance equipmentCat. CAT is committed to cutting - edge technology, sustainable solutions, and customer - focused service, making it the preferred choice for long - term productivity and investment value in medium - to heavy - duty excavation operationsCat.

Model: CAT 323D

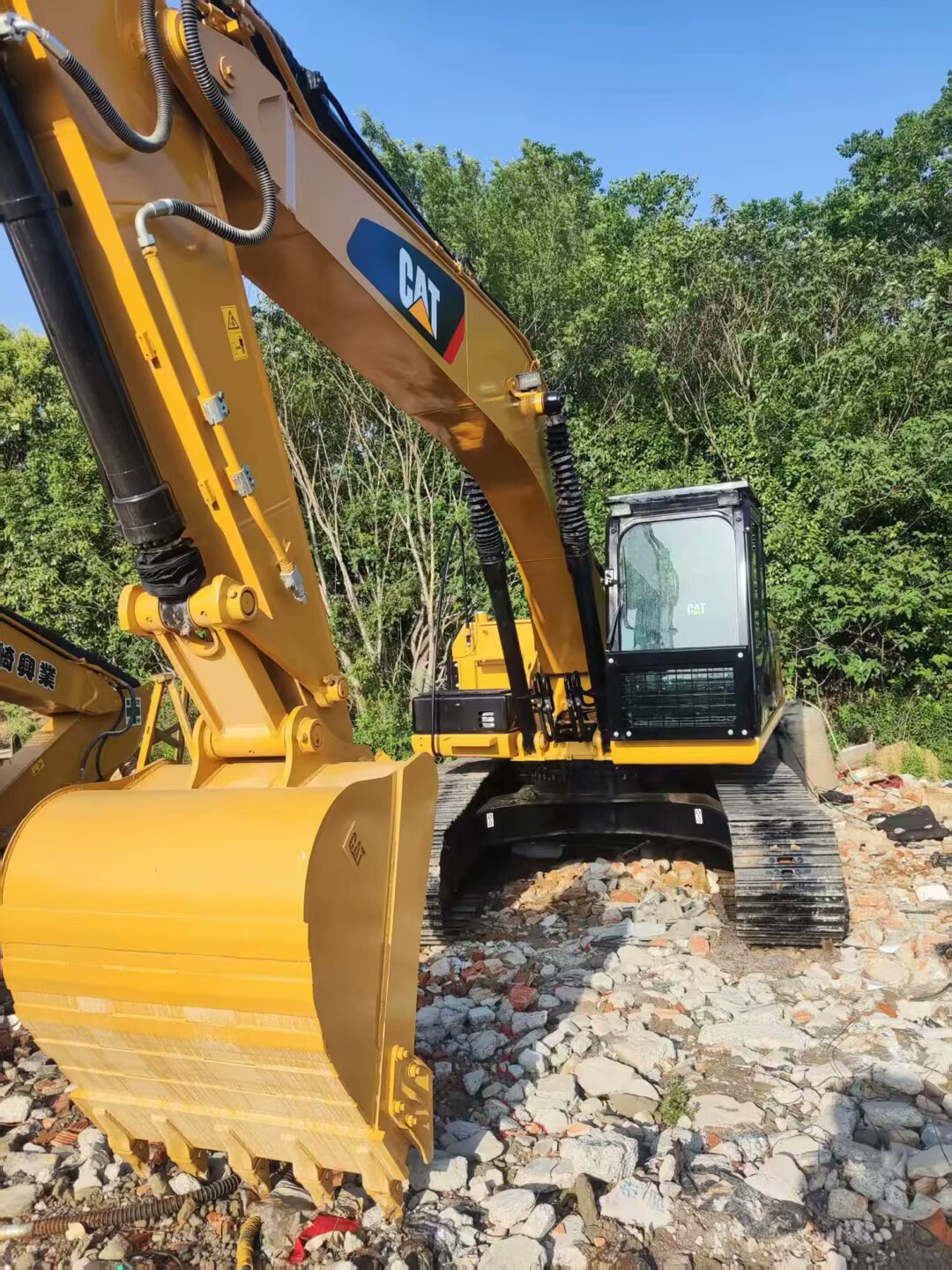

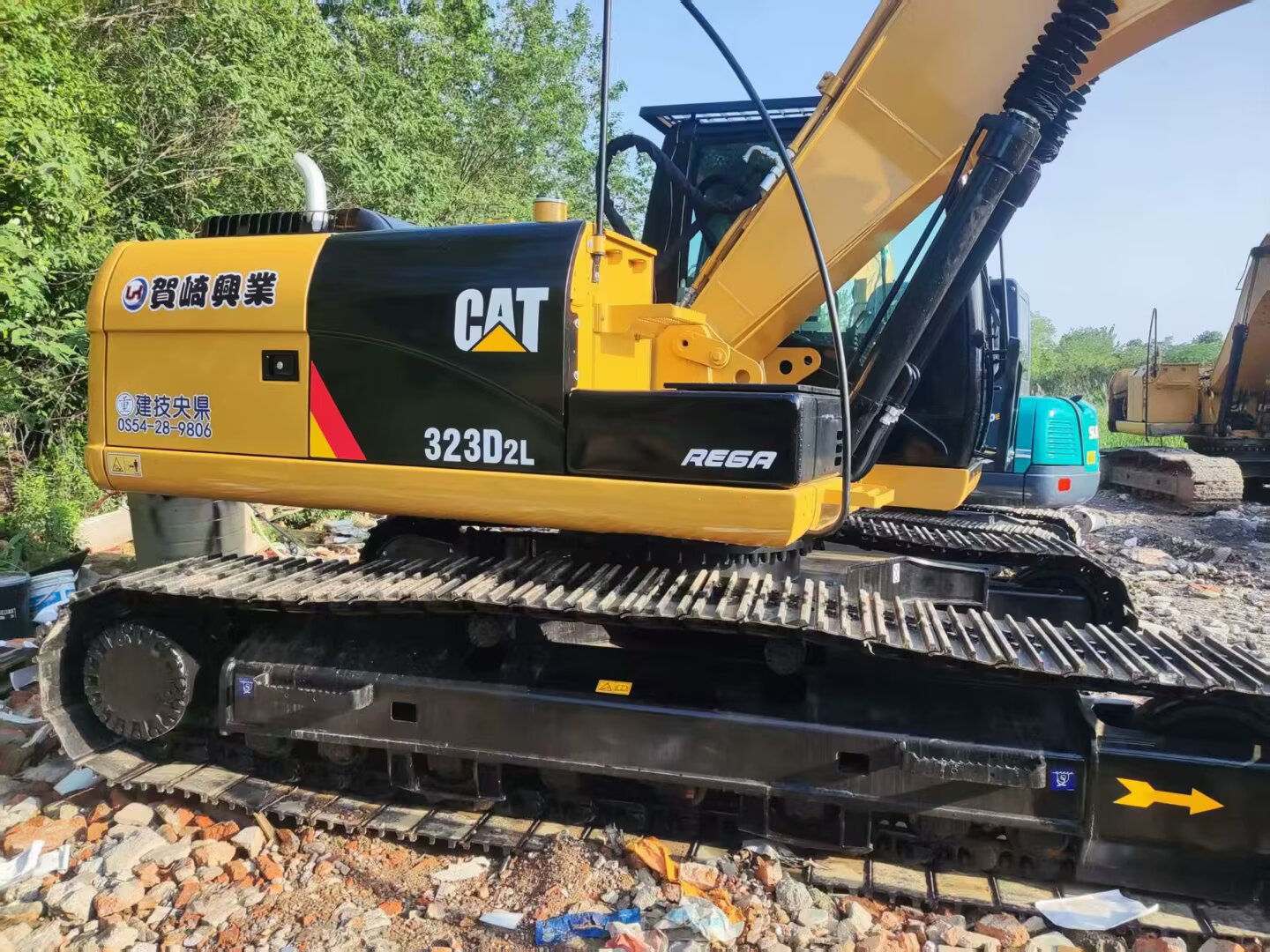

The CAT 323D is a 23 - ton medium - duty hydraulic excavator designed for versatile excavation tasks in construction, road building, municipal engineering, and small - scale mining. It is equipped with a Cat C6.4 ACERT engine, advanced hydraulic system, and robust undercarriage, ensuring strong digging force, precise operation, and excellent fuel efficiency. Its balanced weight distribution, compact design, and ergonomic cab make it suitable for both urban and remote job sites, excelling in digging, loading, grading, and material handling operations. It is the ideal machine for customers who need a reliable, efficient, and cost - effective excavator for diverse medium - heavy excavation projects.

Core Technical Specifications

1. Basic Parameters

• Operating Weight: 23,000 kg (23 tons)
• Rated Bucket Capacity: 1.2 m³ (standard, optional 0.8-1.5 m³)
• Rated Power (ISO 9249): 110 kW (150 HP) @ 2000 rpm
• Overall Dimensions (L×W×H): 9460 mm × 2990 mm × 3040 mm
• Fuel Tank Capacity: 410 L (108.3 US gal)

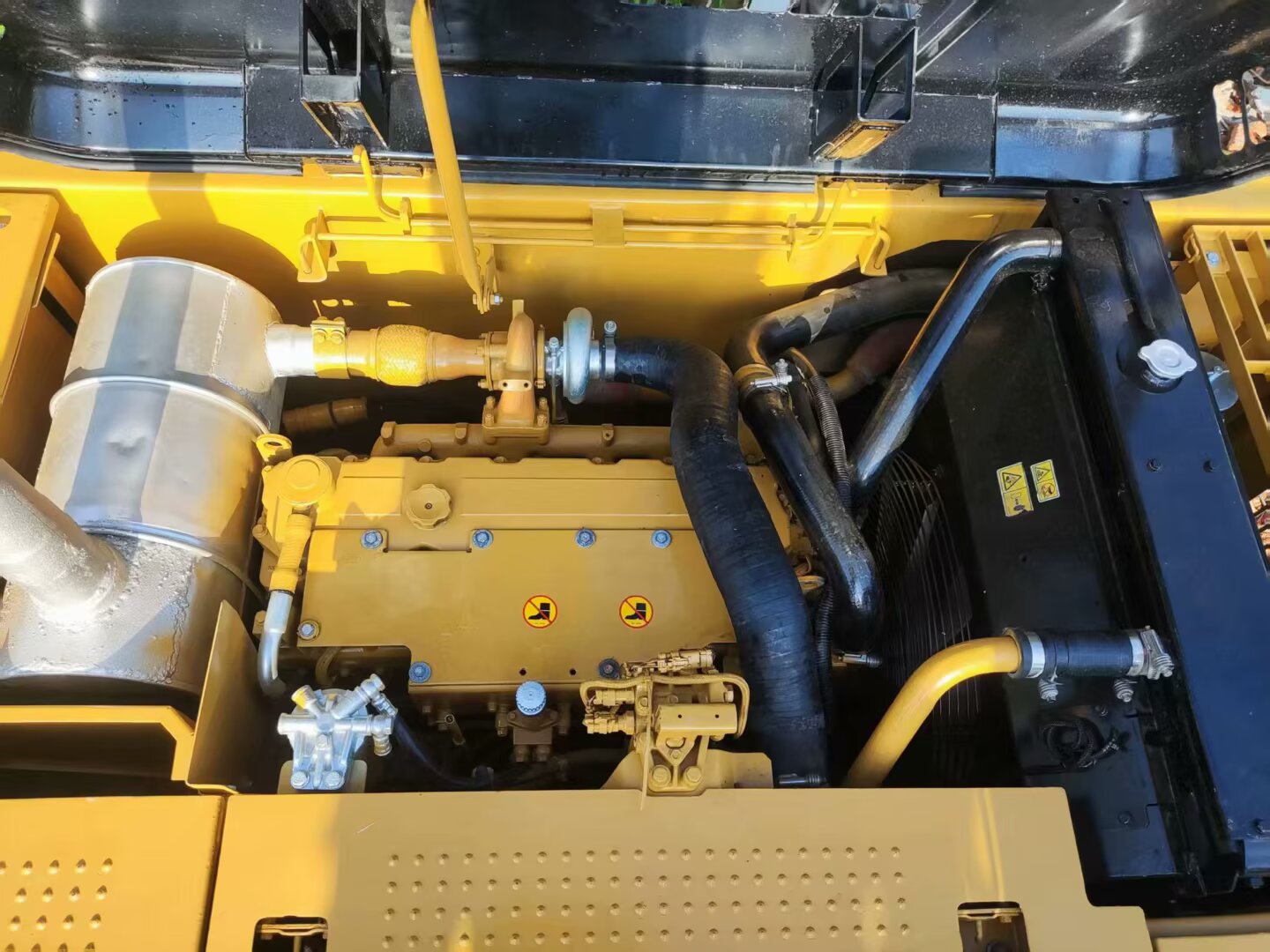

2. Engine Performance

• Engine Model: Cat C6.4 ACERT (6 - cylinder, 4 - cycle, turbocharged, aftercooled)
• Emission Compliance: US EPA Tier 3 / EU Stage 3ACat
• Displacement: 6.4 L
• Maximum Torque: 660 Nm @ 1400 rpm
• Cold - Start Performance: Reliable starting at -18°C (0°F); optional -32°C (-25°F) cold - start kit availableCat

3. Excavation & Traction Systems

• Maximum Digging Depth: 6710 mm
• Maximum Digging Height: 9470 mm
• Maximum Unloading Height: 6500 mm
• Swing Speed: 11.5 rpm
• Travel Speed: 5.5 km/h (low), 9.0 km/h (high)
• Gradeability: 35%

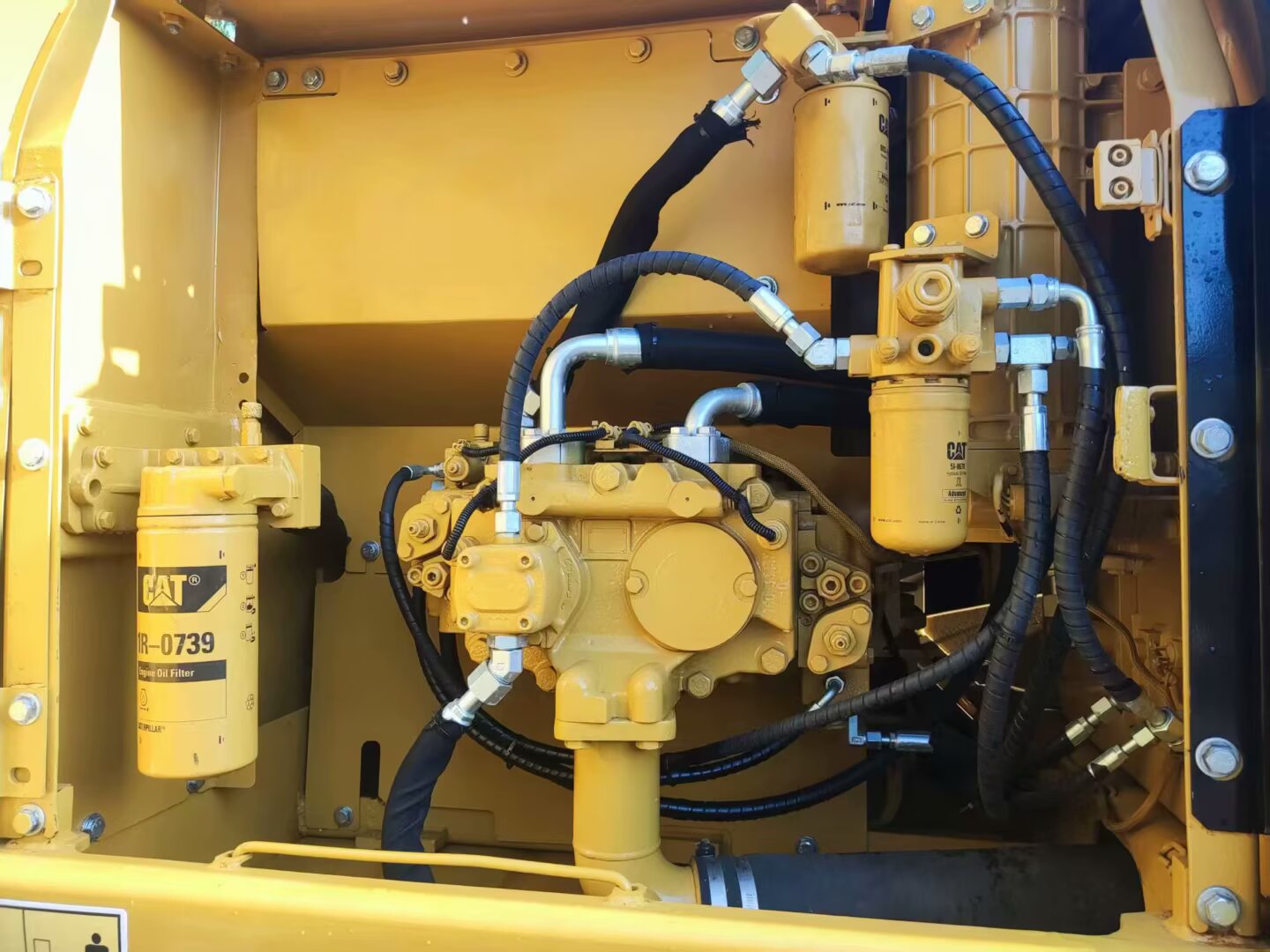

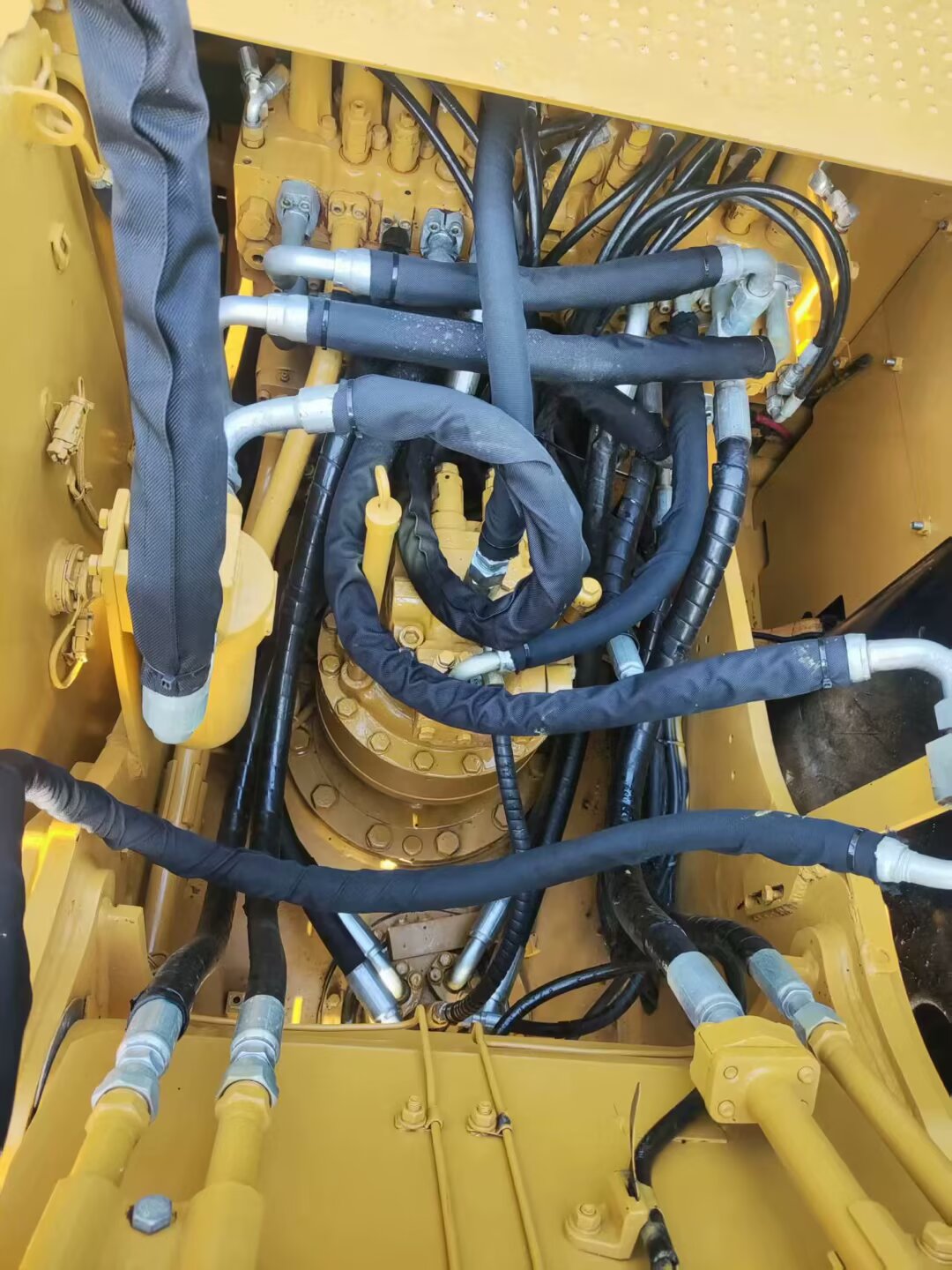

4. Hydraulic & Control Systems

• Hydraulic System: Load - sensing, variable - displacement piston pump, 205 L/min max flow
• Working Hydraulics: Pilot - controlled, 3 - spool valve, 34,500 kPa relief pressure
• Bucket Digging Force: 140 kN (14,300 kgf)
• Stick Digging Force: 106 kN (10,800 kgf)
• Swing Torque: 360 kN·m

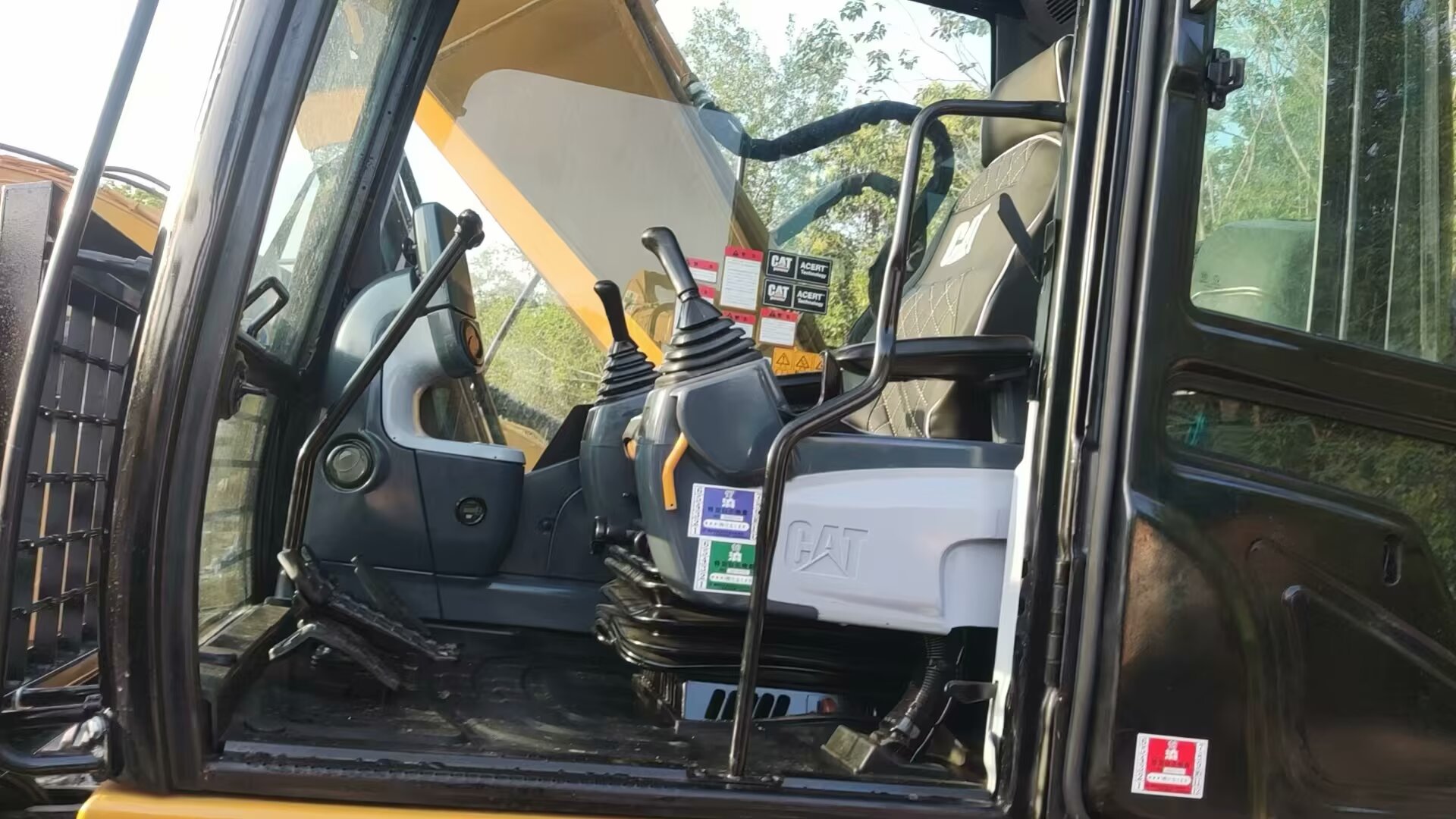

5. Operator Cab

• ROPS/FOPS certified (ISO 3471/ISO 3449)
• Low - noise (75 dB) sealed cab with full insulation
• Adjustable suspension seat, telescopic/tilt steering, and intuitive controls
• Air - conditioning with filtration system
• Multi - information display for real - time monitoring of engine, hydraulic, and fuel status

6. Structural Durability

• Reinforced boom and stick with thickened wear plates

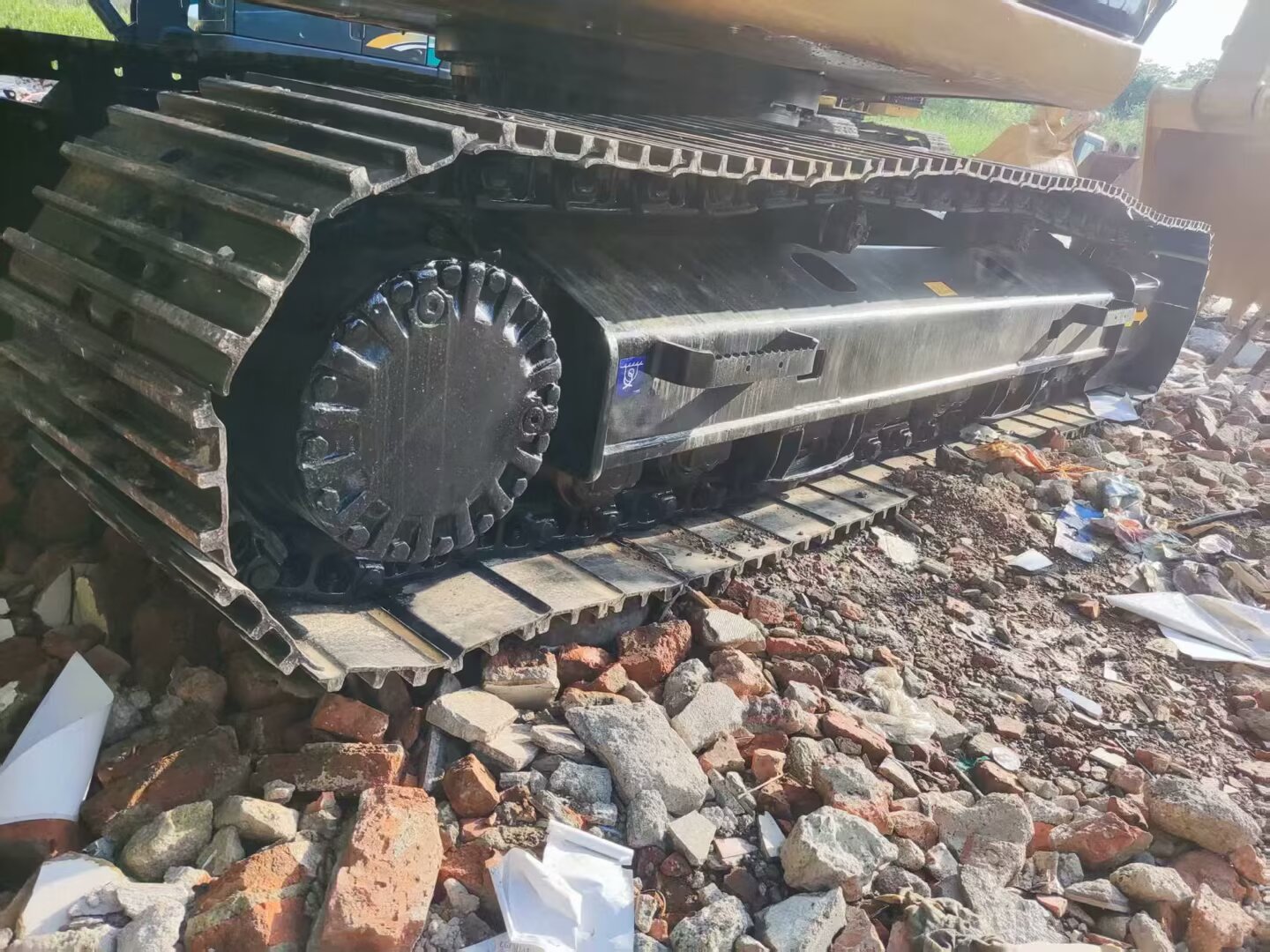

• Heavy - duty 8 - roller undercarriage for stability and long service life
• Replaceable bucket teeth and side cutters for easy maintenance
• Extended service intervals (500 - hour oil change, 2000 - hour hydraulic filter change)

Core Advantages

1. Powerful & Efficient Performance

• Strong digging force (140 kN bucket, 106 kN stick) for fast material excavation
• High travel speed (9.0 km/h) and swing speed (11.5 rpm) for quick cycle times
• Multiple bucket options (standard, heavy - duty, rock) to adapt to different materials

2. Excellent Fuel Efficiency

• Cat C6.4 ACERT engine with electronic control for efficient combustion
• Load - sensing hydraulic system matches flow to demand, reducing power loss
• Two power modes (standard / eco) to save fuel by up to 10% during light loads

3. Exceptional Reliability

• Robust engine and transmission with long service intervals (500 - hour oil change)
• Heavy - duty undercarriage and reinforced structures withstand harsh job site conditions
• Advanced cooling system for reliable operation in temperatures up to 52°C (125°F)Cat

4. Operator Comfort & Safety

• ROPS/FOPS certified cab for all - round protection
• Spacious design with large windows for excellent 360° visibility
• Low noise and vibration levels with full insulation and suspension seat to reduce fatigue
• Overload protection and emergency stop system for enhanced safety

5. Low Operating Costs

• Fuel - efficient engine and long service intervals minimize daily expenses
• Easy - to - access service points for quick maintenance
• High resale value due to CAT’s reputation for durability
• Reduced maintenance parts and longer filter change intervals

6. Global Service & Support

• CAT’s global network of 2100+ authorized dealers for parts and service
• Remote monitoring via Product Link for real - time diagnostics
• 24/7 technical support via phone, email, or on - site service

Typical Application Scenarios

1. Construction & Road Building

• Foundation digging, basement excavation, and building construction
• Roadbed preparation, slope cutting, and embankment construction

2. Municipal Engineering & Urban Construction

• Sewer and water pipe installation, and trench digging
• Demolition, waste cleanup, and urban renewal projects

3. Quarry & Small - Scale Mining

• Aggregate extraction, rock breaking, and material loading
• Small - scale mining and mineral processing operations

4. Agriculture & Water Conservancy

• Reservoir and pond digging, and irrigation channel construction
• Farmland renovation and land reclamation

5. Rental & General Contracting

• Rental fleets for diverse customer needs
• General contracting projects requiring versatile excavation capabilities

Foreign Trade Service Guarantee

1. Customization Options

• Bucket options (standard, heavy - duty, rock, tilt)
• Engine emission compliance (Tier 3 / Stage 3A)
• Special configurations for extreme temperatures (cold/hot)
• Multilingual documentation and operator manuals

2. Inspection & Certification

• Pre - shipment inspection by SGS, BV, or other third - party institutions
• Export certifications (CO, Form E, Form F, etc.)
• Compliance with international standards (ISO, CE, EPA Tier 3)Cat

3. Warranty & Training

• 1 - year or 2000 - hour global warranty
• Free operator and maintenance training
• Technical support via phone, email, or on - site service

4. Spare Parts & After - Sales

• Fast delivery of genuine CAT parts
• Consignment stock available for key markets
• On - site service and maintenance contracts

Why Choose CAT 323D?

The CAT 323D 23 - ton medium - duty hydraulic excavator combines CAT’s engineering excellence with reliable performance to meet diverse excavation needs. Its Cat C6.4 ACERT engine, advanced hydraulic system, and robust structure ensure efficient, cost - effective operation in construction, municipal, and mining projects. The ergonomic cab and global service network provide peace of mind and high return on investmentCat. For customers seeking a versatile, durable, and efficient excavator, the CAT 323D is the ultimate choice.

Contact Us

For real - time quotes, customization options, bulk discounts, or shipping details, contact our foreign trade team. We offer competitive pricing, flexible payment terms (LC, TT, DP), and door - to - door shipping worldwide. Our professional team provides one - stop service from product selection to after - sales support, helping you achieve business success.
