Brand: Toyota – A global benchmark in material handling equipment with 70+ years of manufacturing heritage, celebrated for Japanese precision engineering, industry-leading safety systems, and ultra-low downtime. Toyota forklifts dominate the premium segment across the Middle East, Southeast Asia, and Europe, trusted by logistics hubs, manufacturing plants, and warehouses for unrivaled reliability and long service life.

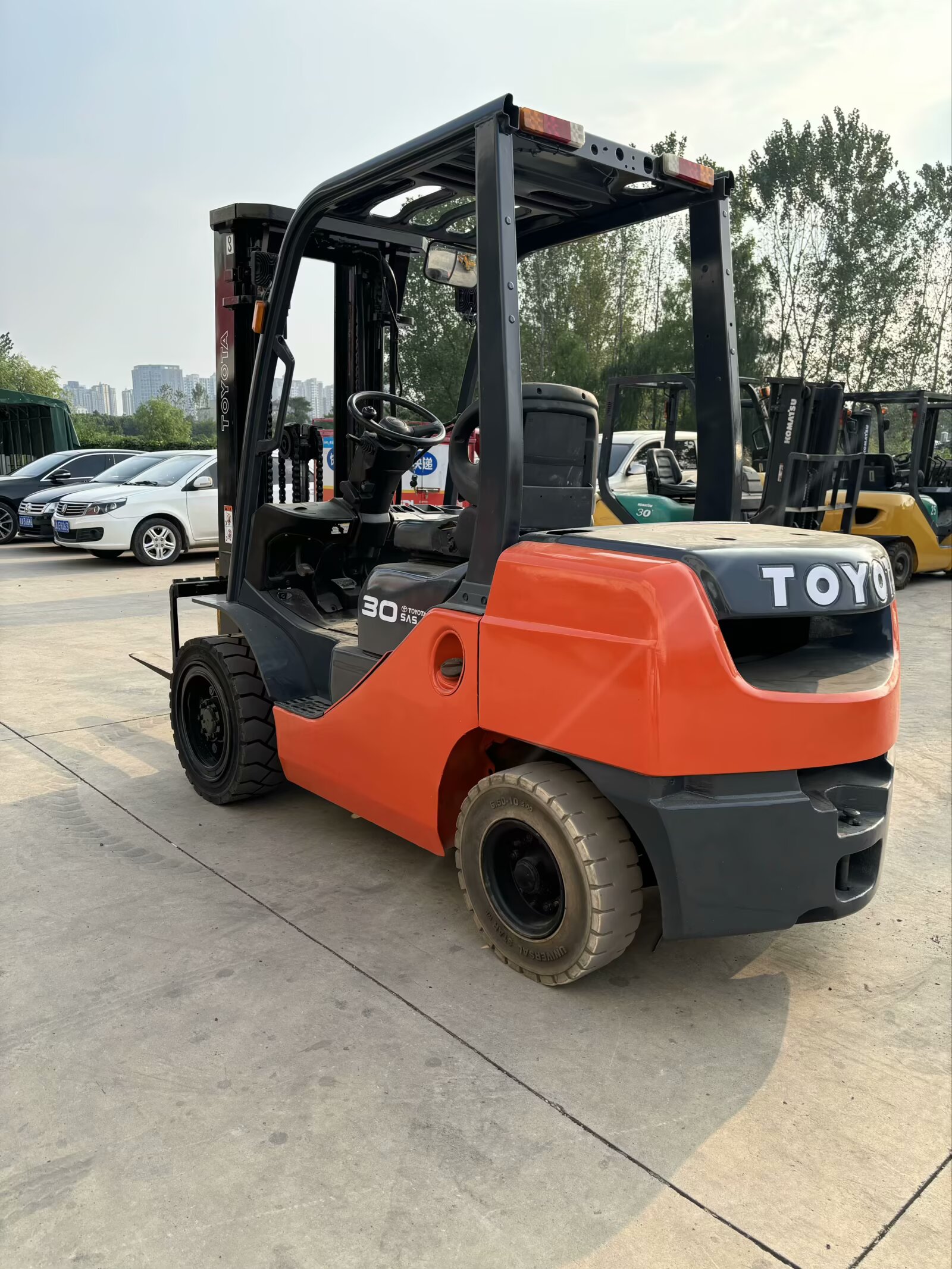

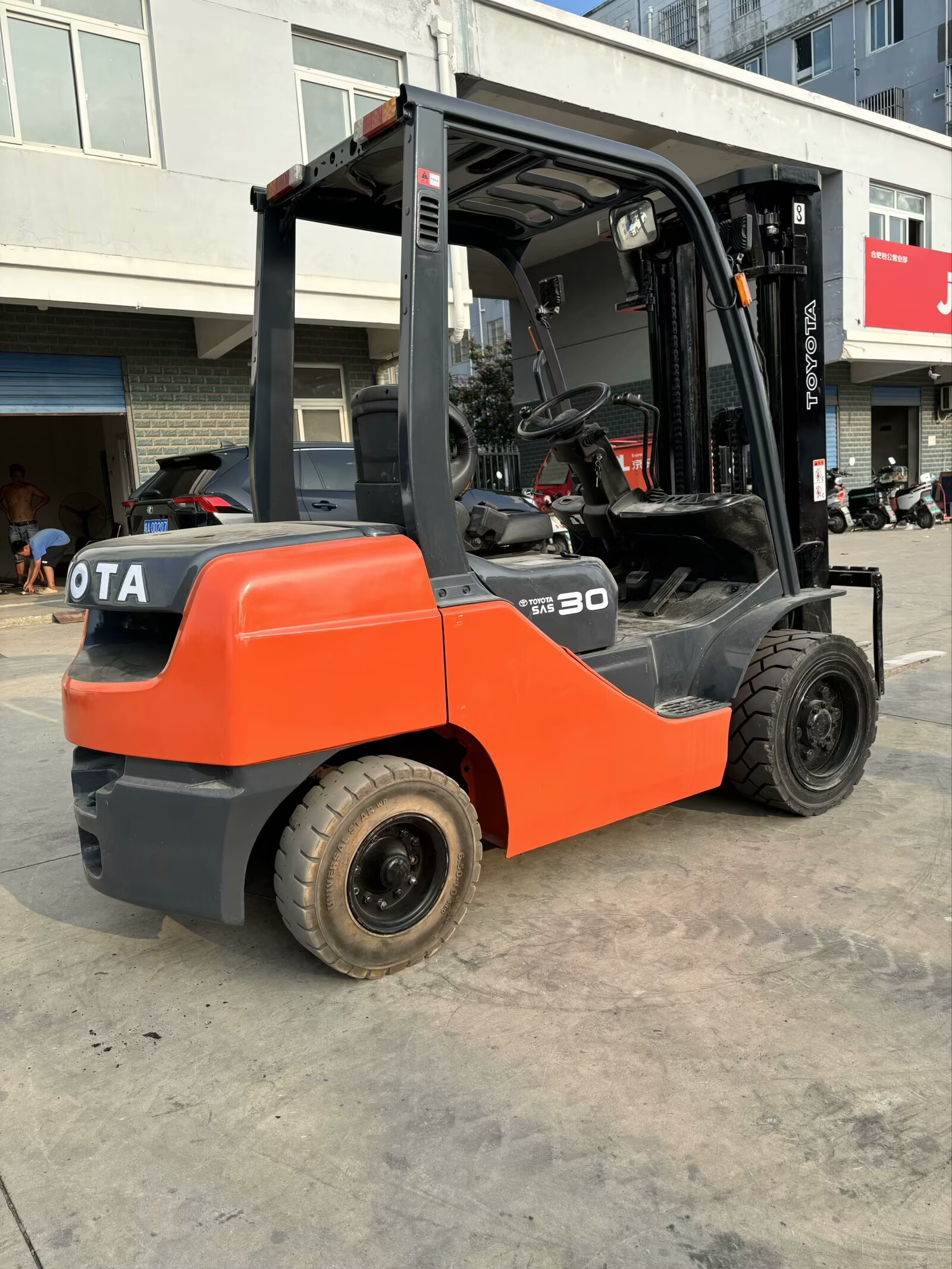

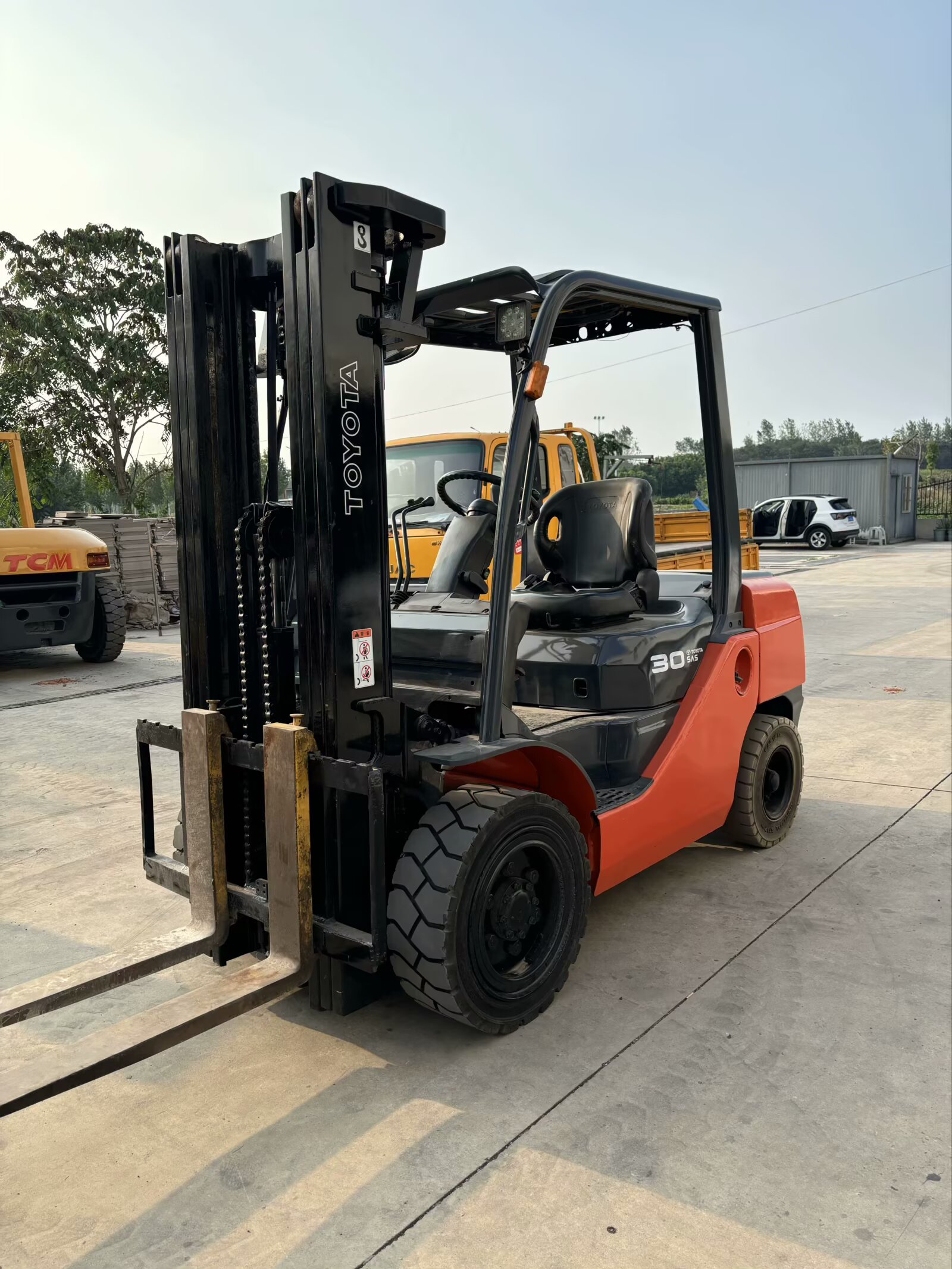

Model: Toyota 8FD30 – A flagship diesel-powered model in Toyota’s 8F series, engineered for medium-to-high intensity material handling. Equipped with the proven Toyota 1DZ-Ⅱ engine and proprietary safety technologies, it balances robust load capacity, compact maneuverability, and operator comfort, ideal for indoor warehouse stacking, factory production line feeding, and outdoor logistics yard operations.
- Rated Lifting Capacity: 3000kg (500mm load center)
- Mast Configuration: 2-stage full-free wide-view mast (upgradable to 3-stage 4500mm lift); mast tilt angle: forward 6°/backward 12°; optimized visibility design for safe high-lift operations
- Engine: Toyota 1DZ-Ⅱ diesel engine; maximum power output 55PS @ 2400rpm; peak torque 167N·m @ 1600rpm; low noise and emission for eco-friendly operation
- Transmission: Smooth automatic transmission; power steering; forward/reverse maximum speed up to 18km/h
- Maneuverability: Minimum turning radius (outer) 2430mm; excellent gradeability for sloped yards; suitable for narrow aisles (3.5m width)
- Overall Dimensions: Length (to fork face) 2775mm; width 1240mm; overhead guard height 2170mm
- Weight & Tires: Operating weight ≈3800kg; standard pneumatic tires (optional solid tires for indoor smooth floors); fork specifications: 1220mm length × 150mm width
- Hydraulic System: High-efficiency hydraulic system; stable lifting/lowering control for precise cargo handling

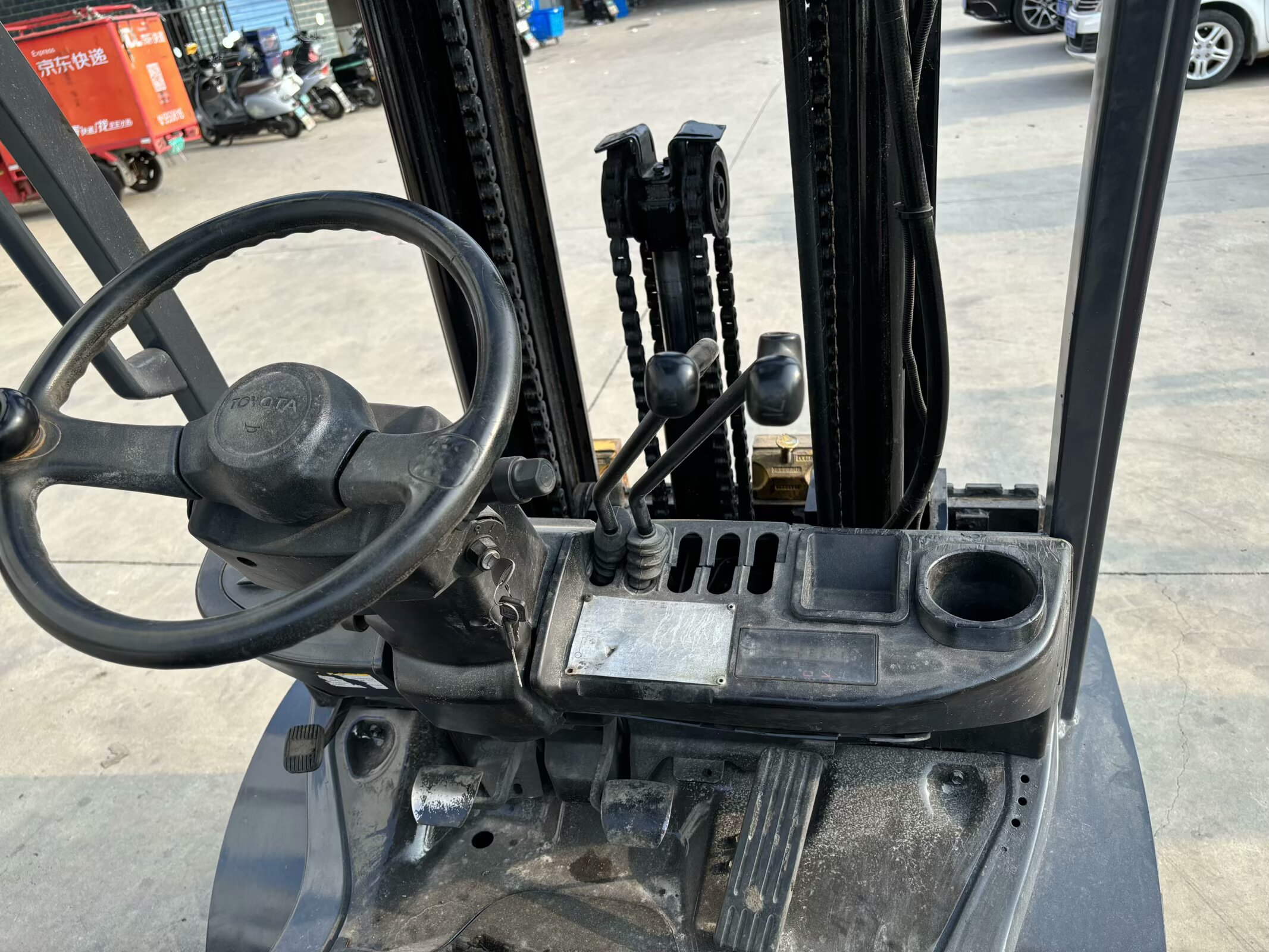

- Operator Cab: ROPS/FOPS certified; ergonomic design with expanded legroom; 300mm reduced-diameter steering wheel to lower fatigue
- Toyota SAS System (Optional): Proprietary active stability technology automatically adjusts speed during turns and lifting, reducing accident rates by 80% compared to conventional forklifts. It controls lifting speed and mast angle for enhanced productivity and safety.
- OPS Operator Presence System: Triggers safety locks within 2 seconds if the operator leaves the seat, preventing unintended operation and protecting personnel and cargo.
- Wide-View Design: Lowered dashboard, optimized monitor position, and improved overhead guard shape ensure exceptional visibility, eliminating blind spots during high-lift stacking.

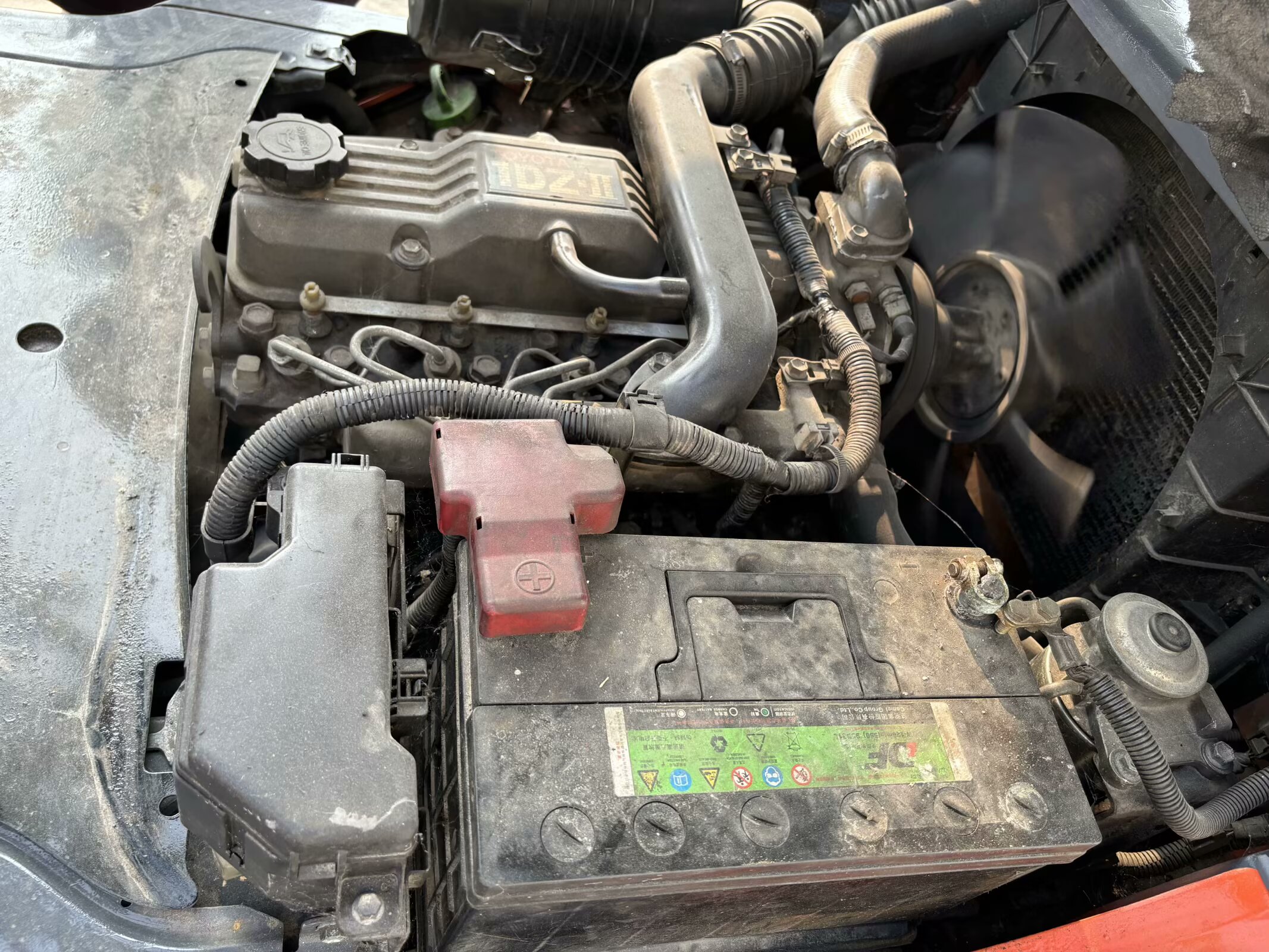

- Proven 1DZ-Ⅱ Engine: The iconic Toyota diesel engine delivers consistent power for continuous high-intensity operations. It features low vibration, reliable cold-start performance, and reduced exhaust emissions, meeting environmental requirements of modern enterprises.
- Durable Structural Build: Reduced use of plastic parts in favor of high-quality integrated steel plates enhances body rigidity. Key components are reinforced to withstand harsh working environments, extending service life to 12,000+ hours.

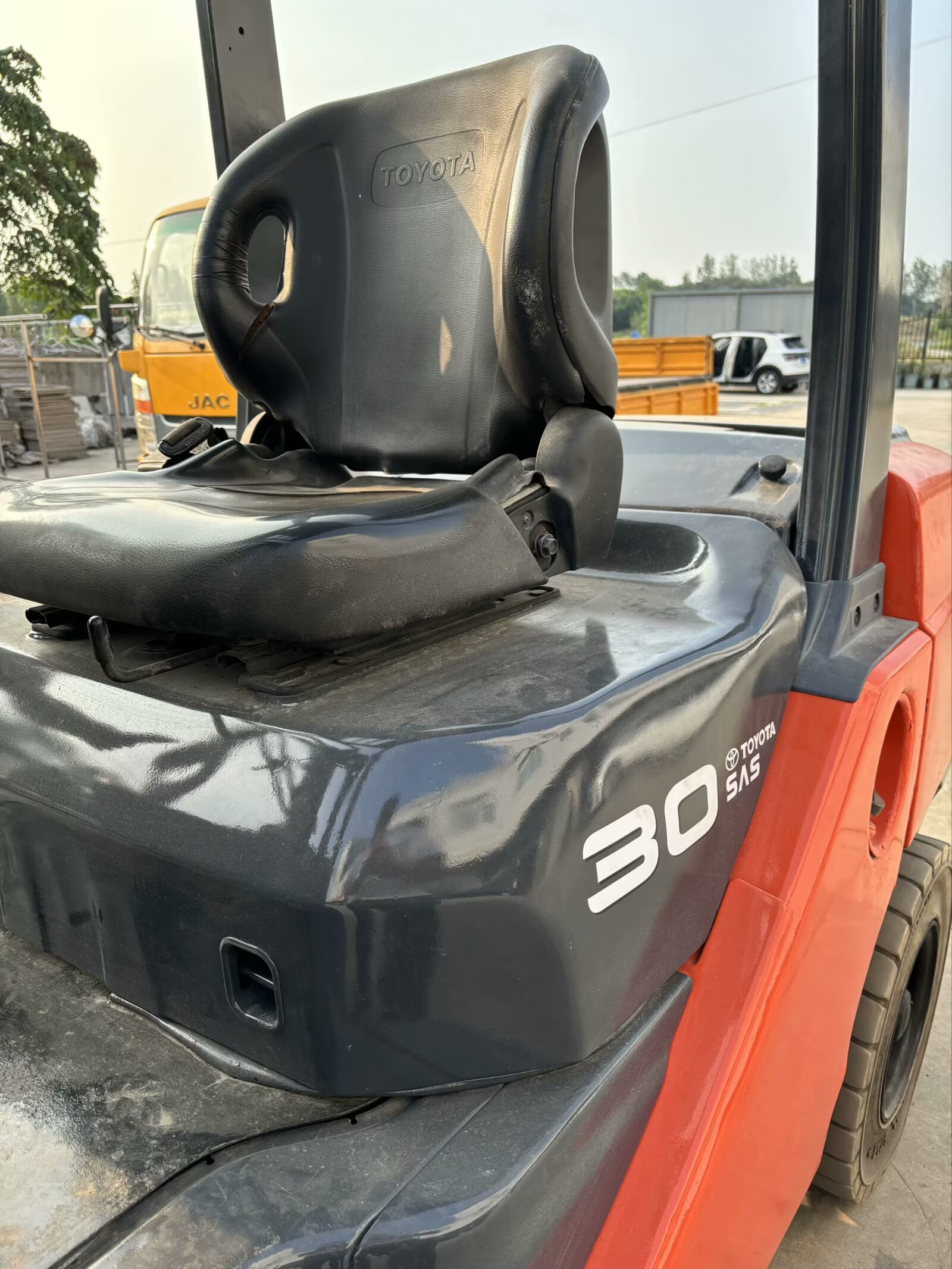

- Human-Centered Cab Design: Expanded legroom and adjustable sliding seat accommodate operators of all statures. The smaller-diameter steering wheel reduces arm fatigue, ideal for long shifts and frequent entry/exit scenarios.
- Simplified Maintenance: Engine hood opening angle increased to 75° for easy access to oil filters and lighting components. Extended replacement cycles for engine oil and hydraulic oil lower maintenance costs and downtime.
- Dual-Scenario Adaptability: Pneumatic tires perform well on outdoor uneven ground, while optional solid tires suit indoor warehouses. Compatible with side shifters, clamps, and specialized forks for diverse cargo handling needs.
- Global After-Sales Network: Toyota’s 200+ authorized service centers worldwide ensure timely technical support. Common spare parts are delivered within 5-10 days, and 24/7 online support is available for troubleshooting.
- Warehouse & Distribution: Stacking 3-ton pallets (electronics, food, auto parts) on 3-4.5m-high racks, maximizing storage space utilization.
- Factory Production: Feeding raw materials to production lines and transferring finished products, adapting to frequent loading/unloading cycles.
- Logistics Yards: Short-distance cargo transfer between trucks and warehouses, with reliable performance in high-volume logistics operations.
- Industrial Sites: Handling medium-heavy components in machinery, electronics, and automotive accessory plants, as well as construction and energy mineral sites.
- Customization Options: Mast height upgrade (3m→4.5m 3-stage mast); solid tire replacement; air-conditioned cab for hot climates (UAE, Saudi Arabia); multilingual operation manuals (English/Arabic/Bahasa Indonesia).
- Inspection & Certification: Pre-shipment SGS/BV third-party inspection; provision of Certificate of Origin (CO), CE certification, emission compliance reports, and customized customs clearance documents for target markets.
- Warranty & Training: 2-year global warranty for core components (engine, transmission, mast); free on-site training in local languages covering safe operation, daily maintenance, and fault diagnosis.
- After-Sales Support: 24/7 online technical support via WhatsApp/email; consignment stock service for bulk buyers to ensure immediate access to spare parts.
The Toyota 8FD30 integrates Toyota’s decades of material handling expertise, combining top-tier safety systems, reliable 1DZ-Ⅱ engine performance, and user-friendly design. Its compact maneuverability solves narrow space operation challenges, while the durable build and simplified maintenance reduce total ownership costs. Backed by global after-sales support, it is the ideal choice for enterprises seeking a high-efficiency, long-lasting 3-ton diesel forklift, delivering consistent value and maximum return on investment.
For real-time quotes for new/used Toyota 8FD30 forklifts, mast height customization, or multilingual operator training programs, contact our dedicated sales team. We offer bulk order discounts and long-term maintenance contracts for logistics companies, manufacturing enterprises, and warehousing facilities.
