Brand: Toyota – A global leader in material handling equipment with 70+ years of forklift manufacturing heritage, celebrated for Japanese precision engineering, industry-leading reliability, and the pioneering SAS (System of Active Stability) safety technology. Toyota forklifts dominate the premium heavy-load handling market across the Middle East, Southeast Asia, and Europe, trusted by large-scale manufacturing plants, port logistics hubs, and heavy industry enterprises for their rugged performance and ultra-low downtime.

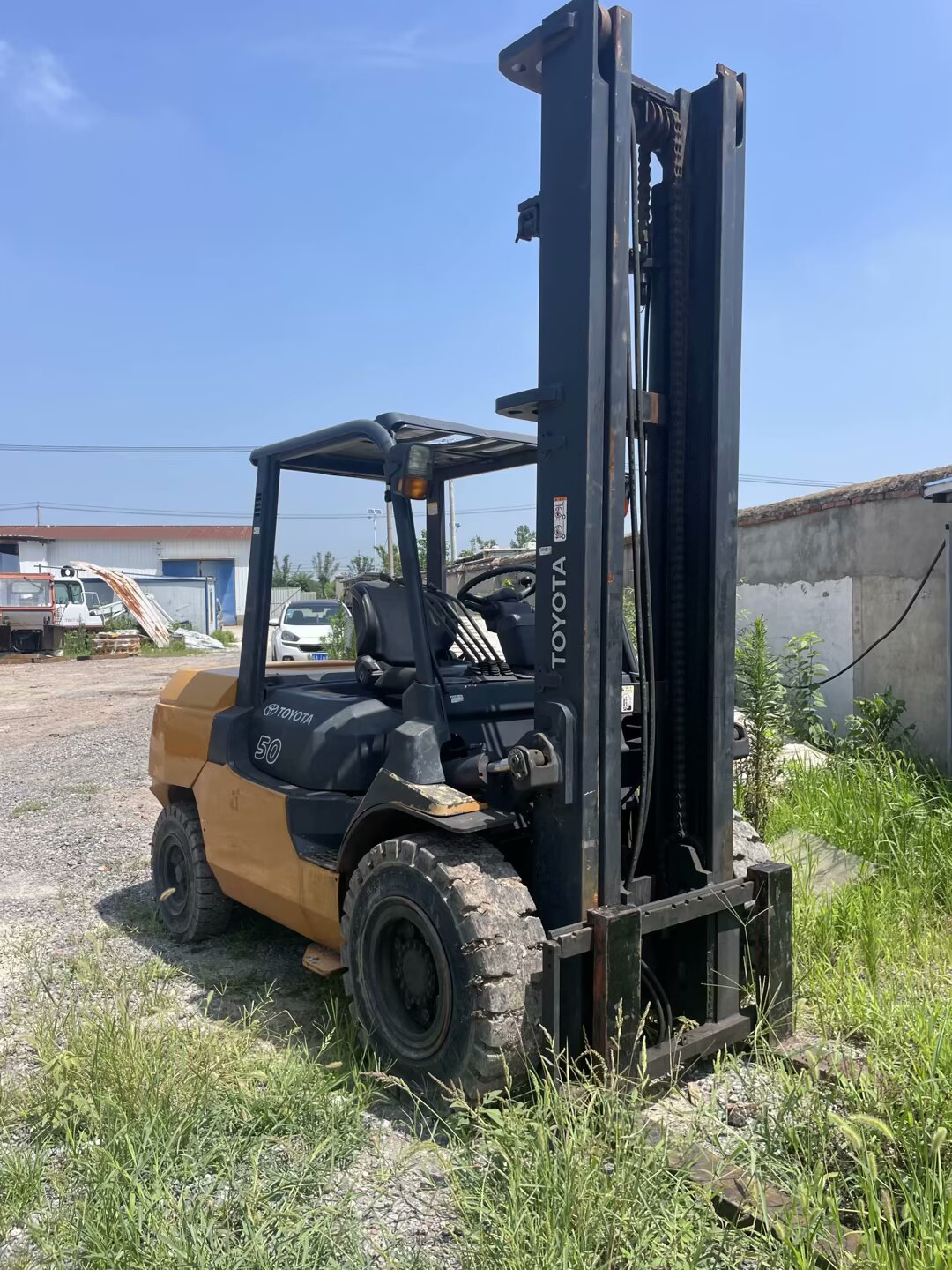

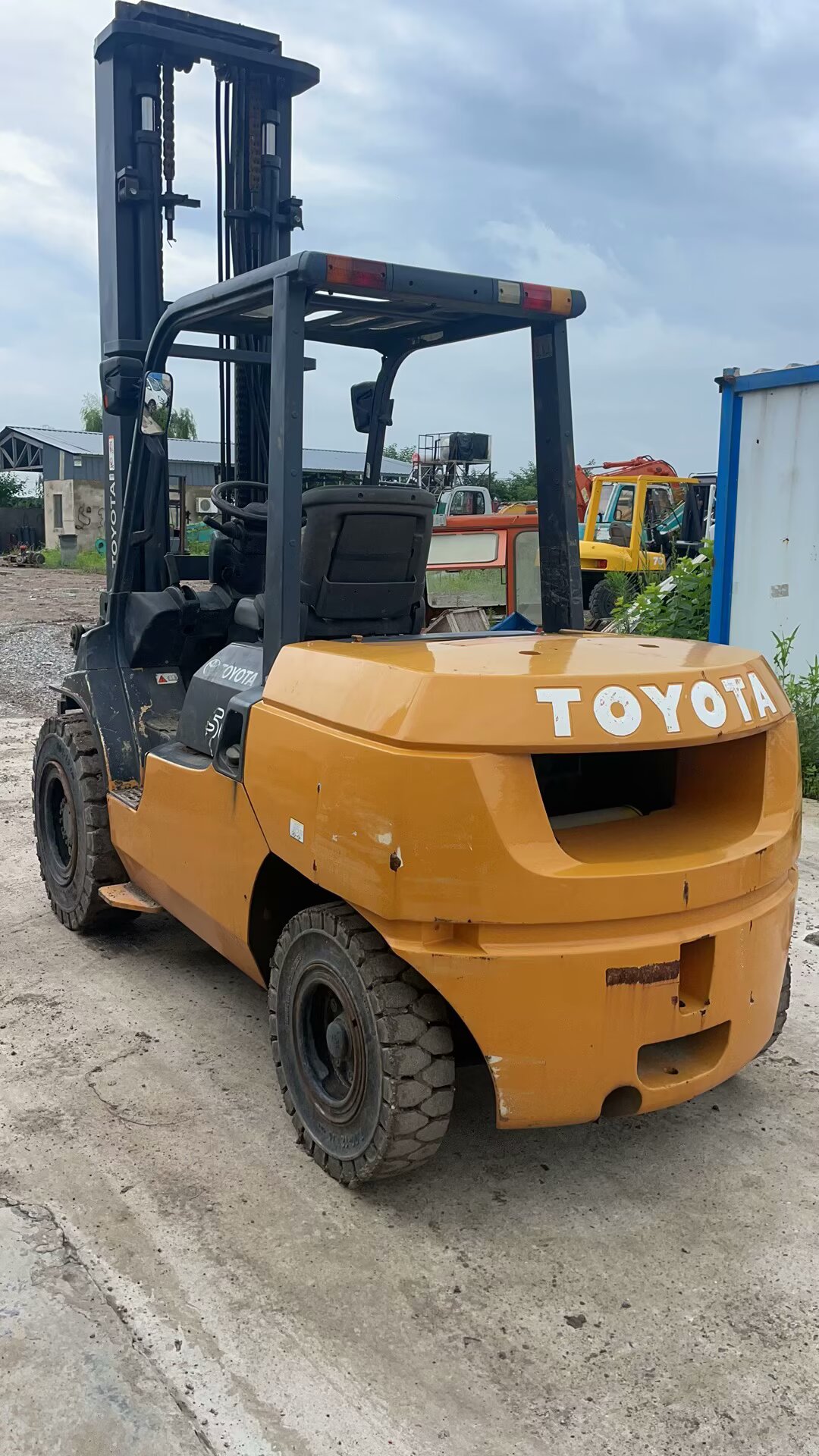

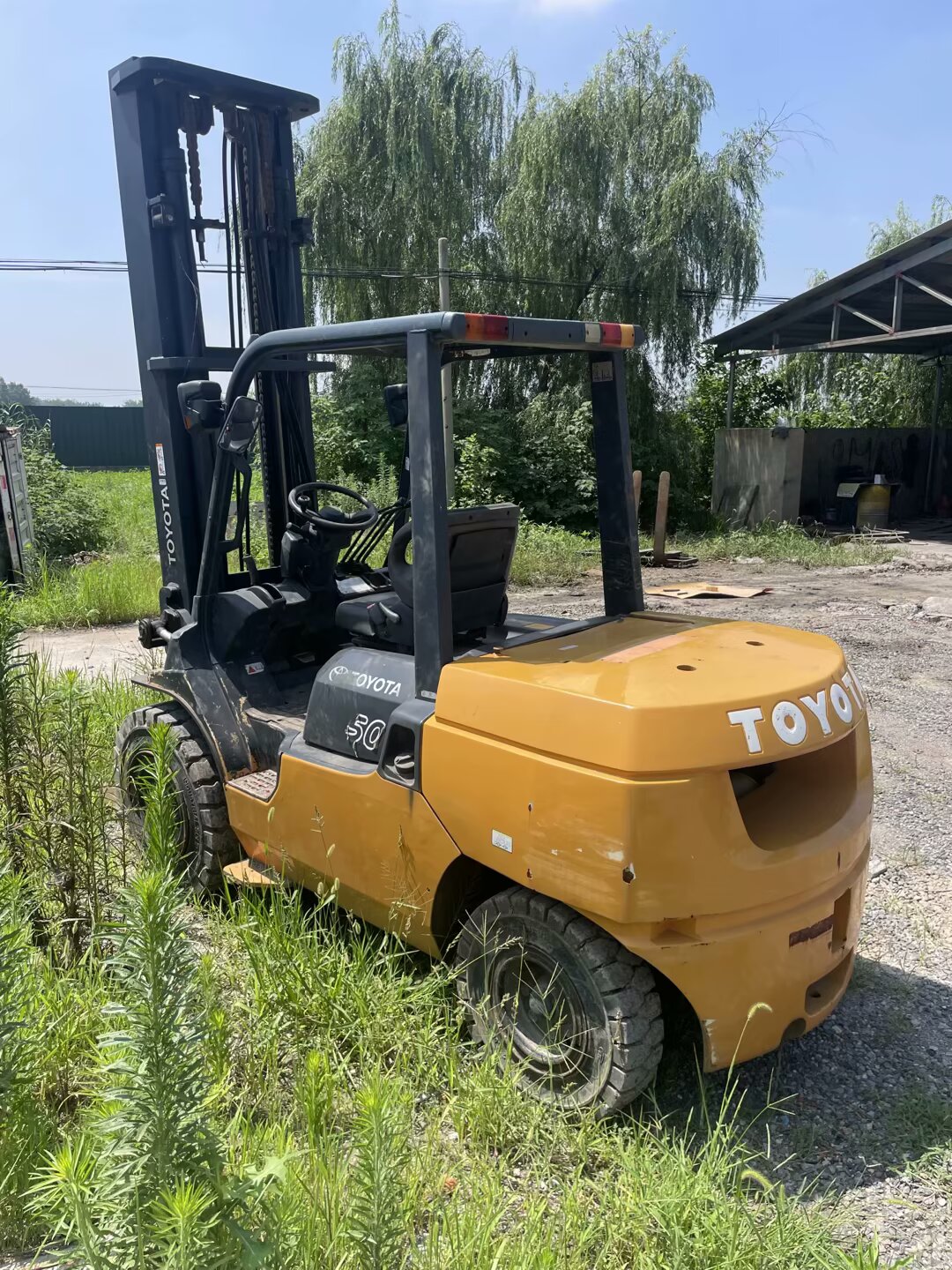

Model: Toyota 02-7FDA50 – A legendary 5-ton heavy-duty diesel forklift, a classic model in Toyota’s 7-series lineup engineered for high-intensity heavy-load scenarios. Equipped with a powerful Toyota 13Z diesel engine and robust structural design, it balances exceptional load-bearing stability, durable operation, and flexible maneuverability, ideal for handling heavy cargo such as steel coils, concrete blocks, and large machinery components in factories, ports, and construction sites.
- Rated Lifting Capacity: 5000kg (600mm load center)
- Mast Configuration: 2-stage full-free wide-view mast; maximum lift height 3000mm (upgradable to 4.5m 3-stage mast); lowered mast height 2285mm; mast tilt angle: forward 6°/backward 12°; visibility rate ≥90% for safe high-lift operation
- Engine: Toyota 13Z 4-cylinder diesel engine; rated power 62kW (≈83HP); displacement 3.9L; fuel consumption 7.5-8.5L/h; equipped with 3-way catalytic converter for reliable emission control
- Transmission: Automatic transmission; power steering; forward/reverse maximum speed 17.7km/h (11mph)
- Maneuverability: Minimum turning radius 2800mm; gradeability (loaded) 47%; suitable for semi-narrow workspaces (4.2m width)
- Overall Dimensions: Length (without forks) 3170mm; width 1445mm; height (overhead guard) ≈2150mm; wheelbase ≈2030mm (80 inches)
- Weight & Counterweight: Operating weight 7390-7440kg; heavy-duty cast iron counterweight ensures stable load-bearing at full capacity
- Tires: Front 8.25-15 14PR pneumatic tires; rear 8.25-15 14PR pneumatic tires (optional solid tires for indoor smooth floors)
- Hydraulic System: High-pressure hydraulic system; hydraulic tank capacity ≈64L (17 gallons); lifting speed (unloaded) ≈38m/min (125 feet/min)

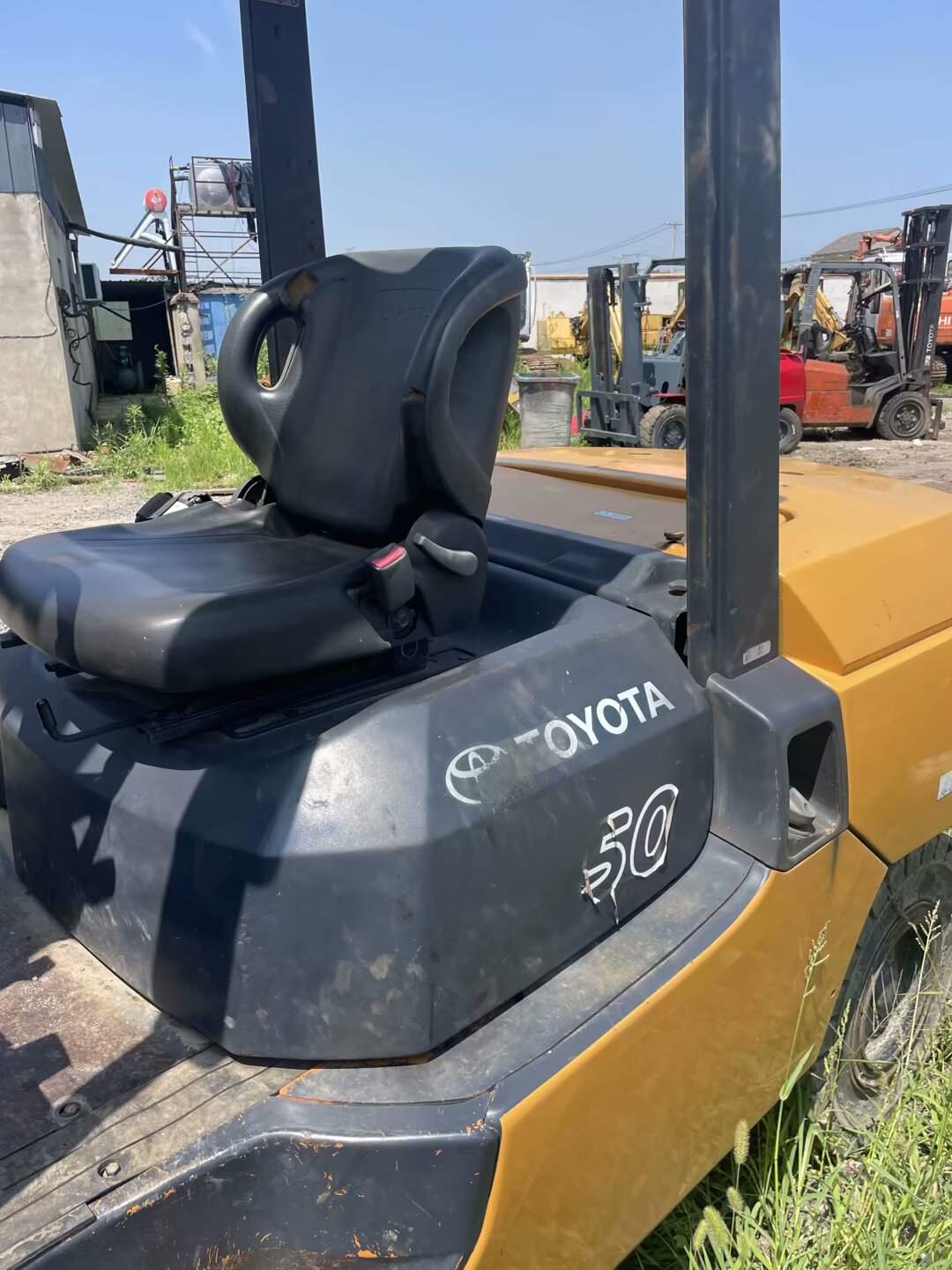

- Operator Cab: ROPS/FOPS certified; adjustable suspension seat; low-noise design; centralized control layout for effortless operation
- 5000kg Rated Capacity: Optimized load center (600mm) and heavy counterweight design eliminate tipping risks during full-load operation, easily handling heavy cargo like steel products and machinery parts.

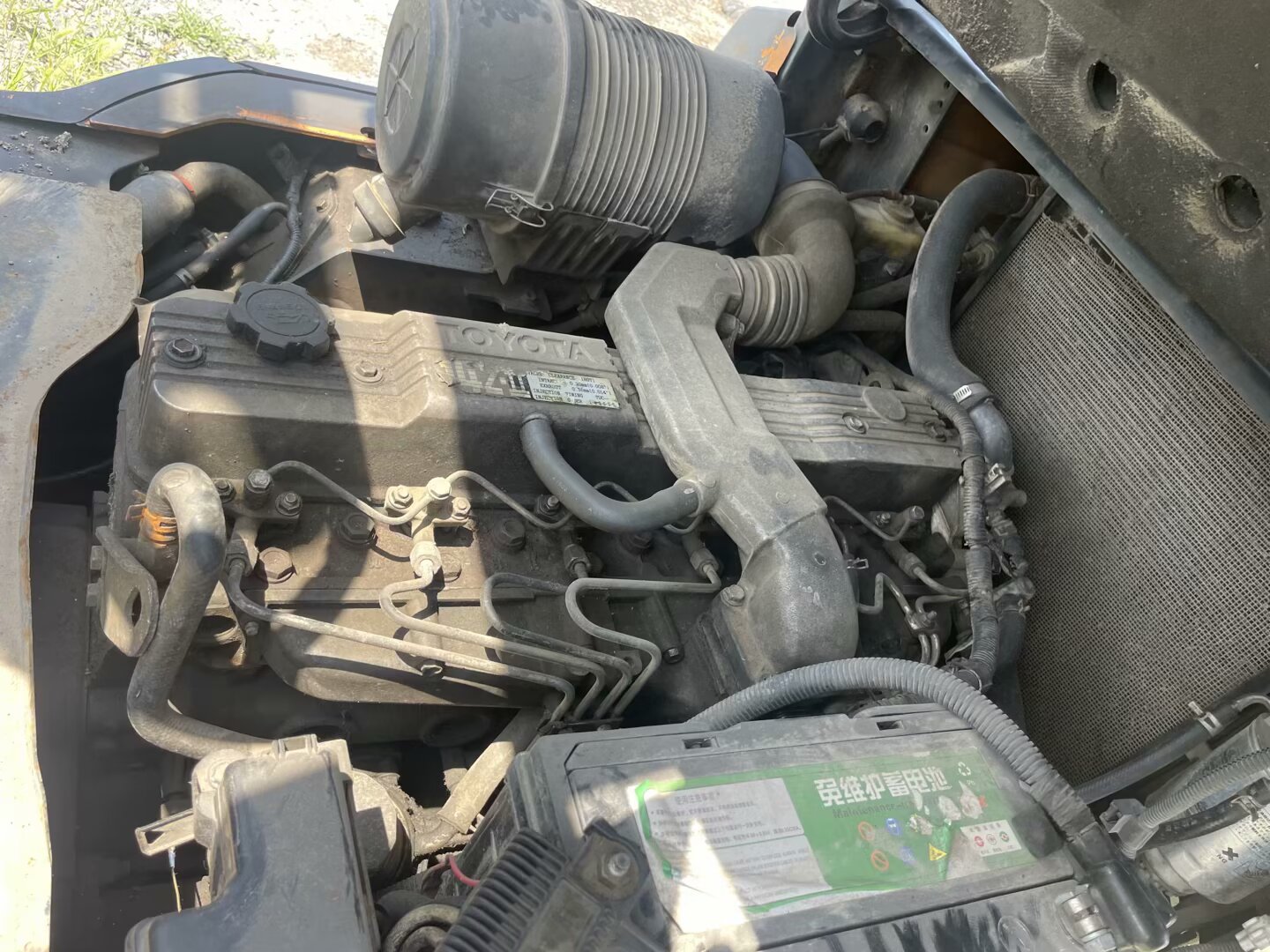

- Toyota 13Z Engine: A proven workhorse with exceptional durability, delivering 62kW of stable power for high-intensity daily operations. The engine’s robust structure and dust-proof intake system adapt to harsh industrial environments.

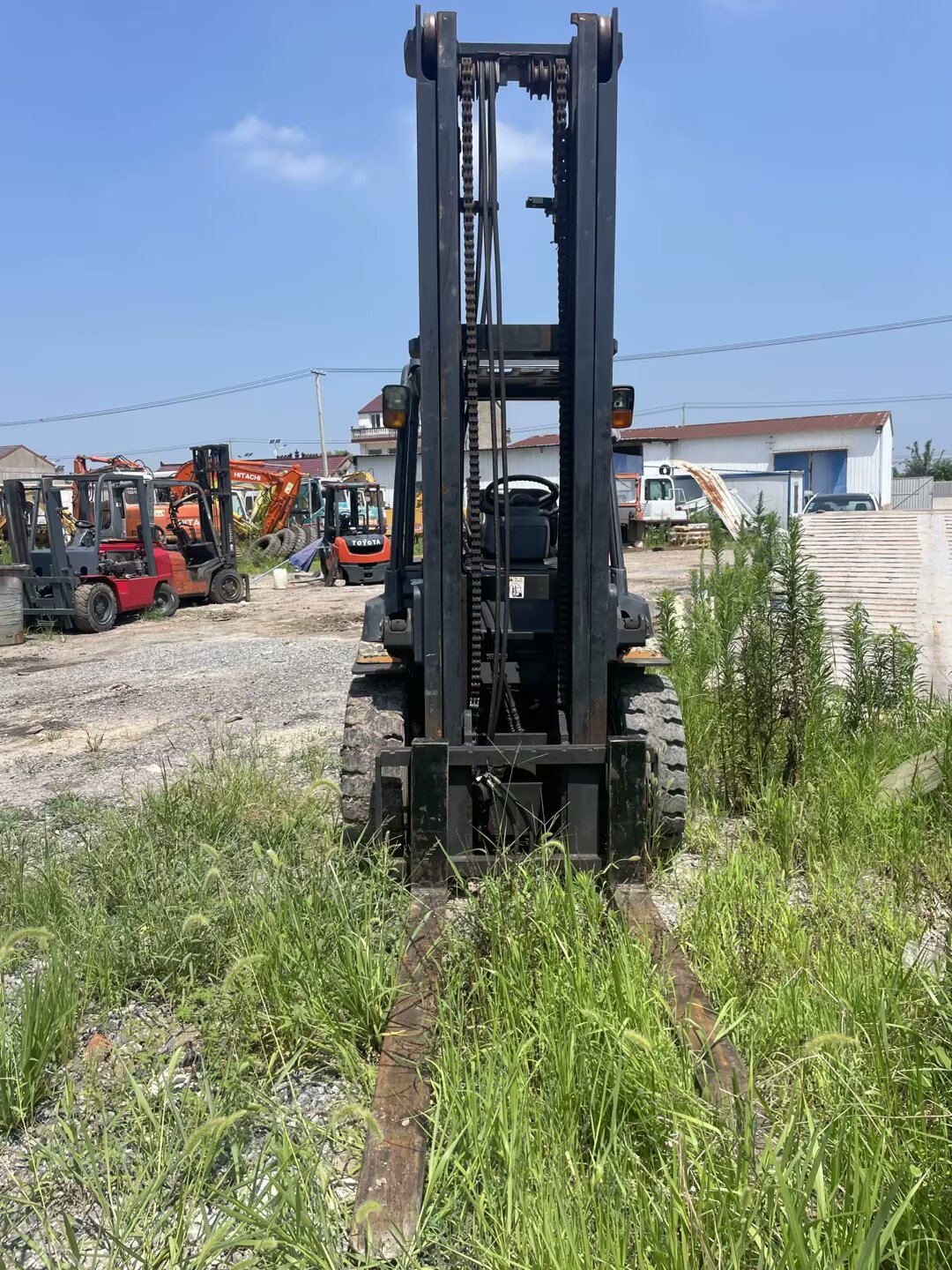

- Wide-View Mast Design: The 2-stage full-free mast with streamlined columns eliminates blind spots, allowing operators to clearly observe the fork tip and cargo position, improving stacking accuracy and safety.
- Toyota SAS Safety System: Pioneering active stability technology automatically detects unstable conditions (e.g., sharp turns with load) and adjusts to reduce accident rates by 80% compared to conventional forklifts.
- Comprehensive Safety Features: Dual-circuit hydraulic brakes with emergency stop button; overload alarm function; rearview mirrors and reverse buzzer; anti-slip cab floor; all safety components meet global ISO standards.

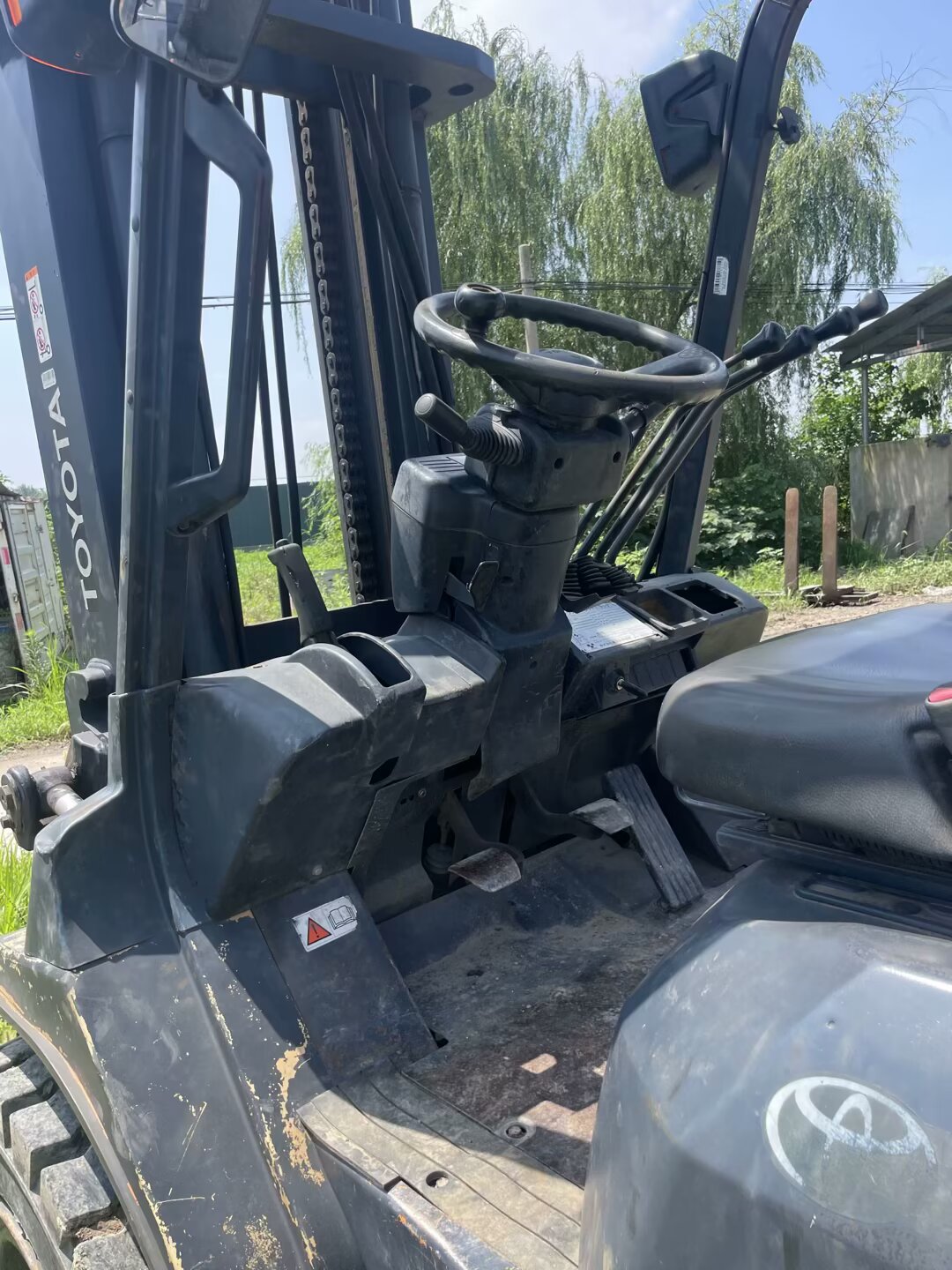

- Ergonomic Cab: Adjustable suspension seat absorbs vibration during long shifts; centralized control levers are within easy reach; low-noise operation reduces operator fatigue, enhancing productivity for 8-12 hour workdays.
- Heavy-Duty Structural Build: Main frame and fork tines are made of high-strength steel; welded structures are reinforced at stress points, extending service life to 12,000+ hours under heavy use.
- Easy Maintenance Access: All service points (engine oil filter, fuel filter, hydraulic oil filter) are centrally located and accessible from ground level, reducing maintenance time by 30%.
- Cost-Effective Operation: Fuel consumption of 7.5-8.5L/h is lower than comparable 5-ton forklifts; durable components and extended maintenance intervals minimize long-term operational costs.
- Dual-Scenario Adaptability: Pneumatic tires perform well on outdoor uneven ground (ports, construction sites), while optional solid tires suit indoor smooth floors (factories, warehouses).
- Attachment Compatibility: Compatible with side shifters, clamp attachments, and heavy-duty forks, expanding application scenarios from standard pallet handling to specialized cargo transport.
- Global After-Sales Network: Toyota’s 200+ authorized service centers worldwide; common spare parts delivered within 5-10 days; 24/7 online technical support for timely troubleshooting.
- Heavy Industry Factories: Handling raw materials (steel coils, cement bags) and finished products (machinery components, large equipment) in automotive, construction machinery, and metal processing plants.
- Port & Logistics Hubs: Loading/unloading 5-ton containers, transferring heavy cargo between ships, trucks, and warehouses with reliable performance in high-volume logistics operations.
- Construction Sites: Transporting construction materials (steel bars, precast concrete blocks) across uneven job sites, with pneumatic tires adapting to rough terrain.
- Warehousing & Distribution: Stacking heavy pallets on 3m-high racks in large-scale warehouses, maximizing vertical storage space utilization.
- Customization Options: Mast height upgrade (3m→4.5m 3-stage mast); solid tire replacement for indoor use; enhanced cooling system for hot climates (UAE, Saudi Arabia); multilingual operation manuals (English/Arabic/Bahasa Indonesia).
- Inspection & Certification: Pre-shipment SGS/BV third-party inspection; provision of Certificate of Origin (CO), CE certification, emission compliance reports, and customs clearance documents tailored to target markets.
- Warranty & Training: 1.5-year global warranty for core components (engine, transmission, mast); free on-site operator training (covering safety operation, daily maintenance, fault diagnosis) in local languages.
- After-Sales Support: Toyota’s global parts network ensures quick delivery of maintenance components; 24/7 online technical support via WhatsApp/email; consignment stock service for bulk buyers.
The Toyota 02-7FDA50 is a legendary 5-ton diesel forklift that embodies Toyota’s commitment to reliability and performance. Its heavy-load stability, durable 13Z engine, and SAS safety system address the core needs of heavy-duty material handling. With versatile adaptability to indoor and outdoor scenarios, low maintenance costs, and global after-sales support, it is the ideal choice for enterprises seeking a high-performance, long-lasting heavy-load handling solution—delivering consistent value and maximum return on investment.
For real-time quotes for new/used Toyota 02-7FDA50 forklifts, mast height customization, or multilingual operator training programs, contact our dedicated sales team. We offer bulk order discounts and long-term maintenance contracts for manufacturing enterprises, port logistics companies, and construction firms.
