Brand: Heli – China’s top-ranked material handling equipment manufacturer, with 60+ years of forklift R&D and production experience. Heli forklifts are exported to 190+ countries, holding a leading market share in emerging regions such as the Middle East, Southeast Asia, and Africa. Renowned for robust construction, cost-effectiveness, and localized after-sales support, Heli is the preferred choice for port terminals, steel mills, and heavy logistics enterprises.

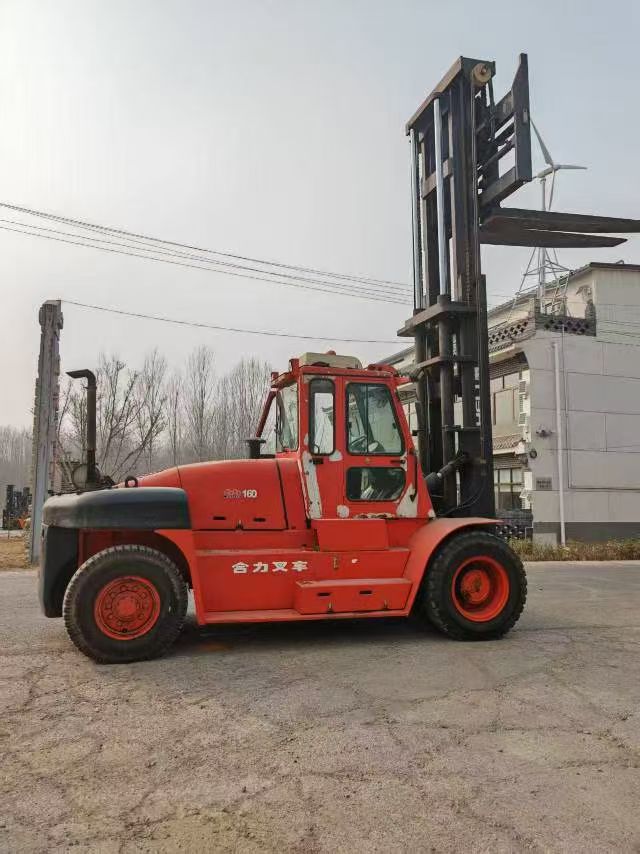

Model: Heli CPCD160 Heavy-Duty Diesel Forklift – A flagship 16-ton counterbalanced forklift, engineered for heavy-load handling scenarios including container stuffing/unstuffing, steel coil transportation, and large machinery moving. Equipped with a Weichai WP6 or Cummins 6BT5.9 turbocharged diesel engine, it delivers stable power output and exceptional load-bearing capacity tailored for high-intensity operations.
- Rated Lifting Capacity: 16,000kg (600mm load center)

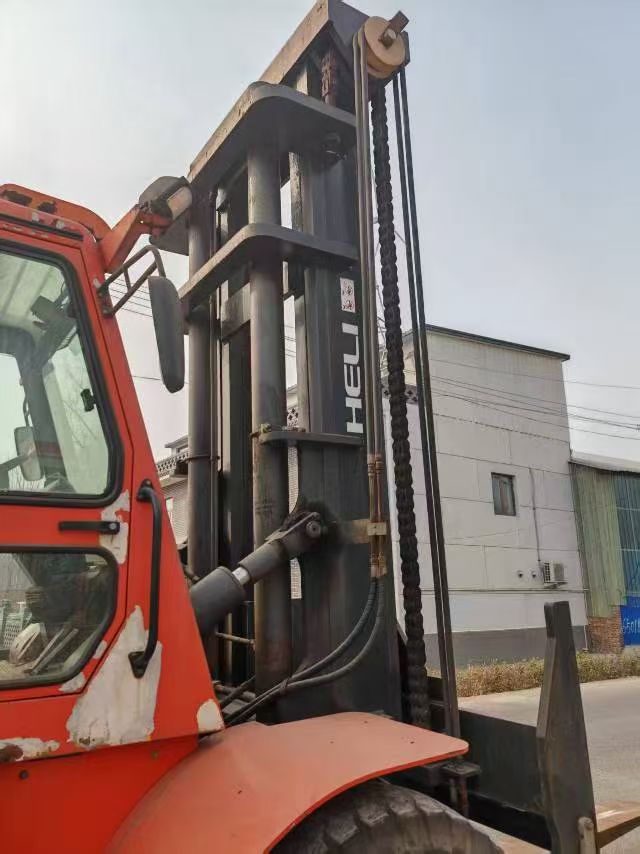

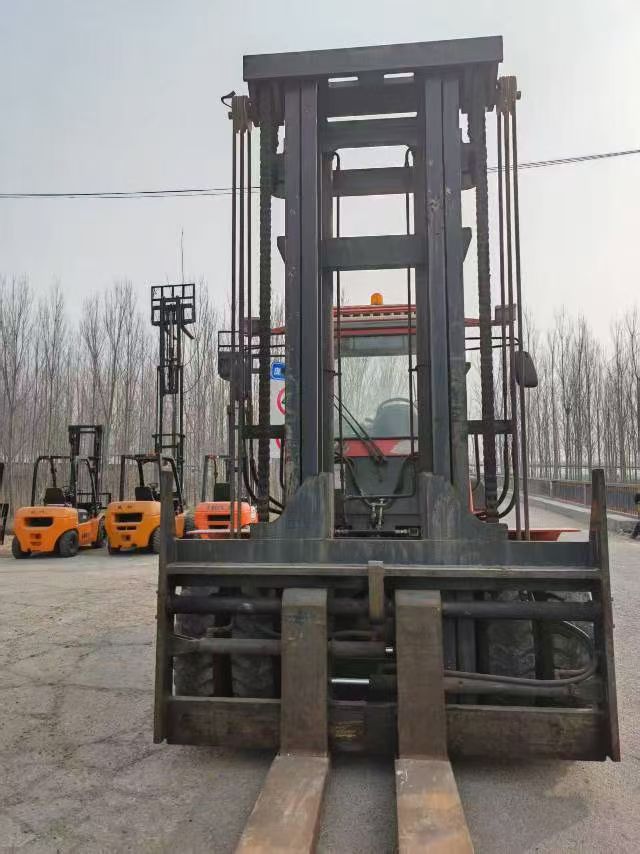

- Lifting System: 3-stage full-free telescopic mast; standard lifting height 3000mm (upgradable to 6000mm); fork dimensions 2000×250×100mm (length×width×thickness); fork tilt angle: forward 6°, backward 12°
- Engine Options:

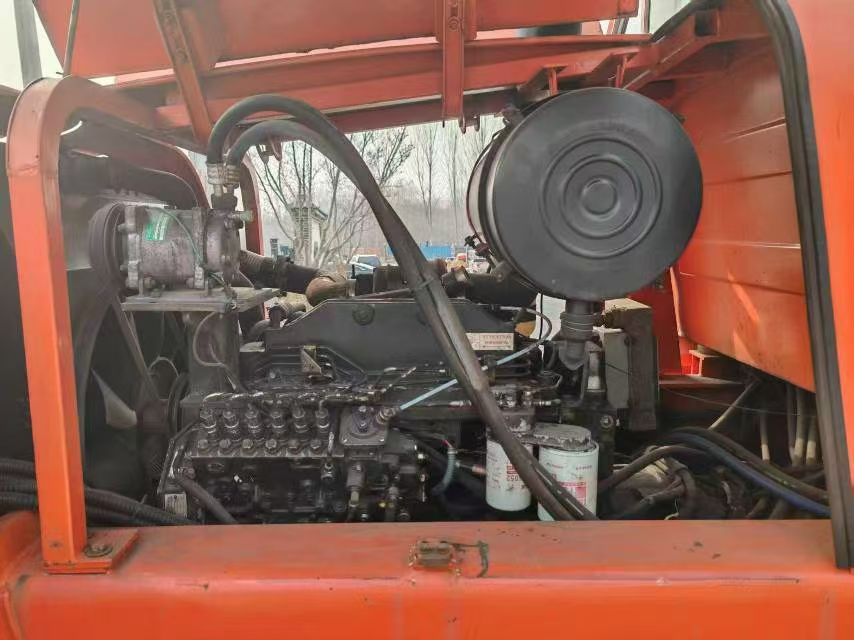

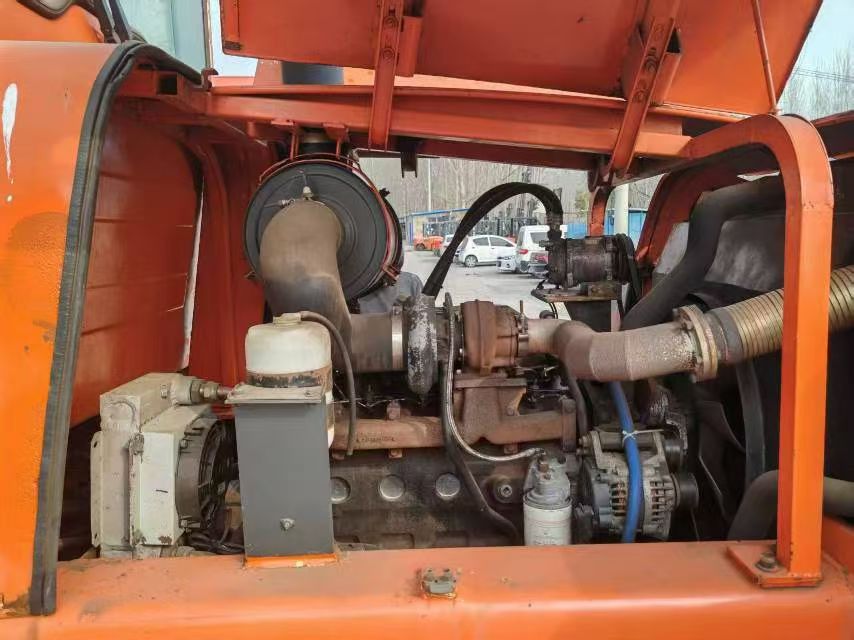

- Weichai WP6G175E331: 129kW @ 2200rpm, peak torque 600N·m @ 1400rpm
- Cummins 6BT5.9: 132kW @ 2500rpm, peak torque 550N·m @ 1600rpm
- Emission Compliance: Tier 2/EU Stage II (suitable for emerging markets)
- Transmission: 3-speed automatic power shift; forward speeds 5/12/20km/h; reverse speeds 5/12km/h
- Maneuverability: Minimum turning radius 4800mm; gradeability (loaded) 22%, (unloaded) 30%
- Overall Dimensions: Length (without forks) 5800mm, width 2500mm, height (mast lowered) 3200mm
- Weight & Counterweight: Unloaded weight 22,500kg; counterweight weight 8500kg (cast iron, optimized center of gravity)
- Tires: Front 18.00-25 24PR heavy-duty pneumatic tires; rear 14.00-24 20PR pneumatic tires
- Hydraulic System: Load-sensing hydraulic system; working pressure 24MPa; lifting speed 300mm/s (loaded), 350mm/s (unloaded)

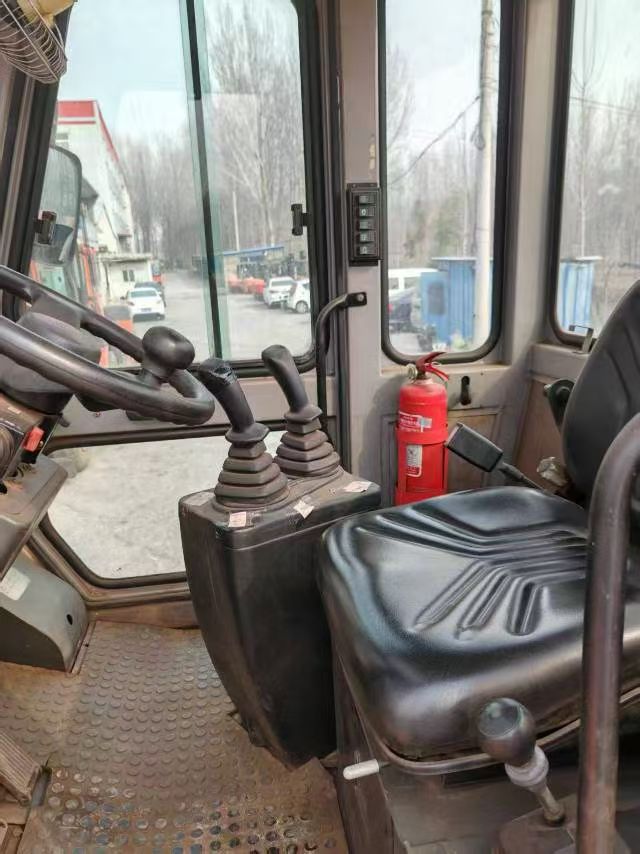

- Operator Cab: ROPS/FOPS certified; adjustable air suspension seat; optional air conditioning; cab noise ≤85dB(A)
- 16-Ton Rated Capacity: Designed to lift full 20ft container goods, steel coils (φ1500mm×1600mm), and large industrial machinery components, reducing handling cycles by 30% compared to 12-ton forklifts and boosting operational efficiency.
- Reinforced Structural Design: The main frame is forged from high-strength Q345 steel with 20mm thickened plates; the fork tines are heat-treated for wear resistance, with a service life of 12,000+ hours under heavy-load operations.
- Stable Counterweight System: 8500kg cast iron counterweight with integrated weight distribution ensures zero tipping risks during full-load lifting, even on slightly uneven ground (≤3° slope).
- Dual Engine Options: Choose between Weichai (cost-effective, localized maintenance) or Cummins (global parts availability, proven durability) engines, both optimized for high-torque, low-fuel-consumption performance. The Cummins 6BT5.9 engine features a cast-iron cylinder block and forged crankshaft, with a service life of 10,000+ hours.
- Low Operational Costs: Fuel consumption of 12-14L per working hour, 15% lower than comparable models. Tier 2 emission compliance eliminates the need for complex after-treatment systems (DPF/SCR), reducing maintenance downtime and costs in emerging markets.
- Comprehensive Safety Features: ROPS/FOPS certified cab protects operators from falling objects and rollover risks; dual-circuit hydraulic brakes ensure reliable stopping power (braking distance ≤4.5m at 10km/h loaded); load weight indicator with overload alarm prevents over-lifting accidents.
- Operator-Centric Design: Air suspension seat with lumbar support reduces fatigue during 8+ hour shifts; the ergonomic control layout (integrated joystick for lift/tilt/side shift) simplifies operation, requiring minimal training for new operators; optional air conditioning is ideal for hot climates like the UAE and Saudi Arabia.
- Harsh Environment Adaptability: Epoxy anti-corrosion coating (120μm thickness) + galvanized steel parts resist salt spray, industrial dust, and chemical corrosion, making it suitable for coastal ports and steel mills. The double-layer air filter effectively blocks dust in desert regions.
- Localized Service Network: Heli has 200+ authorized service centers and 15 regional parts warehouses globally (Dubai, Singapore, Johannesburg, etc.). Common parts (filters, tires, hydraulic hoses) are available with 5-10 day delivery; on-site technical support is provided within 72 hours in major cities.
- Port & Container Terminals: Loading/unloading 20ft container goods, stacking heavy cargoes in yard storage areas, compatible with container spreader attachments.
- Steel Mills & Manufacturing Plants: Transporting steel coils, billets, and finished steel products; feeding raw materials to production lines.
- Heavy Logistics & Construction Sites: Moving large construction machinery components, precast concrete structures, and bulk building materials.
- Mining & Quarry Operations: Handling ore containers and heavy equipment parts in outdoor mining sites (optional rough-terrain tires available).
- Customization Options: Mast height upgrades (3m→6m), side shifters, fork positioners, container spreaders, anti-corrosion coating for coastal use, Arabic/English operation manuals.
- Inspection & Certification: Pre-shipment SGS/BV third-party inspection; provides Certificate of Origin (CO), CE certification, emission compliance reports, and customs clearance documents tailored to target markets.
- Warranty & Training: 1-year free warranty on core components (engine, transmission, hydraulic system); free on-site operator training (covering operation, maintenance, safety protocols) in English/Arabic/Bahasa Indonesia.
- Spare Parts Supply: Consignment stock service for bulk buyers (port authorities, logistics companies); 24/7 online technical support via WhatsApp/email for remote troubleshooting.
The Heli CPCD160 balances heavy-load performance, reliability, and cost-effectiveness—ideal for emerging market enterprises seeking high-value material handling solutions. Its 16-ton capacity meets the demands of port, steel, and construction industries, while the dual engine options and global service network ensure worry-free operation. Backed by Heli’s 60-year manufacturing legacy, this forklift delivers maximum return on investment with low maintenance costs and high uptime.
For real-time quotes for new/used Heli 16-ton forklifts, customization of attachments, or multilingual operator training programs, contact our dedicated sales team. We offer bulk order discounts and long-term maintenance contracts for port authorities and industrial enterprises.
