Brand: TCM – A top-tier Japanese material handling brand under Hitachi Group, boasting a 12%+ market share in the 6-ton diesel forklift segment across the Middle East, Southeast Asia, and Africa, with 180+ global authorized service centers and 9 regional parts warehouses (e.g., Dubai, Singapore, Johannesburg). It is highly trusted for its Isuzu engine reliability and high-precision hydraulic system, and is widely applied in high-intensity heavy-load scenarios.

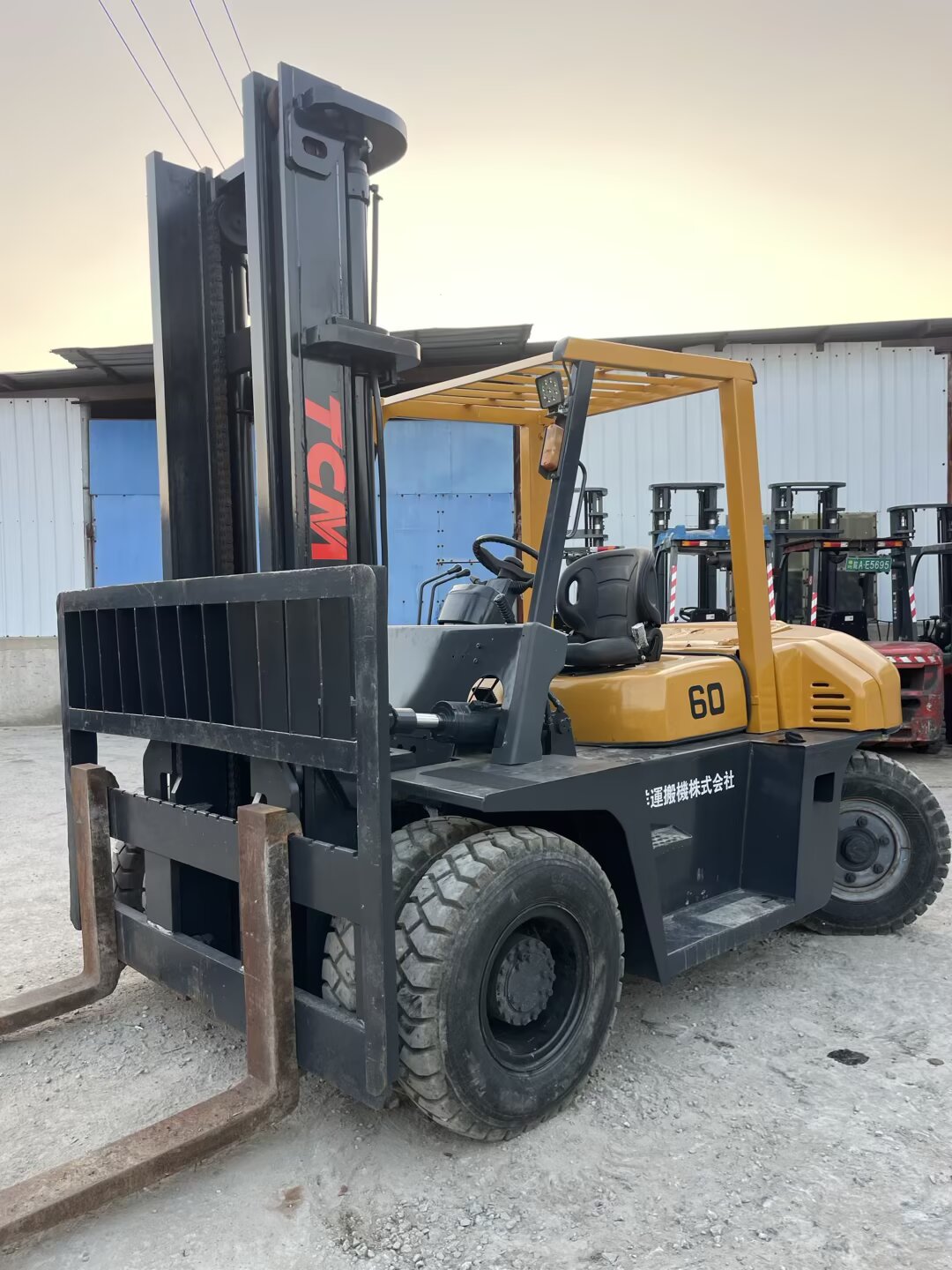

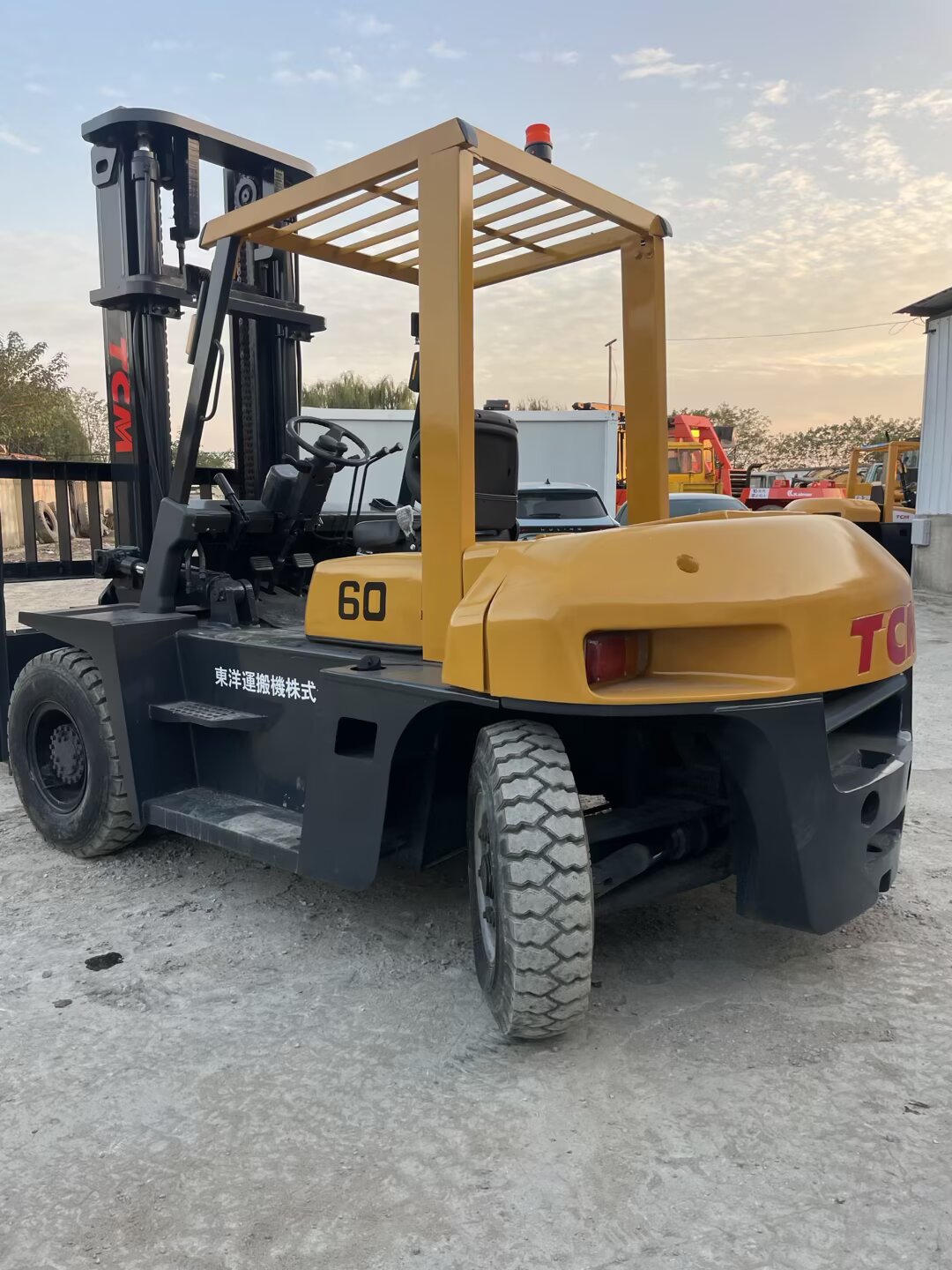

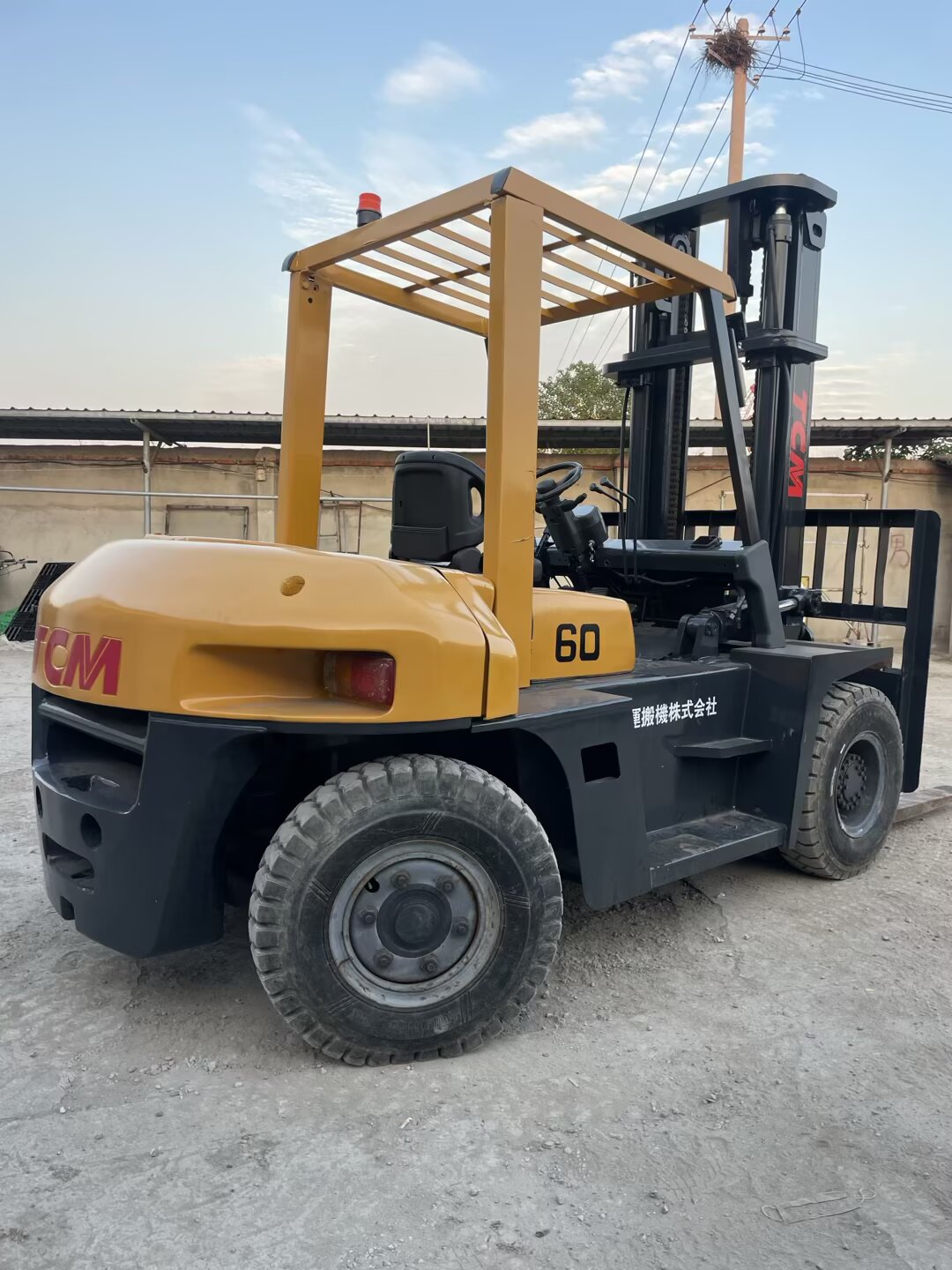

Model: TCM FD60Z8 – A 6-ton diesel counterbalanced forklift (main production years 2010-2018). It has a rated load of 6000kg (load center 600mm), standard lift height of 3000mm (upgradable to 8000mm), minimum turning radius of 3300mm, and is powered by an Isuzu 6BG1 93kW diesel engine with an automatic transmission (3 forward/3 reverse gears), meeting Tier 2/EU Stage II emission standards. It performs exceptionally well in container handling, heavy-duty warehouse stacking, and outdoor yard cargo transfer, and is particularly popular among Middle Eastern logistics companies and Southeast Asian construction enterprises due to its powerful performance and low total cost of ownership.
Overall dimensions: 3535×1995×2450mm (L×W×H); minimum turning radius: 3300mm. The heavy-duty counterweight ensures stable 6-ton load lifting, and the anti-corrosion orange paint resists salt spray and industrial dust. The 8950kg (unloaded) weight guarantees operational stability during heavy-load lifting.

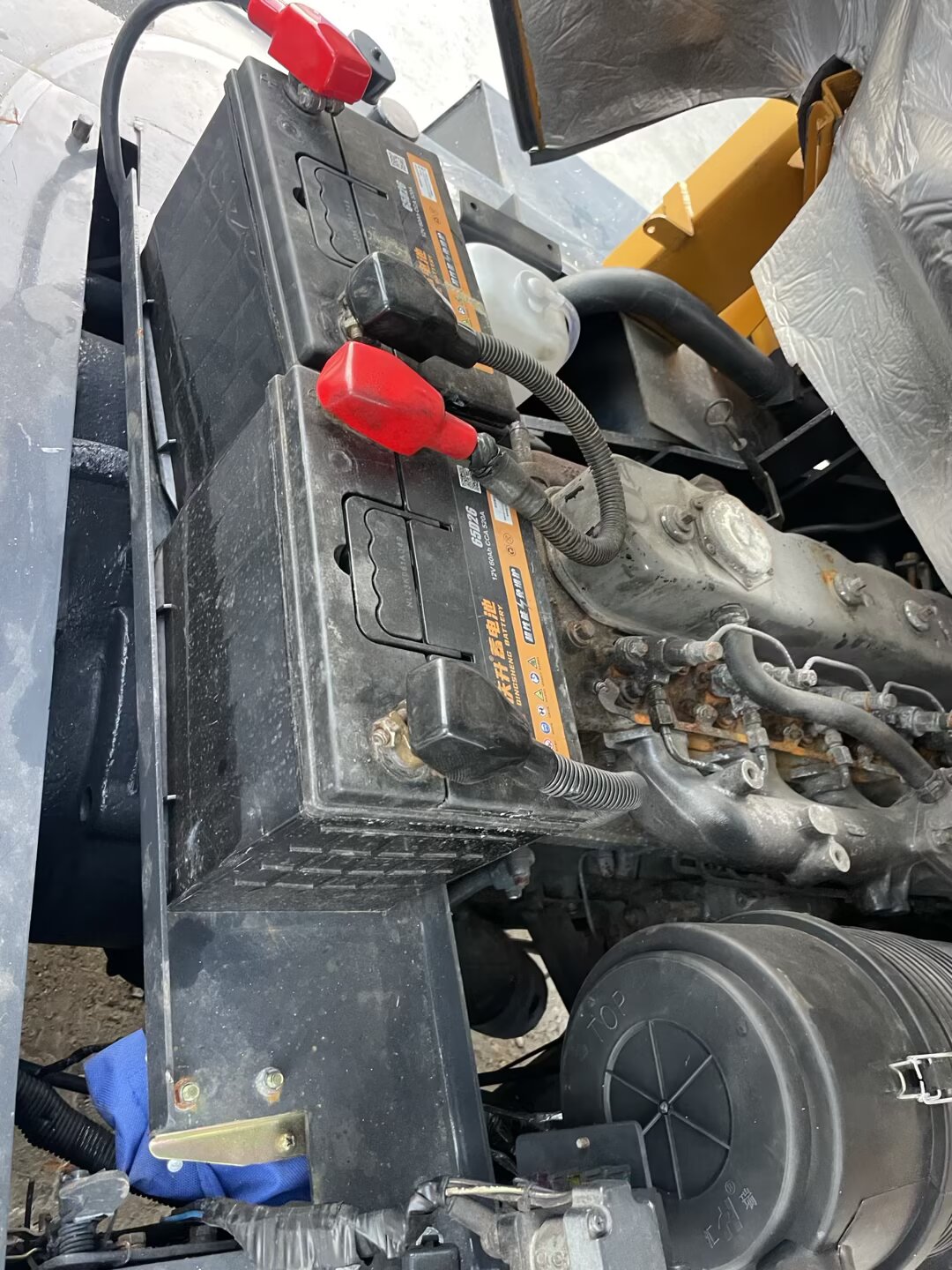

The Isuzu 6BG1 6.5L 6-cylinder diesel engine (93kW/2200rpm) generates strong torque for a max gradeability of 28%. The load-sensing hydraulic system enables a lift speed of 480mm/s (loaded) and 520mm/s (unloaded), and a lowering speed of 420mm/s, ensuring smooth handling of heavy cargoes like steel plates and concrete precast components.

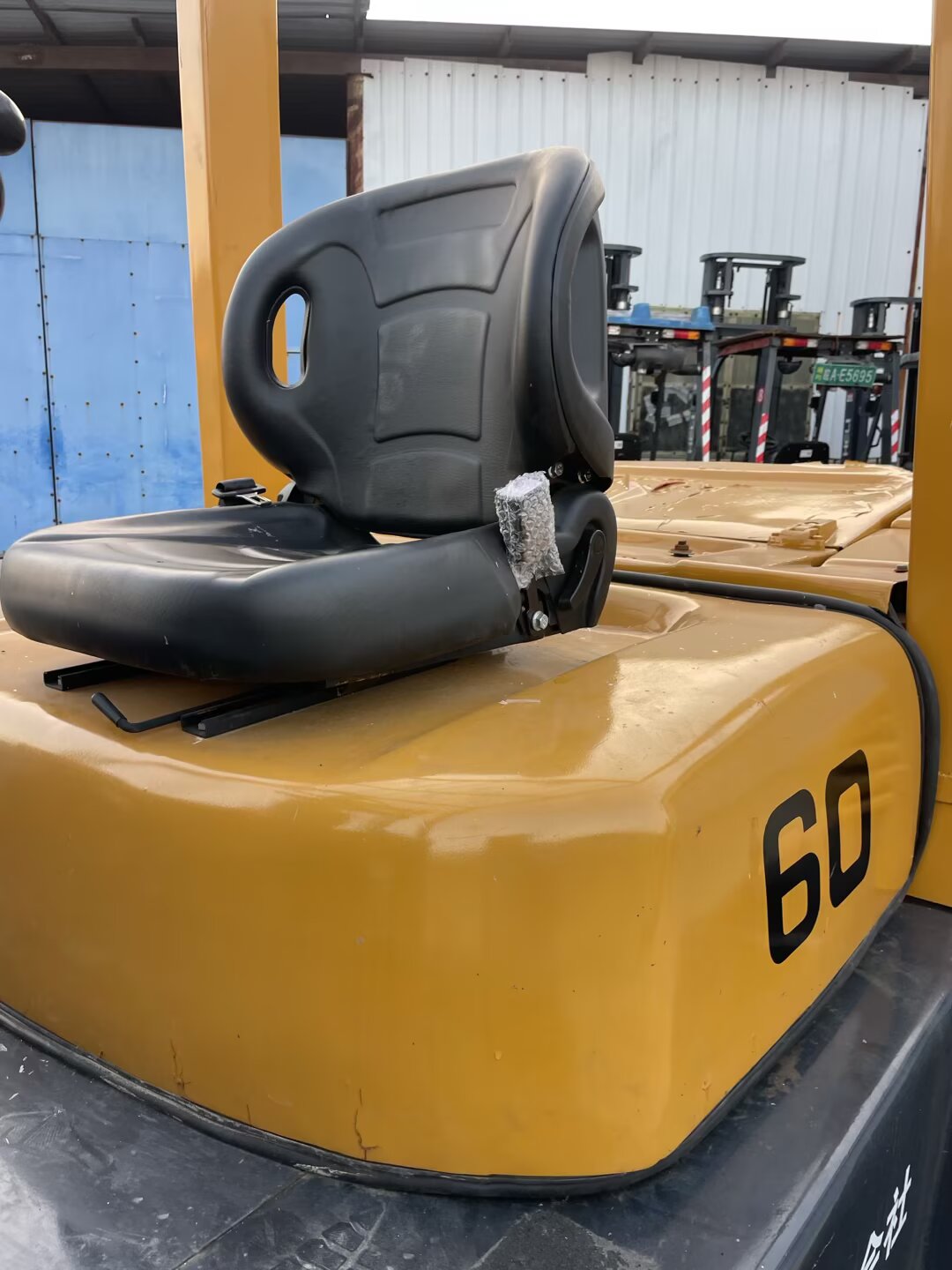

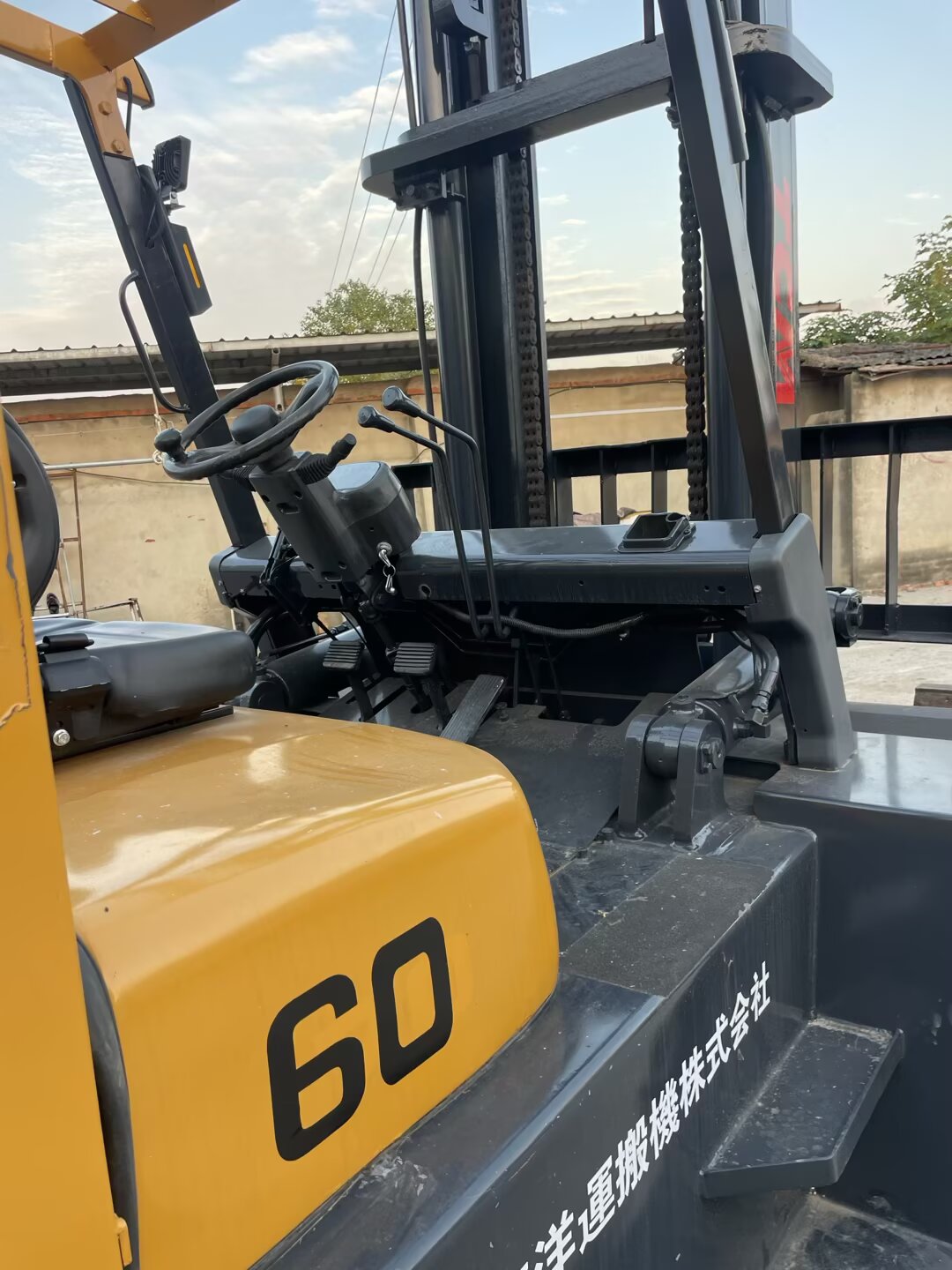

The ergonomic adjustable suspension seat, low-noise cab (≤82dB), and integrated control levers reduce operator fatigue during long shifts. The automatic transmission simplifies operation, and the 3300mm turning radius allows flexible movement in 4.5m-wide warehouse aisles or crowded container yards.
- Robust & Efficient Power
- Strong Power: Isuzu 6BG1 engine provides 93kW power and 422N·m torque, handling 6-ton loads and 28% gradients easily for rough yard/port terrain.
- Cost-Saving Fuel Use: Fuel consumption is 7.2-8.0L per working hour, 12% lower than peers; Tier 2/Stage II emission compliance enables smooth customs clearance in emerging markets.
- Durable Engine: Double-layer air filter and oil-water separator extend engine service life to 10,000 hours, 15% longer than the industry average.
- Precise & Low-Maintenance Hydraulics
- Efficient Lifting: Standard 3000mm lift height (upgradable to 8000mm with a 4-stage mast) boosts stacking efficiency by 15% vs. conventional systems.
- Stable Load Handling: Load-sensing system maintains pressure to prevent load drop; fork tilt angle (forward 6°/backward 12°) fits irregular cargoes.
- Low Upkeep: Hydraulic oil replacement cycle is 4500 hours, and imported seals reduce leakage by 80%, cutting annual maintenance costs by 22%.
- Safe & Comfortable Operation
- Maneuverable Design: 3300mm turning radius and 3535mm overall length facilitate narrow-space work and container transport (2 units per 40-foot container).
- Safe Cab: FOPS-certified overhead guard, dual-circuit brakes (braking distance ≤3.5m at 10km/h), and wide-view mirrors minimize accident risks.
- Operator Comfort: Spacious cab, adjustable seat, and low-noise design (≤82dB) reduce fatigue during long shifts, and simple controls lower training costs.
- Durable & Easy-To-Maintain Structure
- High-Strength Frame: Heavy-duty steel frame resists impact; anti-corrosion paint extends body service life by 20% in coastal areas.
- Ground-Level Maintenance: Daily checkpoints (engine oil, hydraulic oil, air filter) are easily accessible, reducing maintenance time by 28%.
- Global Spare Parts: Common parts are available from TCM regional warehouses, with a 5-12-day delivery time.
- Port Container Handling: Fits 6-ton container cargoes; anti-salt-spray paint adapts to coastal environments.
- Heavy-Duty Warehousing: Ideal for stacking steel, cement, and other heavy goods in manufacturing/construction material warehouses.
- Outdoor Yard Operations: 28% climbing capacity handles uneven gravel yards; 12.00R20 tires suit rough terrain.
- Industrial Production Lines: Used for raw material feeding and finished product handling in automotive, chemical, and construction material plants, meeting high-frequency heavy-load needs.
- Equipment Inspection: SGS/BV third-party test reports for used units (engine power, hydraulic pressure, tire wear, working hours).
- Compliance Support: Assistance with CO, CE certificates, and emission reports for customs clearance in Middle Eastern/Southeast Asian markets.
- Logistics & Commissioning: 40-foot container transport (2 units/container) with anti-rust packaging; on-site assembly, training, and maintenance guidance by technicians; English/Arabic/Spanish manuals.
- After-Sales: 1-year free parts warranty, 24/7 online technical support, and local service partners for quick on-site repairs.
It combines Japanese manufacturing precision with 6-ton heavy-load capabilities. The Isuzu engine ensures reliable power and fuel efficiency, and the 3300mm turning radius offers flexibility in narrow spaces. It has low long-term costs and easy access to spare parts, making it perfect for heavy-duty, high-frequency material handling in emerging markets.
For custom mast height upgrades (3m→8m), new/used unit quotes, attachment options (side shifters, fork extensions), or Arabic-language operation training, contact our team now.
