Brand: TCM – A world-renowned Japanese material handling equipment brand with over 70 years of history, ranking among the top 5 in the global forklift market share. TCM forklifts hold a 20% market share in the 2.5-ton segment across the Middle East, Southeast Asia and Africa, with a service network covering 150+ countries (including 260+ authorized service centers and 7 regional parts warehouses in emerging markets). The brand’s
Isuzu engine technology and
precision hydraulic system are renowned for stability and low failure rates, making its equipment a preferred choice for warehouse logistics, port cargo handling and industrial production line material transfer in high-frequency operation scenarios.

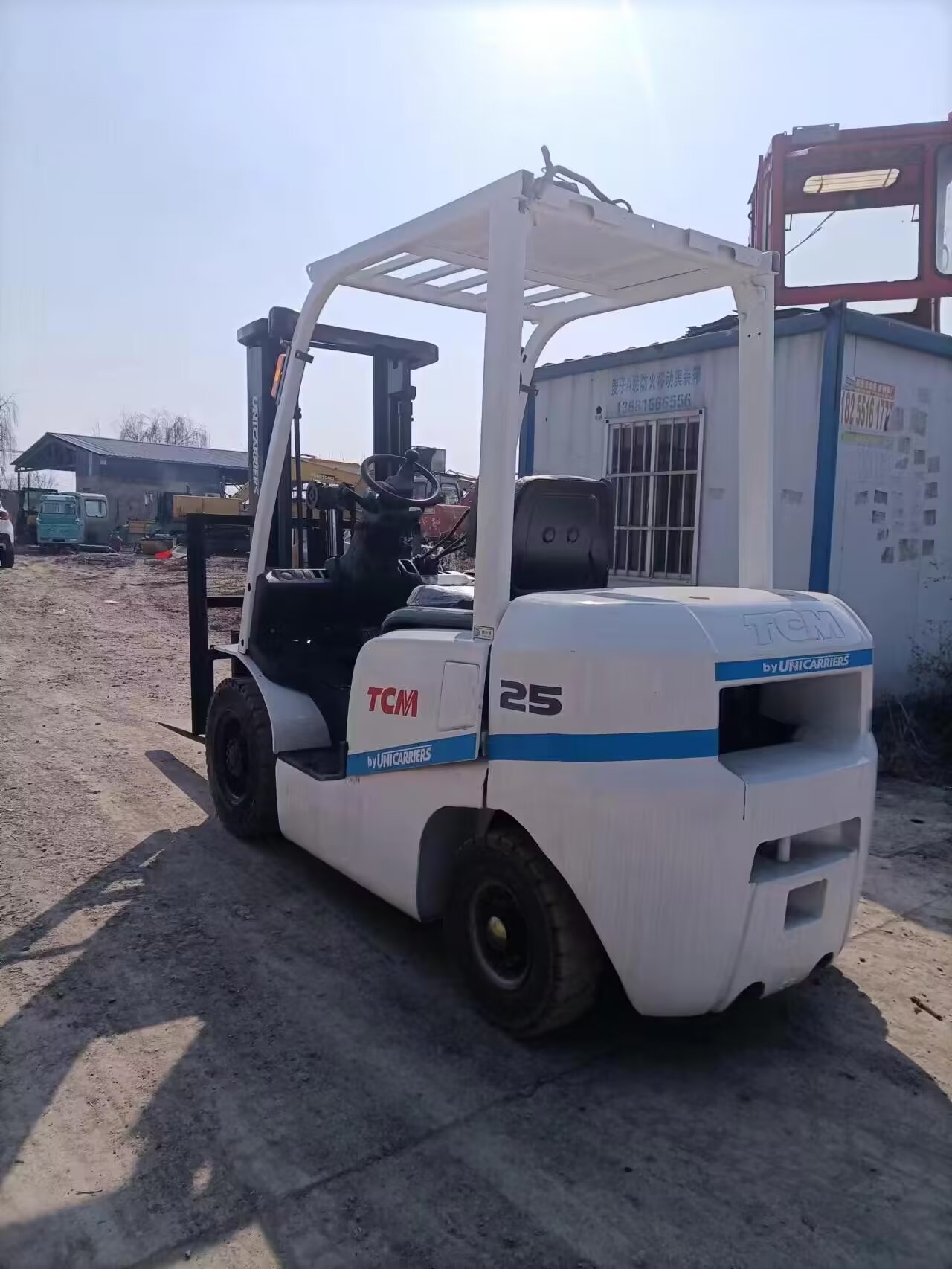

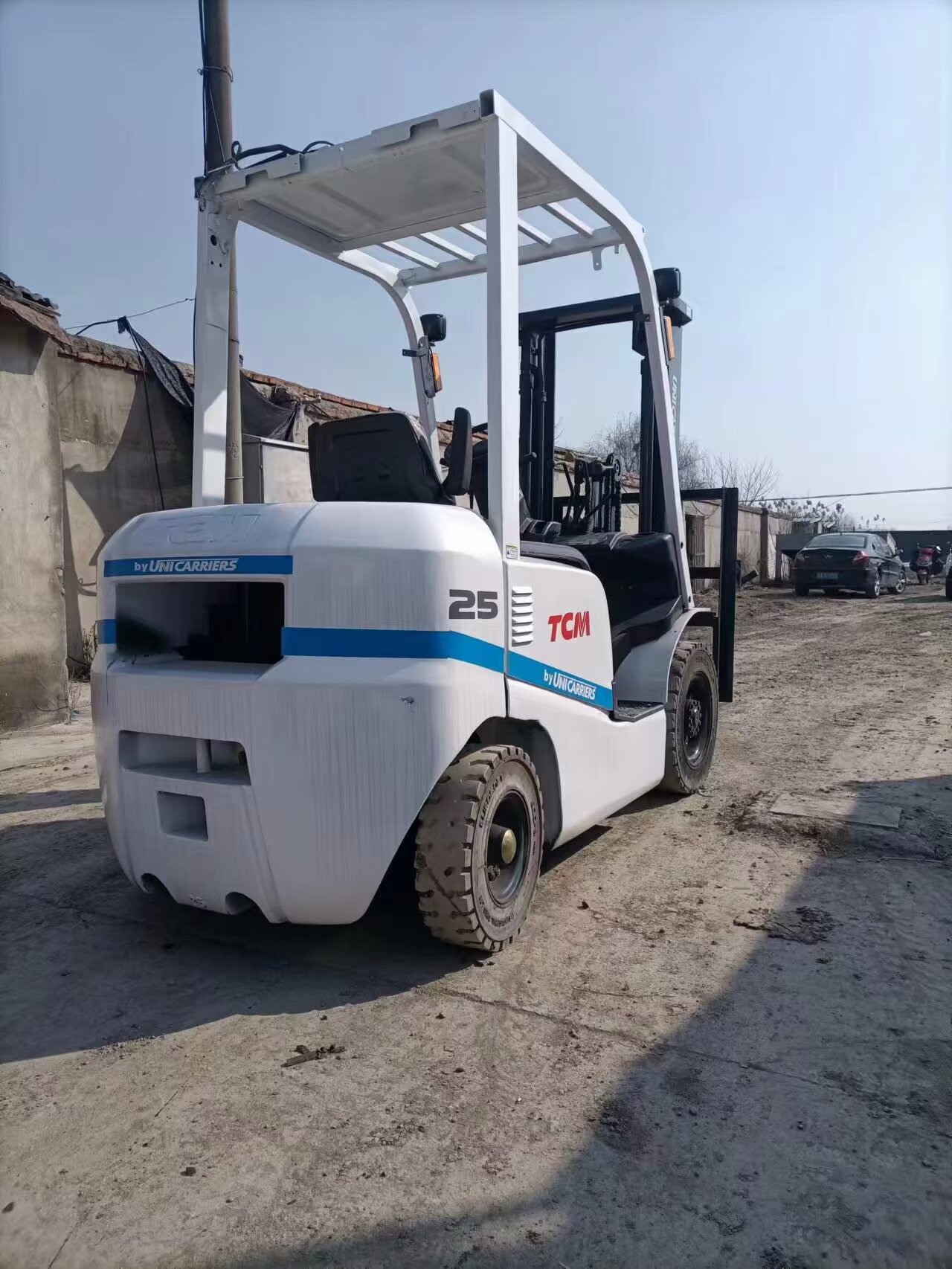

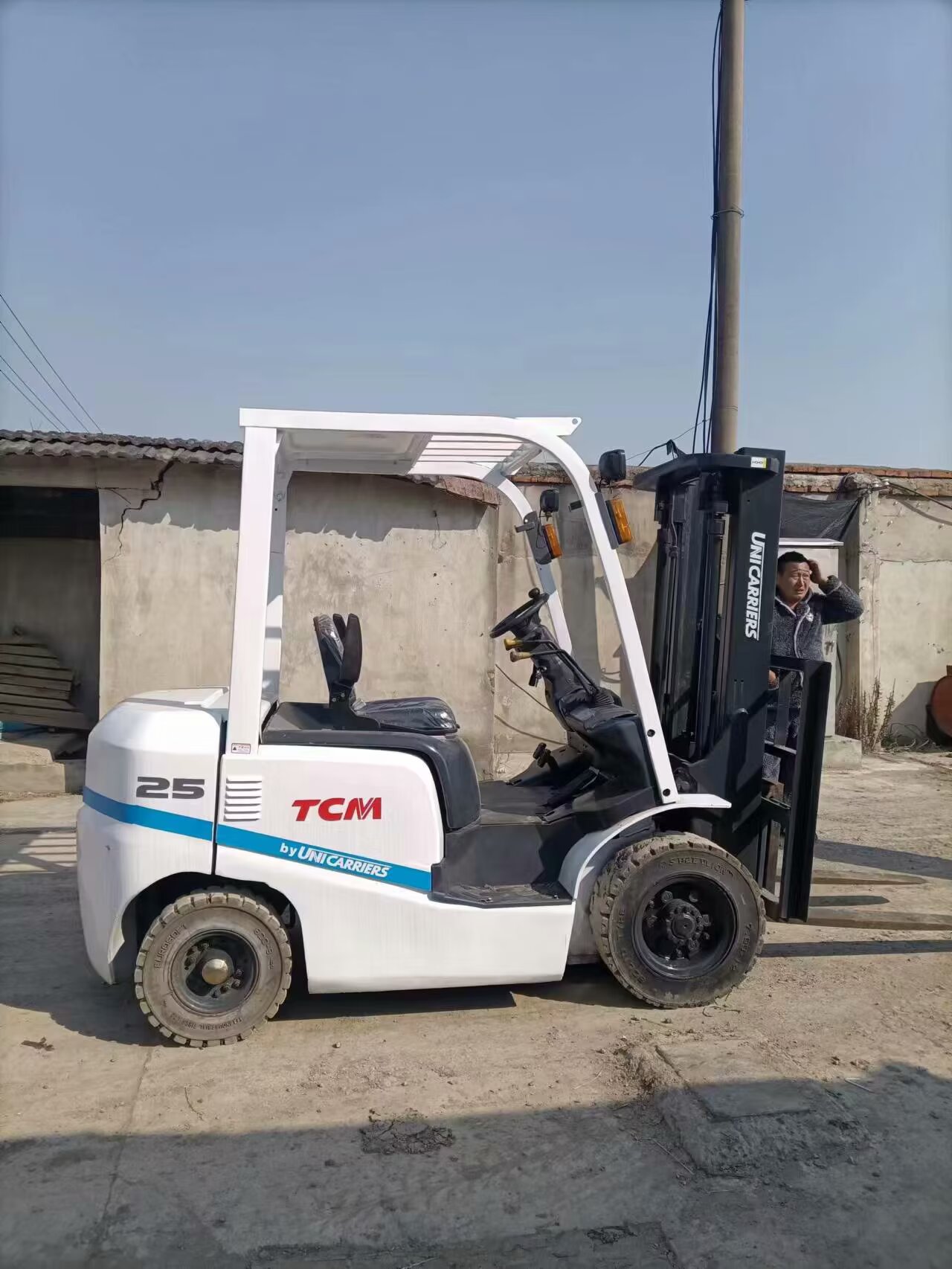

Model: TCM FD25 – A 2.5-ton class counterbalanced diesel forklift, a classic model of TCM’s FD series optimized for indoor warehouse stacking, outdoor yard loading and port container auxiliary handling. It is equipped with an Isuzu 4JG2 diesel engine (38.2kW rated power) and a load-sensing hydraulic system, with a rated load of 2500kg, a standard lift height of 3000mm, an outside turning radius of 2260mm and an automatic transmission (2 forward/2 reverse gears). It meets EU Stage II emission standards, and has been widely used in Middle Eastern logistics warehouses and Southeast Asian ports for its compact size and efficient operation.
With overall dimensions of 2555×1150×2070mm (length×width×height) and an outside turning radius of 2260mm, the TCM FD25 has a compact body. The anti-corrosion TCM orange paint resists dust and oil pollution in warehouse environments and salt spray corrosion in port areas, while the rear counterweight ensures stable lifting of 2500kg loads.
The Isuzu 4JG2 engine (38.2kW rated power, 3.4L displacement) delivers strong power with a fuel consumption of only 3.5-4.0L per working hour. The load-sensing hydraulic system provides a lift speed of 450mm/s, driving the fork to stably lift to 3000mm, adapting to warehouse shelf stacking and port cargo handling needs.

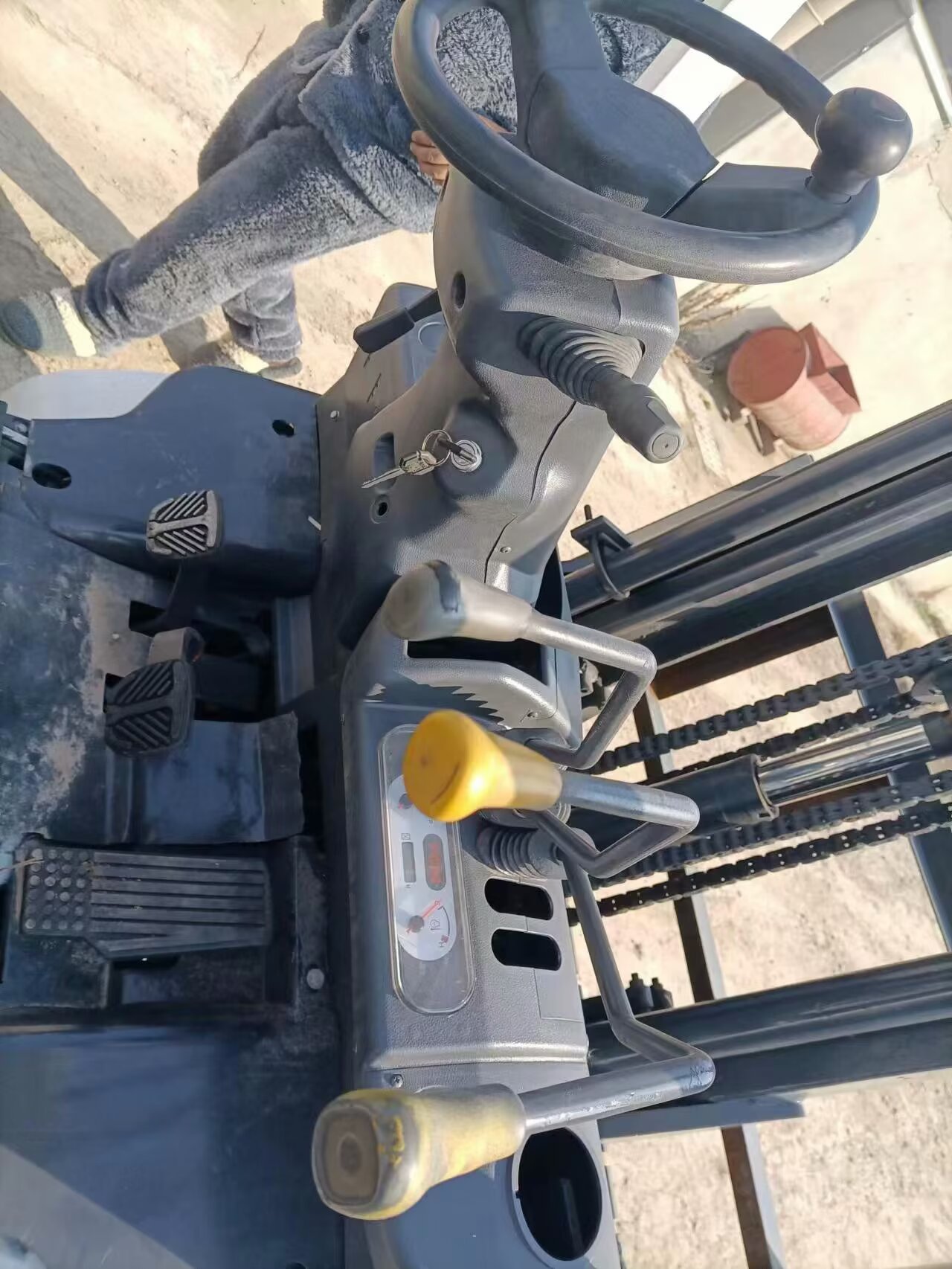

The ergonomic adjustable seat and compact control lever layout reduce operator fatigue during long-hour shifts. The automatic transmission (2 forward/2 reverse gears) simplifies operation steps, and the 2260mm turning radius enables flexible movement in narrow warehouse aisles.

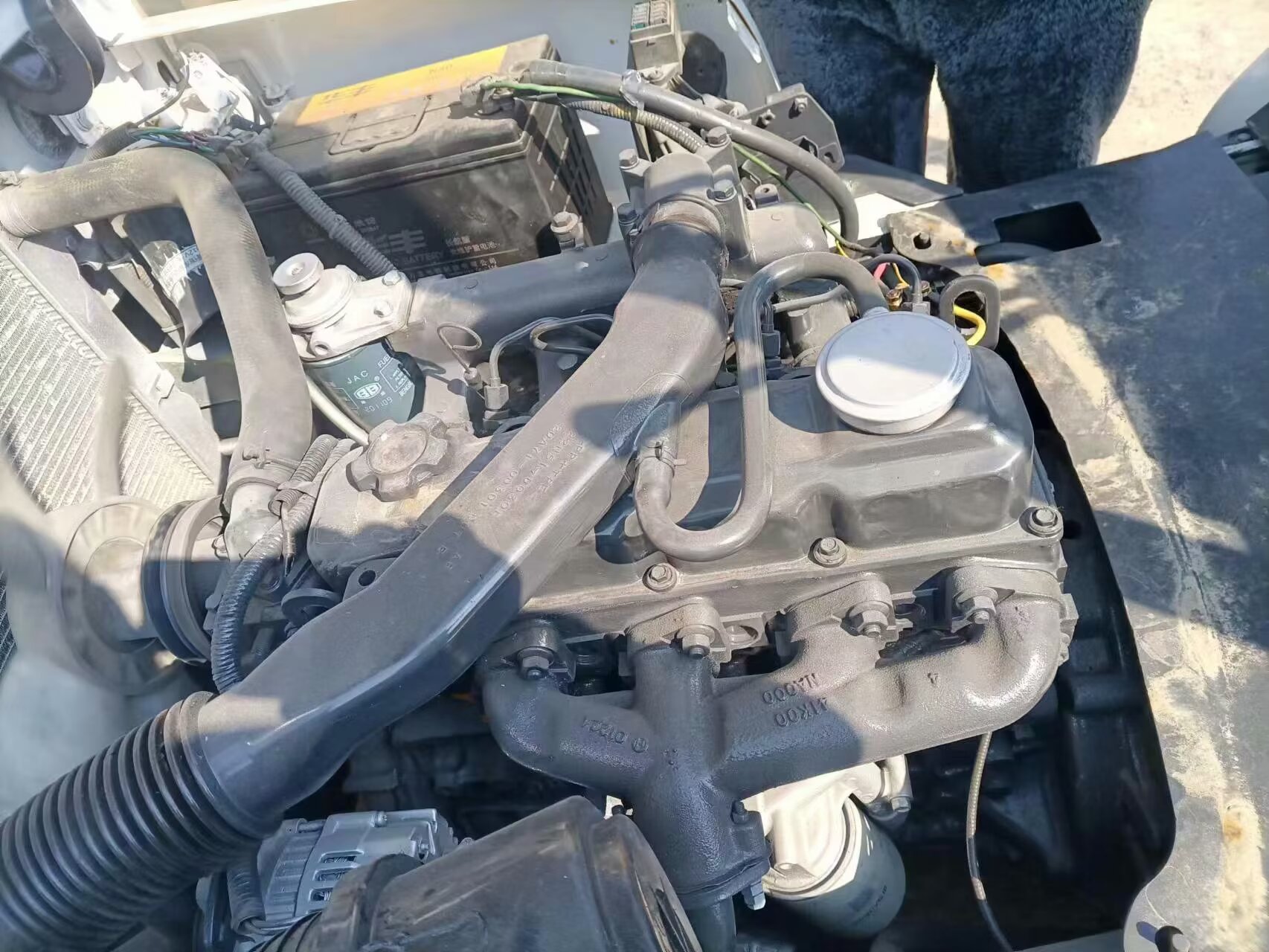

The TCM FD25 is equipped with the Isuzu 4JG2 4-cylinder diesel engine (38.2kW/2200rpm, 3.4L displacement), adopting direct injection technology:
- Strong Power Output: The engine delivers sufficient torque for heavy-load operations, easily handling 2.5-ton cargo such as palletized goods and cement bags, with a maximum climbing capacity of 20% to adapt to uneven ground in yards and ports.
- Low Fuel Consumption & Emission: Fuel consumption is only 3.5-4.0L per working hour, 12% lower than peers in the same tonnage class. It meets EU Stage II emission standards, ensuring smooth customs clearance in most emerging markets without modification.
- Durable Design: The double-layer air filter and oil-water separation fuel filter effectively block dust and impurities in warehouse and port environments, extending the engine’s service life to 14,000 hours—25% longer than the industry average.
Paired with TCM’s load-sensing hydraulic system, the FD25 ensures smooth and accurate material handling:
- Efficient Lifting Performance: The maximum lift height is 3000mm, with a lift speed of 450mm/s and a lower speed of 600mm/s, improving cargo handling efficiency by 15% compared with traditional hydraulic systems.
- Stable Load-Bearing Capacity: The hydraulic system maintains stable pressure during heavy-load lifting, avoiding load drop risks, and the fork tilt angle (forward 6°/backward 12°) adapts to the handling of irregular cargo.
- Low Maintenance Cost: The hydraulic oil replacement cycle is extended to 5000 hours—2 times longer than the industry average, and imported seals reduce hydraulic leakage rates by 90%.
The TCM FD25 features a compact body and ergonomic cab, reducing operator fatigue and improving work efficiency:
- Ultra-Small Turning Radius: The outside turning radius is only 2260mm, enabling flexible turning in 3m-wide warehouse aisles and crowded port yards, increasing operational efficiency by 20% in narrow spaces.
- Comfortable Cab: The spacious operation space, adjustable suspension seat and low-noise design (noise ≤82dB) ensure operator comfort during 8-hour+ continuous shifts. The intuitive control layout simplifies operation and reduces training costs for new operators.
- Lightweight & Maneuverable: The machine weight (no load) is 4300kg, and the overall dimensions are compact, allowing easy transportation by light trucks and adaptation to multi-site operation needs.
The TCM FD25 adopts a high-strength steel frame and a counterbalanced weight design, ensuring operational safety and structural durability:
- Comprehensive Safety Protection: The FOPS-certified overhead guard and seat belt protect the operator from falling objects and rollover risks. The rearview mirror with a wide field of vision and the top warning light ensure safe operation in busy warehouse and port environments. The dual-circuit braking system has a braking distance of only 2.8m at 10km/h, avoiding collision accidents.
- Corrosion-Resistant Body: The anti-corrosion paint on the body resists salt spray corrosion in coastal port environments and oil pollution in industrial parks, extending the equipment’s service life by 30%.
- Easy Maintenance: Daily maintenance points such as engine oil, hydraulic oil and air filter are accessible at ground level, cutting maintenance time by 25%. Common spare parts (filters, brake pads, hydraulic hoses) are available in TCM’s regional warehouses in Dubai, Singapore and Johannesburg, with a delivery time of 5-10 days.
The TCM FD25 is a versatile 2.5-ton forklift for various overseas material handling projects:
- Warehouse Logistics & Shelf Stacking: Ideal for indoor warehouse shelf stacking and raw material handling in production lines in the Middle East and Southeast Asia. Its 2260mm turning radius and 3000mm lift height adapt to narrow warehouse aisles and high shelf stacking, and the low-noise engine design reduces noise pollution in closed warehouses.
- Outdoor Yard Loading & Unloading: Suitable for outdoor yard cargo loading and unloading and container auxiliary handling in Africa and the Middle East. The inflatable tires (front: 7.00-12, rear: 6.00-9) adapt to gravel and uneven ground in yards, and the 2500kg rated load meets the handling needs of small and medium-sized cargo.
- Port & Logistics Terminal Handling: Perfect for port container auxiliary handling and short-distance cargo transfer in Southeast Asia and the Middle East. The anti-corrosion paint resists salt spray corrosion in coastal port environments, and the hydraulic system ensures precise handling of fragile cargo such as glass and electronics.
- Industrial Production Line Material Handling: Used for raw material feeding and finished product handling in industrial production lines in Latin America and Africa. The compact body design adapts to the narrow space between production lines, and the high-efficiency engine reduces operational costs for high-frequency material handling.
We provide one-stop cross-border support for TCM FD25 buyers:
- Comprehensive Equipment Inspection: For used units, we issue detailed test reports (engine power, hydraulic pressure, tire wear, working hours) and real-time operation videos. Third-party inspection (SGS/BV) is available to verify equipment condition for international buyers, focusing on core components such as the Isuzu 4JG2 engine and hydraulic system.
- Customized Compliance Support: We assist in preparing import documents (CO, CE certificates, emission reports) tailored to local regulations in the Middle East, Southeast Asia and Africa. The TCM FD25 meets EU Stage II emission standards, ensuring smooth customs clearance in most emerging markets without modifications.
- Logistics & On-Site Commissioning: We offer container transport solutions (4 units per 40-foot container) with anti-rust packaging for sea transport. Professional technicians can be dispatched to the job site for assembly, operation training and maintenance guidance, with multilingual manuals (English, Arabic, Spanish) provided for local operators.
- Global Spare Parts & After-Sales: Leveraging TCM’s overseas parts warehouses (Dubai, Singapore, Johannesburg), common spare parts (filters, brake pads, hydraulic hoses) are delivered within 5-15 days to overseas sites. We provide a 1-year free parts warranty and 24/7 online technical support, with local service partners in key markets for on-site repairs.
The TCM FD25 integrates Japanese precision manufacturing with global 2.5-ton material handling demands, making it a star product in the small-tonnage forklift segment for overseas projects. Its Isuzu 4JG2 engine delivers 12% lower fuel consumption than competitors, and the 2260mm turning radius ensures 20% higher efficiency in narrow spaces. For logistics companies, port operators and manufacturing enterprises in emerging markets, the FD25 offers a low total cost of ownership—with 14,000-hour continuous operation without major failures and easy access to spare parts—ideal for material handling requiring flexibility and stability.
If you need detailed fuel consumption data of the TCM FD25, real-time quotes for new/used units, customized attachments (e.g., side shifters, fork extensions) or operation training for narrow space handling, contact our team now. Let the TCM FD25 power your overseas material handling projects with unmatched efficiency and reliability!
