TCM FD250 25-Ton Heavy-Duty Diesel Forklift – Foreign Trade Sales Copy

Brand & Model Positioning

Brand: TCM

TCM, a Japanese industrial vehicle pioneer with 70+ years of expertise, is a global leader in heavy-duty forklift manufacturing, celebrated for robust engineering, fuel efficiency, and operator-centric design. Backed by a worldwide authorized dealer network spanning 120+ countries, TCM prioritizes reliability, low total cost of ownership, and comprehensive after-sales support. Trusted by ports, mining, construction, and heavy logistics sectors globally, TCM heavy forklifts deliver consistent high-load performance, minimal downtime, and tailored solutions for extreme material-handling demands, establishing a reputation for dependability in heavy industrial operations.

Model: TCM FD250 (25-Ton Heavy-Duty Diesel Forklift)

The TCM FD250 is a premium 25-ton diesel-powered heavy-duty forklift, engineered for high-capacity material handling in ports, shipyards, mining sites, construction yards, and steel plants. It is powered by the Mitsubishi Fuso 6D24T turbocharged diesel engine, paired with an advanced load-sensing hydraulic system and heavy-duty powertrain, delivering exceptional lifting force, smooth operation, and reliable fuel economy. Its ROPS/FOPS-certified ergonomic cab, precise controls, and reinforced chassis handle 25-ton loads with stability, excelling at container loading, bulk cargo stacking, and heavy equipment transport. It is the first choice for customers needing a robust, high-performance 25-ton forklift with versatile attachment compatibility for diverse heavy industrial applications.

Core Technical Specifications

1. Basic Parameters

• Rated Load Capacity: 25,000 kg (25 tons), Load Center: 1220 mm
• Operating Weight: 34,450–35,000 kg
• Maximum Lift Height (standard): 3,000–6,000 mm (customizable up to 8,000 mm)
• Wheelbase: 4,200–4,400 mm
• Overall Dimensions (L×W×H): 8,850 mm × 3,025 mm × 3,100 mm (without forks)
• Minimum Turning Radius: 6,000–6,070 mm
• Fuel Tank Capacity: 400 L
• Hydraulic Tank Capacity: 150 L

2. Engine Performance

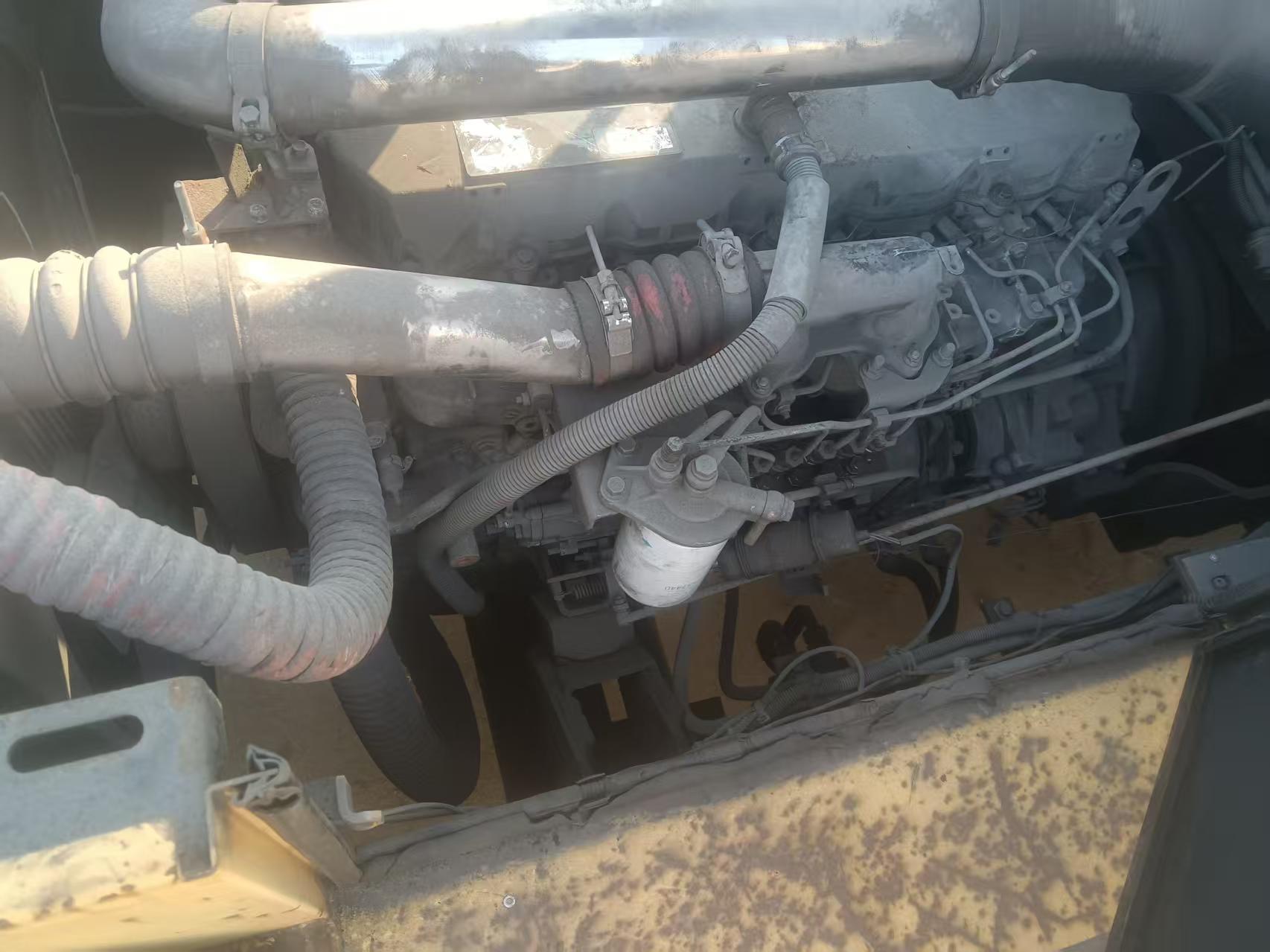

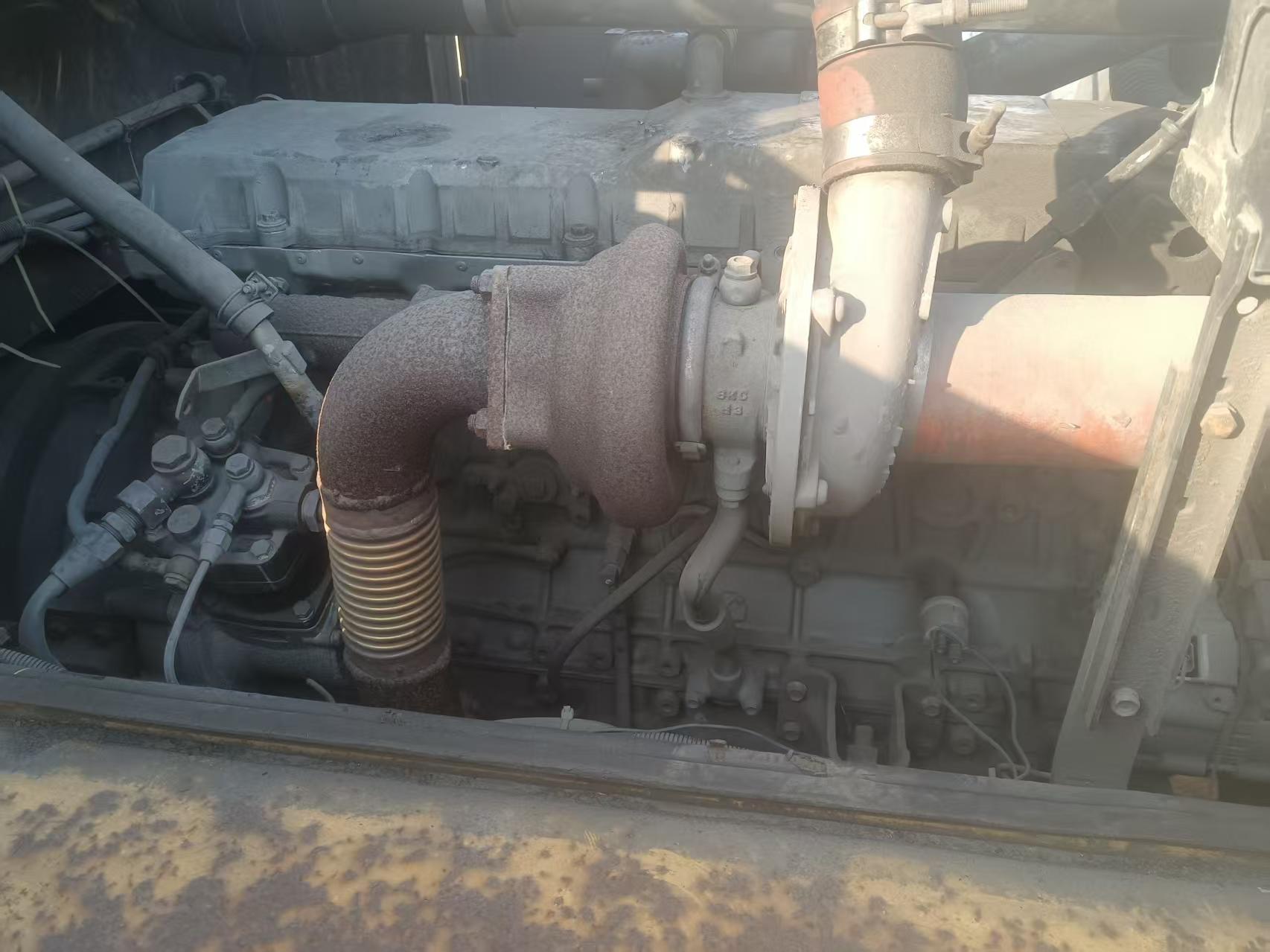

• Engine Model: Mitsubishi Fuso 6D24T (6-cylinder, 4-cycle, turbocharged, direct injection)
• Emission Compliance: EU Stage II / US EPA Tier 2
• Displacement: 7.5 L
• Rated Net Power (ISO 9249): 165–167 kW (221–224 HP) @ 2,100 rpm
• Maximum Torque: 980 Nm @ 1,400 rpm
• Cold-Start Performance: Reliable starting at -15°C (5°F); optional cold-start kit for -25°C (-13°F)
• Low noise (76 dB) and reduced exhaust emissions for improved worksite comfort

3. Transmission & Traction Systems

• Transmission: 4-speed powershift with torque converter
• Maximum Travel Speed (loaded/unloaded): 25–34 km/h
• Gradeability: 20% (11.3°)
• Tires: Front 4×14.00-24-24PR, Rear 2×14.00-24-28PR (heavy-duty pneumatic)
• Lifting Speed (loaded): 200 mm/s
• Lowering Speed (empty): 300 mm/s

4. Hydraulic & Control Systems

• Load-sensing hydraulic system with high-flow main pump (146 L/min rated speed)
• Precise hydraulic controls for smooth lifting/lowering and tilting
• Auxiliary hydraulic connections for attachments (container spreaders, grapples, rotators)
• Automatic overload protection to prevent mast and frame damage
• Mast Tilt Angle (forward/backward): 3°/10°

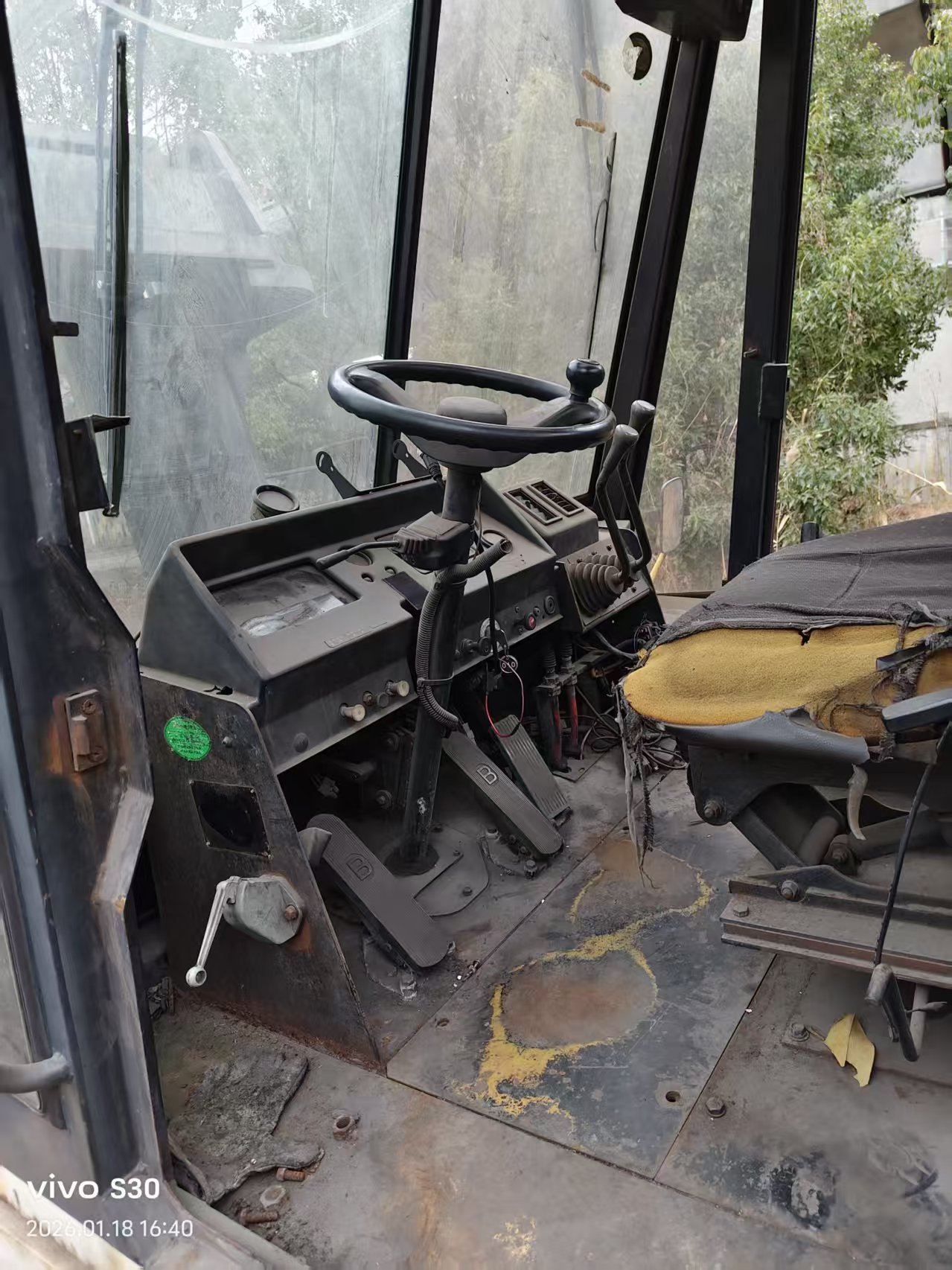

5. Operator Cab & Safety

• ROPS/FOPS-certified safety frame for rollover and falling object protection
• Spacious, sealed cab with vibration isolation and sound insulation
• Adjustable air-suspension seat, tilt/telescopic steering wheel, and intuitive controls
• Integrated heating & air conditioning with air filtration
• Multi-information display for real-time monitoring of engine, hydraulic, fuel, and transmission status; rearview camera optional
• Emergency stop, neutral safety switch, and hydraulic overload alarm

6. Structural Durability

• Reinforced mast with high-strength steel and wear-resistant bushings
• Heavy-duty chassis and counterweight design for stable lifting at max height
• Replaceable fork tines and mast wear pads for easy maintenance
• Extended service intervals (500-hour oil change, 2,000-hour hydraulic filter replacement)
• Easy-access service points and centralized lubrication system (optional)

Core Advantages

1. Powerful & Efficient Performance

• 6D24T engine and load-sensing hydraulics deliver strong lifting force and 8% lower fuel consumption
• Multiple mast/fork options (3m–8m lift height) and attachment compatibility (container spreaders, grapples) fit port, mining, and construction needs
• 25-ton load capacity and 6m max lift height handle heavy cargo with ease

2. Superior Stability & Safety

• Optimized counterweight and wide wheelbase maintain stability during full-load lifting
• ROPS/FOPS cab, overload protection, and emergency stop minimize operational risks
• Low center of gravity prevents tipping during tight turns with heavy loads

3. Reliable & Low-Maintenance Design

• Mitsubishi’s proven 6D24T engine and robust hydraulic components with long service life
• Reinforced structure withstands harsh conditions in ports and mining
• Easy-to-reach service points reduce maintenance time and labor costs
• Optional telematics for remote monitoring and maintenance reminders

4. Operator Comfort & Productivity

• Low-noise, climate-controlled cab reduces fatigue during long shifts
• Smooth hydraulic response and precise controls enable accurate loading and stacking
• Excellent all-around visibility, especially for aligning forks with container slots

5. Global Service & Support

• TCM’s worldwide authorized dealer network provides 24/7 genuine parts supply and on-site service
• Free operator and maintenance training at local TCM service centers
• Multilingual documentation and technical support available globally

Typical Application Scenarios

1. Port & Shipping Operations

• Container loading/unloading from ships and trucks
• Yard stacking of heavy cargo and container handling

2. Mining & Quarry Operations

• Transporting ore, rock, and aggregate from extraction sites to processing plants
• Stockpiling and loading minerals onto trucks and trains

3. Construction & Infrastructure Projects

• Heavy construction material (steel beams, concrete blocks) handling
• Equipment transport and site preparation for large-scale projects

4. Steel & Manufacturing Plants

• Raw material and finished product handling in steel mills and foundries
• Heavy component transport on production lines

5. Heavy Logistics & Warehousing

• Bulk cargo stacking in large-scale warehouses and distribution centers
• Heavy machinery and equipment transport in industrial yards

Foreign Trade Service Guarantee

1. Customization Options

• Mast options (3m–8m lift height), fork lengths (1.5m–3m), and attachment quick hitch
• Tire options (standard heavy-duty, off-road), auxiliary hydraulics, and container spreaders
• Cold/hot climate packages, cab pressurization, rearview camera, and beacon lights
• Multilingual operator manuals and documentation

2. Inspection & Certification

• Pre-shipment inspection by SGS, BV, or other international third-party institutions
• Export documents: CO (Certificate of Origin), Form E/F, Bill of Lading
• Compliance with global standards: ISO, CE, EPA Tier 2

3. Warranty & Training

• 1-year or 2,000-hour global warranty covering major components (engine, hydraulics, transmission)
• Free on-site or factory training for operators and maintenance staff
• 24/7 technical support via phone, email, or video call

4. Spare Parts & After-Sales

• Fast delivery of genuine TCM parts via global distribution hubs
• Consignment stock available for key markets to ensure quick availability
• Long-term maintenance contracts tailored to customer needs

Why Choose TCM FD250 Forklift?

The TCM FD250 25-ton heavy-duty forklift blends TCM’s engineering heritage with modern heavy material-handling demands. Its powerful Mitsubishi 6D24T engine, load-sensing hydraulics, and robust design make it unbeatable for ports, mining, and construction operations. The ergonomic, safe cab, durable build quality, and global service network ensure minimal downtime and maximum return on investment. For businesses needing a versatile, durable, high-performance 25-ton forklift, the TCM FD250 is the ultimate solution.

Contact Us

For real-time pricing, mast/attachment customization, bulk order discounts, or door-to-door shipping quotes, contact our professional foreign trade team. We offer competitive prices, flexible payment terms (LC, TT, DP), and reliable global logistics to ensure your equipment arrives on time, ready to work. Our one-stop service from consultation to after-sales support will help you streamline operations and grow your business.
